LH102V-SMMDS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1993
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

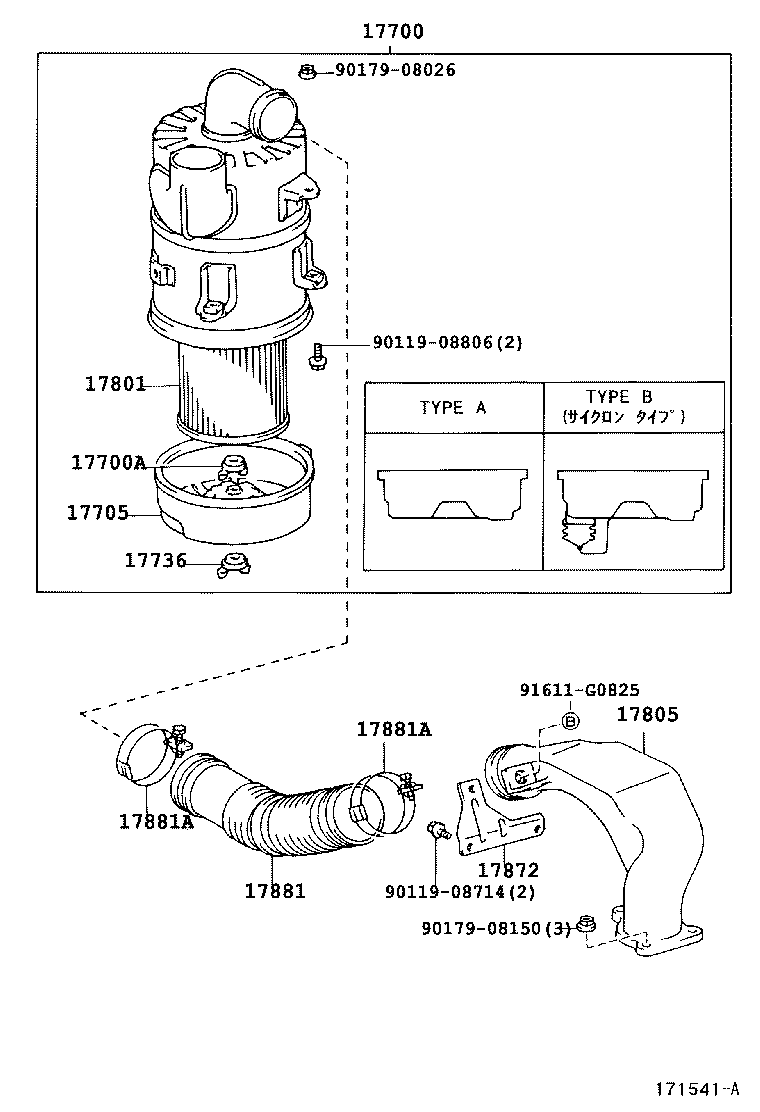

ILLUST NO. 1 OF 2(8908-9308)2L

Click highlighted areas on diagram

diagram 17700 17700A 17705 17736 17801 17805 17872 17881 17881A 17881A 9011908714 9011908806 9017908026 9017908150 91611G0825
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-54560

2L,3L..LH10#,11#,123,125,129

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
17700-54580

2L,3L..LH10#,11#,123,125,129

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ, ｻｲｸﾛﾝﾀｲﾌﾟ

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-75020

2L,2LT#,3L..LH10#,11#,12#,140

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ, ｻｲｸﾛﾝﾀｲﾌﾟ

 1
17705-75010

2L,2LT#,3L..LH10#,11#,12#,140

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
17736 - NUT, AIR CLEANER CASE
90175-06003

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-54100

2L,3L,5L..LH10#,11#,123,125,129,140,16#,17#,18#

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-54180

2L,3L..LH100,102,103,109,110,113,115,119,123,125,129,140

 1
17872 - BRACKET, INTAKE AIR CONNECTOR
17872-54030

2L,3L,5L..LH10#,11#,123,125,129,140,16#,17#,18#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-54420

2L..LH100,102,110,140

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

2L..LH100,102,110,140

ｴｱｸﾘｰﾅ側

 1
96111-10800

2L,3L..LH10#,11#,123,125,129

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

2L..LH100,102,110,140

ｴｱｸﾘｰﾅ側

 1
96111-10800

2L,3L..LH10#,11#,123,125,129

 2
Common parts
90119-08714
90119-08806
90179-08026
90179-08150
91611-G0825

ILLUST NO. 2 OF 2(8908-9808)2L,2LT#,3L

Click highlighted areas on diagram

diagram 17764 17911 17912 17912 17913 52829 53955A 5744295700 9010906209 9016440072 9018904085 9046001056 9048016027 9056010064 9165160614 9611110750 9611110750 9611110750 9611110750
Part # Description Qty Price
17764 - DUCT, AIR CLEANER
52811-95J00

2L,2LT#,3L..LH10#,11#,12#,140

 1
17911 - DUCT, COOL AIR INTAKE, NO.1
52814-95J00

2L,2LT#,3L..LH10#,11#,12#,140

 1
17912 - DUCT, COOL AIR INTAKE, NO.2
52815-95J00

2L,2LT#,3L..LH10#,11#,12#,140

NO.1

 1
52820-95J00

2L,2LT#,3L..LH10#,11#,12#,140

NO.2

 1
17912 - DUCT, COOL AIR INTAKE, NO.2
52815-95J00

2L,2LT#,3L..LH10#,11#,12#,140

NO.1

 1
52820-95J00

2L,2LT#,3L..LH10#,11#,12#,140

NO.2

 1
17913 - DUCT, COOL AIR INTAKE, NO.3
52830-95J00

2L,2LT#,3L..LH10#,11#,12#,140

 1
52829 - GRILLE, COOL AIR INTAKE
52829-95J0001

LH102,103,109,113,119..SRF..DX

BLACK,045 ,4L2 ,8E2

 1
53955A - CUSHION, AIR CLEANER INLET NO.1
53955-95402

LH10#,11#,12#,140,16#,17#,18#

 1
Common parts
57442-95700
90109-06209
90164-40072
90189-04085
90460-01056
90480-16027
90560-10064
91651-60614
96111-10750
