LH102V-SFMBS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1993
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- ) ; (9010-9308)LH140

Click highlighted areas on diagram

diagram 6199126010 6199226010 62211 62211 62212 62212 62313D 62314D 62413A 62413C 62414A 62424F 62510P 62510P 62511B 62520C 62520C 62520D 62520D 62580B 62580B 62587D 62588B 62588B 62630P 62630P 62630P 62640P 62640P 62640P 64707C 6777112050 6777116080 6777126010 6777130070 6777189109 6777195705 6777295J02 6792195500 6792195500 6792195500 7451 7456 75023 75024 9018905015 9018905019 9046709182 9046805047 9046805096 9163140612 9163140620 9354056014 9356056012 9356056016 9356615512
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62211-95J0703

LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S)

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,GRAY,TRIM1#

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-95J0703

LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S)

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,GRAY,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-95J0703

LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S)

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,GRAY,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-95J0703

LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S)

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,GRAY,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-95J0103

LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S

GRAY,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-95J0103

LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S

GRAY,TRIM1#

 1
62520C - CLIP, QUARTER TRIM BOARD, NO.1
90467-1003416

LH102..4D..DX;RZH102..5D..CD;LH109,RZH102..DX;LH102..5D..(CD,DX)

BROWN,TRIM1#

 14
90467-1003416

LH102,109..4D..DX;RZH102..4D..(CD,DX);LH102,RZH102..5D..CD

BROWN,TRIM1#

 14
62520C - CLIP, QUARTER TRIM BOARD, NO.1
90467-1003416

LH102..4D..DX;RZH102..5D..CD;LH109,RZH102..DX;LH102..5D..(CD,DX)

BROWN,TRIM1#

 14
90467-1003416

LH102,109..4D..DX;RZH102..4D..(CD,DX);LH102,RZH102..5D..CD

BROWN,TRIM1#

 14
62520D - CLIP, QUARTER TRIM BOARD, NO.2
90467-1003416

LH102,109..4D..DX;RZH102..4D..(CD,DX);LH102,RZH102..5D..CD

BROWN,TRIM1#

 12
90467-1003416

LH102..4D..DX;RZH102..5D..CD;LH109,RZH102..DX;LH102..5D..(CD,DX)

BROWN,TRIM1#

 12
62520D - CLIP, QUARTER TRIM BOARD, NO.2
90467-1003416

LH102,109..4D..DX;RZH102..4D..(CD,DX);LH102,RZH102..5D..CD

BROWN,TRIM1#

 12
90467-1003416

LH102..4D..DX;RZH102..5D..CD;LH109,RZH102..DX;LH102..5D..(CD,DX)

BROWN,TRIM1#

 12
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62631-95J28

LH102,103,109,16#,RZH102..V1..(CD,DX)

 1
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62631-95J28

LH102,103,109,16#,RZH102..V1..(CD,DX)

 1
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62631-95J28

LH102,103,109,16#,RZH102..V1..(CD,DX)

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62632-95J35

LH102,103,RZH102..CD

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62632-95J35

LH102,103,RZH102..CD

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62632-95J35

LH102,103,RZH102..CD

 1
64707C - KNOB, JACK COVER
64769-1301043

LH102,109,113,119,RZH102,112..5D

GRAY,TRIM1#

 2
75023 - LID SUB-ASSY, TOOL BOX, RH
75023-95J0003

LH102,109,113,119,RZH102,112..V1..5D

GRAY,TRIM1#

 1
75024 - LID SUB-ASSY, TOOL BOX, LH
75024-95J0003

LH102,109,113,119,123,129,140,RZH102,112,122..(V1,WG)..(03S,06S)

GRAY,TRIM1#

 1
Common parts
61991-26010
61992-26010
67771-12050
67771-16080
67771-26010
67771-30070
67771-89109
67771-95705
67772-95J02
67921-95500
90189-05015
90189-05019
90467-09182
90468-05047
90468-05096
91631-40612
91631-40620
93540-56014
93560-56012
93560-56016
93566-15512
Linked diagrams
7451
7456

ILLUST NO. 1 OF 2(8908- )CTM ; (9005- )LH113..V1..DX ; (9308- )KZH11# ; (9808- )KZH10#,L

Click highlighted areas on diagram

LH113:ｷｬﾝﾋﾟﾝｸﾞｶ- KZH11#:ｸﾞﾗﾝﾄﾞｷｬﾋﾞﾝ

diagram 62211 62212 62313D 62314D 62411B 62411J 62412B 62413A 62413C 62414A 62424F 62425 62465 62466 62471E 62472E 62508A 62510P 62571A 62572A 62573A 62574A 62580B 62581F 62581F 62581G 62582G 62630P 62632D 62633C 62640P 6777116080 6777126200 6777126210 6777195J04 6792195500 6792195500 7152 7456 9018304035 9018905019 9046708120 9046708125 9046709130 9046710162 9046805047 9046805096 9354046016 9356056012
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62211-95J0703

LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S)

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,GRAY,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-95J0703

LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S)

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,GRAY,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-95J0103

LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S

GRAY,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-95J0103

LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S

GRAY,TRIM1#

 1
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62631-95J28

LH102,103,109,16#,RZH102..V1..(CD,DX)

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62632-95J35

LH102,103,RZH102..CD

 1
Common parts
67771-16080
67771-26200
67771-26210
67771-95J04
67921-95500
90183-04035
90189-05019
90467-08120
90467-08125
90467-09130
90467-10162
90468-05047
90468-05096
93540-46016
93560-56012
Linked diagrams
7152
7456

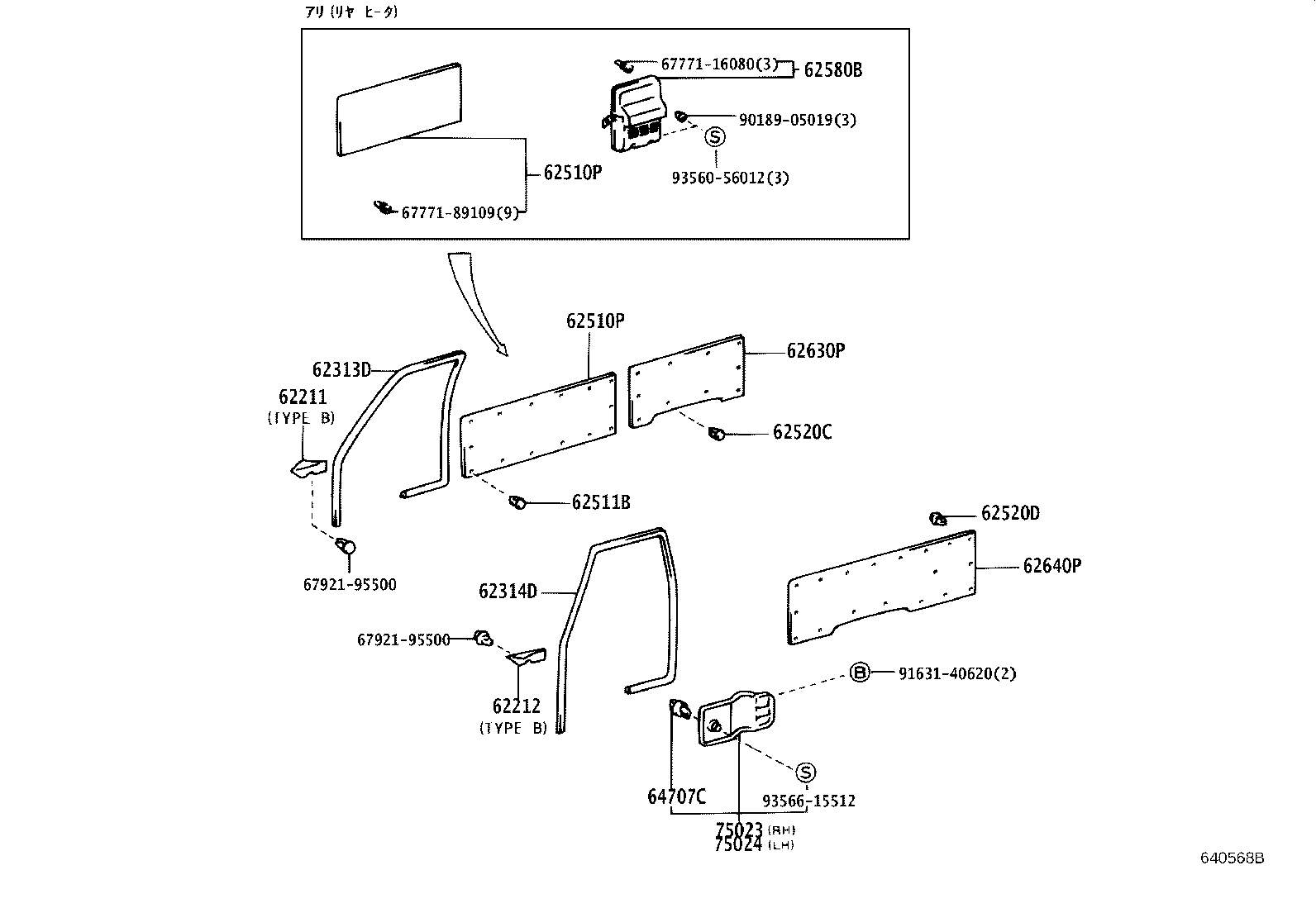

(8908- )KZH13#,LH102,103,113,119,162,17#,RZH102,112,TRH102,112..03S

Click highlighted areas on diagram

diagram 62211 62212 62313D 62314D 62510P 62510P 62511B 62520C 62520D 62580B 62630P 62640P 64707C 6777116080 6777189109 6792195500 6792195500 75023 75024 9018905019 9163140620 9356056012 9356615512
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62211-95J0703

LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S)

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,GRAY,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-95J0703

LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S)

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,GRAY,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-95J0103

LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S

GRAY,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-95J0103

LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S

GRAY,TRIM1#

 1
62520C - CLIP, QUARTER TRIM BOARD, NO.1
90467-1003416

LH102..4D..DX;RZH102..5D..CD;LH109,RZH102..DX;LH102..5D..(CD,DX)

BROWN,TRIM1#

 14
90467-1003416

LH102,109..4D..DX;RZH102..4D..(CD,DX);LH102,RZH102..5D..CD

BROWN,TRIM1#

 14
62520D - CLIP, QUARTER TRIM BOARD, NO.2
90467-1003416

LH102,109..4D..DX;RZH102..4D..(CD,DX);LH102,RZH102..5D..CD

BROWN,TRIM1#

 12
90467-1003416

LH102..4D..DX;RZH102..5D..CD;LH109,RZH102..DX;LH102..5D..(CD,DX)

BROWN,TRIM1#

 12
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62631-95J28

LH102,103,109,16#,RZH102..V1..(CD,DX)

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62632-95J35

LH102,103,RZH102..CD

 1
64707C - KNOB, JACK COVER
64769-1301043

LH102,109,113,119,RZH102,112..5D

GRAY,TRIM1#

 2
75023 - LID SUB-ASSY, TOOL BOX, RH
75023-95J0003

LH102,109,113,119,RZH102,112..V1..5D

GRAY,TRIM1#

 1
75024 - LID SUB-ASSY, TOOL BOX, LH
75024-95J0003

LH102,109,113,119,123,129,140,RZH102,112,122..(V1,WG)..(03S,06S)

GRAY,TRIM1#

 1
Common parts
67771-16080
67771-89109
67921-95500
90189-05019
91631-40620
93560-56012
93566-15512

(8908- )KZH100,11#,13#,LH100,110,117,120,16#,17#,18#,RZH100,102,11#,12#,133,18#.

Click highlighted areas on diagram

diagram 56153A 62211 62212 62313D 62314D 62413A 62413C 62414A 62414A 62422 62424F 62425 62510P 62580B 62630P 62640P 66990A 66995A 6777116080 6777116080 6777126010 6777189109 6777195705 6792195500 6792195500 7456 9018905019 9046708120 9046708125 9046805047 9321955016 9356056012
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62211-95J0703

LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S)

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,GRAY,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-95J0703

LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S)

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,GRAY,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-95J0103

LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S

GRAY,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-95J0103

LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S

GRAY,TRIM1#

 1
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62631-95J28

LH102,103,109,16#,RZH102..V1..(CD,DX)

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62632-95J35

LH102,103,RZH102..CD

 1
Common parts
67771-16080
67771-26010
67771-89109
67771-95705
67921-95500
90189-05019
90467-08120
90467-08125
90468-05047
93219-55016
93560-56012
Linked diagrams
7456
