Toyota Hiace/regiusace LH102 ALTERNATOR

LH102V-RRMNS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1993

Engine 2L

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8908-9308)2L,3L

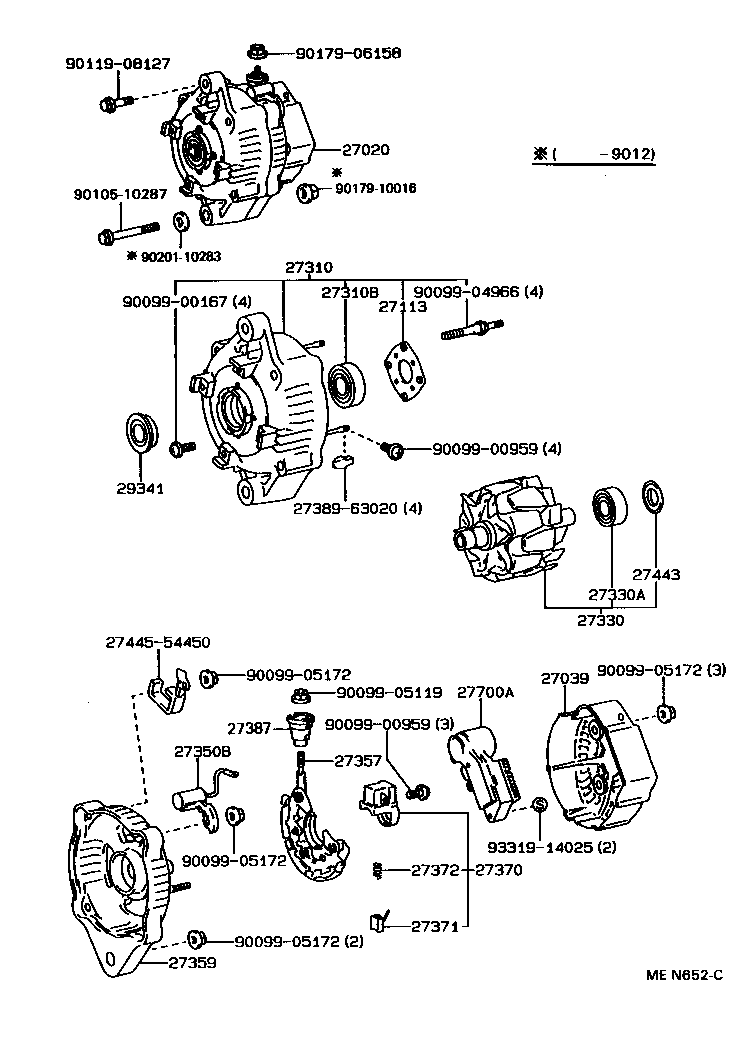

Click highlighted areas on diagram

12V 60A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-54070	3L..LH113..09S..DX;2L,3L..LH102,109,113,119..5F..(GL,SGL);2L,3L..LH100,110,115,119,123,125..09S,10S,15S 12V 70A	08/1989 - 05/1990	1
27060-54070	3L..LH113..5D..5F..GL;3L..LH113..V1..SRF..4D..5F..(DX,GL);2L,3L..LH102,109,119,140..5F..(GL,SGL,SW);2L,3L..LH100,110,115,119,123,125..09S,10S,15S 12V 70A	05/1990 - 08/1993	1
27039 - COVER, ALTERNATOR REAR END
27039-42010	3L..LH113..09S..DX;2L,3L..LH102,109,113,119..GL,SGL;1RZ#..RZH100,102,112..(V1,WG)..4FC;2L#,3L,2RZE..LH100,107,110,115,119,120,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) 12V 70A	08/1989 - 05/1990	1
27039-16310	3L..LH113..5D..GL;3L..LH113..09S..5F;3L..LH113..V1..SRF..4D..(05S,06S);2L,3L..LH102,109,119,140..GL,SGL,SW;2L#,3L..LH100,107,110,115,117,119,120,123,125..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) 12V 70A	09/1991 - 08/1993	1
27039-42010	3L..LH113..5D..GL;1RZ#..RZH100,102,112..(V1,WG)..4FC;3L..LH113..V1..SRF..4D..(DX,GL,SGL);2L,3L..LH102,109,119,140..GL,SGL,SW;2L,2LT#,3L,2RZE..LH100,107,110,115,117,119,120,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) 12V 70A	05/1990 - 09/1991	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-64130	2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#	08/1989 - 07/1999	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-54470	3L..LH113..09S..DX;2L,3L..LH102,109,113,119..GL,SGL;2L#,3L..LH100,107,110,115,119,120,123,125..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM)	08/1989 - 05/1990	1
27310-54470	3L..LH113..5D..GL;3L..LH113..09S..5F;3L..LH113..V1..SRF..4D..(05S,06S);2L,3L..LH102,109,119,140..GL,SGL,SW;2L,2LT#,3L..LH100,107,110,115,117,119,120,123,125..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) 12V 70A	05/1990 - 08/1993	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10165	2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#	08/1989 - 07/1999	1
27330 - ROTOR ASSY, ALTERNATOR
27330-64190	3L..LH113..09S..DX;2L,3L..LH102,109,113,119..GL,SGL;2L#,3L..LH100,107,110,115,119,120,123,125..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM)	08/1989 - 05/1990	1
27330-64190	3L..LH113..5D..GL;3L..LH113..09S..5F;3L..LH113..V1..SRF..4D..(05S,06S);2L,3L..LH102,109,119,140..GL,SGL,SW;2L,2LT#,3L..LH100,107,110,115,117,119,120,123,125..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) 12V 70A	05/1990 - 08/1993	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	1RZ..RZH102,112;1RZE..RZH112..09S;1RZE..RZH102,112..4FC;1KZTE,2L,2LT#,3L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH100,101,110,111,12#,133	08/1989 - 08/1996	1
27350B - CONDENSER, ALTERNATOR
90099-52115	3L..LH123;2L,3L..LH102,113..4FC..DX;2L,3L..LH100,102,109,110,113,115,119,125,129,140..5F	10/1990 - 09/1991	1
90099-52115	2L#,3L..LH10#,11#,12#	08/1989 - 10/1990	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-62040	3L..LH113..09S..DX;2L,3L..LH102,109,113,119..5F..(GL,SGL);2L,3L..LH100,110,115,119,123,125..09S,10S,15S 12V 70A	08/1989 - 09/1989	1
27357-62040	3L..LH113..09S..DX;1RZ#..RZH100,102,112..(V1,WG)..4FC;2L,3L..LH102,109,113,119..5F..(GL,SGL);2L,3L,2RZE..LH100,110,115,119,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) 12V 70A	09/1989 - 05/1990	1
27357-55080	3L..LH113..5D..5F..GL;3L..LH113..V1..SRF..4D..5F..(DX,GL);2L,3L..LH102,109,119,140..5F..(GL,SGL,SW);2L,3L..LH100,110,115,119,123,125..09S,10S,15S 12V 70A	09/1991 - 08/1993	1
27357-62040	3L..LH113..5D..5F..GL;1RZ#..RZH100,102,112..(V1,WG)..4FC;3L..LH113..V1..SRF..4D..5F..(DX,GL);2L,3L..LH102,109,119,140..5F..(GL,SGL,SW);2L,3L,2RZE..LH100,110,115,119,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) 12V 70A	05/1990 - 09/1991	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-54420	3L..LH113..09S..DX;2L,3L..LH102,109,113,119..GL,SGL;2L#,3L..LH100,107,110,115,119,120,123,125..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM)	08/1989 - 05/1990	1
27359-54420	3L..LH113..5D..GL;3L..LH113..09S..5F;3L..LH113..V1..SRF..4D..(05S,06S);2L,3L..LH102,109,119,140..GL,SGL,SW;2L,2LT#,3L..LH100,107,110,115,117,119,120,123,125..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) 12V 70A	05/1990 - 08/1993	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060	3L..LH113..5D..GL;3L..LH113..09S..5F;3L..LH113..V1..SRF..4D..(05S,06S);2L,2LT#,3L..LH10#,119,140..CTM,GL,SCL,SCM,SCMM,SGL,SW;2L,2LT#,3L,1RZ..LH100,110,115,117,119,120,123,125,RZH124..09S,10S,15S 12V 70A	05/1990 - 08/1993	1
27370-75060	3L..LH113..09S..DX;2L,3L..LH102,109,113,119..GL,SGL;2L#,3L..LH100,107,110,115,119,120,123,125..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM)	08/1989 - 05/1990	1
27387 - INSULATOR, TERMINAL
27387-42020	3L..LH113..09S..DX;2L,3L..LH102,109,113,119..GL,SGL;1RZ#..RZH100,102,112..(V1,WG)..4FC;2L#,3L,2RZE..LH100,107,110,115,119,120,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM)	08/1989 - 05/1990	1
27387-42020	3L..LH113..5D..5F..GL;1RZ#..RZH100,102,112..(V1,WG)..4FC;3L..LH113..V1..SRF..4D..5F..(DX,GL);2L,3L..LH102,109,119,140..5F..(GL,SGL,SW);2L,3L,2RZE..LH100,110,115,119,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) 12V 70A	10/1990 - 08/1993	1
27387-42020	3L..LH113..5D..GL;2L,3L..LH102,109,119..GL,SGL;1RZ#..RZH100,102,112..(V1,WG)..4FC;3L..LH113..V1..SRF..4D..(DX,GL,SGL);2L#,3L,2RZE..LH100,107,110,115,119,120,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) 12V 70A	05/1990 - 10/1990	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	1KZTE,2L,2LT#,3L,5L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 12V 70A	08/1989 - 07/1999	1
27700A - REGULATOR ASSY, GENERATOR
27700-54050	2L#,3L..LH10#,11#,12#,140	01/1992 - 08/1993	1
27700-10061	2L,2LT#,3L..LH10#,11#,12#,140	08/1989 - 01/1992	1
29341 - SEAL, ALTERNATOR OIL
29341-64130	2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# 12V 70A	08/1989 - 07/1999	1
Common parts
27389-63020
27445-54450
90099-00167
90099-00959
90099-04966
90099-05119
90099-05172
90105-10287
90119-08127
90179-06158
90179-10016
90201-10283
93319-14025

(8908-9308)2L,2LT#,3L

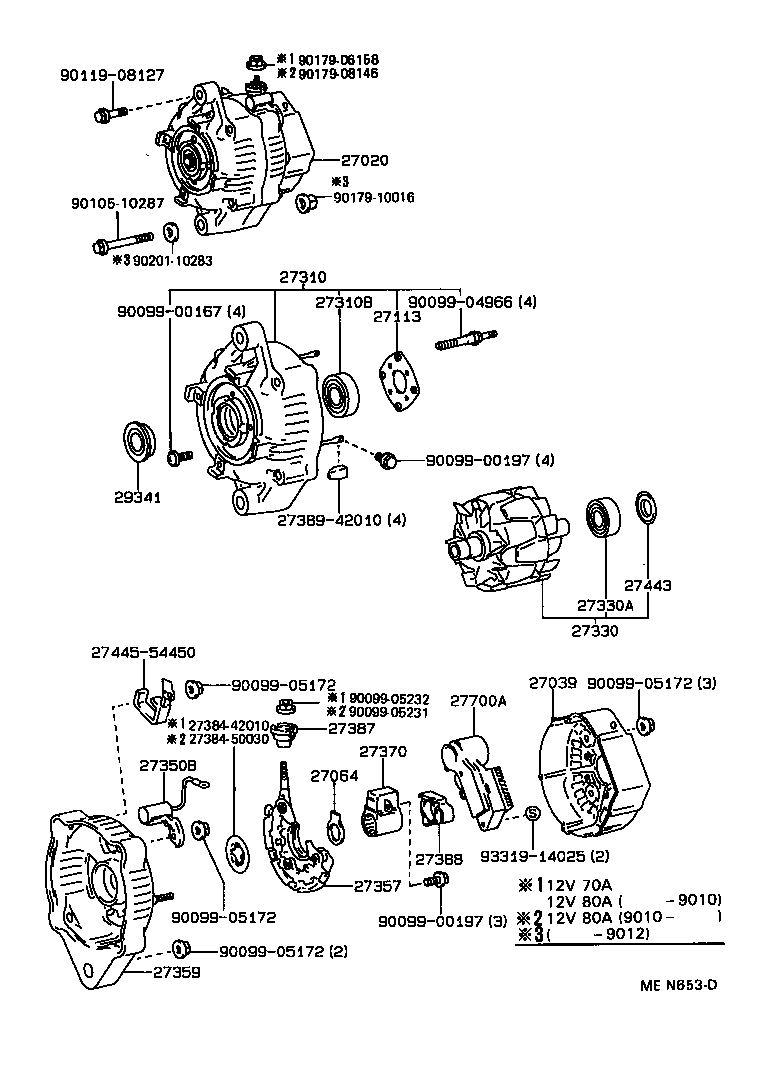

Click highlighted areas on diagram

12V 70A,80A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-54070	3L..LH113..09S..DX;2L,3L..LH102,109,113,119..5F..(GL,SGL);2L,3L..LH100,110,115,119,123,125..09S,10S,15S 12V 70A	08/1989 - 05/1990	1
27060-54070	3L..LH113..5D..5F..GL;3L..LH113..V1..SRF..4D..5F..(DX,GL);2L,3L..LH102,109,119,140..5F..(GL,SGL,SW);2L,3L..LH100,110,115,119,123,125..09S,10S,15S 12V 70A	05/1990 - 08/1993	1
27039 - COVER, ALTERNATOR REAR END
27039-42010	3L..LH113..09S..DX;2L,3L..LH102,109,113,119..GL,SGL;1RZ#..RZH100,102,112..(V1,WG)..4FC;2L#,3L,2RZE..LH100,107,110,115,119,120,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) 12V 70A	08/1989 - 05/1990	1
27039-16310	3L..LH113..5D..GL;3L..LH113..09S..5F;3L..LH113..V1..SRF..4D..(05S,06S);2L,3L..LH102,109,119,140..GL,SGL,SW;2L#,3L..LH100,107,110,115,117,119,120,123,125..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) 12V 70A	09/1991 - 08/1993	1
27039-42010	3L..LH113..5D..GL;1RZ#..RZH100,102,112..(V1,WG)..4FC;3L..LH113..V1..SRF..4D..(DX,GL,SGL);2L,3L..LH102,109,119,140..GL,SGL,SW;2L,2LT#,3L,2RZE..LH100,107,110,115,117,119,120,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) 12V 70A	05/1990 - 09/1991	1
27064 - SEAL, ALTERNATOR PLATE
27064-42010	1RZ..RZH122..06S;3L..LH113..09S..DX;2L,3L..LH102,109,113,119..GL,SGL;1RZ#..RZH100,102,112..(V1,WG)..4FC;2L#,3L,1RZ,2RZE..LH100,107,110,115,119,120,123,125,RZH101,124..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM)	01/1990 - 05/1990	1
27064-42010	3L..LH113..09S..DX;2L,3L..LH102,109,113,119..GL,SGL;1RZ#..RZH100,102,112..(V1,WG)..4FC;2L#,3L,2RZE..LH100,107,110,115,119,120,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM)	08/1989 - 01/1990	1
27064-42010	1RZ..RZH122..06S;3L..LH113..5D..GL;3L..LH113..09S..5F;3L..LH113..V1..SRF..4D..(05S,06S);1RZ#..RZH100,102,112..(V1,WG)..4FC;2L,2LT#,3L,2RZE..LH10#,119,140,RZH101..CTM,GL,SCL,SCM,SCMM,SGL,SW;2L,2LT#,3L,1RZ..LH100,110,115,117,119,120,123,125,RZH124..09S,10S,15S	05/1990 - 08/1993	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-64130	2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#	08/1989 - 07/1999	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-54470	3L..LH113..09S..DX;2L,3L..LH102,109,113,119..GL,SGL;2L#,3L..LH100,107,110,115,119,120,123,125..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM)	08/1989 - 05/1990	1
27310-54470	3L..LH113..5D..GL;3L..LH113..09S..5F;3L..LH113..V1..SRF..4D..(05S,06S);2L,3L..LH102,109,119,140..GL,SGL,SW;2L,2LT#,3L..LH100,107,110,115,117,119,120,123,125..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) 12V 70A	05/1990 - 08/1993	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10165	2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#	08/1989 - 07/1999	1
27330 - ROTOR ASSY, ALTERNATOR
27330-64190	3L..LH113..09S..DX;2L,3L..LH102,109,113,119..GL,SGL;2L#,3L..LH100,107,110,115,119,120,123,125..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM)	08/1989 - 05/1990	1
27330-64190	3L..LH113..5D..GL;3L..LH113..09S..5F;3L..LH113..V1..SRF..4D..(05S,06S);2L,3L..LH102,109,119,140..GL,SGL,SW;2L,2LT#,3L..LH100,107,110,115,117,119,120,123,125..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) 12V 70A	05/1990 - 08/1993	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	1RZ..RZH102,112;1RZE..RZH112..09S;1RZE..RZH102,112..4FC;1KZTE,2L,2LT#,3L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH100,101,110,111,12#,133	08/1989 - 08/1996	1
27350B - CONDENSER, ALTERNATOR
90099-52115	3L..LH123;2L,3L..LH102,113..4FC..DX;2L,3L..LH100,102,109,110,113,115,119,125,129,140..5F	10/1990 - 09/1991	1
90099-52115	2L#,3L..LH10#,11#,12#	08/1989 - 10/1990	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-62040	3L..LH113..09S..DX;2L,3L..LH102,109,113,119..5F..(GL,SGL);2L,3L..LH100,110,115,119,123,125..09S,10S,15S 12V 70A	08/1989 - 09/1989	1
27357-62040	3L..LH113..09S..DX;1RZ#..RZH100,102,112..(V1,WG)..4FC;2L,3L..LH102,109,113,119..5F..(GL,SGL);2L,3L,2RZE..LH100,110,115,119,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) 12V 70A	09/1989 - 05/1990	1
27357-55080	3L..LH113..5D..5F..GL;3L..LH113..V1..SRF..4D..5F..(DX,GL);2L,3L..LH102,109,119,140..5F..(GL,SGL,SW);2L,3L..LH100,110,115,119,123,125..09S,10S,15S 12V 70A	09/1991 - 08/1993	1
27357-62040	3L..LH113..5D..5F..GL;1RZ#..RZH100,102,112..(V1,WG)..4FC;3L..LH113..V1..SRF..4D..5F..(DX,GL);2L,3L..LH102,109,119,140..5F..(GL,SGL,SW);2L,3L,2RZE..LH100,110,115,119,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) 12V 70A	05/1990 - 09/1991	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-54420	3L..LH113..09S..DX;2L,3L..LH102,109,113,119..GL,SGL;2L#,3L..LH100,107,110,115,119,120,123,125..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM)	08/1989 - 05/1990	1
27359-54420	3L..LH113..5D..GL;3L..LH113..09S..5F;3L..LH113..V1..SRF..4D..(05S,06S);2L,3L..LH102,109,119,140..GL,SGL,SW;2L,2LT#,3L..LH100,107,110,115,117,119,120,123,125..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) 12V 70A	05/1990 - 08/1993	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060	3L..LH113..5D..GL;3L..LH113..09S..5F;3L..LH113..V1..SRF..4D..(05S,06S);2L,2LT#,3L..LH10#,119,140..CTM,GL,SCL,SCM,SCMM,SGL,SW;2L,2LT#,3L,1RZ..LH100,110,115,117,119,120,123,125,RZH124..09S,10S,15S 12V 70A	05/1990 - 08/1993	1
27370-75060	3L..LH113..09S..DX;2L,3L..LH102,109,113,119..GL,SGL;2L#,3L..LH100,107,110,115,119,120,123,125..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM)	08/1989 - 05/1990	1
27387 - INSULATOR, TERMINAL
27387-42020	3L..LH113..09S..DX;2L,3L..LH102,109,113,119..GL,SGL;1RZ#..RZH100,102,112..(V1,WG)..4FC;2L#,3L,2RZE..LH100,107,110,115,119,120,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM)	08/1989 - 05/1990	1
27387-42020	3L..LH113..5D..5F..GL;1RZ#..RZH100,102,112..(V1,WG)..4FC;3L..LH113..V1..SRF..4D..5F..(DX,GL);2L,3L..LH102,109,119,140..5F..(GL,SGL,SW);2L,3L,2RZE..LH100,110,115,119,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) 12V 70A	10/1990 - 08/1993	1
27387-42020	3L..LH113..5D..GL;2L,3L..LH102,109,119..GL,SGL;1RZ#..RZH100,102,112..(V1,WG)..4FC;3L..LH113..V1..SRF..4D..(DX,GL,SGL);2L#,3L,2RZE..LH100,107,110,115,119,120,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) 12V 70A	05/1990 - 10/1990	1
27388 - COVER, ALTERNATOR BRUSH
27388-42010	3L..LH113..09S..DX;2L,3L..LH102,109,113,119..GL,SGL;1RZ#..RZH100,102,112..(V1,WG)..4FC;2L#,3L,2RZE..LH100,107,110,115,119,120,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM)	08/1989 - 01/1990	1
27388-42010	1RZ..RZH122..06S;3L..LH113..09S..DX;2L,3L..LH102,109,113,119..GL,SGL;1RZ#..RZH100,102,112..(V1,WG)..4FC;2L#,3L,1RZ,2RZE..LH100,107,110,115,119,120,123,125,RZH101,124..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM)	01/1990 - 05/1990	1
27388-42010	1RZ..RZH122..06S;3L..LH113..5D..GL;3L..LH113..09S..5F;3L..LH113..V1..SRF..4D..(05S,06S);1RZ#..RZH100,102,112..(V1,WG)..4FC;2L,2LT#,3L,2RZE..LH10#,119,140,RZH101..CTM,GL,SCL,SCM,SCMM,SGL,SW;2L,2LT#,3L,1RZ..LH100,110,115,117,119,120,123,125,RZH124..09S,10S,15S	05/1990 - 08/1993	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	1KZTE,2L,2LT#,3L,5L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 12V 70A	08/1989 - 07/1999	1
27700A - REGULATOR ASSY, GENERATOR
27700-54050	2L#,3L..LH10#,11#,12#,140	01/1992 - 08/1993	1
27700-10061	2L,2LT#,3L..LH10#,11#,12#,140	08/1989 - 01/1992	1
29341 - SEAL, ALTERNATOR OIL
29341-64130	2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18# 12V 70A	08/1989 - 07/1999	1
Common parts
27384-42010
27384-50030
27389-42010
27445-54450
90099-00167
90099-00197
90099-04966
90099-05172
90099-05231
90099-05232
90105-10287
90119-08127
90179-06158
90179-08146
90179-10016
90201-10283
93319-14025

LH102V-RRMNS (1989)

(8908-9308)2L,3L

(8908-9308)2L,2LT#,3L
