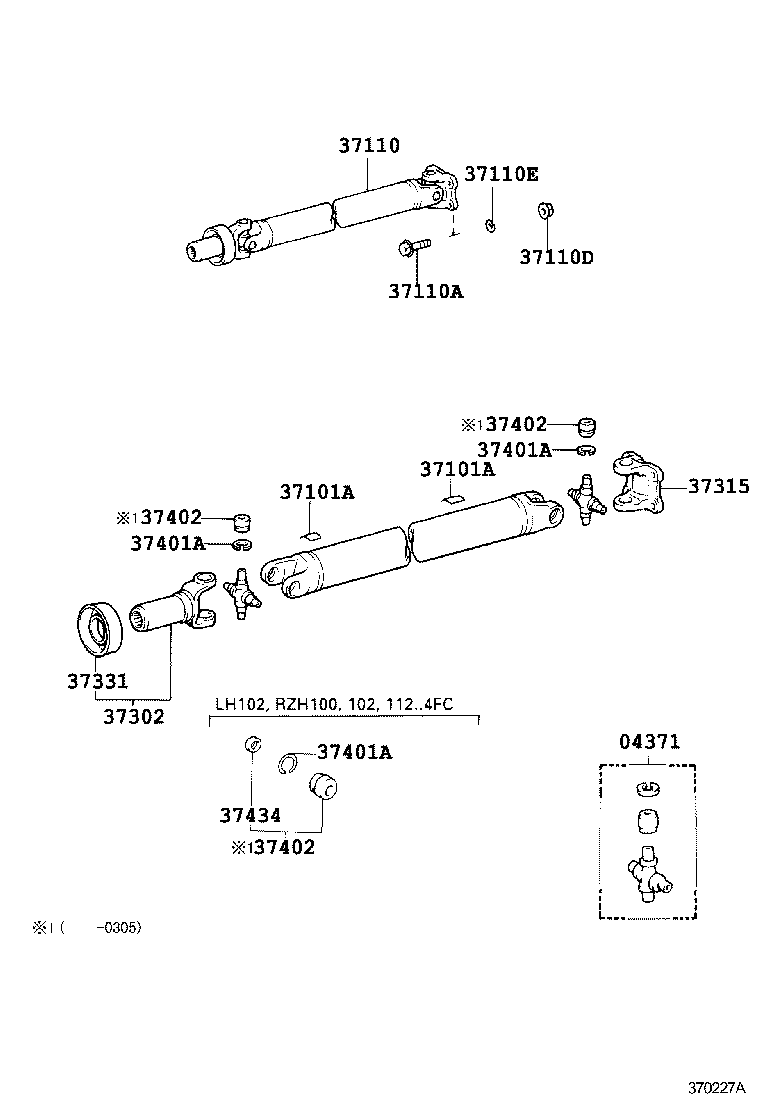

LH102V-RRMDS (1989)
Toyota Hiace/Regiusace
(8908- )KZH100,110,LH100,102,103,110,113,115,140,162,172,RZH10#,11#,TRH102,112
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT) | ||||
| 04371-30021 |
LH102,RZH100,102,112..5F;KZH100,110,LH100,103,110,113,115,140,RZH101,110 |
2 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01150 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 8G,長さ=16.6 |
1 | ||
| 90937-01148 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 4G,厚さ=2.0 |
1 | ||
| 90937-01149 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 6G,長さ=12.4 |
1 | ||
| 90937-01132 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 10G,長さ=20.7 |
1 | ||
| 90937-01147 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 2G,厚さ=2.0 |
1 | ||
| 90937-01151 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 12G,長さ=24.9 |
1 | ||
| 90937-01152 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 14G,長さ=29.0 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01150 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 8G,長さ=16.6 |
1 | ||
| 90937-01148 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 4G,厚さ=2.0 |
1 | ||
| 90937-01149 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 6G,長さ=12.4 |
1 | ||
| 90937-01132 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 10G,長さ=20.7 |
1 | ||
| 90937-01147 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 2G,厚さ=2.0 |
1 | ||
| 90937-01151 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 12G,長さ=24.9 |
1 | ||
| 90937-01152 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 14G,長さ=29.0 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-26260 |
LH100,102,140,RZH100,102..(V1,WG)..5F..(CBR,DSL,EFI) |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-10085 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 *10−1.00PX27−13 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-10059 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 |
4 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90204-10002 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 |
4 | ||
| 37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE | ||||
| 37302-35030 |
LH100..4FC..SCMM..TD;LH100..(07S,09S)..(DSL,TD);LH102,110,115,125,140,RZH100,102,110,112,122..5F;LH103,113,123,162,172,182,184,RZH101,111,124,125,133 |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-35040 |
LH100,103,113;KZH100,RZH101,102..(03S,09S)..(EFI,TDE);KZH110,LH102,110,115,140,RZH100,110,112..5F;KZH100,RZH102..(03S,06S,08S)..5F..(CBR,TDE) |
1 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-30010 |
LH100..4FC..SCMM..TD;LH100..(07S,09S)..(DSL,TD);LH102,103,110,113,115,123,125,140,162,172,182,184,RZH10#,11#,12#,133 |
1 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-26038 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.125,ﾏｰｸ 1 |
8 | ||
| 90520-26041 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.225,ﾏｰｸ 3 |
8 | ||
| 90520-26042 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.275,ﾏｰｸ 4 |
8 | ||
| 90520-26044 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.375,ﾏｰｸ 6 |
8 | ||
| 90520-26040 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.175,ﾏｰｸ 2 |
8 | ||
| 90520-26043 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.325,ﾏｰｸ 5 |
8 | ||
| 90520-26046 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.475,ﾏｰｸ 8 |
8 | ||
| 90520-26045 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.425,ﾏｰｸ 7 |
8 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-26038 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.125,ﾏｰｸ 1 |
8 | ||
| 90520-26041 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.225,ﾏｰｸ 3 |
8 | ||
| 90520-26042 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.275,ﾏｰｸ 4 |
8 | ||
| 90520-26044 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.375,ﾏｰｸ 6 |
8 | ||
| 90520-26040 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.175,ﾏｰｸ 2 |
8 | ||
| 90520-26043 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.325,ﾏｰｸ 5 |
8 | ||
| 90520-26046 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.475,ﾏｰｸ 8 |
8 | ||
| 90520-26045 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.425,ﾏｰｸ 7 |
8 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-26038 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.125,ﾏｰｸ 1 |
8 | ||
| 90520-26041 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.225,ﾏｰｸ 3 |
8 | ||
| 90520-26042 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.275,ﾏｰｸ 4 |
8 | ||
| 90520-26044 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.375,ﾏｰｸ 6 |
8 | ||
| 90520-26040 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.175,ﾏｰｸ 2 |
8 | ||
| 90520-26043 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.325,ﾏｰｸ 5 |
8 | ||
| 90520-26046 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.475,ﾏｰｸ 8 |
8 | ||
| 90520-26045 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 厚さ=2.425,ﾏｰｸ 7 |
8 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-30011 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 |
8 | ||
| 37402-30021 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 ﾚｯﾄﾞ ﾍﾟｲﾝﾄ |
8 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-30011 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 |
8 | ||
| 37402-30021 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 ﾚｯﾄﾞ ﾍﾟｲﾝﾄ |
8 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-30011 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 |
8 | ||
| 37402-30021 |
LH102,RZH100,102,112..5F;KZH10#,11#,126,LH100,103,107,109,11#,140,RZH101,110 ﾚｯﾄﾞ ﾍﾟｲﾝﾄ |
8 | ||
