LH102V-RBMBS (1989)
Toyota Hiace/Regiusace

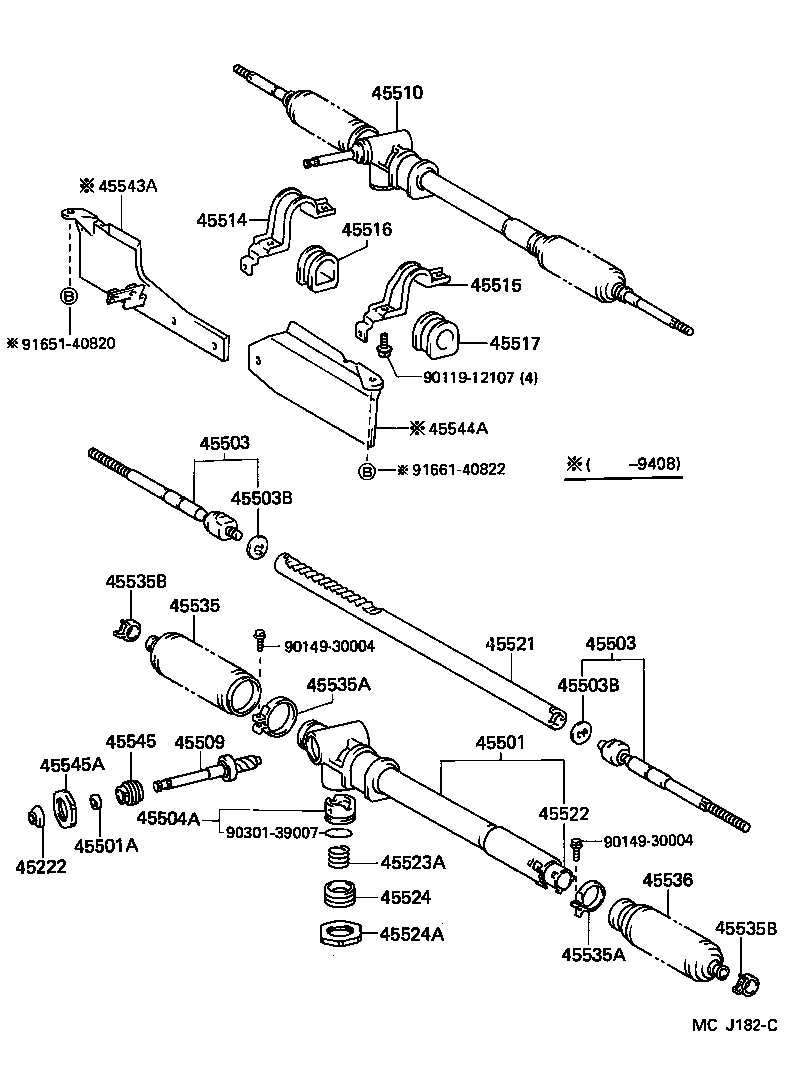

ILLUST NO. 2 OF 4(8908-9308)LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#..03S,05S,06S,08S,09
ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-27012 |
LH100,102,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 04445-27012 |
LH100,102,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-27012 |
KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 04455-27012 |
KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 40120 - GEAR ASSY,POWER STEERING,REBUILT | ||||
| 40120-26040 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S TOYODA KOKI |
1 | ||
| 40120-26040 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S TOYODA KOKI |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-26040 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 44250-26040 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-26020 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| 45514-26020 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-26020 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 |
1 | ||
| 45515-26020 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-26010 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| 45516-26010 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-26030 |
LH102,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45517-26030 |
LH102,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45517-26030 |
LH102,113,RZH102,112..CD ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45517-26030 |
LH102,113,RZH102,112..CD ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45517-26020 |
KZH100,110,120,LH100,102,103,110,113,115,120,123,125,140,RZH10#,11#,12# ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45517-26020 |
KZH100,110,120,LH100,102,103,110,113,115,120,123,125,140,RZH10#,11#,12# ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45517-26030 |
LH102,110,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45517-26030 |
LH102,110,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45543A - PROTECTOR, STEERING RACK BOOT, RH | ||||
| 45543-26010 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 45543-26010 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 45544A - PROTECTOR, STEERING RACK BOOT, LH | ||||
| 45544-26010 |
LH100,102,103,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| 45544-26010 |
LH100,102,103,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| Common parts | ||||
| 90119-12107 | ||||
| Linked diagrams | ||||
| 5352 | ||||
ILLUST NO. 3 OF 4(8908-9308)LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#..03S,05S,06S,08S,09
ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44015A - NUT SUB-ASSY, BEARING GUIDE | ||||
| 44015-22020 |
KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 44015-22020 |
KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 44015B - RING, O(FOR BEARING GUIDE NUT) | ||||
| 90301-43002 |
KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 90301-43002 |
KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 44015C - SEAL, OIL(FOR BEARING GUIDE NUT) | ||||
| 90310-25020 |
LH100,102,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 90310-25020 |
LH100,102,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-26011 |
LH100,102,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 44201-26011 |
LH100,102,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
4 | ||
| 90562-33007 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
4 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-26040 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 44203-26040 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-26030 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| 44204-26030 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-43001 |
LH109,119,RZH101..CTM,GL;LH100,102,107,110,113,115,117,120,123,125,140,RZH100,102,11#,12# 外側 |
1 | ||
| 90562-43001 |
LH109,119,RZH101..CTM,GL;LH100,102,107,110,113,115,117,120,123,125,140,RZH100,102,11#,12# 外側 |
1 | ||
| 90301-39003 |
LH109,119,RZH101..CTM,GL;LH100,102,107,110,113,115,117,120,123,125,140,RZH100,102,11#,12# 内側 |
1 | ||
| 90301-39003 |
LH109,119,RZH101..CTM,GL;LH100,102,107,110,113,115,117,120,123,125,140,RZH100,102,11#,12# 内側 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-43001 |
LH109,119,RZH101..CTM,GL;LH100,102,107,110,113,115,117,120,123,125,140,RZH100,102,11#,12# 外側 |
1 | ||
| 90562-43001 |
LH109,119,RZH101..CTM,GL;LH100,102,107,110,113,115,117,120,123,125,140,RZH100,102,11#,12# 外側 |
1 | ||
| 90301-39003 |
LH109,119,RZH101..CTM,GL;LH100,102,107,110,113,115,117,120,123,125,140,RZH100,102,11#,12# 内側 |
1 | ||
| 90301-39003 |
LH109,119,RZH101..CTM,GL;LH100,102,107,110,113,115,117,120,123,125,140,RZH100,102,11#,12# 内側 |
1 | ||
| 44206J - BUSH(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90386-30001 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| 90386-30001 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-26011 |
LH100,102,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 44210-26011 |
LH100,102,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-04004 |
RZH101..CTM;LH10#,11#,12#,140,RZH100,102,11#,12# ﾎﾟﾝﾌﾟ側 |
2 | ||
| 90410-04004 |
RZH101..CTM;LH10#,11#,12#,140,RZH100,102,11#,12# ﾎﾟﾝﾌﾟ側 |
2 | ||
| 90410-06005 |
RZH101..CTM;LH10#,11#,12#,140,RZH100,102,11#,12# ｷﾞﾔ側 |
2 | ||
| 90410-06005 |
RZH101..CTM;LH10#,11#,12#,140,RZH100,102,11#,12# ｷﾞﾔ側 |
2 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-51001 |
KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 90301-51001 |
KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19002 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 90311-19002 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19003 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 90363-19003 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-12090 |
KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 44211-12090 |
KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-30011 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 90310-30011 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 44253R - SPACER(FOR POWER STEERING RACK HOUSING) | ||||
| 90560-30007 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 90560-30007 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-26020 |
KZH100,110,120,LH100,102,103,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| 44275-26020 |
KZH100,110,120,LH100,102,103,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| 44275B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90310-30011 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 90310-30011 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 44275F - RING, O(FOR CYLINDER END STOPPER) | ||||
| 90301-41004 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 90301-41004 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-28010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 44277-28010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-26040 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 44418-26040 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04002 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 90410-04002 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04002 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 90410-04002 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-26040 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 44419-26040 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-27020 |
LH102,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45222-27020 |
LH102,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45222-27020 |
LH102,113,RZH102,112..CD ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45222-27020 |
LH102,113,RZH102,112..CD ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45222-27020 |
LH102,110,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45222-27020 |
LH102,110,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45222-32010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 45222-32010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29255 |
KZH100,110,120,LH100,102,103,110,113,115,120,123,125,140,RZH10#,11#,12# |
2 | ||
| 45503-29255 |
KZH100,110,120,LH100,102,103,110,113,115,120,123,125,140,RZH10#,11#,12# |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29255 |
KZH100,110,120,LH100,102,103,110,113,115,120,123,125,140,RZH10#,11#,12# |
2 | ||
| 45503-29255 |
KZH100,110,120,LH100,102,103,110,113,115,120,123,125,140,RZH10#,11#,12# |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14005 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 外径=41 |
2 | ||
| 90214-14005 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 外径=41 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14005 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 外径=41 |
2 | ||
| 90214-14005 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 外径=41 |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-28010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 45523-28010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-40021 |
LH102,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 90501-40021 |
LH102,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 90501-23024 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 90501-23024 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 90501-40021 |
LH102,113,RZH102,112..CD ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 90501-40021 |
LH102,113,RZH102,112..CD ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 90501-40021 |
LH102,110,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 90501-40021 |
LH102,110,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-26010 |
LH102,110,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45524-26010 |
LH102,110,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45524-26010 |
LH102,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45524-26010 |
LH102,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45524-16010 |
LH109,RZH101..4D..(CTM,GL);LH100,102,107,110,113,115,117,120,123,125,140,RZH100,102,11#,12# ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45524-16010 |
LH109,RZH101..4D..(CTM,GL);LH100,102,107,110,113,115,117,120,123,125,140,RZH100,102,11#,12# ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45524-34010 |
LH102,113,RZH102,112..CD ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45524-34010 |
LH102,113,RZH102,112..CD ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45524-26010 |
LH102,113,RZH102,112..CD ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45524-26010 |
LH102,113,RZH102,112..CD ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-48002 |
LH102,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 90179-48002 |
LH102,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 90179-48002 |
LH102,110,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 90179-48002 |
LH102,110,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 90179-48002 |
LH102,113,RZH102,112..CD ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 90179-48002 |
LH102,113,RZH102,112..CD ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 90179-36002 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 90179-36002 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-26020 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 45535-26020 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-55011 |
LH102,110,113,RZH102,11#..03S,10S 外側 |
1 | ||
| 90460-55011 |
LH102,110,113,RZH102,11#..03S,10S 外側 |
1 | ||
| 90460-44003 |
LH102,113,RZH102,11#..03S,10S 内側 |
1 | ||
| 90460-44003 |
LH102,113,RZH102,11#..03S,10S 内側 |
1 | ||
| 90460-44003 |
LH102,110,113,RZH102,11#..03S,10S 内側 |
1 | ||
| 90460-44003 |
LH102,110,113,RZH102,11#..03S,10S 内側 |
1 | ||
| 90460-55011 |
LH102,113,RZH102,11#..03S,10S 外側 |
1 | ||
| 90460-55011 |
LH102,113,RZH102,11#..03S,10S 外側 |
1 | ||
| 90460-55011 |
LH102,113,RZH102,112..CD 外側 |
1 | ||
| 90460-55011 |
LH102,113,RZH102,112..CD 外側 |
1 | ||
| 90460-55011 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 |
2 | ||
| 90460-55011 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 |
2 | ||
| 90460-44003 |
LH102,113,RZH102,112..CD 内側 |
1 | ||
| 90460-44003 |
LH102,113,RZH102,112..CD 内側 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-55011 |
LH102,110,113,RZH102,11#..03S,10S 外側 |
1 | ||
| 90460-55011 |
LH102,110,113,RZH102,11#..03S,10S 外側 |
1 | ||
| 90460-44003 |
LH102,113,RZH102,11#..03S,10S 内側 |
1 | ||
| 90460-44003 |
LH102,113,RZH102,11#..03S,10S 内側 |
1 | ||
| 90460-44003 |
LH102,110,113,RZH102,11#..03S,10S 内側 |
1 | ||
| 90460-44003 |
LH102,110,113,RZH102,11#..03S,10S 内側 |
1 | ||
| 90460-55011 |
LH102,113,RZH102,11#..03S,10S 外側 |
1 | ||
| 90460-55011 |
LH102,113,RZH102,11#..03S,10S 外側 |
1 | ||
| 90460-55011 |
LH102,113,RZH102,112..CD 外側 |
1 | ||
| 90460-55011 |
LH102,113,RZH102,112..CD 外側 |
1 | ||
| 90460-55011 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 |
2 | ||
| 90460-55011 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 |
2 | ||
| 90460-44003 |
LH102,113,RZH102,112..CD 内側 |
1 | ||
| 90460-44003 |
LH102,113,RZH102,112..CD 内側 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-21006 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
2 | ||
| 90467-21006 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-21006 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
2 | ||
| 90467-21006 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-26010 |
LH102,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45536-26010 |
LH102,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45536-26010 |
LH102,110,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45536-26010 |
LH102,110,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45536-26010 |
LH102,113,RZH102,112..CD ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45536-26010 |
LH102,113,RZH102,112..CD ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45535-26020 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 45535-26020 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 91511-60825 | ||||
| 91611-60830 | ||||
ILLUST NO. 4 OF 4(8908- )KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29215 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-29215 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-26060 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90106-12022 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
2 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-26060 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| 45619 - COVER, KNUCKLE STOPPER | ||||
| 45619-36010 |
LH10#,11#,12#,140,RZH10#,11#,12# |
2 | ||
| Common parts | ||||
| 90170-15001 | ||||
| 90170-17001 | ||||
| 94130-61200 | ||||
| 94531-01200 | ||||
| 95381-03022 | ||||
| Linked diagrams | ||||
| 4802 | ||||
ILLUST NO. 2 OF 4(8908-9308)LH102,110,113,RZH102,11#..03S,10S
ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-27020 |
LH102,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45222-27020 |
LH102,113,RZH102,112..CD ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45222-27020 |
LH102,110,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45222-32010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 45501 - HOUSING SUB-ASSY, STEERING RACK | ||||
| 45501-26010 |
LH102,113,RZH102,112..CD |
1 | ||
| 45501-26010 |
LH102,110,113,RZH102,11#..03S,10S |
1 | ||
| 45501-26010 |
LH102,113,RZH102,11#..03S,10S |
1 | ||
| 45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING) | ||||
| 90311-15002 |
LH102,110,113,RZH102,11#..03S,10S |
1 | ||
| 90311-15002 |
LH102,113,RZH102,112..CD |
1 | ||
| 90311-15002 |
LH102,113,RZH102,11#..03S,10S |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29255 |
KZH100,110,120,LH100,102,103,110,113,115,120,123,125,140,RZH10#,11#,12# |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29255 |
KZH100,110,120,LH100,102,103,110,113,115,120,123,125,140,RZH10#,11#,12# |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14005 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 外径=41 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14005 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 外径=41 |
2 | ||
| 45504A - GUIDE SUB-ASSY, RACK | ||||
| 45504-26010 |
LH102,113,RZH102,11#..03S,10S |
1 | ||
| 45504-26010 |
LH102,113,RZH102,112..CD |
1 | ||
| 45504-26010 |
LH102,110,113,RZH102,11#..03S,10S |
1 | ||
| 45509 - PINION SUB-ASSY, STEERING | ||||
| 45509-26010 |
LH102,113,RZH102,11#..03S,10S |
1 | ||
| 45509-26010 |
LH102,110,113,RZH102,11#..03S,10S |
1 | ||
| 45509-26010 |
LH102,113,RZH102,112..CD |
1 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-26010 |
LH102,110,113,RZH102,11#..03S,10S |
1 | ||
| 45510-26010 |
LH102,113,RZH102,11#..03S,10S |
1 | ||
| 45510-26010 |
LH102,113,RZH102,112..CD |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-26020 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-26020 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-26010 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-26030 |
LH102,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45517-26030 |
LH102,113,RZH102,112..CD ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45517-26020 |
KZH100,110,120,LH100,102,103,110,113,115,120,123,125,140,RZH10#,11#,12# ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45517-26030 |
LH102,110,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45521 - RACK, STEERING | ||||
| 45521-26010 |
LH102,113,RZH102,112..CD |
1 | ||
| 45521-26010 |
LH102,110,113,RZH102,11#..03S,10S |
1 | ||
| 45521-26010 |
LH102,113,RZH102,11#..03S,10S |
1 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-26010 |
LH102,110,113,RZH102,11#..03S,10S |
1 | ||
| 45522-26010 |
LH102,113,RZH102,11#..03S,10S |
1 | ||
| 45522-26010 |
LH102,113,RZH102,112..CD |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-40021 |
LH102,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 90501-23024 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 90501-40021 |
LH102,113,RZH102,112..CD ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 90501-40021 |
LH102,110,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-26010 |
LH102,110,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45524-26010 |
LH102,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45524-16010 |
LH109,RZH101..4D..(CTM,GL);LH100,102,107,110,113,115,117,120,123,125,140,RZH100,102,11#,12# ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45524-34010 |
LH102,113,RZH102,112..CD ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45524-26010 |
LH102,113,RZH102,112..CD ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-48002 |
LH102,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 90179-48002 |
LH102,110,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 90179-48002 |
LH102,113,RZH102,112..CD ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 90179-36002 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-26020 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-55011 |
LH102,110,113,RZH102,11#..03S,10S 外側 |
1 | ||
| 90460-44003 |
LH102,113,RZH102,11#..03S,10S 内側 |
1 | ||
| 90460-44003 |
LH102,110,113,RZH102,11#..03S,10S 内側 |
1 | ||
| 90460-55011 |
LH102,113,RZH102,11#..03S,10S 外側 |
1 | ||
| 90460-55011 |
LH102,113,RZH102,112..CD 外側 |
1 | ||
| 90460-55011 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 |
2 | ||
| 90460-44003 |
LH102,113,RZH102,112..CD 内側 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-55011 |
LH102,110,113,RZH102,11#..03S,10S 外側 |
1 | ||
| 90460-44003 |
LH102,113,RZH102,11#..03S,10S 内側 |
1 | ||
| 90460-44003 |
LH102,110,113,RZH102,11#..03S,10S 内側 |
1 | ||
| 90460-55011 |
LH102,113,RZH102,11#..03S,10S 外側 |
1 | ||
| 90460-55011 |
LH102,113,RZH102,112..CD 外側 |
1 | ||
| 90460-55011 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 |
2 | ||
| 90460-44003 |
LH102,113,RZH102,112..CD 内側 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-21006 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-21006 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-26010 |
LH102,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45536-26010 |
LH102,110,113,RZH102,11#..03S,10S ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45536-26010 |
LH102,113,RZH102,112..CD ｱﾘ(ﾏﾆﾕｱﾙ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45535-26020 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 45543A - PROTECTOR, STEERING RACK BOOT, RH | ||||
| 45543-26010 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 45544A - PROTECTOR, STEERING RACK BOOT, LH | ||||
| 45544-26010 |
LH100,102,103,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| 45545 - SCREW, PINION BEARING ADJUSTING | ||||
| 45545-27010 |
LH102,113,RZH102,112..CD |
1 | ||
| 45545-27010 |
LH102,113,RZH102,11#..03S,10S |
1 | ||
| 45545-27010 |
LH102,110,113,RZH102,11#..03S,10S |
1 | ||
| 45545A - NUT(FOR PINION BEARING ADJUSTING SCREW) | ||||
| 90179-38001 |
LH102,113,RZH102,11#..03S,10S |
1 | ||
| 90179-38001 |
LH102,110,113,RZH102,11#..03S,10S |
1 | ||
| 90179-38001 |
LH102,113,RZH102,112..CD |
1 | ||
| Common parts | ||||
| 90119-12107 | ||||
| 90149-30004 | ||||
| 90301-39007 | ||||
| 91651-40820 | ||||
| 91661-40822 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
