LH100G-MRMGX (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Oct 1990
Engine 2LT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )2L,2LT#,3L,5L

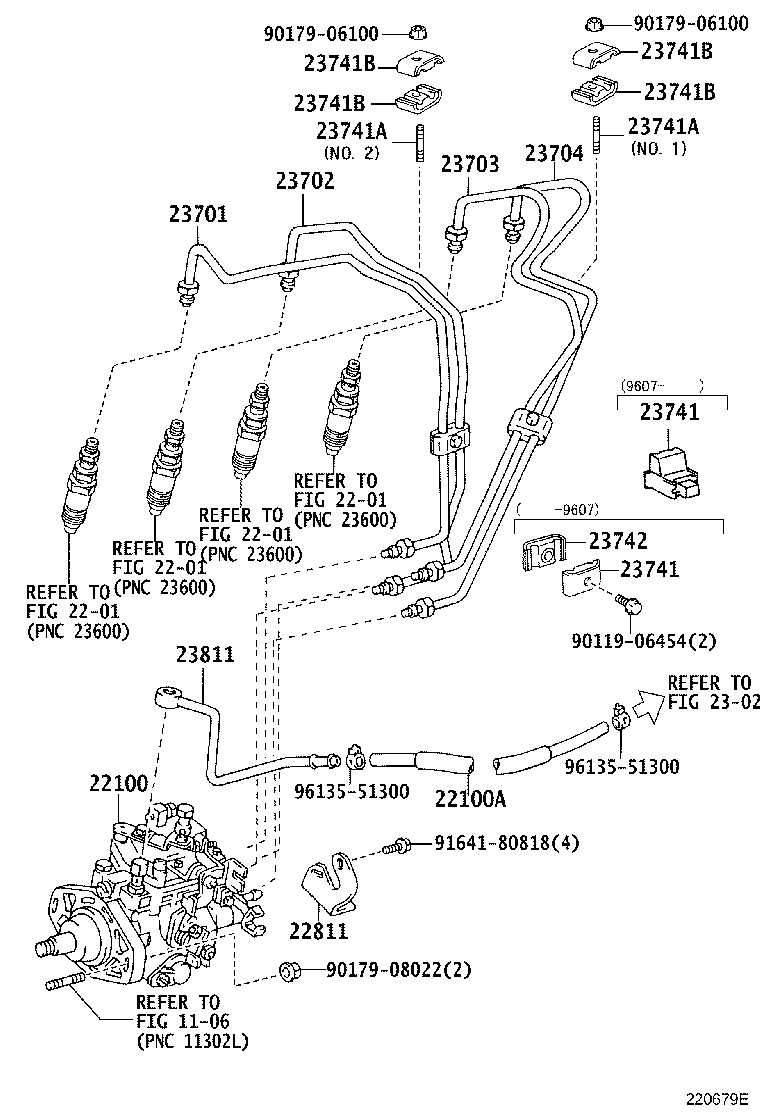

Click highlighted areas on diagram

diagram 1106 2201 2201 2201 2201 22100 22100A 22811 2302 23701 23702 23703 23704 23741 23741 23741A 23741A 23741B 23741B 23741B 23741B 23742 23811 9011906454 9017906100 9017906100 9017908022 9164180818 9613551300 9613551300
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-5B090

2LT..LH100,120..5F

 1
22100-54890

2L..LH100,110,140

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
95333-08040

2L#,3L..LH10#,11#,12#

*H,L=320,内径=7.6

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-54041

2L,2LT,3L..LH10#,11#,12#,140

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-54140

2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-54140

2L,3L,5L..LH10#,11#,123,125,129,140,16#,17#,18#

 1
23702-54120

2LT..LH100,120

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-54100

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-54100

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010

2L,2LT#,3L..LH10#,11#,12#,140

 2
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010

2L,2LT#,3L..LH10#,11#,12#,140

 2
23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP)
90116-06095

2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 2
23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP)
90116-06095

2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 2
23741B - CLAMP, INJECTION PIPE
23741-56010

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 4
23741B - CLAMP, INJECTION PIPE
23741-56010

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 4
23741B - CLAMP, INJECTION PIPE
23741-56010

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 4
23741B - CLAMP, INJECTION PIPE
23741-56010

2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#

 4
23742 - CLAMP, INJECTION PIPE, NO.2
23742-54010

2L,2LT#,3L..LH10#,11#,12#,140

 2
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-54170

2L#,3L..LH10#,11#,12#

 1
Common parts
90119-06454
90179-06100
90179-08022
91641-80818
96135-51300
Linked diagrams
1106
2201
2302
