LH100G-MRMGT (1990)

Toyota Hiace/Regiusace

Production Oct 1990 - Aug 1993
Engine 2LTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8908-9808)LH10#,11#,12#,140

Click highlighted areas on diagram

diagram 44704 44730 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730F 44730F 44761 44764G 44771 44772 44774 44776 8401 9011908827 9046110734 9046110734 9046110734 91611B0816 91611B0816 91611B0816
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-26110

LH10#,11#,12#,140

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60050

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 8
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90405-09134

LH10#,11#,12#,140

ｱﾘ(ｴｱｺﾝ)

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90405-09134

LH10#,11#,12#,140

ｱﾘ(ｴｱｺﾝ)

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-26150

LH10#,11#,12#,140

 1
44764G - TUBE, CONNECTOR TO BRAKE BOOSTER
44764-26070

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-26110

KZH10#,11#,12#,13#,LH10#,11#,12#,140

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-26110

KZH10#,11#,12#,13#,LH10#,11#,12#,140

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-26200

LH100,102,103,110,113,115,120,123,125,140,162,172,182,184

 1
44776 - HOSE, BRAKE BOOSTER
44776-26030

LH162,17#..CD,DX;LH10#,11#,12#,140,168,18#

ﾅｼ(ABS)

 1
Common parts
90119-08827
90461-10734
91611-B0816
Linked diagrams
8401

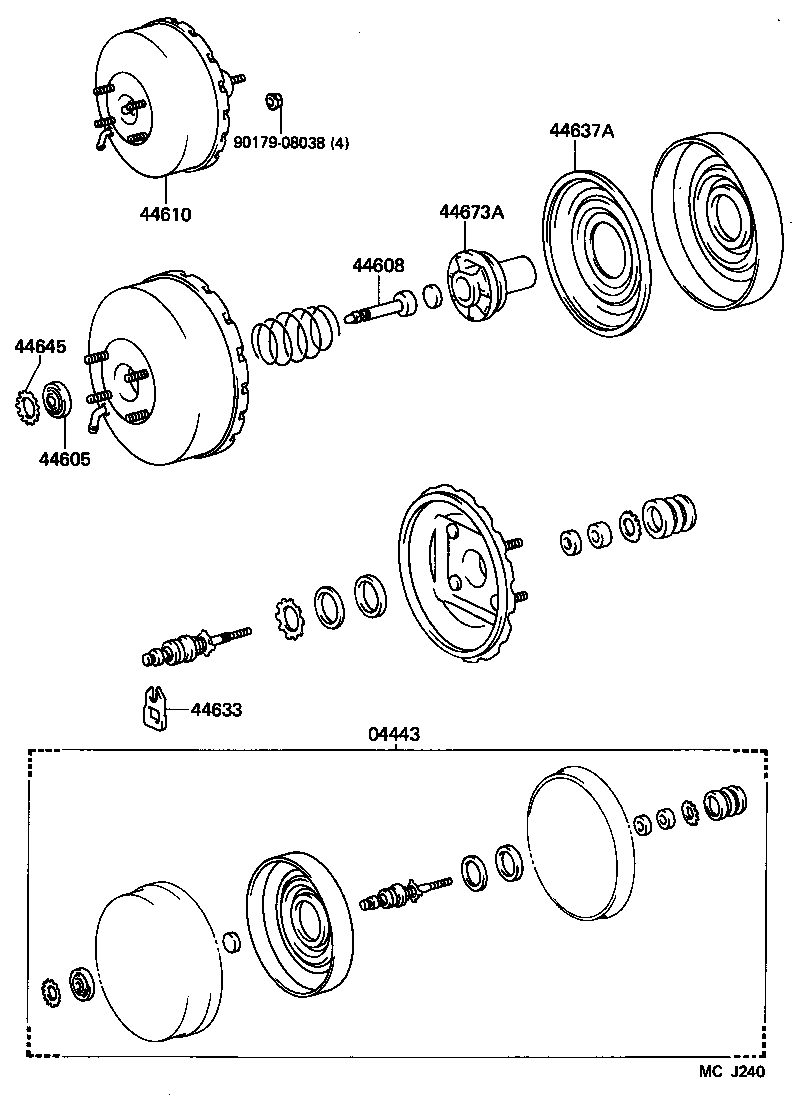

ILLUST NO. 1 OF 2(8908-9808)LH100,110,120,140

Click highlighted areas on diagram

JKC

diagram 04443 44605 44608 44610 44633 44637A 44645 44673A 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-26440

LH100,110,120,140

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-10080

LH100,110,120,140

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-32020

LH100,110,120,140

 1
44610 - BOOSTER ASSY, BRAKE
44610-26420

LH100,110,120,140

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-20811

LH100,110,120,140

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-26420

LH100,110,120,140

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-10080

LH100,110,120,RZH100,101,110

 1
44673A - BODY, BOOSTER VALVE
44673-26420

LH100,110,120,140

 1
Common parts
90179-08038
