LH100G-MFPQX (1989)
Toyota Hiace/Regiusace
(8908- )
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86150 - SPEAKER ASSY, W/BOX, NO.1 | ||||
| 86150-95J01 |
LH113,119..SGL;LH100,102,107,RZH100,101..05S,07S,08S,09S 左側 |
1 | ||
| 86150-95J05 |
LH113,119..SGL;LH100,102,107,RZH100,101..05S,07S,08S,09S 右側 |
1 | ||
| 86150 - SPEAKER ASSY, W/BOX, NO.1 | ||||
| 86150-95J01 |
LH113,119..SGL;LH100,102,107,RZH100,101..05S,07S,08S,09S 左側 |
1 | ||
| 86150-95J05 |
LH113,119..SGL;LH100,102,107,RZH100,101..05S,07S,08S,09S 右側 |
1 | ||
| 86161 - BRACKET, SPEAKER, FRONT NO.1 | ||||
| 86163-95J02 |
LH113,119..SGL;LH100,102,107,RZH100,101..05S,07S,08S,09S |
1 | ||
| Common parts | ||||
| 90183-05103 | ||||
| 93560-55016 | ||||
| 93567-15016 | ||||
(8908-9107)
ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60025 | ||||
| 90189-05109 | ||||
| 90189-06015 | ||||
| 90189-06026 | ||||
| 93219-54016 | ||||
| 93560-56016 | ||||
(8908-9308)
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-95J26 |
LH100,107,RZH100,101..07S,08S |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-95J26 |
LH100,107,RZH100,101..07S,08S |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-95J26 |
LH100,107,RZH100,101..07S,08S |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-95J26 |
LH100,107,RZH100,101..07S,08S |
2 | ||
| 86163 - BRACKET, SPEAKER, NO.2 | ||||
| 86163-95J01 |
LH100,107,RZH100,101..07S,08S |
1 | ||
| 86269A - GRILLE, SPEAKER | ||||
| 86269-95J0202 |
LH100,107,RZH100,101..07S,08S MAROON,TRIM3# |
1 | ||
| 86269A - GRILLE, SPEAKER | ||||
| 86269-95J0202 |
LH100,107,RZH100,101..07S,08S MAROON,TRIM3# |
1 | ||
| 86269B - GRILLE, SPEAKER | ||||
| 86279-95J0102 |
LH100,107,RZH100,101..07S,08S MAROON,TRIM3# |
1 | ||
| 86269B - GRILLE, SPEAKER | ||||
| 86279-95J0102 |
LH100,107,RZH100,101..07S,08S MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 90189-06018 | ||||
| 93540-54020 | ||||
| 93560-56016 | ||||
(8908-9308)LH100,RZH100,101..MRF
ｽﾃﾚｵ ｺﾝﾎﾟ(DEALER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160P - SPEAKER ASSY, FRONT NO.2 | ||||
| 86160-95J3006 |
LH100,RZH100,101..MRF LIGHT SABLE,TRIM3# |
2 | ||
| 86160Q - SPEAKER ASSY, ROOF | ||||
| 86160-95J28 |
LH100,RZH100,101..MRF 右側 |
1 | ||
| 86160-95J29 |
LH100,RZH100,101..MRF 左側 |
1 | ||
| 86202 - WIRE, SPEAKER, NO.1 | ||||
| 86202-95J21 |
LH100,RZH100,101..MRF |
1 | ||
| 86202A - WIRE, SPEAKER, NO.2 | ||||
| 86202-95J22 |
LH100,RZH100,101..MRF |
1 | ||
| 86202C - WIRE, SPEAKER, NO.3 | ||||
| 86202-95J23 |
LH100,RZH100,101..MRF |
2 | ||
| 86202C - WIRE, SPEAKER, NO.3 | ||||
| 86202-95J23 |
LH100,RZH100,101..MRF |
2 | ||
| 86219A - BRACKET, STEREO COMPONENT SPEAKER, NO.2 | ||||
| 86229-95J05 |
LH100,RZH100,101..MRF 左側 |
1 | ||
| 86219-95J06 |
LH100,RZH100,101..MRF 右側 |
1 | ||
| 86219B - BRACKET, STEREO COMPONENT SPEAKER, NO.3 | ||||
| 86219-95J07 |
LH100,RZH100,101..MRF |
2 | ||
| 86264D - GRILLE, SPEAKER, ROOF | ||||
| 86269-95J0306 |
LH100,RZH100,101..MRF LIGHT SABLE,TRIM3#,右側,NO.1 |
1 | ||
| 86269-95J0806 |
LH100,RZH100,101..MRF LIGHT SABLE,TRIM3#,右側,NO.2 |
1 | ||
| 86279-95J0306 |
LH100,RZH100,101..MRF LIGHT SABLE,TRIM3#,左側,NO.2 |
1 | ||
| 86279-95J0206 |
LH100,RZH100,101..MRF LIGHT SABLE,TRIM3#,左側,NO.1 |
1 | ||
| 86264D - GRILLE, SPEAKER, ROOF | ||||
| 86269-95J0306 |
LH100,RZH100,101..MRF LIGHT SABLE,TRIM3#,右側,NO.1 |
1 | ||
| 86269-95J0806 |
LH100,RZH100,101..MRF LIGHT SABLE,TRIM3#,右側,NO.2 |
1 | ||
| 86279-95J0306 |
LH100,RZH100,101..MRF LIGHT SABLE,TRIM3#,左側,NO.2 |
1 | ||
| 86279-95J0206 |
LH100,RZH100,101..MRF LIGHT SABLE,TRIM3#,左側,NO.1 |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90189-06018 | ||||
| 93560-56016 | ||||

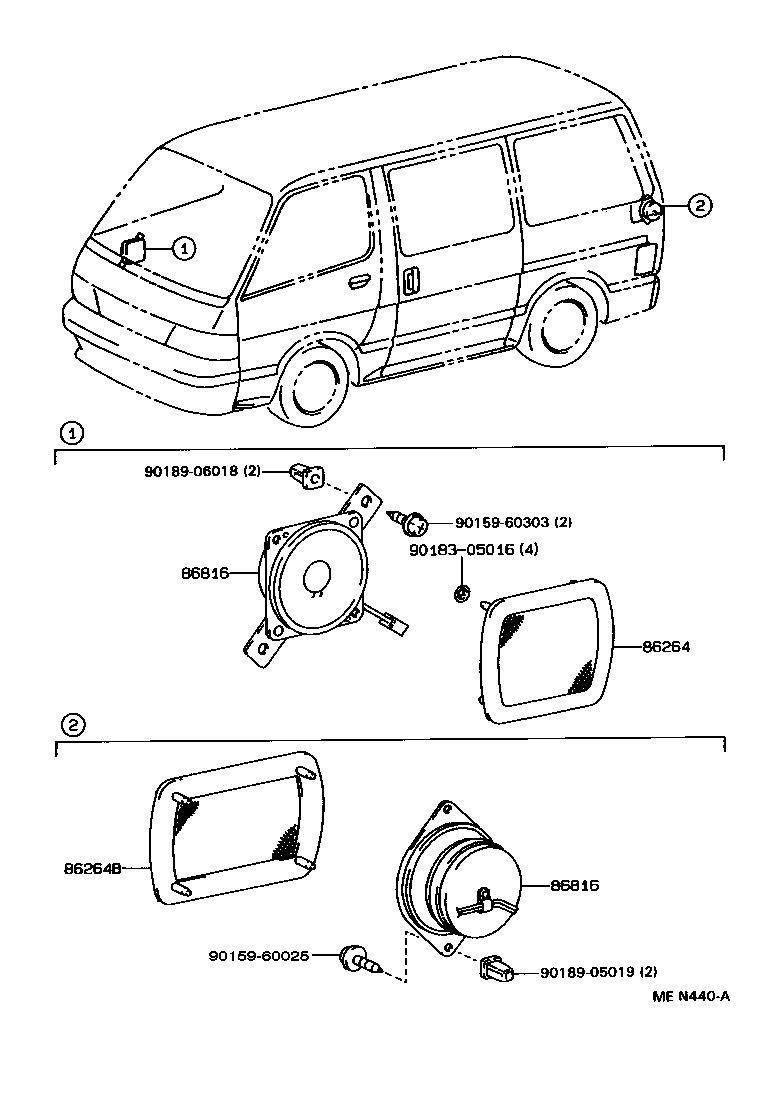

(8908-9508)SCL
ｲﾝﾀ-ﾎﾝｽﾋﾟ-ｶ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86264 - GRILLE, SPEAKER, FRONT | ||||
| 86269-95J05 |
LH100,107,RZH100,101..SCL |
1 | ||
| 86264B - GRILLE, SPEAKER, REAR | ||||
| 86269-95J06 |
LH100,107,RZH100,101..SCL |
1 | ||
| 86816 - SPEAKER INTERPHONE | ||||
| 86816-26020 |
KZH10#,LH100,107,RZH100,101..SCL ﾘﾔ |
1 | ||
| 86816-26010 |
KZH10#,LH100,107,RZH100,101..SCL ﾌﾛﾝﾄ |
1 | ||
| 86816 - SPEAKER INTERPHONE | ||||
| 86816-26020 |
KZH10#,LH100,107,RZH100,101..SCL ﾘﾔ |
1 | ||
| 86816-26010 |
KZH10#,LH100,107,RZH100,101..SCL ﾌﾛﾝﾄ |
1 | ||
| Common parts | ||||
| 90159-60025 | ||||
| 90159-60303 | ||||
| 90183-05016 | ||||
| 90189-05019 | ||||
| 90189-06018 | ||||
