LH100G-MFPQX (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Oct 1990
Engine 2LT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908-9010)LH100..4FC ; (8908- )LH102,103,113,123,162,172,182,184,RZH10#,111,112

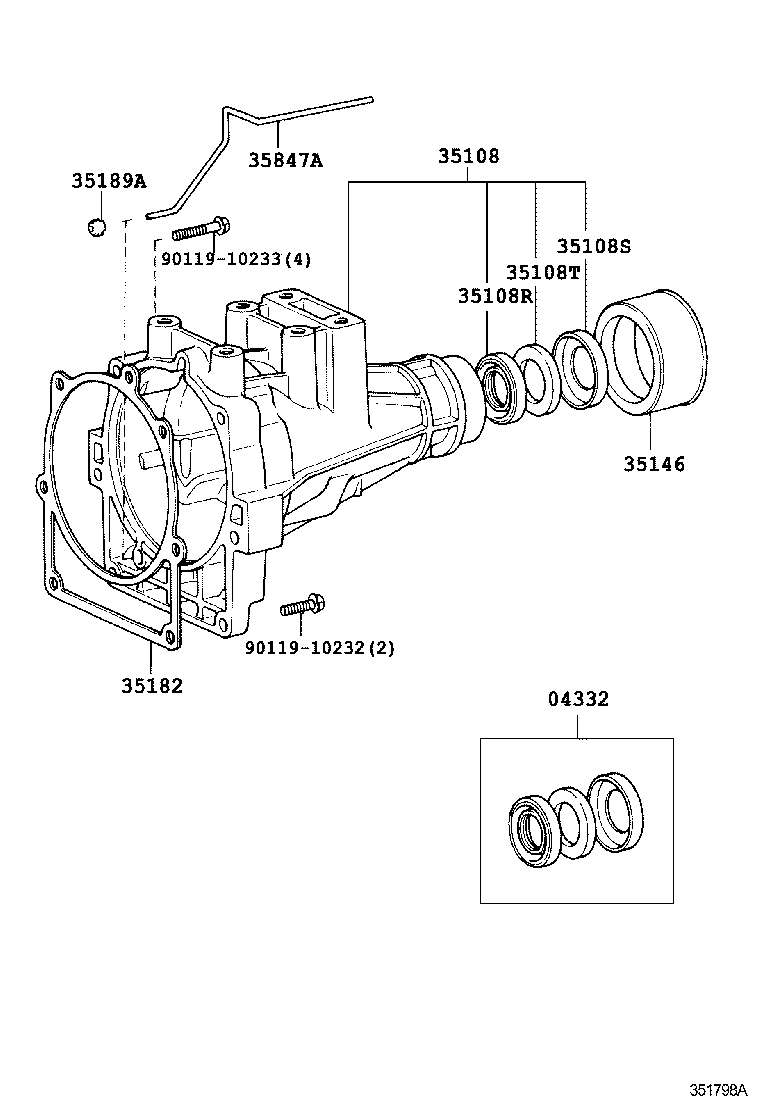

Click highlighted areas on diagram

A44DE,A45DL,A45DE

diagram 04332 35108 35108R 35108S 35108T 35146 35182 35189A 35847A 9011910232 9011910233
Part # Description Qty Price
04332 - SEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)
04332-30030

LH100,102,113,123,RZH10#,112..4FC..(CBR,DSL,EFI,TD)

 1
35108 - HOUSING SUB-ASSY, EXTENSION (ATM)
35108-26031

LH100,RZH100,101..4FC..(EFI,TD)

 1
35108R - SEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING
90311-38032

LH100..4FC

 1
35108S - RETAINER, EXTENSION HOUSING DUST SEAL (ATM)
33145-30010

LH100,102,103,113,123,162,172,182,184,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)

 1
35108T - SEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSIN
90303-38010

LH100,102,103,113,123,162,172,182,184,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)

 1
35146 - DEFLECTOR, EXTENSION HOUSING DUST (ATM)
33146-30020

LH100..4FC

 1
35182 - GASKET, EXTENSION HOUSING (ATM)
35182-22010

LH100,102,107,113,119,123,RZH10#,112..4FC

 1
35189A - GASKET, EXTENSION HOUSING BUSH APPLY TUBE
35189-30010

KZH100,110,120,132,LH100,102,103,113,120,123,162,172,182,184,RZH10#,111,112,124,125,133..4FC

 1
35847A - TUBE, EXTENSION HOUSING BUSH APPLY
35847-30020

KZH100,110,120,132,LH100,102,103,113,120,123,162,172,182,184,RZH10#,111,112,124,125,133..4FC

 1
Common parts
90119-10232
90119-10233
