LH100G-MFPQT (1990)

Toyota Hiace/Regiusace

Production Oct 1990 - Aug 1993
Engine 2LTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9010- )KZH100,110,120,132,LH100,120..4FC

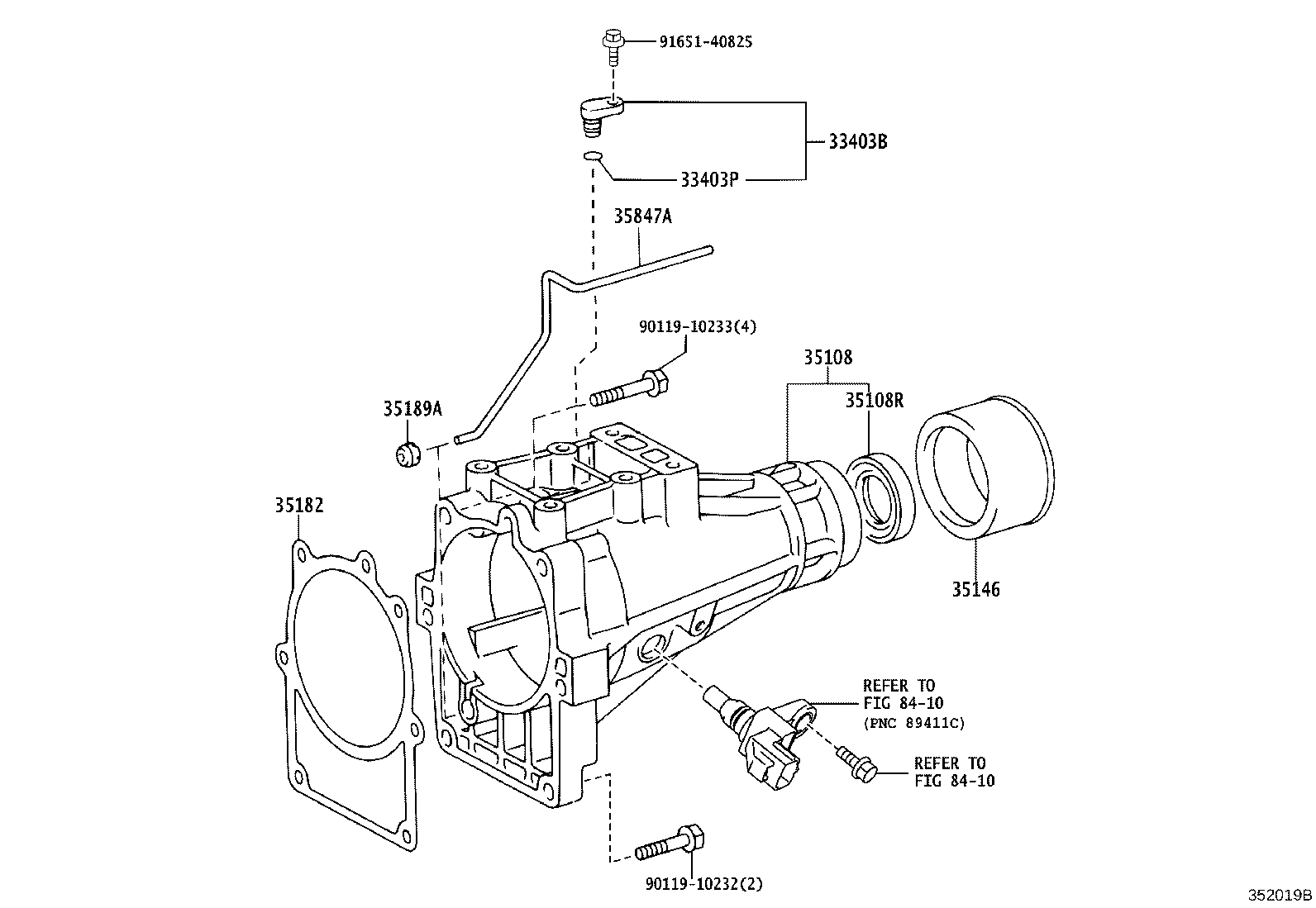

Click highlighted areas on diagram

A340E

diagram 33403B 33403P 35108 35108R 35146 35182 35189A 35847A 8410 8410 9011910232 9011910233 9165140825
Part # Description Qty Price
35108 - HOUSING SUB-ASSY, EXTENSION (ATM)
35108-26031

LH100,RZH100,101..4FC..(EFI,TD)

 1
35108-26040

LH100,120..4FC

 1
35108R - SEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING
90311-38032

LH100..4FC

 1
35146 - DEFLECTOR, EXTENSION HOUSING DUST (ATM)
33146-30020

LH100..4FC

 1
33146-30010

KZH100,120,LH100,102,103,113,120,123,RZH10#,112..4FC..(CBR,DSL,EFI,TDE)

 1
35182 - GASKET, EXTENSION HOUSING (ATM)
35182-22010

LH100,102,107,113,119,123,RZH10#,112..4FC

 1
35189A - GASKET, EXTENSION HOUSING BUSH APPLY TUBE
35189-30010

KZH100,110,120,132,LH100,102,103,113,120,123,162,172,182,184,RZH10#,111,112,124,125,133..4FC

 1
35847A - TUBE, EXTENSION HOUSING BUSH APPLY
35847-30020

KZH100,110,120,132,LH100,102,103,113,120,123,162,172,182,184,RZH10#,111,112,124,125,133..4FC

 1
Common parts
90119-10232
90119-10233
91651-40825
Linked diagrams
8410
