LH100G-MFPQT (1990)
Toyota Hiace/Regiusace
Production
Oct 1990
-
Aug 1993
Engine
2LTE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

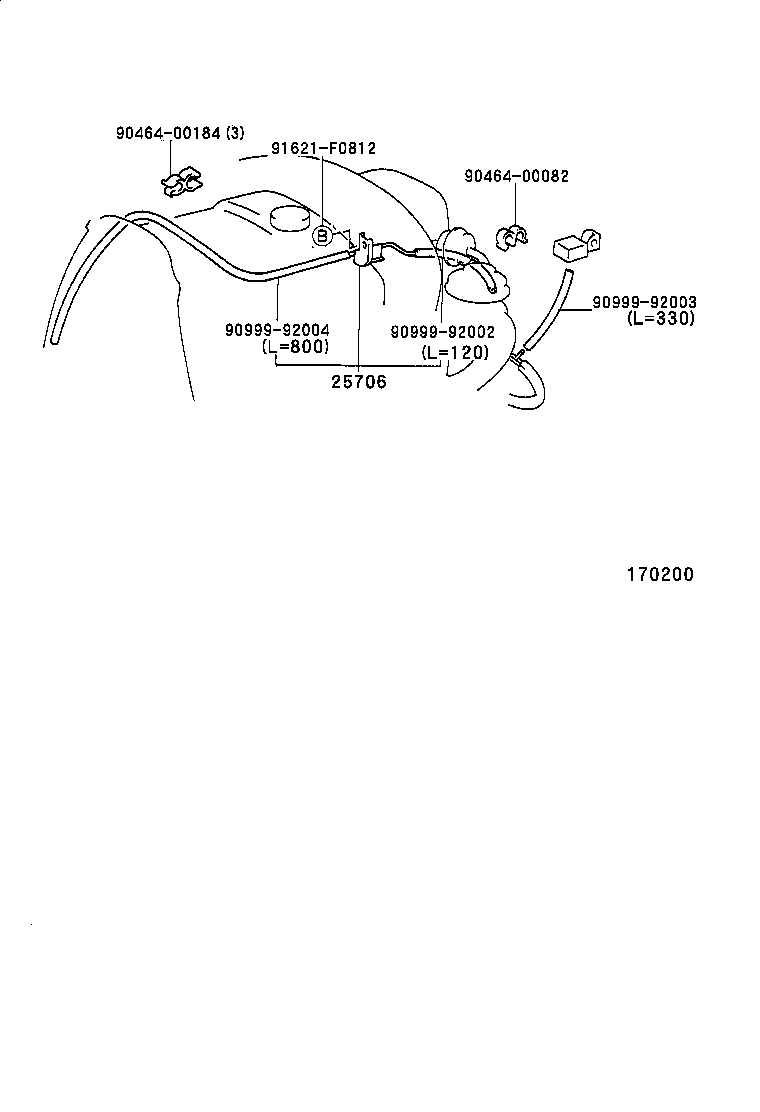

(8908-9308)2L..LH100,110,140
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-54010 |
2L..LH100,110,140 |
1 | ||
| 25706-54030 |
2LTE..LH100,120 |
1 | ||
| Common parts | ||||
| 90464-00082 | ||||
| 90464-00184 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 91621-F0812 | ||||

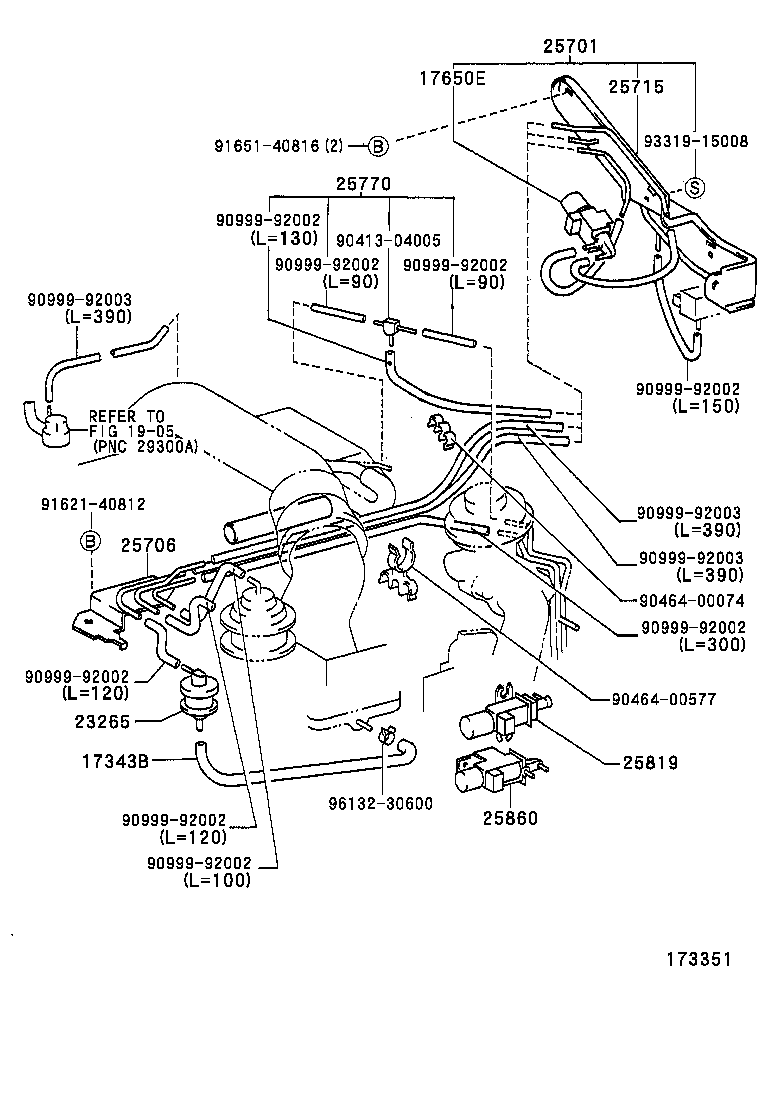

(9010-9308)2LTE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 17343-54010 |
2LTE..LH100,120 |
1 | ||
| 17650E - VALVE, VACUUM SWITCHING | ||||
| 90910-12097 |
2LTE..LH100,120 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11033 |
2LT#,3L..LH100,107,117,120 |
1 | ||
| 25701 - VALVE SET, EMISSION CONTROL | ||||
| 25701-54060 |
2LTE..LH100,120 |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-54010 |
2L..LH100,110,140 |
1 | ||
| 25706-54030 |
2LTE..LH100,120 |
1 | ||
| 25715 - BRACKET, EMISSION CONTROL VALVE | ||||
| 25715-54020 |
2LTE..LH100,120 |
1 | ||
| 25770 - HOSE ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25770-54020 |
2LTE..LH100,120 |
1 | ||
| 25819 - VALVE ASSY, VACUUM REGULATING | ||||
| 25819-54070 |
2LTE..LH100,120 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-54060 |
2LTE..LH100,120 |
1 | ||
| 25860-54030 |
2LT..LH100,120 |
1 | ||
| Common parts | ||||
| 90413-04005 | ||||
| 90464-00074 | ||||
| 90464-00577 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91621-40812 | ||||
| 91651-40816 | ||||
| 93319-15008 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 1905 | ||||
