LH100G-JRPNT (1990)

Toyota Hiace/Regiusace

Production Oct 1990 - Aug 1993
Engine 2LTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9010- )KZH10#,11#,120,13#,LH100,120..4FC

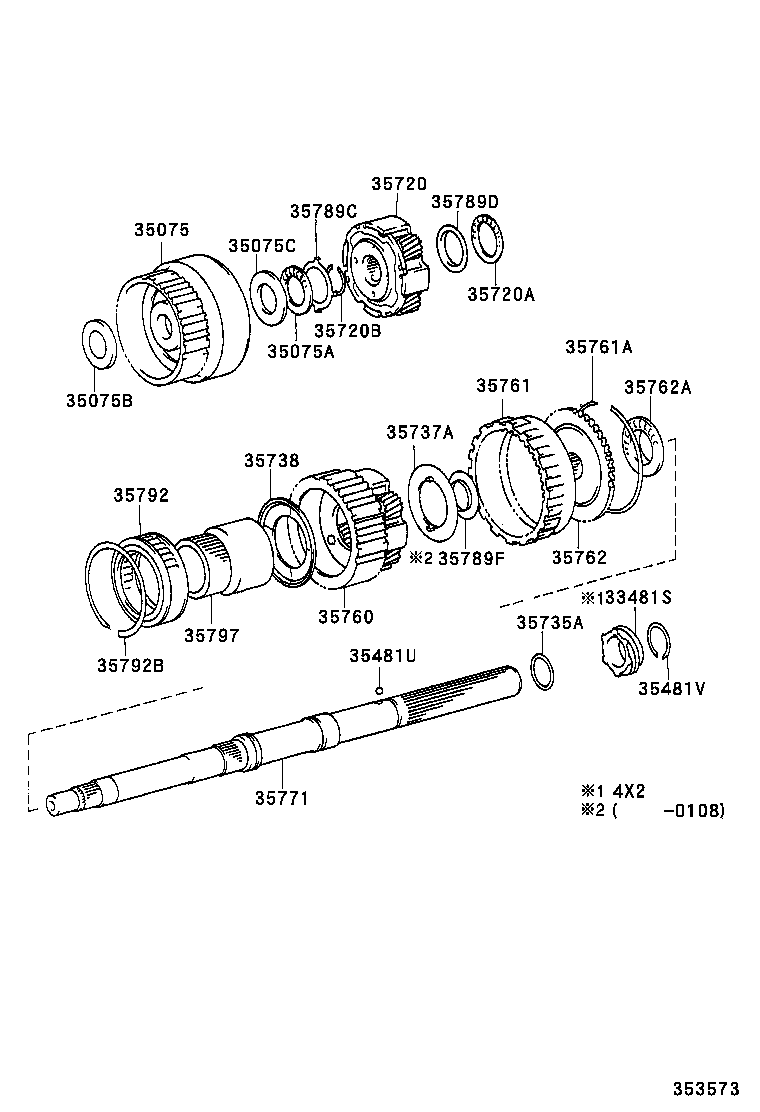

Click highlighted areas on diagram

A340E,A340F

diagram 33481S 35075 35075A 35075B 35075C 35481U 35481V 35720 35720A 35720B 35735A 35737A 35738 35760 35761 35761A 35762 35762A 35771 35789C 35789D 35789F 35792 35792B 35797
Part # Description Qty Price
33481S - GEAR, SPEEDOMETER DRIVE (ATM)
33481-25021

RZH100..(07S,08S)..4FC;LH100,113,123,RZH101,102,112..4FC..(CBR,DSL,EFI,TD)

歯数=5,ﾏｰｸ 5X17−19,ｱﾘ(205/70R14 ﾀｲﾔ)

 1
33481-30070

LH100..4FC

歯数=5

 1
35075C - RACE, THRUST BEARING (FOR FRONT PLANETARY RING GEAR RR)
35789-30080

LH100,120..4FC

 1
35481U - KEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)
90360-06004

KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,RZH10#,111,112,124,133..4FC

 1
35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
90520-29004

LH100..4FC..TD;KZH106,116,138,LH107,RZH100,101,111,133..4FC

厚さ=1.50,外径=34.8

 1
90520-28009

KZH100,110,120,132,LH100,120,RZH100,101,111,125,133..4FC

厚さ=1.50,外径=33.8

 1
35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL
35735-22010

LH100,RZH100,101,111,125,133..4FC..(EFI,TD)

 1
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35737-22010

LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)

 1
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35738-30030

LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)

 1
35760 - GEAR ASSY, REAR PLANETARY
35760-30040

LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)

 1
35762 - FLANGE, REAR PLANETARY RING GEAR
35762-50010

LH100,120..4FC

 1
35789C - RACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)
35789-30130

LH100,120..4FC

 1
35792 - CLUTCH, 1 WAY, NO.2
35792-30030

LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)

 1
35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
90521-79148

LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)

 1
