LH100G-JRMET (1990)

Toyota Hiace/Regiusace

Production Oct 1990 - Aug 1993
Engine 2LTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8908-9605)5F..TDE

Click highlighted areas on diagram

diagram 31301 31301B 31301C 31301C 31301F 31321 31324 31324A 31354 31354A 31354B 31355 31357D 31453A 31453B 31481J 4701 4701 4701 4708 9046814004 9411051000 9412040800 9451201000 9616000800 9616000800
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-26100

LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI,TD)

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
47131-10010

KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-08052

KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51070

LH10#,11#,12#,140,RZH100,102,11#,12#..5F

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004

KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F

長さ=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F

 1
31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY
31481-26200

LH10#,11#,12#,140,RZH100,102,11#,12#..5F

 1
Common parts
90468-14004
94110-51000
94120-40800
94512-01000
96160-00800
Linked diagrams
4701
4708

ILLUST NO. 2 OF 2(8908-9308)5F..TD,TDE

Click highlighted areas on diagram

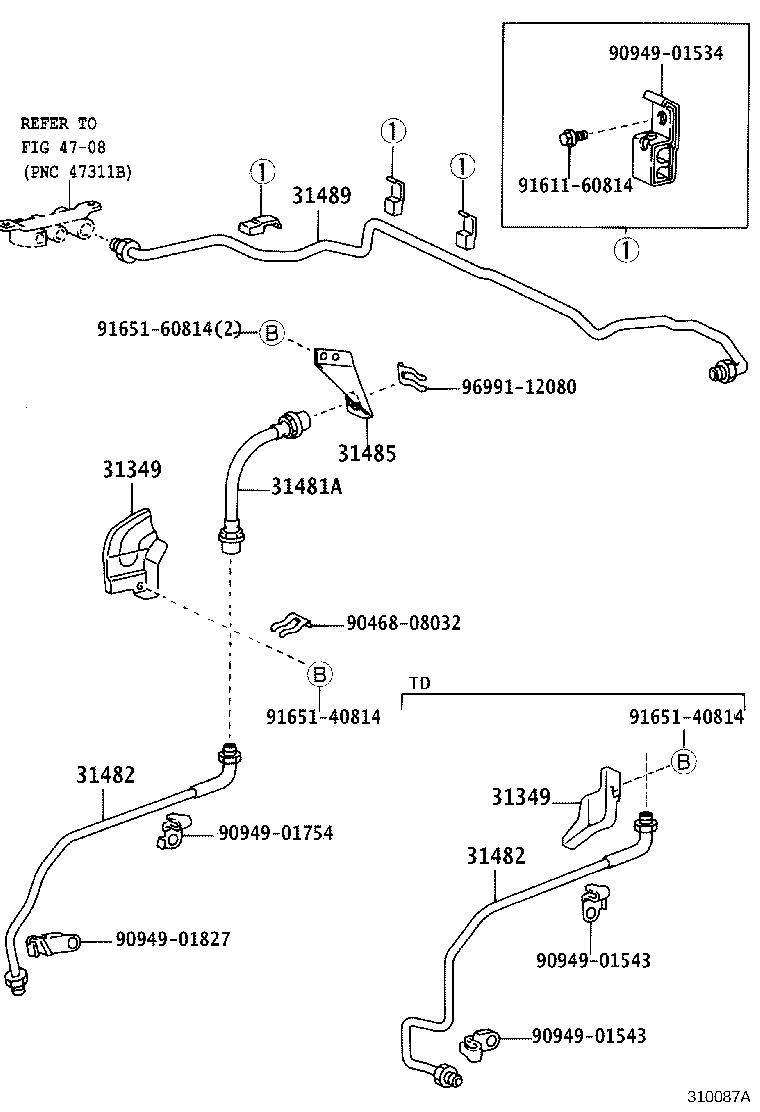

diagram 31349 31349 31481A 31482 31482 31485 31489 9046808032 9094901534 9094901543 9094901543 9094901754 9094901827 9161160814 9165140814 9165140814 9165160814 9699112080
Part # Description Qty Price
31349 - INSULATOR, CLUTCH CABLE HEAT
31349-26050

LH100,120..5F..(TD,TDE)

 1
31349 - INSULATOR, CLUTCH CABLE HEAT
31349-26050

LH100,120..5F..(TD,TDE)

 1
31481A - HOSE, CLUTCH, NO.1
90931-01075

LH10#,11#,12#,140..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-26180

LH100,120..5F..(TD,TDE)

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-26180

LH100,120..5F..(TD,TDE)

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31407-26010

LH100,120..5F..(TD,TDE)

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-26190

LH10#,11#,12#,140,RZH100,102,11#,12#..5F

 1
Common parts
90468-08032
90949-01534
90949-01543
90949-01754
90949-01827
91611-60814
91651-40814
91651-60814
96991-12080
