KZH138V-EFPDT (1995)
Toyota Hiace/Regiusace

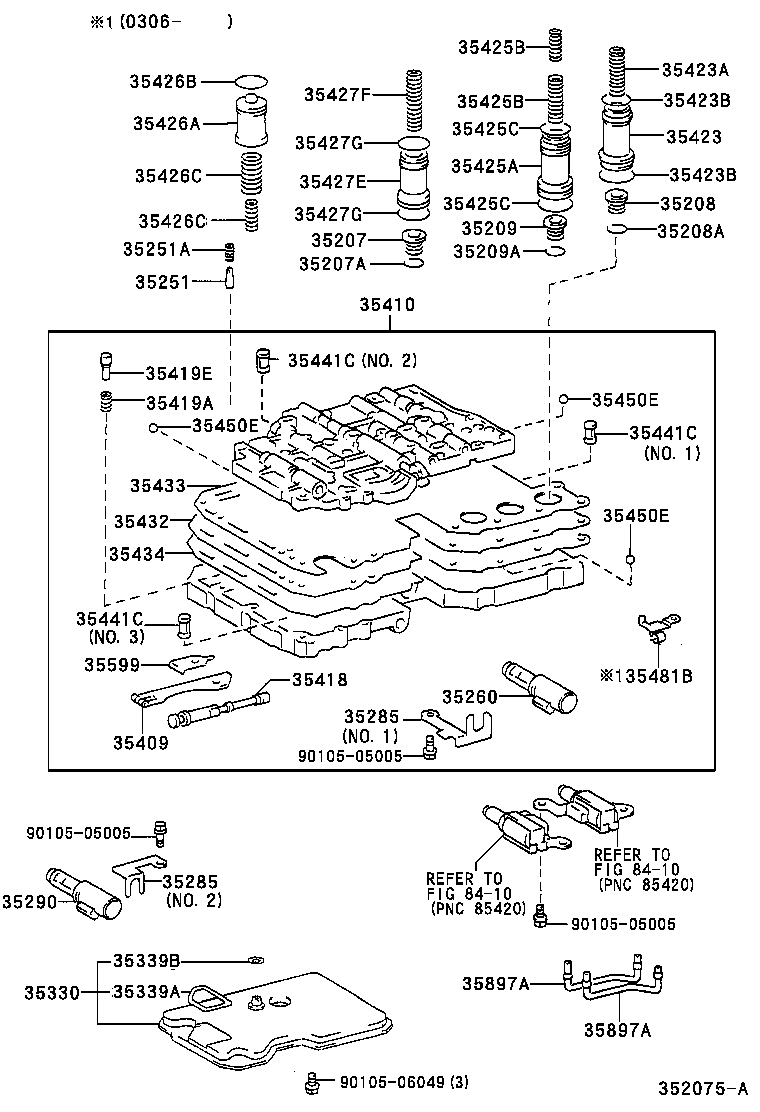

ILLUST NO. 1 OF 4(9907- )KZH10#,11#,120,13#
A340E,A340F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35207 - SPRING SUB-ASSY, B-0 ACCUMULATOR | ||||
| 35207-22010 |
KZH10#,11#,120,13# |
1 | ||
| 35207A - RING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
KZH10#,11#,120,13# |
1 | ||
| 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR | ||||
| 35208-35010 |
KZH10#,11#,120,13# |
1 | ||
| 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
KZH10#,11#,120,13#,LH162,17#,18#..4FC |
1 | ||
| 90521-22004 |
KZH10#,11#,120,13#,LH100,120,162,17#,18#,RZH100,101,111,125,133..4FC..(DSL,EFI,TDE) |
1 | ||
| 35209 - SPRING SUB-ASSY, C-2 ACCUMULATOR | ||||
| 35209-22020 |
KZH10#,11#,120,13# |
1 | ||
| 35209A - RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
KZH10#,11#,120,13# |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
KZH10#,11#,120,13# |
1 | ||
| 35251-30020 |
KZH106,116,138..4FC |
2 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
KZH10#,11#,120,13# |
1 | ||
| 35260 - ACCUMLATOR ASSY, THROTTLE PRESSURE | ||||
| 35260-60010 |
KZH10#,11#,120,13# |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-24010 |
KZH10#,11#,120,13# NO.1 |
1 | ||
| 35285-24020 |
KZH10#,11#,120,13# NO.2 |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-24010 |
KZH10#,11#,120,13# NO.1 |
1 | ||
| 35285-24020 |
KZH10#,11#,120,13# NO.2 |
1 | ||
| 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-60020 |
KZH10#,11#,120,13# |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-30020 |
KZH10#,11#,120,13# |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-30020 |
KZH10#,11#,120,13# |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-60360 |
KZH106,116,138..4FC |
1 | ||
| 35410-60490 |
KZH106,116,120,138..4WD |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-24010 |
KZH10#,11#,120,13# |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-09093 |
KZH10#,11#,120,13# |
1 | ||
| 35419E - VALVE, CHECK, NO.3 | ||||
| 35419-50010 |
KZH10#,11#,120,13# |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35423-30030 |
KZH10#,11#,120,13# |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-28011 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 90501-28011 |
KZH10#,11#,120,13# |
1 | ||
| 90501-25028 |
KZH10#,11#,120,13# |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-31010 |
KZH10#,11#,120,13# 下側 |
1 | ||
| 90301-31010 |
KZH10#,11#,120,13#..4FC 下側 |
1 | ||
| 90301-23010 |
KZH10#,11#,120,13# 上側 |
1 | ||
| 90301-23010 |
KZH10#,11#,120,13#..4FC 上側 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-31010 |
KZH10#,11#,120,13# 下側 |
1 | ||
| 90301-31010 |
KZH10#,11#,120,13#..4FC 下側 |
1 | ||
| 90301-23010 |
KZH10#,11#,120,13# 上側 |
1 | ||
| 90301-23010 |
KZH10#,11#,120,13#..4FC 上側 |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-30020 |
KZH10#,11#,120,13# |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-22015 |
KZH10#,11#,120,13# 外側 |
1 | ||
| 90501-25027 |
KZH10#,11#,120,13# 内側 |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-22015 |
KZH10#,11#,120,13# 外側 |
1 | ||
| 90501-25027 |
KZH10#,11#,120,13# 内側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-31010 |
KZH10#,11#,120,13#..4FC 下側 |
1 | ||
| 90301-25010 |
KZH10#,11#,120,13# 上側 |
1 | ||
| 90301-31010 |
KZH10#,11#,120,13# 下側 |
1 | ||
| 90301-25010 |
KZH10#,11#,120,13#..4FC 上側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-31010 |
KZH10#,11#,120,13#..4FC 下側 |
1 | ||
| 90301-25010 |
KZH10#,11#,120,13# 上側 |
1 | ||
| 90301-31010 |
KZH10#,11#,120,13# 下側 |
1 | ||
| 90301-25010 |
KZH10#,11#,120,13#..4FC 上側 |
1 | ||
| 35426A - PISTON, C-0 ACCUMULATOR | ||||
| 35426-40010 |
KZH10#,11#,120,13# |
1 | ||
| 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90301-24010 |
KZH10#,11#,120,13# |
1 | ||
| 90301-24010 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-23073 |
KZH10#,11#,120,13# 外側 |
1 | ||
| 90501-22008 |
KZH10#,11#,120,13# 内側 |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-23073 |
KZH10#,11#,120,13# 外側 |
1 | ||
| 90501-22008 |
KZH10#,11#,120,13# 内側 |
1 | ||
| 35427E - PISTON, B-0 ACCUMULATOR | ||||
| 35427-30040 |
KZH10#,11#,120,13# |
1 | ||
| 35427F - SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90501-21006 |
KZH10#,11#,120,13# |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-26011 |
KZH10#,11#,120,13#..4FC 下側 |
1 | ||
| 90301-26011 |
KZH10#,11#,120,13# 下側 |
1 | ||
| 90301-20008 |
KZH10#,11#,120,13# 上側 |
1 | ||
| 90301-20008 |
KZH10#,11#,120,13#..4FC 上側 |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-26011 |
KZH10#,11#,120,13#..4FC 下側 |
1 | ||
| 90301-26011 |
KZH10#,11#,120,13# 下側 |
1 | ||
| 90301-20008 |
KZH10#,11#,120,13# 上側 |
1 | ||
| 90301-20008 |
KZH10#,11#,120,13#..4FC 上側 |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-60180 |
KZH106,116,120,138..4WD |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-60040 |
KZH10#,11#,120,13# |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-60040 |
KZH10#,11#,120,13# |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-50030 |
KZH10#,11#,120,13# NO.1 |
1 | ||
| 35441-24020 |
KZH10#,11#,120,13# NO.3 |
1 | ||
| 35441-24010 |
KZH10#,11#,120,13# NO.2 |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-50030 |
KZH10#,11#,120,13# NO.1 |
1 | ||
| 35441-24020 |
KZH10#,11#,120,13# NO.3 |
1 | ||
| 35441-24010 |
KZH10#,11#,120,13# NO.2 |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-50030 |
KZH10#,11#,120,13# NO.1 |
1 | ||
| 35441-24020 |
KZH10#,11#,120,13# NO.3 |
1 | ||
| 35441-24010 |
KZH10#,11#,120,13# NO.2 |
1 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35495-22020 |
KZH10#,11#,120,13# 外径=5.535,ﾗﾊﾞｰ |
8 | ||
| 35496-22030 |
KZH10#,11#,120,13# 外径=6.35,ﾗﾊﾞｰ |
2 | ||
| 35495-22020 |
KZH10#,11#,120,13#..4FC 外径=5.535,ﾗﾊﾞｰ |
7 | ||
| 35495-22020 |
KZH10#,11#,120,13# 外径=5.535,ﾗﾊﾞｰ |
10 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35495-22020 |
KZH10#,11#,120,13# 外径=5.535,ﾗﾊﾞｰ |
8 | ||
| 35496-22030 |
KZH10#,11#,120,13# 外径=6.35,ﾗﾊﾞｰ |
2 | ||
| 35495-22020 |
KZH10#,11#,120,13#..4FC 外径=5.535,ﾗﾊﾞｰ |
7 | ||
| 35495-22020 |
KZH10#,11#,120,13# 外径=5.535,ﾗﾊﾞｰ |
10 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35495-22020 |
KZH10#,11#,120,13# 外径=5.535,ﾗﾊﾞｰ |
8 | ||
| 35496-22030 |
KZH10#,11#,120,13# 外径=6.35,ﾗﾊﾞｰ |
2 | ||
| 35495-22020 |
KZH10#,11#,120,13#..4FC 外径=5.535,ﾗﾊﾞｰ |
7 | ||
| 35495-22020 |
KZH10#,11#,120,13# 外径=5.535,ﾗﾊﾞｰ |
10 | ||
| 35481B - CLAMP, VALVE BODY WIRE HARNESS | ||||
| 35481-24010 |
KZH10#,11#,120,13# |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-30020 |
KZH10#,11#,120,13# |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90105-06049 | ||||
| Linked diagrams | ||||
| 8410 | ||||

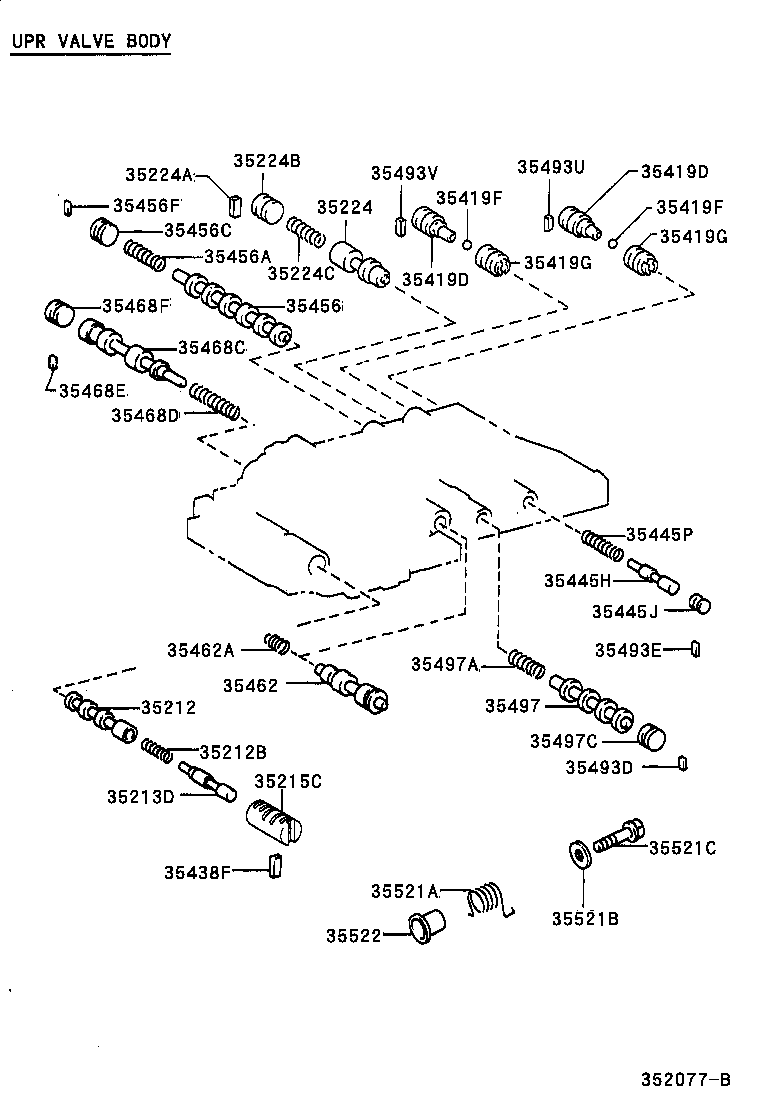

ILLUST NO. 2 OF 4(9907- )KZH10#,11#,120,13#
A340E,A340F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35212-24010 |
KZH10#,11#,120,13# |
1 | ||
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-06057 |
KZH10#,11#,120,13# |
1 | ||
| 35213D - PLUNGER, LOCK UP RELAY VALVE | ||||
| 35213-24010 |
KZH10#,11#,120,13# |
1 | ||
| 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 | ||||
| 35215-24010 |
KZH10#,11#,120,13# |
1 | ||
| 35224 - VALVE, REVERSE CONTROL | ||||
| 35224-30010 |
KZH10#,11#,120,13# |
1 | ||
| 35224A - KEY, STRAIGHT (FOR REVERSE CONTROL VALVE) | ||||
| 90282-03010 |
KZH10#,11#,120,13# |
1 | ||
| 35224B - PLUG (FOR REVERSE CONTROL VALVE) | ||||
| 90339-05020 |
KZH10#,11#,120,13# |
1 | ||
| 35224C - SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE) | ||||
| 90501-06056 |
KZH10#,11#,120,13# |
1 | ||
| 35419D - VALVE, CHECK, NO.2 | ||||
| 35419-50020 |
KZH10#,11#,120,13# |
2 | ||
| 35419D - VALVE, CHECK, NO.2 | ||||
| 35419-50020 |
KZH10#,11#,120,13# |
2 | ||
| 35419F - BALL, CHECK VALVE | ||||
| 90360-06004 |
KZH10#,11#,120,13# |
2 | ||
| 35419F - BALL, CHECK VALVE | ||||
| 90360-06004 |
KZH10#,11#,120,13# |
2 | ||
| 35419G - VALVE, CHECK, NO.4 | ||||
| 35419-50030 |
KZH10#,11#,120,13# |
2 | ||
| 35419G - VALVE, CHECK, NO.4 | ||||
| 35419-50030 |
KZH10#,11#,120,13# |
2 | ||
| 35438F - SEAT, DETENT SPRING | ||||
| 35438-22020 |
KZH10#,11#,120,13#,LH100,120..4FC..TDE |
1 | ||
| 35493-22020 |
KZH10#,11#,120,13# |
1 | ||
| 35445H - VALVE, 2ND COAST MODULATOR | ||||
| 35445-50010 |
KZH10#,11#,120,13# |
1 | ||
| 35445J - PLUG (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90339-04002 |
KZH10#,11#,120,13# |
1 | ||
| 35445P - SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90501-10081 |
KZH10#,11#,120,13# |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-30060 |
KZH10#,11#,120,13# |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-09053 |
KZH10#,11#,120,13# |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 90339-05014 |
KZH10#,11#,120,13#,LH100,107,120,RZH100,101,111,125,133..4FC |
1 | ||
| 90339-05014 |
KZH10#,11#,120,13# |
1 | ||
| 35456F - KEY, STRAIGHT (FOR 2-3 SHIFT VALVE) | ||||
| 35493-22020 |
KZH10#,11#,120,13# |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-24010 |
KZH10#,11#,120,13# |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-12170 |
KZH10#,11#,120,13# |
1 | ||
| 35468E - KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE) | ||||
| 35493-30030 |
KZH10#,11#,120,13# |
1 | ||
| 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) | ||||
| 90339-05020 |
KZH10#,11#,120,13# |
1 | ||
| 35493D - SEAT, 3-4 SHIFT VALVE PLUG | ||||
| 35493-30090 |
KZH10#,11#,120,13# |
1 | ||
| 35493E - SEAT, 2ND COAST MODULATOR VALVE PLUG | ||||
| 35493-30090 |
KZH10#,11#,120,13# |
1 | ||
| 35493-30080 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 35493U - SEAT, CHECK VALVE, NO.1 | ||||
| 35493-30030 |
KZH10#,11#,120,13# |
1 | ||
| 35493V - SEAT, CHECK VALVE, NO.2 | ||||
| 35493-30030 |
KZH10#,11#,120,13# |
1 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-30040 |
KZH10#,11#,120,13# |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-09053 |
KZH10#,11#,120,13# |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90339-05014 |
KZH10#,11#,120,13#,LH100,107,120,RZH100,101,111,125,133..4FC |
1 | ||
| 90339-05014 |
KZH10#,11#,120,13# |
1 | ||

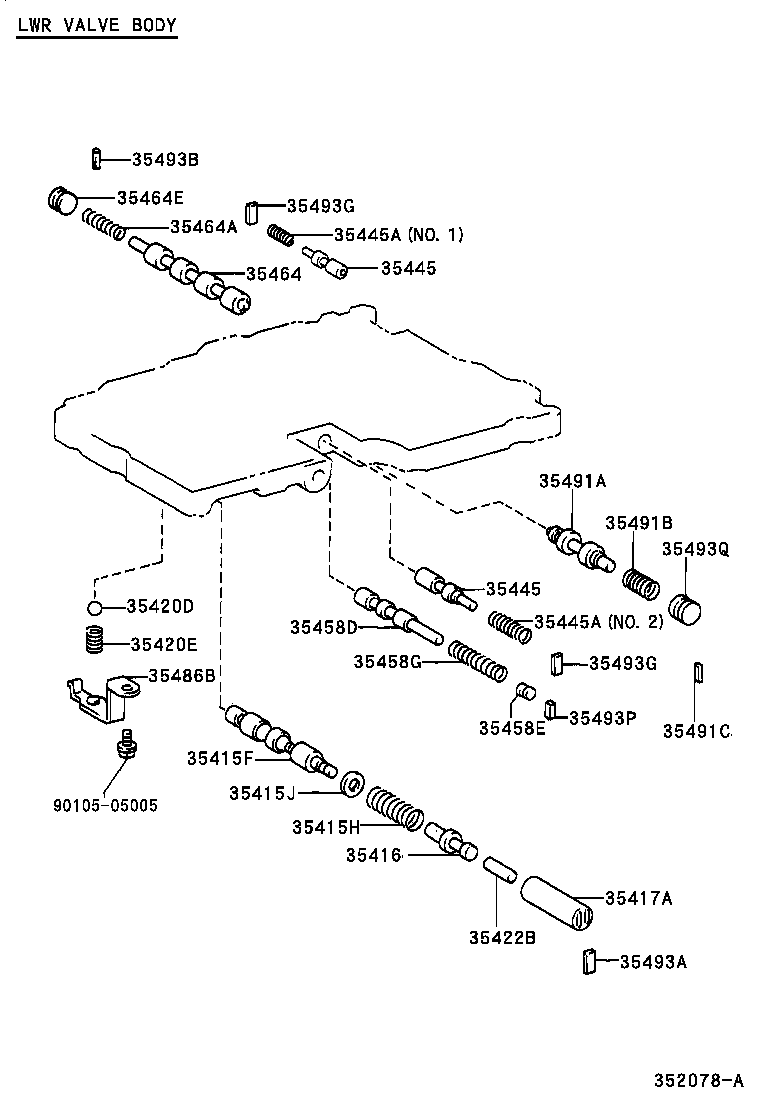

ILLUST NO. 3 OF 4(9907-0408)KZH10#,11#,120,13#
A340E,A340F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35415F - VALVE, PRIMARY REGULATOR | ||||
| 35415-30050 |
KZH10#,11#,120,13# |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-14153 |
KZH10#,11#,120,13# |
1 | ||
| 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) | ||||
| 90201-08067 |
KZH10#,11#,120,13# |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-24020 |
KZH10#,11#,120,13# |
1 | ||
| 35417A - SLEEVE, PRIMARY REGULATOR VALVE | ||||
| 35417-24020 |
KZH10#,11#,120,13# |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 90360-08003 |
KZH10#,11#,120,13# 外径=8.00,ｽﾁｰﾙ |
4 | ||
| 35420E - SPRING (FOR LOWER VALVE BODY) | ||||
| 90501-12142 |
KZH10#,11#,120,13# |
1 | ||
| 35422B - PLUNGER, PRIMARY REGULATOR VALVE, NO.2 | ||||
| 35422-50011 |
KZH10#,11#,120,13# |
1 | ||
| 35445 - VALVE, LOW MODULATOR | ||||
| 35445-50010 |
KZH10#,11#,120,13# |
2 | ||
| 35445 - VALVE, LOW MODULATOR | ||||
| 35445-50010 |
KZH10#,11#,120,13# |
2 | ||
| 35445A - SPRING, COMPRESSION (FOR LOW MODULATOR VALVE) | ||||
| 90501-08088 |
KZH10#,11#,120,13# NO.1 |
1 | ||
| 90501-08169 |
KZH10#,11#,120,13# NO.1 |
1 | ||
| 90501-12158 |
KZH10#,11#,120,13# NO.2 |
1 | ||
| 35445A - SPRING, COMPRESSION (FOR LOW MODULATOR VALVE) | ||||
| 90501-08088 |
KZH10#,11#,120,13# NO.1 |
1 | ||
| 90501-08169 |
KZH10#,11#,120,13# NO.1 |
1 | ||
| 90501-12158 |
KZH10#,11#,120,13# NO.2 |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-24010 |
KZH10#,11#,120,13# |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 90339-04030 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 90339-04056 |
KZH10#,11#,120,13# |
1 | ||
| 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) | ||||
| 90501-07113 |
KZH10#,11#,120,13# |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-12030 |
KZH10#,11#,120,13# |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-09053 |
KZH10#,11#,120,13# |
1 | ||
| 35464E - PLUG (FOR 1-2 SHIFT VALVE) | ||||
| 90339-05014 |
KZH10#,11#,120,13# |
1 | ||
| 35486B - SEAT, PRESSURE RELIEF VALVE SPRING | ||||
| 35486-30020 |
KZH10#,11#,120,13# |
1 | ||
| 35491A - VALVE, ACCUMULATOR CONTROL, NO.1 | ||||
| 35491-60050 |
KZH10#,11#,120,13# |
1 | ||
| 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1 | ||||
| 90501-08191 |
KZH10#,11#,120,13# |
1 | ||
| 35491C - KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90282-03016 |
KZH10#,11#,120,13# |
1 | ||
| 35493A - SEAT, PRIMARY REGULATOR VALVE PLUG | ||||
| 35493-50010 |
KZH10#,11#,120,13# |
1 | ||
| 35493B - SEAT, 1-2 SHIFT VALVE PLUG | ||||
| 35493-30090 |
KZH10#,11#,120,13# |
1 | ||
| 35493G - SEAT, LOW COAST MODULATOR VALVE PLUG | ||||
| 35493-30090 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 35493-24010 |
KZH10#,11#,120,13# |
2 | ||
| 35493G - SEAT, LOW COAST MODULATOR VALVE PLUG | ||||
| 35493-30090 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 35493-24010 |
KZH10#,11#,120,13# |
2 | ||
| 35493P - SEAT, CUT BACK VALVE PLUG | ||||
| 35493-30100 |
KZH10#,11#,120,13# |
1 | ||
| 35493Q - SEAT, ACCUMULATOR CONTROL VALVE PLUG, NO.1 | ||||
| 90339-05028 |
KZH10#,11#,120,13# |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||

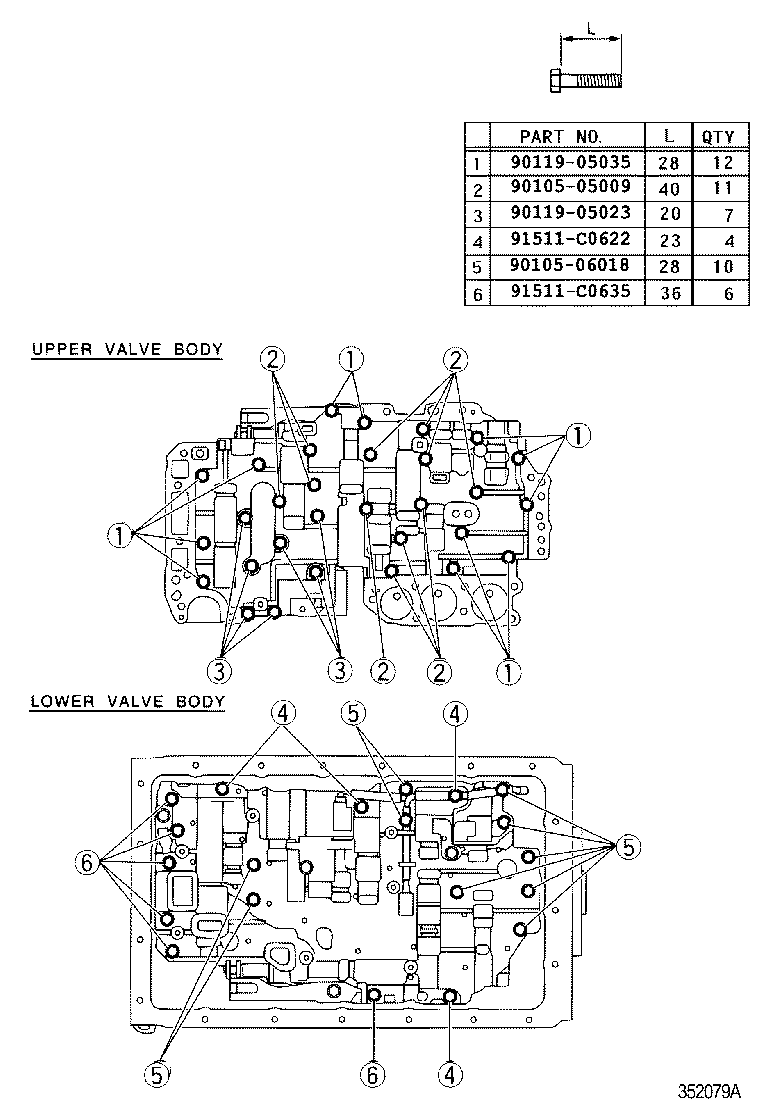

ILLUST NO. 4 OF 4(9907-0408)KZH10#,11#,120,13#
A340E,A340F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05009 | ||||
| 90105-06018 | ||||
| 90119-05023 | ||||
| 90119-05035 | ||||
| 91511-C0622 | ||||
| 91511-C0635 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
