KZH126G-HHMNT (1993)
Toyota Hiace/Regiusace

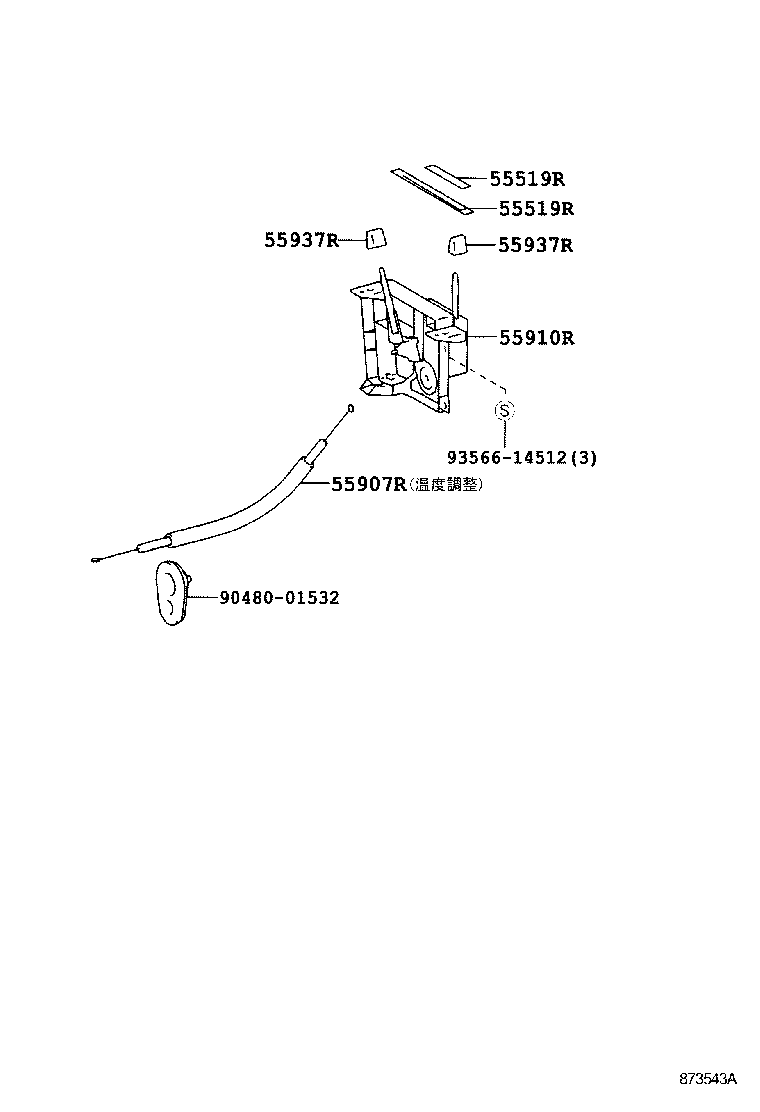

ILLUST NO. 2 OF 6(9308- )KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133,18#
ﾘﾔｺﾝﾄﾛ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519R - PLATE, HEATER CONTROL NAME | ||||
| 55519-95J19 |
KZH10#,11#,12#,LH10#,11#,12#,RZH100,102,112,124..4D..(CTM,DX,GCGE,GCGN,GL,SGL) ﾌｧﾝ |
1 | ||
| 55519-26040 |
KZH10#,11#,12#,LH10#,11#,12#,RZH100,102,112,124..4D..(CTM,DX,GCGE,GCGN,GL,SGL) TEMP |
1 | ||
| 55519-26040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D..(CTM,DX,GCGE,GCGN,GL,SGL) TEMP |
1 | ||
| 55519-26030 |
KZH10#,11#,12#,LH10#,11#,12#,RZH100,102,112,124..4D..(CTM,DX,GCGE,GCGN,GL,SGL) ﾌｧﾝ |
1 | ||
| 55519-95J20 |
KZH10#,11#,12#,LH10#,11#,12#,RZH100,102,112,124..4D..(CTM,DX,GCGE,GCGN,GL,SGL) TEMP |
1 | ||
| 55519-26030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D..(CTM,DX,GCGE,GCGN,GL,SGL) ﾌｧﾝ |
1 | ||
| 55519R - PLATE, HEATER CONTROL NAME | ||||
| 55519-95J19 |
KZH10#,11#,12#,LH10#,11#,12#,RZH100,102,112,124..4D..(CTM,DX,GCGE,GCGN,GL,SGL) ﾌｧﾝ |
1 | ||
| 55519-26040 |
KZH10#,11#,12#,LH10#,11#,12#,RZH100,102,112,124..4D..(CTM,DX,GCGE,GCGN,GL,SGL) TEMP |
1 | ||
| 55519-26040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D..(CTM,DX,GCGE,GCGN,GL,SGL) TEMP |
1 | ||
| 55519-26030 |
KZH10#,11#,12#,LH10#,11#,12#,RZH100,102,112,124..4D..(CTM,DX,GCGE,GCGN,GL,SGL) ﾌｧﾝ |
1 | ||
| 55519-95J20 |
KZH10#,11#,12#,LH10#,11#,12#,RZH100,102,112,124..4D..(CTM,DX,GCGE,GCGN,GL,SGL) TEMP |
1 | ||
| 55519-26030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D..(CTM,DX,GCGE,GCGN,GL,SGL) ﾌｧﾝ |
1 | ||
| 55910R - CONTROL ASSY, HEATER | ||||
| 55910-95J21 |
KZH10#,11#,12#,LH10#,11#,12#,RZH100,102,112,124..4D..(CTM,DX,GCGE,GCGN,GL,SGL) |
1 | ||
| 55910-95J21 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D..(CTM,DX,GCGE,GCGN,GL,SGL) |
1 | ||
| 55937R - KNOB, HEATER CONTROL LEVER | ||||
| 55905-10110 |
KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124..4D..(05S,06S,07S,08S,09S,10S,15S) |
2 | ||
| 55905-10110 |
KZH10#,11#;KZH12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL) |
2 | ||
| 55937R - KNOB, HEATER CONTROL LEVER | ||||
| 55905-10110 |
KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124..4D..(05S,06S,07S,08S,09S,10S,15S) |
2 | ||
| 55905-10110 |
KZH10#,11#;KZH12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL) |
2 | ||
| Common parts | ||||
| 90480-01532 | ||||
| 93566-14512 | ||||

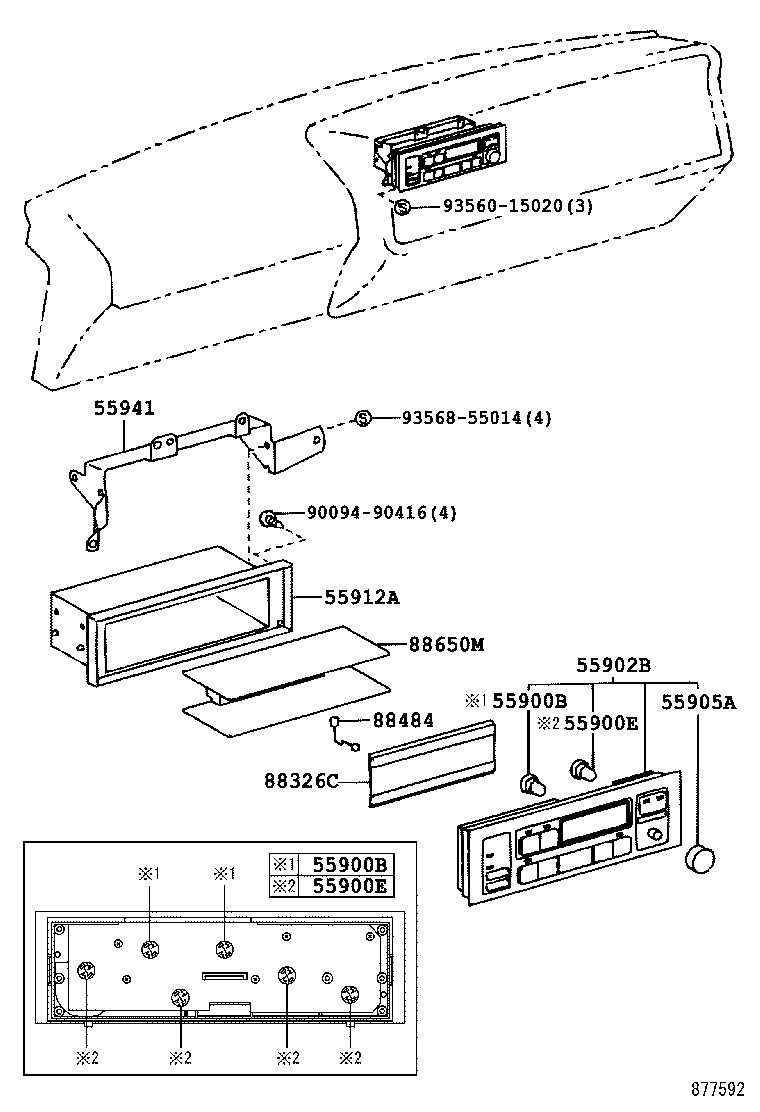

ILLUST NO. 1 OF 6(9508-9907)
ﾌﾛﾝﾄｺﾝﾄﾛ-ﾙ(ﾌﾟﾂｼﾕﾀｲﾌﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22280 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S MODE,内外気 |
2 | ||
| 55905-22260 |
LH10#,11#,12#,140,RZH10#,11#,12# ﾌﾞﾛﾜ,TEMP |
2 | ||
| 55905-22260 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S ﾌﾞﾛﾜ,TEMP |
2 | ||
| 55905-22260 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..HRF,SMRF,SRF ﾌﾞﾛﾜ,TEMP |
2 | ||
| 55905-22280 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..HRF,SMRF,SRF MODE,内外気 |
2 | ||
| Common parts | ||||
| 90094-90416 | ||||
| 93560-15020 | ||||
| 93568-55014 | ||||
