KZH126G-HHMNT (1993)
Toyota Hiace/Regiusace

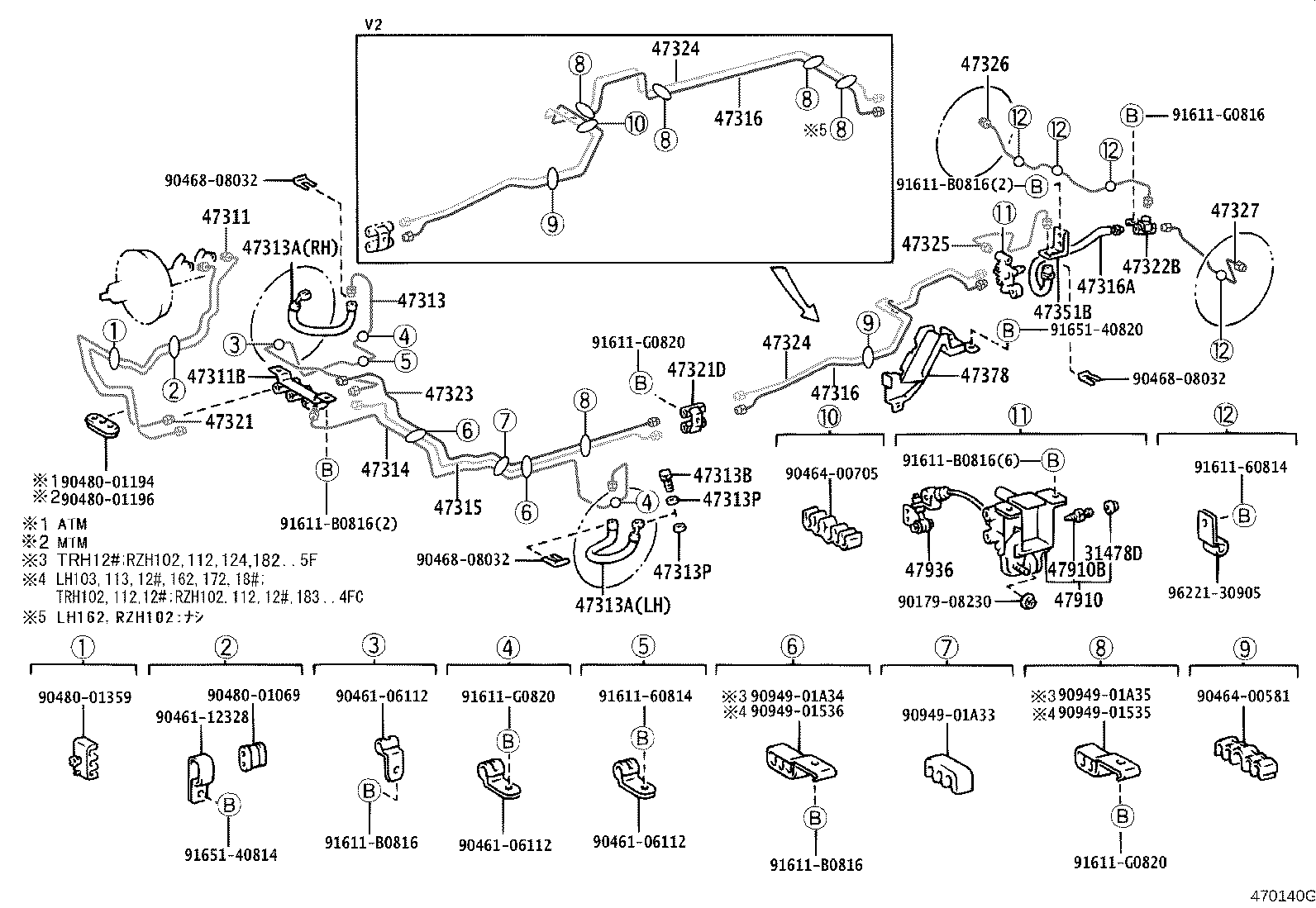

ILLUST NO. 1 OF 3(9308-9808)LH103,113,123,125,RZH102,112,124 ; (9808- )TRH102,112..SGL ; (9808-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31478D - CAP, BLEEDER PLUG(FOR LSPV) | ||||
| 31478-30010 |
LH10#,11#,12#,16#,17#,18#,RZH102,112,12# |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-26430 |
KZH10#,11#,12#,13#,RZH10#,11#,124,133 |
1 | ||
| 47311-26660 |
LH16#,17#,18#,RZH102,112,12# ｱﾘ(ABS) |
1 | ||
| 47311-26440 |
LH10#,11#,12# |
1 | ||
| 47311-26360 |
RZH102,112,12# |
1 | ||
| 47311-26420 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ABS) |
1 | ||
| 47311-26421 |
KZH10#,11#,12#,13#,RZH101,111,133 ｱﾘ(ABS) |
1 | ||
| 47311-26441 |
LH162,17#..CD,DX;LH10#,11#,12#,168,18# |
1 | ||
| 47311-26421 |
KZH10#,11#,12#,13#,RZH101,111 ｱﾘ(ABS) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10237 |
LH10#,11#,12#,140,RZH100,102,11#,12#..5F |
1 | ||
| 90414-10019 |
KZH10#,11#,12#,LH10#,11#,12#,RZH100,102,112,124..5F |
1 | ||
| 90904-12011 |
KZH10#,12#,RZH101..07S,08S,10S ｱﾘ(ABS) |
1 | ||
| 90904-12011 |
KZH10#,11#,12#,13#,RZH101,111 ｱﾘ(ABS) |
1 | ||
| 90414-10019 |
LH10#,11#,12#,RZH102,112,124..5F |
1 | ||
| 90904-12011 |
RZH102,112..4FC;KZH10#,11#,12#,13#,LH16#,17#,18#,RZH101,111,125,133 ｱﾘ(ABS) |
1 | ||
| 90414-10022 |
KZH10#,11#,12#,13#,RZH101,111,133;LH103,11#,123,129,RZH102,112..4FC |
1 | ||
| 90904-12010 |
KZH10#,12#..(08S,10S)..5F ｱﾘ(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-26160 |
KZH106,116,126,138,LH107,109,117,119,129 |
1 | ||
| 47313-26200 |
KZH106,126..07S,08S,10S ｱﾘ(ABS) |
1 | ||
| 47313-26200 |
KZH106,116,126,138 ｱﾘ(ABS) |
1 | ||
| 47313-26250 |
LH162,172,182,184,RZH102,112,12# ｱﾘ(ABS) |
1 | ||
| 47313-26140 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,RZH10#,11#,12#,133 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02829 |
KZH106,116,126,138,LH168,178,186,188 |
2 | ||
| 90947-02590 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# 右側 |
1 | ||
| 90947-02759 |
KZH106,116,126,LH109,119,129 |
2 | ||
| 90947-02591 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# 左側 |
1 | ||
| 90947-02755 |
KZH100,110,120,132,LH103,113,123,125,162,172,182,184,RZH10#,11#,12#,133 ｱﾘ(195/70R15C ﾀｲﾔ),右側 |
1 | ||
| 90947-02756 |
KZH100,110,120,132,LH103,113,123,125,162,172,182,184,RZH10#,11#,12#,133 ｱﾘ(195/70R15C ﾀｲﾔ),左側 |
1 | ||
| 90947-02829 |
KZH106,116,126,138,LH109,119,129 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02829 |
KZH106,116,126,138,LH168,178,186,188 |
2 | ||
| 90947-02590 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# 右側 |
1 | ||
| 90947-02759 |
KZH106,116,126,LH109,119,129 |
2 | ||
| 90947-02591 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# 左側 |
1 | ||
| 90947-02755 |
KZH100,110,120,132,LH103,113,123,125,162,172,182,184,RZH10#,11#,12#,133 ｱﾘ(195/70R15C ﾀｲﾔ),右側 |
1 | ||
| 90947-02756 |
KZH100,110,120,132,LH103,113,123,125,162,172,182,184,RZH10#,11#,12#,133 ｱﾘ(195/70R15C ﾀｲﾔ),左側 |
1 | ||
| 90947-02829 |
KZH106,116,126,138,LH109,119,129 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-26140 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| 47314-26210 |
KZH106,116,126,138,LH109,119,129 |
1 | ||
| 47314-26200 |
KZH106,116,126,138,LH168,178,186,188 ｱﾘ(ABS) |
1 | ||
| 47314-26200 |
KZH106,126..07S,08S,10S ｱﾘ(ABS) |
1 | ||
| 47314-26180 |
KZH100,110,120,132,LH162,172,182,184,RZH10#,11#,12#,133 ｱﾘ(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-26150 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 47315-26150 |
LH162,17#,RZH102,112..CD,DX;KZH13#,LH10#,11#,12#,168,18#,RZH12#,133 |
1 | ||
| 47315-26140 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ABS) |
1 | ||
| 47315-26140 |
KZH10#,11#,12#,13#,RZH101,111 ｱﾘ(ABS) |
1 | ||
| 47315-26140 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 ｱﾘ(ABS) |
1 | ||
| 47315-26150 |
KZH10#,11#,12#,LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-26230 |
KZH12#,13#,RZH133 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-26230 |
KZH12#,13#,RZH133 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33456 |
LH102,110,113,115,120,123,125,140,RZH102,11#,12#..COM,V1,WG |
1 | ||
| 96940-33305 |
KZH106,116,126,138 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-26350 |
LH10#,11#,12# |
1 | ||
| 47321-26270 |
RZH102,112,12# |
1 | ||
| 47321-26330 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ABS) |
1 | ||
| 47321-26331 |
KZH10#,11#,12#,13#,RZH101,111 ｱﾘ(ABS) |
1 | ||
| 47321-26490 |
LH16#,17#,18#,RZH102,112,12# ｱﾘ(ABS) |
1 | ||
| 47321-26351 |
LH162,17#..CD,DX;LH10#,11#,12#,168,18# |
1 | ||
| 47321-26340 |
KZH10#,11#,12#,13#,RZH10#,11#,124,133 |
1 | ||
| 47321-26331 |
KZH10#,11#,12#,13#,RZH101,111,133 ｱﾘ(ABS) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10166 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 90412-10165 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10147 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 90413-10243 |
LH102,103,109,11#,12#,140,16#,17#,18#,RZH102,110,112,12#..COM,V1,WG |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-26310 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 47323-26340 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-26310 |
KZH12#,13#,RZH133 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-26310 |
KZH12#,13#,RZH133 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-26310 |
KZH10#,11#,12#,13#,RZH100,101,111,133 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-26270 |
LH102,103,110,113,115,120,123,125,140,RZH102,110,112,12#..COM,V1,WG |
1 | ||
| 47326-26260 |
KZH106,116,126,138,LH107 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-26120 |
LH102,103,110,113,115,120,123,125,140,RZH102,110,112,12#..COM,V1,WG |
1 | ||
| 47327-26110 |
KZH106,116,126,138,LH107 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-26120 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 47378 - PROTECTOR, BRAKE TUBE | ||||
| 47378-26020 |
KZH100..(MRF,SMRF)..5F;LH123,129,RZH100,101,124,133..HRF,MRF,SMRF;KZH106,12#,LH103,125,RZH102..(03S,08S,09S,10S,15S)..5F |
1 | ||
| 47378-26020 |
KZH10#,126,LH168,RZH124..5F;LH162,18#,RZH10#,125,133..(COM,V1,WG)..(CD,DX,GL,SCL,SCM,SCMM) ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 47378-26031 |
KZH10#,11#,12#,13#,LH16#,17#,18# |
1 | ||
| 47378-26020 |
KZH100..(MRF,SMRF)..5F;LH100,107,120,123,129,RZH100,101,122..HRF,MRF,SMRF;KZH106,11#,12#,LH102,103,125,RZH102,124..(03S,08S,09S,10S,15S)..5F |
1 | ||
| 47910B - PLUG, BLEEDER | ||||
| 47547-27030 |
LH10#,11#,12#,16#,17#,18#,RZH102,112,12# |
1 | ||
| 47547-27020 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| Common parts | ||||
| 90179-08230 | ||||
| 90461-06112 | ||||
| 90461-12328 | ||||
| 90464-00581 | ||||
| 90464-00705 | ||||
| 90468-08032 | ||||
| 90480-01069 | ||||
| 90480-01194 | ||||
| 90480-01196 | ||||
| 90480-01359 | ||||
| 90949-01535 | ||||
| 90949-01536 | ||||
| 90949-01A33 | ||||
| 90949-01A34 | ||||
| 90949-01A35 | ||||
| 91611-60814 | ||||
| 91611-B0816 | ||||
| 91611-G0816 | ||||
| 91611-G0820 | ||||
| 91651-40814 | ||||
| 91651-40820 | ||||
| 96221-30905 | ||||

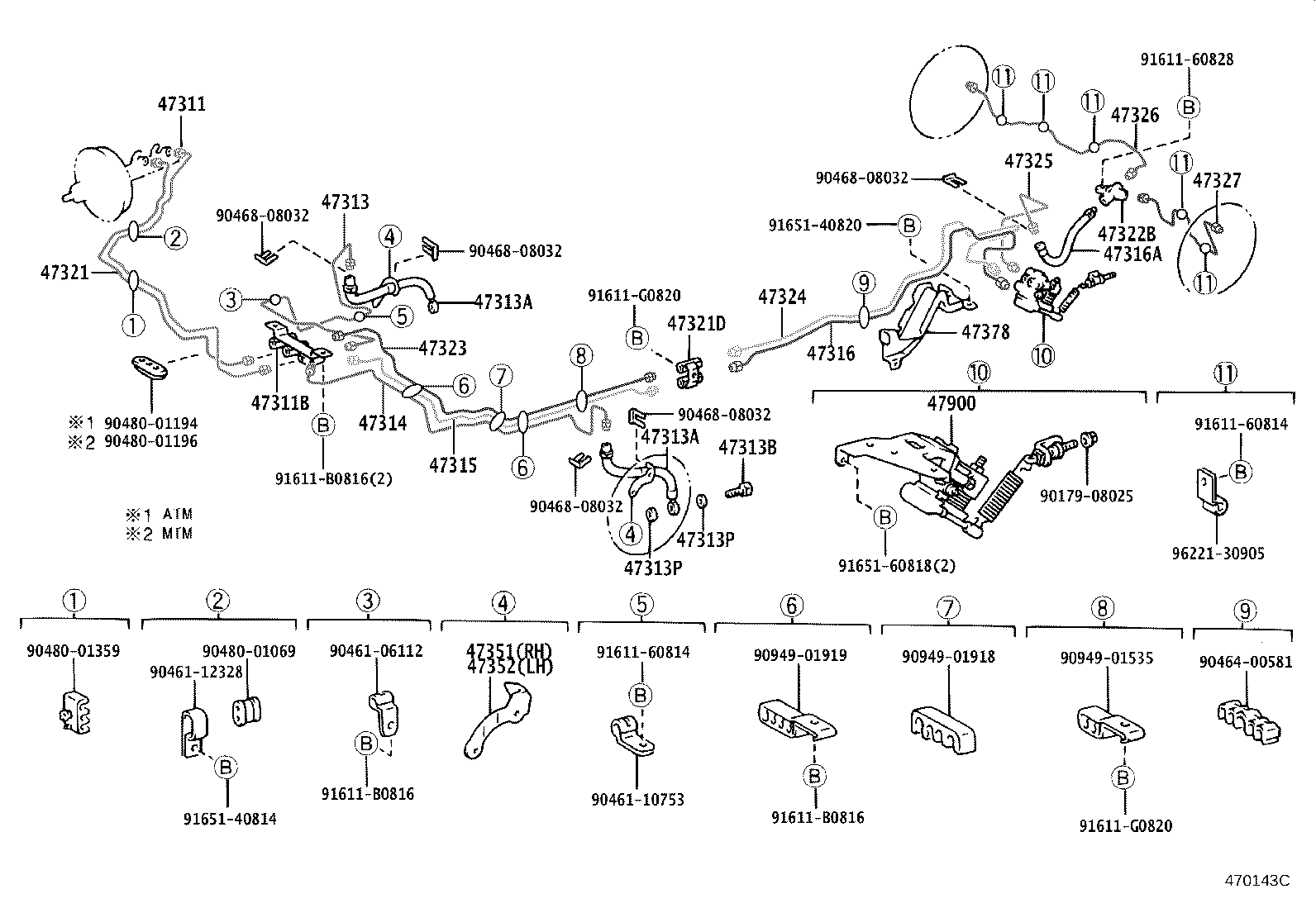

ILLUST NO. 1 OF 3(9308-9608)KZH106,116,126,138 ; (9608- )KZH12#,138
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-26430 |
KZH10#,11#,12#,13#,RZH10#,11#,124,133 |
1 | ||
| 47311-26660 |
LH16#,17#,18#,RZH102,112,12# ｱﾘ(ABS) |
1 | ||
| 47311-26440 |
LH10#,11#,12# |
1 | ||
| 47311-26360 |
RZH102,112,12# |
1 | ||
| 47311-26420 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ABS) |
1 | ||
| 47311-26421 |
KZH10#,11#,12#,13#,RZH101,111,133 ｱﾘ(ABS) |
1 | ||
| 47311-26441 |
LH162,17#..CD,DX;LH10#,11#,12#,168,18# |
1 | ||
| 47311-26421 |
KZH10#,11#,12#,13#,RZH101,111 ｱﾘ(ABS) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10237 |
LH10#,11#,12#,140,RZH100,102,11#,12#..5F |
1 | ||
| 90414-10019 |
KZH10#,11#,12#,LH10#,11#,12#,RZH100,102,112,124..5F |
1 | ||
| 90904-12011 |
KZH10#,12#,RZH101..07S,08S,10S ｱﾘ(ABS) |
1 | ||
| 90904-12011 |
KZH10#,11#,12#,13#,RZH101,111 ｱﾘ(ABS) |
1 | ||
| 90414-10019 |
LH10#,11#,12#,RZH102,112,124..5F |
1 | ||
| 90904-12011 |
RZH102,112..4FC;KZH10#,11#,12#,13#,LH16#,17#,18#,RZH101,111,125,133 ｱﾘ(ABS) |
1 | ||
| 90414-10022 |
KZH10#,11#,12#,13#,RZH101,111,133;LH103,11#,123,129,RZH102,112..4FC |
1 | ||
| 90904-12010 |
KZH10#,12#..(08S,10S)..5F ｱﾘ(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-26160 |
KZH106,116,126,138,LH107,109,117,119,129 |
1 | ||
| 47313-26200 |
KZH106,126..07S,08S,10S ｱﾘ(ABS) |
1 | ||
| 47313-26200 |
KZH106,116,126,138 ｱﾘ(ABS) |
1 | ||
| 47313-26250 |
LH162,172,182,184,RZH102,112,12# ｱﾘ(ABS) |
1 | ||
| 47313-26140 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,RZH10#,11#,12#,133 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02590 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# 右側 |
1 | ||
| 90947-02759 |
KZH106,116,126,LH109,119,129 |
2 | ||
| 90947-02829 |
KZH106,116,126,138,LH168,178,186,188 |
2 | ||
| 90947-02591 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# 左側 |
1 | ||
| 90947-02755 |
KZH100,110,120,132,LH103,113,123,125,162,172,182,184,RZH10#,11#,12#,133 ｱﾘ(195/70R15C ﾀｲﾔ),右側 |
1 | ||
| 90947-02756 |
KZH100,110,120,132,LH103,113,123,125,162,172,182,184,RZH10#,11#,12#,133 ｱﾘ(195/70R15C ﾀｲﾔ),左側 |
1 | ||
| 90947-02829 |
KZH106,116,126,138,LH109,119,129 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02590 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# 右側 |
1 | ||
| 90947-02759 |
KZH106,116,126,LH109,119,129 |
2 | ||
| 90947-02829 |
KZH106,116,126,138,LH168,178,186,188 |
2 | ||
| 90947-02591 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# 左側 |
1 | ||
| 90947-02755 |
KZH100,110,120,132,LH103,113,123,125,162,172,182,184,RZH10#,11#,12#,133 ｱﾘ(195/70R15C ﾀｲﾔ),右側 |
1 | ||
| 90947-02756 |
KZH100,110,120,132,LH103,113,123,125,162,172,182,184,RZH10#,11#,12#,133 ｱﾘ(195/70R15C ﾀｲﾔ),左側 |
1 | ||
| 90947-02829 |
KZH106,116,126,138,LH109,119,129 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-26140 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| 47314-26210 |
KZH106,116,126,138,LH109,119,129 |
1 | ||
| 47314-26200 |
KZH106,116,126,138,LH168,178,186,188 ｱﾘ(ABS) |
1 | ||
| 47314-26200 |
KZH106,126..07S,08S,10S ｱﾘ(ABS) |
1 | ||
| 47314-26180 |
KZH100,110,120,132,LH162,172,182,184,RZH10#,11#,12#,133 ｱﾘ(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-26150 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 47315-26150 |
LH162,17#,RZH102,112..CD,DX;KZH13#,LH10#,11#,12#,168,18#,RZH12#,133 |
1 | ||
| 47315-26140 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ABS) |
1 | ||
| 47315-26140 |
KZH10#,11#,12#,13#,RZH101,111 ｱﾘ(ABS) |
1 | ||
| 47315-26140 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 ｱﾘ(ABS) |
1 | ||
| 47315-26150 |
KZH10#,11#,12#,LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-26230 |
KZH12#,13#,RZH133 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33456 |
LH102,110,113,115,120,123,125,140,RZH102,11#,12#..COM,V1,WG |
1 | ||
| 96940-33305 |
KZH106,116,126,138 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-26350 |
LH10#,11#,12# |
1 | ||
| 47321-26270 |
RZH102,112,12# |
1 | ||
| 47321-26330 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ABS) |
1 | ||
| 47321-26331 |
KZH10#,11#,12#,13#,RZH101,111 ｱﾘ(ABS) |
1 | ||
| 47321-26490 |
LH16#,17#,18#,RZH102,112,12# ｱﾘ(ABS) |
1 | ||
| 47321-26351 |
LH162,17#..CD,DX;LH10#,11#,12#,168,18# |
1 | ||
| 47321-26340 |
KZH10#,11#,12#,13#,RZH10#,11#,124,133 |
1 | ||
| 47321-26331 |
KZH10#,11#,12#,13#,RZH101,111,133 ｱﾘ(ABS) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10166 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 90412-10165 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10147 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 90413-10243 |
LH102,103,109,11#,12#,140,16#,17#,18#,RZH102,110,112,12#..COM,V1,WG |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-26310 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 47323-26340 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-26310 |
KZH12#,13#,RZH133 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-26310 |
KZH10#,11#,12#,13#,RZH100,101,111,133 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-26270 |
LH102,103,110,113,115,120,123,125,140,RZH102,110,112,12#..COM,V1,WG |
1 | ||
| 47326-26260 |
KZH106,116,126,138,LH107 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-26120 |
LH102,103,110,113,115,120,123,125,140,RZH102,110,112,12#..COM,V1,WG |
1 | ||
| 47327-26110 |
KZH106,116,126,138,LH107 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-26131 |
KZH106,116,126,LH109,119,129 |
1 | ||
| 47351-26160 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-26150 |
KZH106,116,126,138 |
1 | ||
| 47352-26121 |
KZH106,116,126,LH109,119,129 |
1 | ||
| 47352-26150 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 |
1 | ||
| 47378 - PROTECTOR, BRAKE TUBE | ||||
| 47378-26020 |
KZH100..(MRF,SMRF)..5F;LH123,129,RZH100,101,124,133..HRF,MRF,SMRF;KZH106,12#,LH103,125,RZH102..(03S,08S,09S,10S,15S)..5F |
1 | ||
| 47378-26020 |
KZH10#,126,LH168,RZH124..5F;LH162,18#,RZH10#,125,133..(COM,V1,WG)..(CD,DX,GL,SCL,SCM,SCMM) ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 47378-26031 |
KZH10#,11#,12#,13#,LH16#,17#,18# |
1 | ||
| 47378-26020 |
KZH100..(MRF,SMRF)..5F;LH100,107,120,123,129,RZH100,101,122..HRF,MRF,SMRF;KZH106,11#,12#,LH102,103,125,RZH102,124..(03S,08S,09S,10S,15S)..5F |
1 | ||
| 47900 - VALVE ASSY, LOAD SENSING W/SPRING | ||||
| 47900-26440 |
KZH11#,12#,13#,RZH111,133 |
1 | ||
| Common parts | ||||
| 90179-08025 | ||||
| 90461-06112 | ||||
| 90461-10753 | ||||
| 90461-12328 | ||||
| 90464-00581 | ||||
| 90468-08032 | ||||
| 90480-01069 | ||||
| 90480-01194 | ||||
| 90480-01196 | ||||
| 90480-01359 | ||||
| 90949-01535 | ||||
| 90949-01918 | ||||
| 90949-01919 | ||||
| 91611-60814 | ||||
| 91611-60828 | ||||
| 91611-B0816 | ||||
| 91611-G0820 | ||||
| 91651-40814 | ||||
| 91651-40820 | ||||
| 91651-60818 | ||||
| 96221-30905 | ||||

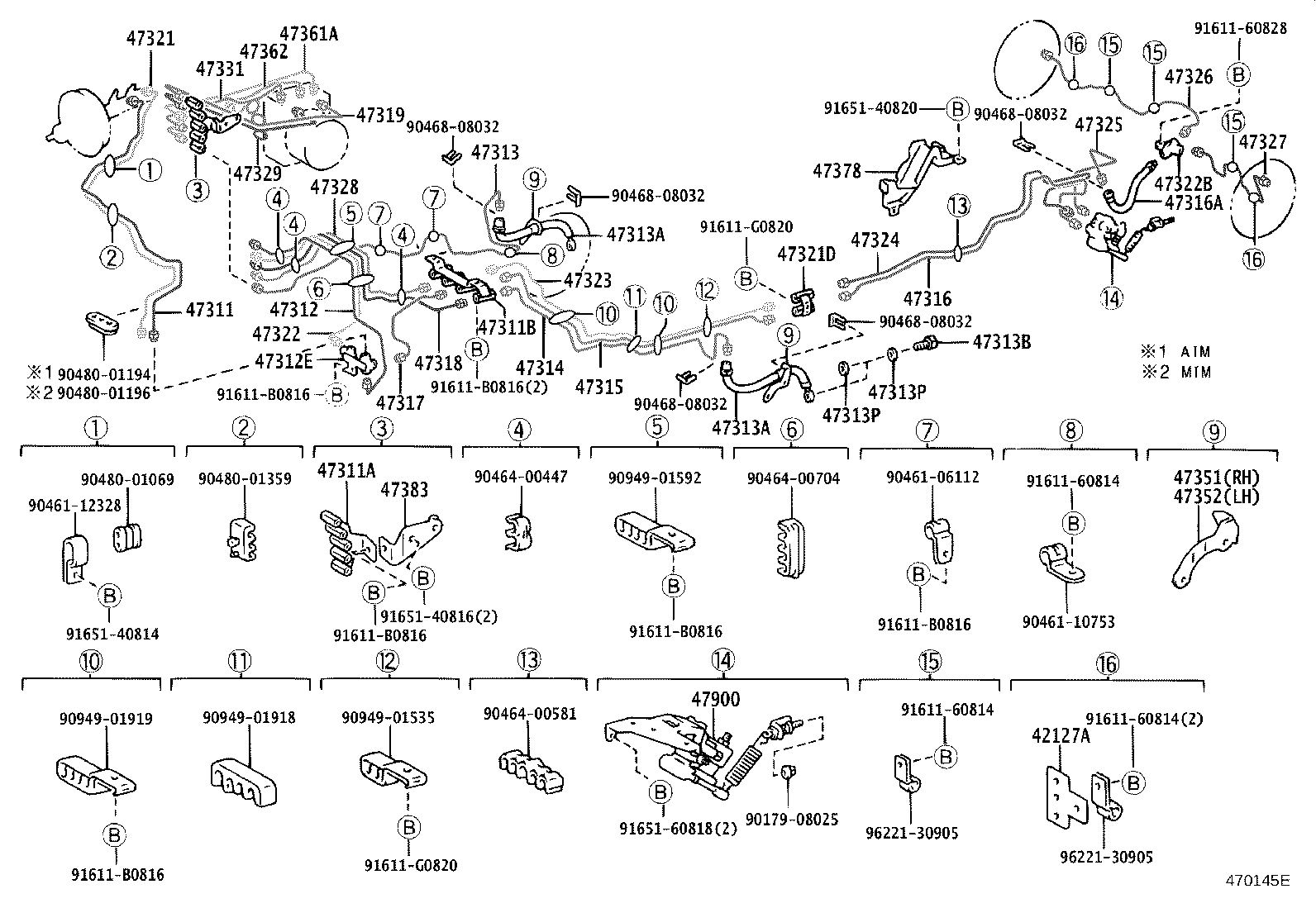

ILLUST NO. 1 OF 3(9308-9608)KZH106,126 ; (9608- )KZH106,116,126,138
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42127A - ATTACHMENT, BRAKE TUBE CLAMP, NO.1 | ||||
| 42127-26040 |
KZH10#,11#,12#,13#,RZH101,111 |
2 | ||
| 42127-26040 |
KZH10#,12#,RZH100,101..07S,08S,10S |
2 | ||
| 42127-26040 |
KZH10#,11#,12#,13#,RZH101,111,133 |
2 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-26430 |
KZH10#,11#,12#,13#,RZH10#,11#,124,133 |
1 | ||
| 47311-26660 |
LH16#,17#,18#,RZH102,112,12# ｱﾘ(ABS) |
1 | ||
| 47311-26440 |
LH10#,11#,12# |
1 | ||
| 47311-26360 |
RZH102,112,12# |
1 | ||
| 47311-26420 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ABS) |
1 | ||
| 47311-26421 |
KZH10#,11#,12#,13#,RZH101,111,133 ｱﾘ(ABS) |
1 | ||
| 47311-26441 |
LH162,17#..CD,DX;LH10#,11#,12#,168,18# |
1 | ||
| 47311-26421 |
KZH10#,11#,12#,13#,RZH101,111 ｱﾘ(ABS) |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90904-12046 |
KZH10#,11#,12#,13#,RZH101,111,133 |
1 | ||
| 90904-12012 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 90904-12046 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10237 |
LH10#,11#,12#,140,RZH100,102,11#,12#..5F |
1 | ||
| 90414-10019 |
KZH10#,11#,12#,LH10#,11#,12#,RZH100,102,112,124..5F |
1 | ||
| 90904-12011 |
KZH10#,12#,RZH101..07S,08S,10S ｱﾘ(ABS) |
1 | ||
| 90904-12011 |
KZH10#,11#,12#,13#,RZH101,111 ｱﾘ(ABS) |
1 | ||
| 90414-10019 |
LH10#,11#,12#,RZH102,112,124..5F |
1 | ||
| 90904-12011 |
RZH102,112..4FC;KZH10#,11#,12#,13#,LH16#,17#,18#,RZH101,111,125,133 ｱﾘ(ABS) |
1 | ||
| 90414-10022 |
KZH10#,11#,12#,13#,RZH101,111,133;LH103,11#,123,129,RZH102,112..4FC |
1 | ||
| 90904-12010 |
KZH10#,12#..(08S,10S)..5F ｱﾘ(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-26340 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47312-26300 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 47312-26300 |
KZH10#,11#,12#,13#,RZH101,111,133 |
1 | ||
| 47312-26300 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90904-13001 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 90904-13001 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 90904-13001 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-26160 |
KZH106,116,126,138,LH107,109,117,119,129 |
1 | ||
| 47313-26200 |
KZH106,126..07S,08S,10S ｱﾘ(ABS) |
1 | ||
| 47313-26200 |
KZH106,116,126,138 ｱﾘ(ABS) |
1 | ||
| 47313-26250 |
LH162,172,182,184,RZH102,112,12# ｱﾘ(ABS) |
1 | ||
| 47313-26140 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,RZH10#,11#,12#,133 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02590 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# 右側 |
1 | ||
| 90947-02759 |
KZH106,116,126,LH109,119,129 |
2 | ||
| 90947-02591 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# 左側 |
1 | ||
| 90947-02755 |
KZH100,110,120,132,LH103,113,123,125,162,172,182,184,RZH10#,11#,12#,133 ｱﾘ(195/70R15C ﾀｲﾔ),右側 |
1 | ||
| 90947-02756 |
KZH100,110,120,132,LH103,113,123,125,162,172,182,184,RZH10#,11#,12#,133 ｱﾘ(195/70R15C ﾀｲﾔ),左側 |
1 | ||
| 90947-02829 |
KZH106,116,126,138,LH109,119,129 |
2 | ||
| 90947-02829 |
KZH106,116,126,138,LH168,178,186,188 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02590 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# 右側 |
1 | ||
| 90947-02759 |
KZH106,116,126,LH109,119,129 |
2 | ||
| 90947-02591 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# 左側 |
1 | ||
| 90947-02755 |
KZH100,110,120,132,LH103,113,123,125,162,172,182,184,RZH10#,11#,12#,133 ｱﾘ(195/70R15C ﾀｲﾔ),右側 |
1 | ||
| 90947-02829 |
KZH106,116,126,138,LH168,178,186,188 |
2 | ||
| 90947-02756 |
KZH100,110,120,132,LH103,113,123,125,162,172,182,184,RZH10#,11#,12#,133 ｱﾘ(195/70R15C ﾀｲﾔ),左側 |
1 | ||
| 90947-02829 |
KZH106,116,126,138,LH109,119,129 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-26140 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| 47314-26210 |
KZH106,116,126,138,LH109,119,129 |
1 | ||
| 47314-26200 |
KZH106,116,126,138,LH168,178,186,188 ｱﾘ(ABS) |
1 | ||
| 47314-26200 |
KZH106,126..07S,08S,10S ｱﾘ(ABS) |
1 | ||
| 47314-26180 |
KZH100,110,120,132,LH162,172,182,184,RZH10#,11#,12#,133 ｱﾘ(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-26150 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 47315-26150 |
LH162,17#,RZH102,112..CD,DX;KZH13#,LH10#,11#,12#,168,18#,RZH12#,133 |
1 | ||
| 47315-26140 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ABS) |
1 | ||
| 47315-26140 |
KZH10#,11#,12#,13#,RZH101,111 ｱﾘ(ABS) |
1 | ||
| 47315-26140 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 ｱﾘ(ABS) |
1 | ||
| 47315-26150 |
KZH10#,11#,12#,LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-26230 |
KZH12#,13#,RZH133 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33456 |
LH102,110,113,115,120,123,125,140,RZH102,11#,12#..COM,V1,WG |
1 | ||
| 96940-33305 |
KZH106,116,126,138 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-26140 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 47317-26140 |
KZH10#,11#,12#,13#,RZH101,111,133 |
1 | ||
| 47317-26240 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47317-26140 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-26040 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 47318-26040 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 47318-26040 |
KZH10#,11#,12#,13#,RZH101,111,133 |
1 | ||
| 47318-26130 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-26030 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 47319-26090 |
KZH10#,11#,12#,13#,RZH101,111,133 |
1 | ||
| 47319-26180 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47319-26090 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-26350 |
LH10#,11#,12# |
1 | ||
| 47321-26270 |
RZH102,112,12# |
1 | ||
| 47321-26330 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ABS) |
1 | ||
| 47321-26331 |
KZH10#,11#,12#,13#,RZH101,111 ｱﾘ(ABS) |
1 | ||
| 47321-26490 |
LH16#,17#,18#,RZH102,112,12# ｱﾘ(ABS) |
1 | ||
| 47321-26351 |
LH162,17#..CD,DX;LH10#,11#,12#,168,18# |
1 | ||
| 47321-26340 |
KZH10#,11#,12#,13#,RZH10#,11#,124,133 |
1 | ||
| 47321-26331 |
KZH10#,11#,12#,13#,RZH101,111,133 ｱﾘ(ABS) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10166 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 90412-10165 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-26210 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 47322-26210 |
KZH10#,11#,12#,13#,RZH101,111,133 |
1 | ||
| 47322-26210 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 47322-26290 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10147 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 90413-10243 |
LH102,103,109,11#,12#,140,16#,17#,18#,RZH102,110,112,12#..COM,V1,WG |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-26310 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 47323-26340 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-26310 |
KZH12#,13#,RZH133 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-26310 |
KZH10#,11#,12#,13#,RZH100,101,111,133 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-26270 |
LH102,103,110,113,115,120,123,125,140,RZH102,110,112,12#..COM,V1,WG |
1 | ||
| 47326-26260 |
KZH106,116,126,138,LH107 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-26120 |
LH102,103,110,113,115,120,123,125,140,RZH102,110,112,12#..COM,V1,WG |
1 | ||
| 47327-26110 |
KZH106,116,126,138,LH107 |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-26030 |
KZH10#,11#,12#,13#,RZH101,111,133 |
1 | ||
| 47328-26030 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 47328-26070 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47328-26030 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-26050 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 47329-26220 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47329-26090 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 47329-26090 |
KZH10#,11#,12#,13#,RZH101,111,133 |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-26040 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 47331-26080 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 47331-26130 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47331-26080 |
KZH10#,11#,12#,13#,RZH101,111,133 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-26131 |
KZH106,116,126,LH109,119,129 |
1 | ||
| 47351-26160 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-26150 |
KZH106,116,126,138 |
1 | ||
| 47352-26121 |
KZH106,116,126,LH109,119,129 |
1 | ||
| 47352-26150 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 |
1 | ||
| 47361A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47361-26040 |
KZH10#,11#,12#,13#,RZH101,111,133 |
1 | ||
| 47361-26020 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 47361-26040 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 47361-26050 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47362 - TUBE, FRONT BRAKE, NO.11 | ||||
| 47362-26040 |
KZH10#,11#,12#,13#,RZH101,111,133 |
1 | ||
| 47362-26040 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 47362-26050 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47362-26020 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 47378 - PROTECTOR, BRAKE TUBE | ||||
| 47378-26020 |
KZH100..(MRF,SMRF)..5F;LH123,129,RZH100,101,124,133..HRF,MRF,SMRF;KZH106,12#,LH103,125,RZH102..(03S,08S,09S,10S,15S)..5F |
1 | ||
| 47378-26020 |
KZH10#,126,LH168,RZH124..5F;LH162,18#,RZH10#,125,133..(COM,V1,WG)..(CD,DX,GL,SCL,SCM,SCMM) ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 47378-26031 |
KZH10#,11#,12#,13#,LH16#,17#,18# |
1 | ||
| 47378-26020 |
KZH100..(MRF,SMRF)..5F;LH100,107,120,123,129,RZH100,101,122..HRF,MRF,SMRF;KZH106,11#,12#,LH102,103,125,RZH102,124..(03S,08S,09S,10S,15S)..5F |
1 | ||
| 47383 - BRACKET, CONNECTOR | ||||
| 47383-26050 |
KZH10#,11#,12#,13#,RZH101,111,133 |
1 | ||
| 47383-26050 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 47383-26070 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47383-26020 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 47900 - VALVE ASSY, LOAD SENSING W/SPRING | ||||
| 47900-26440 |
KZH11#,12#,13#,RZH111,133 |
1 | ||
| Common parts | ||||
| 90179-08025 | ||||
| 90461-06112 | ||||
| 90461-10753 | ||||
| 90461-12328 | ||||
| 90464-00447 | ||||
| 90464-00581 | ||||
| 90464-00704 | ||||
| 90468-08032 | ||||
| 90480-01069 | ||||
| 90480-01194 | ||||
| 90480-01196 | ||||
| 90480-01359 | ||||
| 90949-01535 | ||||
| 90949-01592 | ||||
| 90949-01918 | ||||
| 90949-01919 | ||||
| 91611-60814 | ||||
| 91611-60828 | ||||
| 91611-B0816 | ||||
| 91611-G0820 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 91651-60818 | ||||
| 96221-30905 | ||||

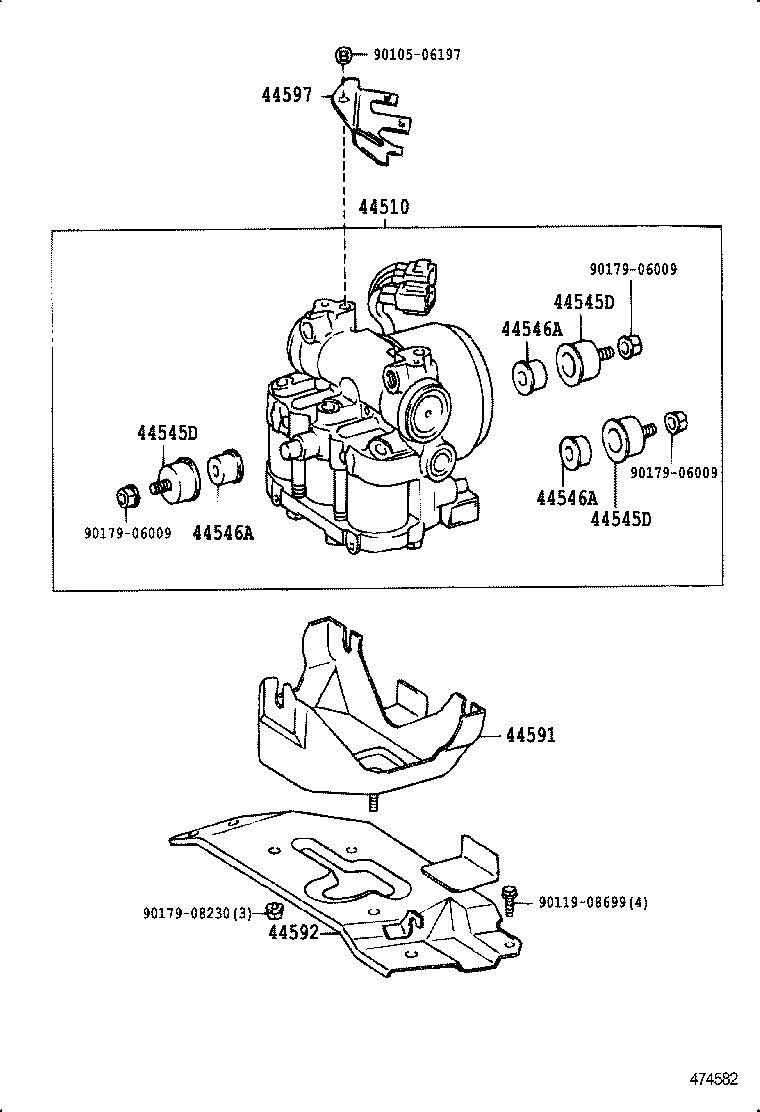

ILLUST NO. 2 OF 3(9608- )KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133,18#,TRH102,112,12#
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-26010 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 44050-26010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 44510-26040 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 44510-26010 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
KZH10#,12#,RZH100,101..07S,08S,10S |
3 | ||
| 44545-42020 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 44545-42020 |
KZH10#,11#,12#,13#,RZH101,111 |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
KZH10#,12#,RZH100,101..07S,08S,10S |
3 | ||
| 44545-42020 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 44545-42020 |
KZH10#,11#,12#,13#,RZH101,111 |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
KZH10#,11#,12#,13#,RZH101,111 |
3 | ||
| 44546-33010 |
KZH10#,12#,RZH100,101..07S,08S,10S |
3 | ||
| 44546-42020 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
KZH10#,11#,12#,13#,RZH101,111 |
3 | ||
| 44546-33010 |
KZH10#,12#,RZH100,101..07S,08S,10S |
3 | ||
| 44546-42020 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
3 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-26010 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 44590-26020 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 44590-26020 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 90119-08699 | ||||
ILLUST NO. 1 OF 3(9808- )LH162,172,182,184,RZH102,112,12#,18#,TRH102,112,12#
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31478D - CAP, BLEEDER PLUG(FOR LSPV) | ||||
| 31478-30010 |
LH10#,11#,12#,16#,17#,18#,RZH102,112,12# |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-26430 |
KZH10#,11#,12#,13#,RZH10#,11#,124,133 |
1 | ||
| 47311-26660 |
LH16#,17#,18#,RZH102,112,12# ｱﾘ(ABS) |
1 | ||
| 47311-26440 |
LH10#,11#,12# |
1 | ||
| 47311-26360 |
RZH102,112,12# |
1 | ||
| 47311-26420 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ABS) |
1 | ||
| 47311-26421 |
KZH10#,11#,12#,13#,RZH101,111,133 ｱﾘ(ABS) |
1 | ||
| 47311-26441 |
LH162,17#..CD,DX;LH10#,11#,12#,168,18# |
1 | ||
| 47311-26421 |
KZH10#,11#,12#,13#,RZH101,111 ｱﾘ(ABS) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10237 |
LH10#,11#,12#,140,RZH100,102,11#,12#..5F |
1 | ||
| 90414-10019 |
KZH10#,11#,12#,LH10#,11#,12#,RZH100,102,112,124..5F |
1 | ||
| 90904-12011 |
KZH10#,12#,RZH101..07S,08S,10S ｱﾘ(ABS) |
1 | ||
| 90904-12011 |
KZH10#,11#,12#,13#,RZH101,111 ｱﾘ(ABS) |
1 | ||
| 90414-10019 |
LH10#,11#,12#,RZH102,112,124..5F |
1 | ||
| 90904-12011 |
RZH102,112..4FC;KZH10#,11#,12#,13#,LH16#,17#,18#,RZH101,111,125,133 ｱﾘ(ABS) |
1 | ||
| 90414-10022 |
KZH10#,11#,12#,13#,RZH101,111,133;LH103,11#,123,129,RZH102,112..4FC |
1 | ||
| 90904-12010 |
KZH10#,12#..(08S,10S)..5F ｱﾘ(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-26340 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47312-26300 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 47312-26300 |
KZH10#,11#,12#,13#,RZH101,111,133 |
1 | ||
| 47312-26300 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90904-13001 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 90904-13001 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 90904-13001 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-26160 |
KZH106,116,126,138,LH107,109,117,119,129 |
1 | ||
| 47313-26200 |
KZH106,126..07S,08S,10S ｱﾘ(ABS) |
1 | ||
| 47313-26200 |
KZH106,116,126,138 ｱﾘ(ABS) |
1 | ||
| 47313-26250 |
LH162,172,182,184,RZH102,112,12# ｱﾘ(ABS) |
1 | ||
| 47313-26140 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,RZH10#,11#,12#,133 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02590 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# 右側 |
1 | ||
| 90947-02759 |
KZH106,116,126,LH109,119,129 |
2 | ||
| 90947-02591 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# 左側 |
1 | ||
| 90947-02755 |
KZH100,110,120,132,LH103,113,123,125,162,172,182,184,RZH10#,11#,12#,133 ｱﾘ(195/70R15C ﾀｲﾔ),右側 |
1 | ||
| 90947-02756 |
KZH100,110,120,132,LH103,113,123,125,162,172,182,184,RZH10#,11#,12#,133 ｱﾘ(195/70R15C ﾀｲﾔ),左側 |
1 | ||
| 90947-02829 |
KZH106,116,126,138,LH109,119,129 |
2 | ||
| 90947-02829 |
KZH106,116,126,138,LH168,178,186,188 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02590 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# 右側 |
1 | ||
| 90947-02759 |
KZH106,116,126,LH109,119,129 |
2 | ||
| 90947-02591 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# 左側 |
1 | ||
| 90947-02755 |
KZH100,110,120,132,LH103,113,123,125,162,172,182,184,RZH10#,11#,12#,133 ｱﾘ(195/70R15C ﾀｲﾔ),右側 |
1 | ||
| 90947-02756 |
KZH100,110,120,132,LH103,113,123,125,162,172,182,184,RZH10#,11#,12#,133 ｱﾘ(195/70R15C ﾀｲﾔ),左側 |
1 | ||
| 90947-02829 |
KZH106,116,126,138,LH109,119,129 |
2 | ||
| 90947-02829 |
KZH106,116,126,138,LH168,178,186,188 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-26140 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| 47314-26210 |
KZH106,116,126,138,LH109,119,129 |
1 | ||
| 47314-26200 |
KZH106,116,126,138,LH168,178,186,188 ｱﾘ(ABS) |
1 | ||
| 47314-26200 |
KZH106,126..07S,08S,10S ｱﾘ(ABS) |
1 | ||
| 47314-26180 |
KZH100,110,120,132,LH162,172,182,184,RZH10#,11#,12#,133 ｱﾘ(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-26150 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 47315-26150 |
LH162,17#,RZH102,112..CD,DX;KZH13#,LH10#,11#,12#,168,18#,RZH12#,133 |
1 | ||
| 47315-26140 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ABS) |
1 | ||
| 47315-26140 |
KZH10#,11#,12#,13#,RZH101,111 ｱﾘ(ABS) |
1 | ||
| 47315-26140 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 ｱﾘ(ABS) |
1 | ||
| 47315-26150 |
KZH10#,11#,12#,LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-26230 |
KZH12#,13#,RZH133 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-26230 |
KZH12#,13#,RZH133 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33456 |
LH102,110,113,115,120,123,125,140,RZH102,11#,12#..COM,V1,WG |
1 | ||
| 96940-33305 |
KZH106,116,126,138 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-26140 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 47317-26140 |
KZH10#,11#,12#,13#,RZH101,111,133 |
1 | ||
| 47317-26240 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47317-26140 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-26040 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 47318-26040 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 47318-26040 |
KZH10#,11#,12#,13#,RZH101,111,133 |
1 | ||
| 47318-26130 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-26030 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 47319-26090 |
KZH10#,11#,12#,13#,RZH101,111,133 |
1 | ||
| 47319-26180 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47319-26090 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-26350 |
LH10#,11#,12# |
1 | ||
| 47321-26270 |
RZH102,112,12# |
1 | ||
| 47321-26330 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ABS) |
1 | ||
| 47321-26331 |
KZH10#,11#,12#,13#,RZH101,111 ｱﾘ(ABS) |
1 | ||
| 47321-26490 |
LH16#,17#,18#,RZH102,112,12# ｱﾘ(ABS) |
1 | ||
| 47321-26351 |
LH162,17#..CD,DX;LH10#,11#,12#,168,18# |
1 | ||
| 47321-26340 |
KZH10#,11#,12#,13#,RZH10#,11#,124,133 |
1 | ||
| 47321-26331 |
KZH10#,11#,12#,13#,RZH101,111,133 ｱﾘ(ABS) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10166 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 90412-10165 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-26210 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 47322-26210 |
KZH10#,11#,12#,13#,RZH101,111,133 |
1 | ||
| 47322-26210 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 47322-26290 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10147 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 90413-10243 |
LH102,103,109,11#,12#,140,16#,17#,18#,RZH102,110,112,12#..COM,V1,WG |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-26310 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 47323-26340 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-26310 |
KZH12#,13#,RZH133 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-26310 |
KZH12#,13#,RZH133 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-26310 |
KZH10#,11#,12#,13#,RZH100,101,111,133 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-26270 |
LH102,103,110,113,115,120,123,125,140,RZH102,110,112,12#..COM,V1,WG |
1 | ||
| 47326-26260 |
KZH106,116,126,138,LH107 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-26120 |
LH102,103,110,113,115,120,123,125,140,RZH102,110,112,12#..COM,V1,WG |
1 | ||
| 47327-26110 |
KZH106,116,126,138,LH107 |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-26030 |
KZH10#,11#,12#,13#,RZH101,111,133 |
1 | ||
| 47328-26030 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 47328-26070 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47328-26030 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-26050 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 47329-26220 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47329-26090 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 47329-26090 |
KZH10#,11#,12#,13#,RZH101,111,133 |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-26040 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 47331-26080 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 47331-26130 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47331-26080 |
KZH10#,11#,12#,13#,RZH101,111,133 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-26120 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 47361A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47361-26040 |
KZH10#,11#,12#,13#,RZH101,111,133 |
1 | ||
| 47361-26020 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 47361-26040 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 47361-26050 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47362 - TUBE, FRONT BRAKE, NO.11 | ||||
| 47362-26040 |
KZH10#,11#,12#,13#,RZH101,111,133 |
1 | ||
| 47362-26040 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 47362-26050 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47362-26020 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-26180 |
LH16#,17#,18#,RZH102,112,12# |
4 | ||
| 47378 - PROTECTOR, BRAKE TUBE | ||||
| 47378-26020 |
KZH100..(MRF,SMRF)..5F;LH123,129,RZH100,101,124,133..HRF,MRF,SMRF;KZH106,12#,LH103,125,RZH102..(03S,08S,09S,10S,15S)..5F |
1 | ||
| 47378-26020 |
KZH10#,126,LH168,RZH124..5F;LH162,18#,RZH10#,125,133..(COM,V1,WG)..(CD,DX,GL,SCL,SCM,SCMM) ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 47378-26031 |
KZH10#,11#,12#,13#,LH16#,17#,18# |
1 | ||
| 47378-26020 |
KZH100..(MRF,SMRF)..5F;LH100,107,120,123,129,RZH100,101,122..HRF,MRF,SMRF;KZH106,11#,12#,LH102,103,125,RZH102,124..(03S,08S,09S,10S,15S)..5F |
1 | ||
| 47383 - BRACKET, CONNECTOR | ||||
| 47383-26050 |
KZH10#,11#,12#,13#,RZH101,111,133 |
1 | ||
| 47383-26050 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 47383-26070 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47383-26020 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-26010 |
LH16#,17#,18#,RZH102,112,12# |
1 | ||
| 47910B - PLUG, BLEEDER | ||||
| 47547-27030 |
LH10#,11#,12#,16#,17#,18#,RZH102,112,12# |
1 | ||
| 47547-27020 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| Common parts | ||||
| 90179-08230 | ||||
| 90461-06112 | ||||
| 90461-12328 | ||||
| 90464-00447 | ||||
| 90464-00581 | ||||
| 90464-00704 | ||||
| 90464-00705 | ||||
| 90468-08032 | ||||
| 90480-01069 | ||||
| 90480-01194 | ||||
| 90480-01196 | ||||
| 90480-01359 | ||||
| 90949-01535 | ||||
| 90949-01536 | ||||
| 90949-01592 | ||||
| 90949-01A33 | ||||
| 90949-01A34 | ||||
| 90949-01A35 | ||||
| 91611-60814 | ||||
| 91611-B0816 | ||||
| 91611-G0816 | ||||
| 91611-G0820 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
ILLUST NO. 2 OF 3(9308-9608)KZH10#,12#,RZH100,101..07S,08S,10S
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-26010 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 44050-26010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 44510-26040 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 44510-26010 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
KZH10#,12#,RZH100,101..07S,08S,10S |
3 | ||
| 44545-42020 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 44545-42020 |
KZH10#,11#,12#,13#,RZH101,111 |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
KZH10#,12#,RZH100,101..07S,08S,10S |
3 | ||
| 44545-42020 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 44545-42020 |
KZH10#,11#,12#,13#,RZH101,111 |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
KZH10#,12#,RZH100,101..07S,08S,10S |
3 | ||
| 44545-42020 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 44545-42020 |
KZH10#,11#,12#,13#,RZH101,111 |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
KZH10#,11#,12#,13#,RZH101,111 |
3 | ||
| 44546-33010 |
KZH10#,12#,RZH100,101..07S,08S,10S |
3 | ||
| 44546-42020 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
KZH10#,11#,12#,13#,RZH101,111 |
3 | ||
| 44546-33010 |
KZH10#,12#,RZH100,101..07S,08S,10S |
3 | ||
| 44546-42020 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
KZH10#,11#,12#,13#,RZH101,111 |
3 | ||
| 44546-33010 |
KZH10#,12#,RZH100,101..07S,08S,10S |
3 | ||
| 44546-42020 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
3 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-26010 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 44590-26020 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 44590-26020 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-26010 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 44597 - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1 | ||||
| 44597-26010 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| Common parts | ||||
| 90105-06197 | ||||
| 90119-08699 | ||||
| 90179-06009 | ||||
| 90179-08230 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
