KZH120G-HHPNT (1993)

Toyota Hiace/Regiusace

Production Aug 1993 - Aug 2004
Engine 1KZTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9308- )KZH106,116,120,138..4FC

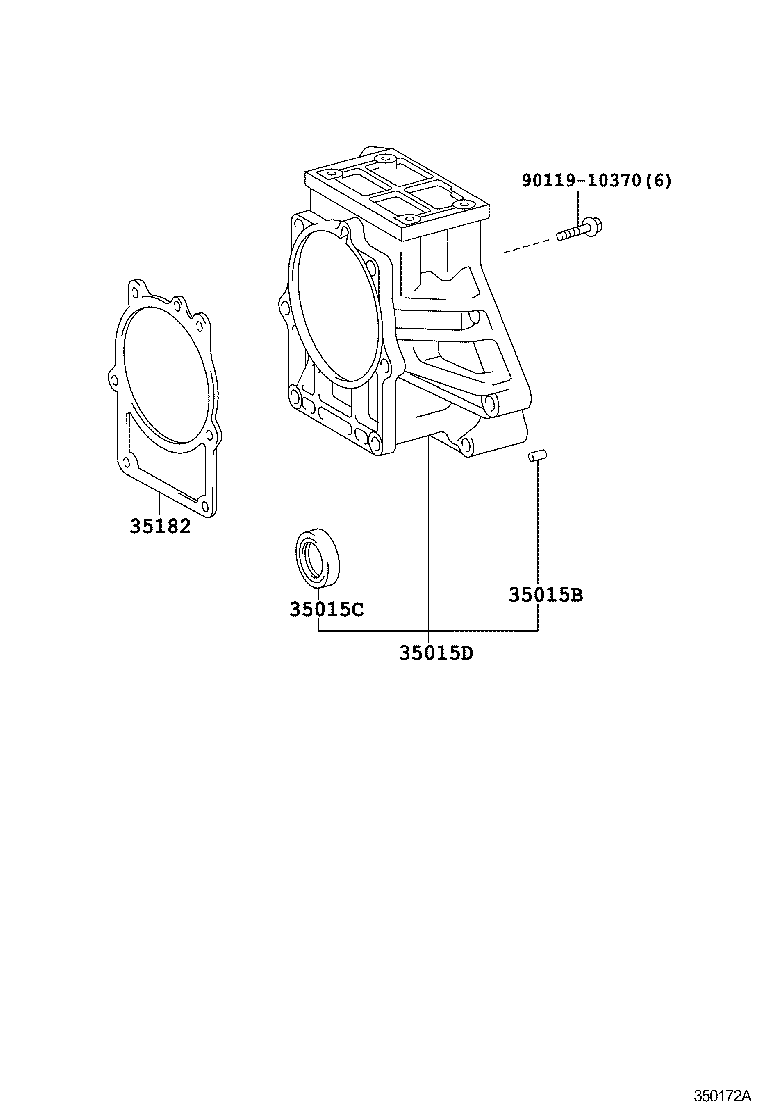

Click highlighted areas on diagram

A340F

diagram 35015B 35015C 35015D 35182 9011910370
Part # Description Qty Price
35182 - GASKET, EXTENSION HOUSING (ATM)
35182-28010

KZH10#,11#,120,13#,LH162,17#,18#,TRH102,112..4FC

 1
Common parts
90119-10370

(0308- )TRH102,112,12#..4FC

Click highlighted areas on diagram

A45DE

diagram 04332 35108 35108R 35108S 35108T 35146 35182 35189A 35847A 9011910232 9011910233
Part # Description Qty Price
04332 - SEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)
04332-30030

TRH102,112,12#..4FC

 1
35108 - HOUSING SUB-ASSY, EXTENSION (ATM)
35108-26050

KZH100,110,120,132..4FC

 1
35108-26050

KZH100,110,120,132..2WD

 1
35108-26070

KZH100,110,120,132..2WD

 1
35108R - SEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING
90311-38032

LH103,113,123,162,172,182,184,RZH10#,11#,12#,133..4FC

 1
90311-40001

KZH100,110,120,132..2WD

 1
35146 - DEFLECTOR, EXTENSION HOUSING DUST (ATM)
33146-30020

KZH100,110,120,132,LH103,113,123,162,172,182,184,RZH10#,11#,12#,133..4FC

 1
33146-30010

KZH100,120,LH100,102,103,113,120,123,RZH10#,112..4FC..(CBR,DSL,EFI,TDE)

 1
33146-30020

KZH100,110,120,132,LH162,172,182,184,TRH102,112..4FC..2WD

 1
35182 - GASKET, EXTENSION HOUSING (ATM)
35182-28010

KZH10#,11#,120,13#,LH162,17#,18#,TRH102,112..4FC

 1
35189A - GASKET, EXTENSION HOUSING BUSH APPLY TUBE
35189-30010

KZH100,110,120,132,LH162,172,182,184,TRH102,112..4FC..2WD

 1
35189-30010

KZH100,110,120,132,LH100,102,103,113,120,123,162,172,182,184,RZH10#,111,112,124,125,133..4FC

 1
35847A - TUBE, EXTENSION HOUSING BUSH APPLY
35847-30020

KZH100,110,120,132,LH100,102,103,113,120,123,162,172,182,184,RZH10#,111,112,124,125,133..4FC

 1
35847-30020

KZH100,110,120,132,LH162,172,182,184..4FC..2WD

 1
Common parts
90119-10232
90119-10233
