KZH120G-HHPNT (1993)

Toyota Hiace/Regiusace

Production Aug 1993 - Aug 2004
Engine 1KZTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9308- )1KZTE

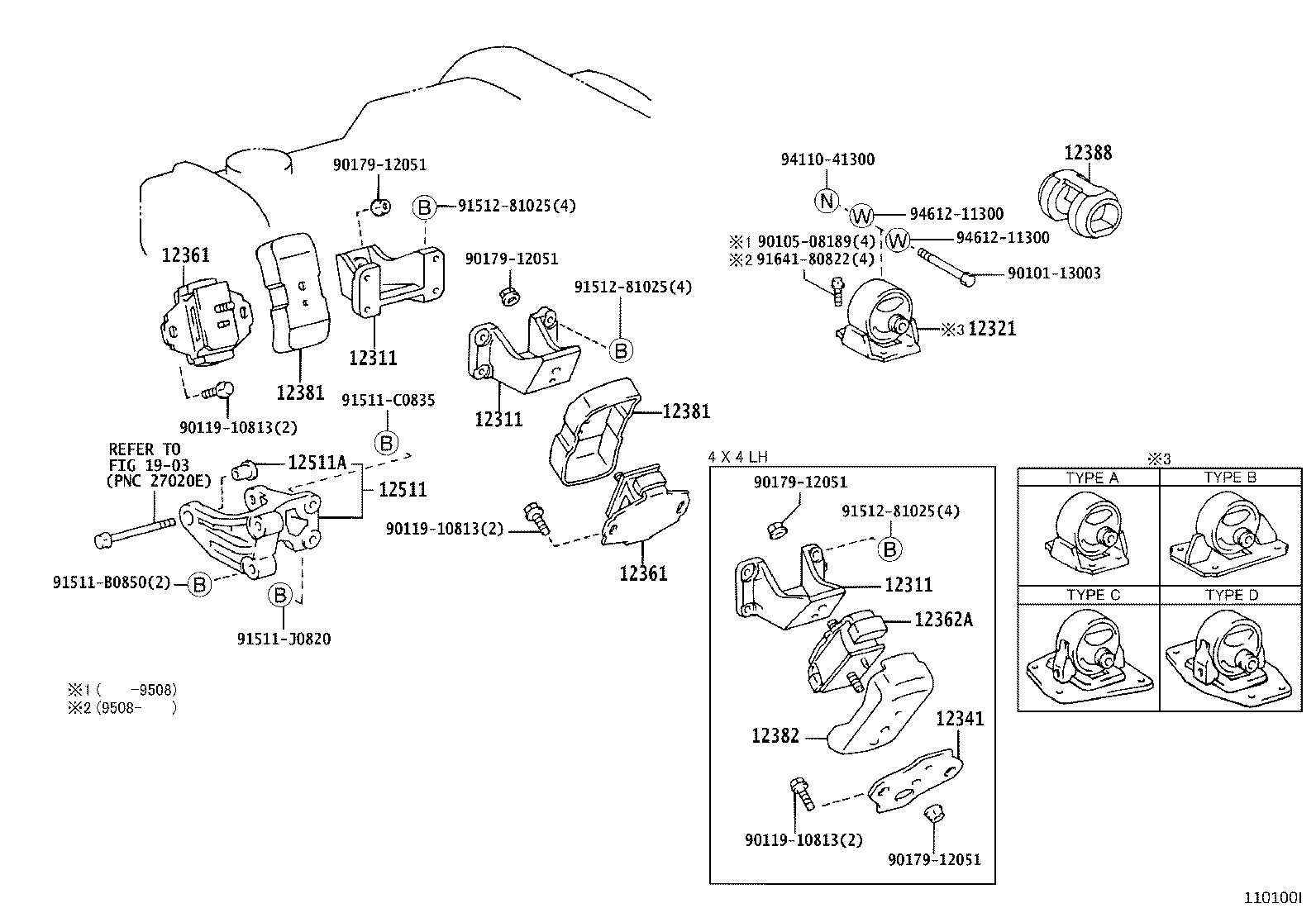

Click highlighted areas on diagram

diagram 12311 12311 12311 12321 12341 12361 12361 12362A 12381 12381 12382 12388 12511 12511A 1903 9010113003 9010508189 9011910813 9011910813 9011910813 9017912051 9017912051 9017912051 9017912051 91511B0850 91511C0835 91511J0820 9151281025 9151281025 9151281025 9164180822 9411041300 9461211300 9461211300
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-67030

1KZTE..KZH10#,11#,120,13#

 2
12311-67030

1KZTE..KZH10#,11#,12#,13#

 2
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-67030

1KZTE..KZH10#,11#,120,13#

 2
12311-67030

1KZTE..KZH10#,11#,12#,13#

 2
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-67030

1KZTE..KZH10#,11#,120,13#

 2
12311-67030

1KZTE..KZH10#,11#,12#,13#

 2
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12303-67030

1KZTE..KZH100,120..4FC

TYPE B:ｲﾗｽﾄ参照

 1
12303-67030

1KZTE..KZH100,110,120,132

TYPE B:ｲﾗｽﾄ参照

 1
12303-67031

1KZTE..KZH100,110,120,132

TYPE B:ｲﾗｽﾄ参照

 1
12303-67031

1KZTE..KZH100,110,120,132..2WD

TYPE B:ｲﾗｽﾄ参照

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-67050

1KZTE..KZH100,110,120,132..2WD

 2
12361-67020

1KZTE..KZH100,110,120,132

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-67050

1KZTE..KZH100,110,120,132..2WD

 2
12361-67020

1KZTE..KZH100,110,120,132

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-67010

1KZTE..KZH100,110,120,132

 2
12381-67010

1KZTE..KZH100,110,120,132..2WD

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-67010

1KZTE..KZH100,110,120,132

 2
12381-67010

1KZTE..KZH100,110,120,132..2WD

 2
12388 - STOPPER, ENGINE MOUNTING BRACKET, REAR
12388-67011

1KZTE..KZH10#,11#,12#,13#

 1
12388-67010

1KZTE..KZH10#,11#,12#,13#

 1
12388-67011

1KZTE..KZH10#,11#,120,13#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-67020

1KZTE..KZH10#,11#,12#,13#

 1
12511-67020

1KZTE..KZH10#,11#,120,13#

 1
12511A - BUSH, ALTERNATOR BRACKET
90389-10039

1KZTE..KZH10#,11#,12#,13#

 1
90389-10039

1KZTE..KZH10#,11#,120,13#

 1
Common parts
90101-13003
90105-08189
90119-10813
90179-12051
91511-B0850
91511-C0835
91511-J0820
91512-81025
91641-80822
94110-41300
94612-11300
Linked diagrams
1903
