KZH116G-GHPDT (1995)

Toyota Hiace/Regiusace

Production Aug 1995 - Aug 2004
Engine 1KZTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908-9808)

Click highlighted areas on diagram

2-ｽﾎﾟ-ｸ(ｳﾚﾀﾝ)

diagram 45100 45105 45105B 45125 45130 45142 45180 45201P 9015940208 9015950016 9016741001 9016840098 9331514012 9351013010
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-26150B0

KZH13#,LH10#,11#,12#,RZH102,112,124,133

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUISH GRAY,TRIM1#

 1
45100-26150B0

RZH101..08S,09S;KZH10#,11#,12#,13#,LH10#,11#,12#,RZH102,11#,124,133

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUISH GRAY,TRIM1#

 1
45100-26201B0

KZH10#,11#,12#,13#,RZH10#,111..03S,06S,08S,10S

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLUISH GRAY,TRIM1#

 1
45100-26201B0

KZH10#,11#,13#,RZH101,111..DX,SCM,SCMM

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLUISH GRAY,TRIM1#

 1
45100-26201E0

RZH101;KZH10#,11#,12#,13#,RZH102,111..03S,06S,08S,10S

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ANTELOPE,TRIM4#

 1
45100-26290B0

KZH10#,11#,13#,RZH101,111,TRH102,112..(03S,05S,08S,10S)..(DX,SCM,SCMM,SGL)

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUISH GRAY,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-26110

KZH10#,11#,12#,13#,RZH101,111

ｱﾘ(*80)

 1
45105-26050

KZH13#,LH10#,11#,12#,RZH102,112,124,133

 1
45125 - MARK, STEERING WHEEL PAD
45125-26121

KZH13#,LH10#,11#,12#,RZH102,112,124,133

 1
45130 - BUTTON ASSY, HORN
45130-26191B0

RZH101..08S,09S;KZH10#,11#,12#,13#,LH10#,11#,12#,RZH102,11#,124,133

BLUISH GRAY,TRIM1#,2 ｳｴｲ

 1
45130-26191B0

KZH13#,LH10#,11#,12#,RZH102,112,124,133

BLUISH GRAY,TRIM1#

 1
45130-34030B1

KZH10#,11#,13#,RZH101,111..DX,SCM,SCMM

ｱﾘ(*80),BLUISH GRAY,TRIM1#

 1
45130-34031B1

KZH10#,11#,13#,RZH101,111..DX,SCM,SCMM

ｱﾘ(*80),BLUISH GRAY,TRIM1#

 1
45130-26300B0

KZH10#,11#,13#,RZH101,111,TRH102,112..(03S,05S,08S,10S)..(DX,SCM,SCMM,SGL)

BLUISH GRAY,TRIM1#

 1
45142 - SEAT, HORN BUTTON CONTACT, NO.1
45142-26030

LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,GL,SW

CHINA SPEC

 2
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-26020B0

KZH13#,LH10#,11#,12#,RZH102,112,124,133

BLUISH GRAY,TRIM1#

 1
45180-26020B0

KZH10#,11#,12#,13#,LH10#,11#,12#

BLUISH GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

LH10#,11#,12#,140,RZH10#,11#,12#

 1
Common parts
90159-40208
90159-50016
90167-41001
90168-40098
93315-14012
93510-13010

(9808- )

Click highlighted areas on diagram

2-SPOKE(URETHANE)

diagram 45100 45105 45130 45155 45180 45186 45187 45201P 9015950016 9016840103 9356014020
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-26150B0

KZH13#,LH10#,11#,12#,RZH102,112,124,133

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUISH GRAY,TRIM1#

 1
45100-26150B0

RZH101..08S,09S;KZH10#,11#,12#,13#,LH10#,11#,12#,RZH102,11#,124,133

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUISH GRAY,TRIM1#

 1
45100-26201B0

KZH10#,11#,12#,13#,RZH10#,111..03S,06S,08S,10S

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLUISH GRAY,TRIM1#

 1
45100-26201B0

KZH10#,11#,13#,RZH101,111..DX,SCM,SCMM

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLUISH GRAY,TRIM1#

 1
45100-26201E0

RZH101;KZH10#,11#,12#,13#,RZH102,111..03S,06S,08S,10S

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ANTELOPE,TRIM4#

 1
45100-26290B0

KZH10#,11#,13#,RZH101,111,TRH102,112..(03S,05S,08S,10S)..(DX,SCM,SCMM,SGL)

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUISH GRAY,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-26110

KZH10#,11#,12#,13#,RZH101,111

ｱﾘ(*80)

 1
45105-26050

KZH13#,LH10#,11#,12#,RZH102,112,124,133

 1
45130 - BUTTON ASSY, HORN
45130-26191B0

RZH101..08S,09S;KZH10#,11#,12#,13#,LH10#,11#,12#,RZH102,11#,124,133

BLUISH GRAY,TRIM1#,2 ｳｴｲ

 1
45130-26191B0

KZH13#,LH10#,11#,12#,RZH102,112,124,133

BLUISH GRAY,TRIM1#

 1
45130-34030B1

KZH10#,11#,13#,RZH101,111..DX,SCM,SCMM

ｱﾘ(*80),BLUISH GRAY,TRIM1#

 1
45130-34031B1

KZH10#,11#,13#,RZH101,111..DX,SCM,SCMM

ｱﾘ(*80),BLUISH GRAY,TRIM1#

 1
45130-26300B0

KZH10#,11#,13#,RZH101,111,TRH102,112..(03S,05S,08S,10S)..(DX,SCM,SCMM,SGL)

BLUISH GRAY,TRIM1#

 1
45155 - SPACER, HORN BUTTON CONTACT PLATE
45155-22040

LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,GL,SW

 4
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-26020B0

KZH13#,LH10#,11#,12#,RZH102,112,124,133

BLUISH GRAY,TRIM1#

 1
45180-26020B0

KZH10#,11#,12#,13#,LH10#,11#,12#

BLUISH GRAY,TRIM1#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-30030B1

KZH10#,11#,13#,RZH101,111..DX,SCM,SCMM

BLUISH GRAY,TRIM1#

 1
45186-30030B1

KZH10#,11#,13#,RZH101,111,133..DX,SCM,SCMM

BLUISH GRAY,TRIM1#

 1
45186-33050B0

KZH10#,11#,13#,RZH101,111,TRH102,112..(03S,05S,08S,10S)..(DX,SCM,SCMM,SGL)

BLUISH GRAY,TRIM1#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-30020B1

KZH10#,11#,13#,RZH101,111..DX,SCM,SCMM

BLUISH GRAY,TRIM1#

 1
45186-33050B0

KZH10#,11#,13#,RZH101,111,TRH102,112..(03S,05S,08S,10S)..(DX,SCM,SCMM,SGL)

BLUISH GRAY,TRIM1#

 1
45187-30020B1

KZH10#,11#,13#,RZH101,111,133..DX,SCM,SCMM

BLUISH GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

LH10#,11#,12#,140,RZH10#,11#,12#

 1
Common parts
90159-50016
90168-40103
93560-14020

(9808- )

Click highlighted areas on diagram

2-SPOKE(URETHANE),ｱﾘ(*80)

diagram 45100 45130 45186 45187 45201P 9014860011
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-26150B0

KZH13#,LH10#,11#,12#,RZH102,112,124,133

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUISH GRAY,TRIM1#

 1
45100-26150B0

RZH101..08S,09S;KZH10#,11#,12#,13#,LH10#,11#,12#,RZH102,11#,124,133

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUISH GRAY,TRIM1#

 1
45100-26201B0

KZH10#,11#,12#,13#,RZH10#,111..03S,06S,08S,10S

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLUISH GRAY,TRIM1#

 1
45100-26201B0

KZH10#,11#,13#,RZH101,111..DX,SCM,SCMM

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLUISH GRAY,TRIM1#

 1
45100-26201E0

RZH101;KZH10#,11#,12#,13#,RZH102,111..03S,06S,08S,10S

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ANTELOPE,TRIM4#

 1
45100-26290B0

KZH10#,11#,13#,RZH101,111,TRH102,112..(03S,05S,08S,10S)..(DX,SCM,SCMM,SGL)

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUISH GRAY,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-26191B0

RZH101..08S,09S;KZH10#,11#,12#,13#,LH10#,11#,12#,RZH102,11#,124,133

BLUISH GRAY,TRIM1#,2 ｳｴｲ

 1
45130-26191B0

KZH13#,LH10#,11#,12#,RZH102,112,124,133

BLUISH GRAY,TRIM1#

 1
45130-34030B1

KZH10#,11#,13#,RZH101,111..DX,SCM,SCMM

ｱﾘ(*80),BLUISH GRAY,TRIM1#

 1
45130-34031B1

KZH10#,11#,13#,RZH101,111..DX,SCM,SCMM

ｱﾘ(*80),BLUISH GRAY,TRIM1#

 1
45130-26300B0

KZH10#,11#,13#,RZH101,111,TRH102,112..(03S,05S,08S,10S)..(DX,SCM,SCMM,SGL)

BLUISH GRAY,TRIM1#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-30030B1

KZH10#,11#,13#,RZH101,111..DX,SCM,SCMM

BLUISH GRAY,TRIM1#

 1
45186-30030B1

KZH10#,11#,13#,RZH101,111,133..DX,SCM,SCMM

BLUISH GRAY,TRIM1#

 1
45186-33050B0

KZH10#,11#,13#,RZH101,111,TRH102,112..(03S,05S,08S,10S)..(DX,SCM,SCMM,SGL)

BLUISH GRAY,TRIM1#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-30020B1

KZH10#,11#,13#,RZH101,111..DX,SCM,SCMM

BLUISH GRAY,TRIM1#

 1
45186-33050B0

KZH10#,11#,13#,RZH101,111,TRH102,112..(03S,05S,08S,10S)..(DX,SCM,SCMM,SGL)

BLUISH GRAY,TRIM1#

 1
45187-30020B1

KZH10#,11#,13#,RZH101,111,133..DX,SCM,SCMM

BLUISH GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

LH10#,11#,12#,140,RZH10#,11#,12#

 1
Common parts
90148-60011

(9907- )03S,05S,07S,08S,10S..DX,GCGE,GCGN,SCL,SCM,SCMM,SGL

Click highlighted areas on diagram

4-ｽﾎﾟ-ｸ

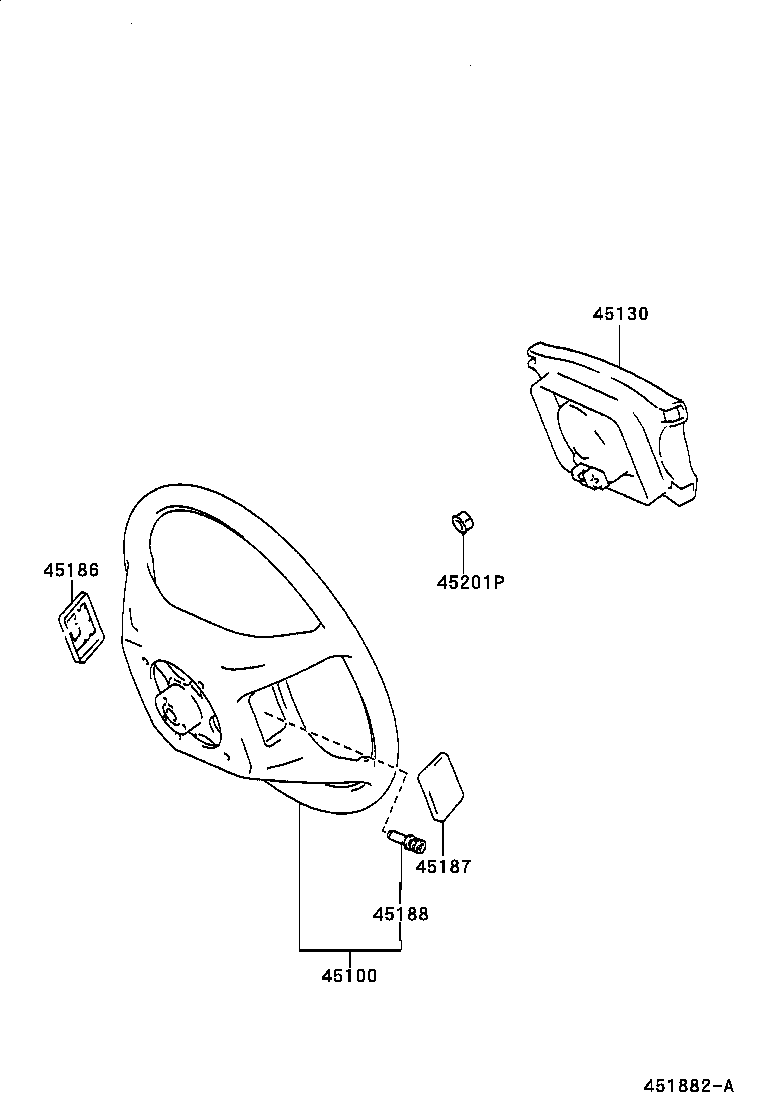

diagram 45100 45130 45186 45187 45188 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-26150B0

KZH13#,LH10#,11#,12#,RZH102,112,124,133

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUISH GRAY,TRIM1#

 1
45100-26150B0

RZH101..08S,09S;KZH10#,11#,12#,13#,LH10#,11#,12#,RZH102,11#,124,133

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUISH GRAY,TRIM1#

 1
45100-26201B0

KZH10#,11#,12#,13#,RZH10#,111..03S,06S,08S,10S

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLUISH GRAY,TRIM1#

 1
45100-26201B0

KZH10#,11#,13#,RZH101,111..DX,SCM,SCMM

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLUISH GRAY,TRIM1#

 1
45100-26201E0

RZH101;KZH10#,11#,12#,13#,RZH102,111..03S,06S,08S,10S

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ANTELOPE,TRIM4#

 1
45100-26290B0

KZH10#,11#,13#,RZH101,111,TRH102,112..(03S,05S,08S,10S)..(DX,SCM,SCMM,SGL)

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUISH GRAY,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-26191B0

RZH101..08S,09S;KZH10#,11#,12#,13#,LH10#,11#,12#,RZH102,11#,124,133

BLUISH GRAY,TRIM1#,2 ｳｴｲ

 1
45130-26191B0

KZH13#,LH10#,11#,12#,RZH102,112,124,133

BLUISH GRAY,TRIM1#

 1
45130-34030B1

KZH10#,11#,13#,RZH101,111..DX,SCM,SCMM

ｱﾘ(*80),BLUISH GRAY,TRIM1#

 1
45130-34031B1

KZH10#,11#,13#,RZH101,111..DX,SCM,SCMM

ｱﾘ(*80),BLUISH GRAY,TRIM1#

 1
45130-26300B0

KZH10#,11#,13#,RZH101,111,TRH102,112..(03S,05S,08S,10S)..(DX,SCM,SCMM,SGL)

BLUISH GRAY,TRIM1#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-30030B1

KZH10#,11#,13#,RZH101,111..DX,SCM,SCMM

BLUISH GRAY,TRIM1#

 1
45186-30030B1

KZH10#,11#,13#,RZH101,111,133..DX,SCM,SCMM

BLUISH GRAY,TRIM1#

 1
45186-33050B0

KZH10#,11#,13#,RZH101,111,TRH102,112..(03S,05S,08S,10S)..(DX,SCM,SCMM,SGL)

BLUISH GRAY,TRIM1#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-30020B1

KZH10#,11#,13#,RZH101,111..DX,SCM,SCMM

BLUISH GRAY,TRIM1#

 1
45186-33050B0

KZH10#,11#,13#,RZH101,111,TRH102,112..(03S,05S,08S,10S)..(DX,SCM,SCMM,SGL)

BLUISH GRAY,TRIM1#

 1
45187-30020B1

KZH10#,11#,13#,RZH101,111,133..DX,SCM,SCMM

BLUISH GRAY,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

KZH10#,11#,120,13#,TRH102,112..(03S,05S,07S,08S,10S)..(DX,GCGE,GCGN,SCL,SCM,SCMM,SGL)

長さ=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12086

LH10#,11#,12#,140,RZH10#,11#,12#

 1
