KZH116G-GHMDT (1993)

Toyota Hiace/Regiusace

Production Aug 1993 - Jul 1999
Engine 1KZTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8908-9808)KZH11#,13#,RZH102,112,12#,133 ; (8908- )KZH10#,RZH100,101,110,111

Click highlighted areas on diagram

ﾘﾔ-ﾄﾘﾑ(1)

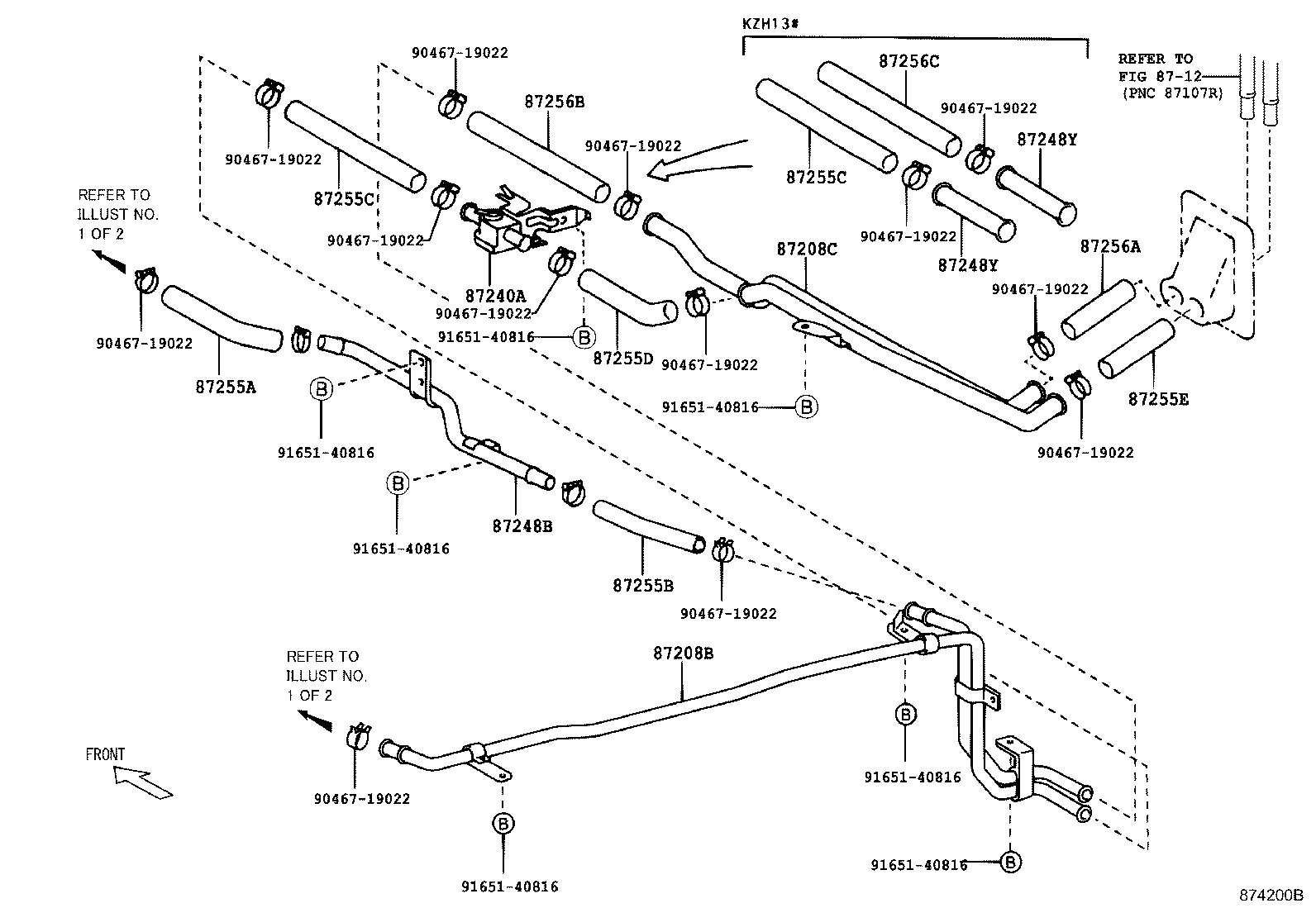

diagram 8712 8712428040 8712428040 8712428040 8712428040 87208B 87208C 87240A 87248B 87248Y 87248Y 87255A 87255B 87255C 87255C 87255D 87255E 87256A 87256B 87256C 9033913009 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816
Part # Description Qty Price
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-95J55

RZH102,112..850K;RZH10#,11#,12#..(COM,V1,WG)..(CTM,DX,GL,SCL,SCM,SCMM)

 1
87208-95J57

LH10#,11#,123,125,129,140..(COM,V1,WG)..(05S,06S,07S,08S,09S,10S,15S)

 1
87208-26190

KZH10#,11#,12#,RZH10#,112,124..(COM,V1,WG)..(06S,07S,08S,09S,10S,15S)

 1
87208-26510

KZH10#,11#,12#,13#,RZH10#,11#,124,133..(COM,V1,WG)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM)

 1
87208-26880

KZH11#..5F;KZH10#,12#,RZH10#,11#,12#,133..COM,V1,WG

 1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-26200

KZH10#,11#,LH10#,11#,RZH10#,112..(V1,WG)..4D..(05S,06S,07S,08S,09S,10S)

 1
87208-26540

KZH10#,11#,LH10#,11#,RZH10#,11#..(V1,WG)..4D..(05S,06S,07S,08S,09S,10S)

 1
87208-95J70

RZH102,112..850K;LH10#,110,113,117,119,140,RZH10#,11#..(V1,WG)..4D..(05S,06S,07S,08S,09S,10S)

 1
87208-2F070

KZH10#,11#,LH16#,17#,RZH10#,11#..(V1,WG)..4D..SG

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔﾋ-ﾀ)

 1
87240A - VALVE ASSY, REAR HEATER WATER
87240-95J10

RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

 1
87248B - PIPE, HEATER WATER INLET, B
87208-95J61

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

 1
87208-95J60

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87208-26840

KZH10#,11#,12#,13#,RZH10#,11#,12#,133

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-20200

LH10#,11#,123,125,129,140..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S)

*H,L=140

 1
99556-20200

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=180

 1
99556-20200

KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124..05S,06S,07S,08S,09S,10S,15S

*H,L=180

 1
99556-20200

LH10#,11#,12#

*H,L=130

 1
99556-20200

LH10#,11#,12#,16#,17#,18#..DX,GL,SGL

*H,L=140

 1
99556-20200

KZH10#,11#,12#,13#,RZH10#,11#,12#,133..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL

*H,L=180

 1
87255B - HOSE, REAR HEATER WATER INLET, B
99556-20300

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=240

 1
99556-20200

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
99556-20200

LH10#,11#,12#,16#,17#,18#..DX,GL,SGL

*H,L=130

 1
99556-20200

KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
99556-20180

LH10#,11#,12#

*H,L=180

 1
99556-20200

KZH10#,11#,12#,13#,RZH10#,11#,12#,133..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL

*H,L=140

 1
87255C - HOSE, REAR HEATER WATER INLET, C
99556-20200

RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

長さ=200

 1
99556-20300

KZH10#,11#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

*H,L=280

 1
87255C - HOSE, REAR HEATER WATER INLET, C
99556-20200

RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

長さ=200

 1
99556-20300

KZH10#,11#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

*H,L=280

 1
87255D - HOSE, REAR HEATER WATER INLET, D
99556-20200

RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

*H,L=140

 1
99556-20200

KZH10#,11#,LH10#,11#,16#,17#,RZH10#,11#..(V1,WG)..4D..(05S,06S,07S,08S,09S,10S)

*H,L=145

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-95J63

RZH102,112..850K;LH10#,110,113,119,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87245-95J63

LH125..GL;KZH10#,11#,LH10#,11#,123,129,RZH10#,112,124..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87245-95J63

LH125,184,186,RZH125..GL;KZH10#,11#,13#,LH10#,11#,123,129,16#,17#,182,188,RZH10#,11#..(V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-95J64

RZH102,112..850K;LH10#,110,113,119,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87245-95J64

LH125..GL;KZH10#,11#,LH10#,11#,123,129,RZH10#,112,124..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87245-95J64

LH125,184,186,RZH125..GL;KZH10#,11#,13#,LH10#,11#,123,129,16#,17#,182,188,RZH10#,11#..(V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99556-20200

RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

*H,L=190

 1
99556-20300

KZH10#,11#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

長さ=300

 1
99556-20300

KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124..05S,06S,07S,08S,09S,10S,15S

長さ=300

 1
Common parts
87124-28040
90339-13009
90467-19022
91651-40816
Linked diagrams
8712

ILLUST NO. 1 OF 2(8908-9907)RZH10#,11#,12#,133

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 1603 1603 8712 8712428030 8712428030 8712428030 8712428040 87240 87245A 87245B 87245C 87245E 87246A 87246E 87248A 87248A 87249A 87249A 87256E 9046024039 9046722008 9046722008 9046722008 9165140816 9165140816 9165140816 9611230250 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-95J08

LH10#,11#,12#,140,RZH10#,11#,12#

 1
87240-26060

KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95J46

LH10#,11#,12#,140,16#,17#,18#

 1
87245-26180

KZH10#,11#,12#,13#

 1
87245-95J48

RZH10#,11#,12#,133

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30300

RZH10#,11#,12#,133

*H,L=220

 1
99556-30300

RZH10#,11#,12#

*H,L=220

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-26200

KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133

 1
87245-95J50

LH10#,11#,12#,140,RZH10#,11#,12#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95J49

LH10#,11#,12#,140,RZH10#,11#,12#

 1
87245-26290

KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-26220

KZH10#,11#,12#,13#

 1
87245-95J05

LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
87246E - HOSE, HEATER WATER, OUTLET E
99556-30300

RZH10#,11#,124,133

*H,L=280

 1
99556-30300

RZH10#,11#,12#,133

*H,L=260

 1
87245-26190

KZH10#,11#,12#,13#

 1
87245-95J47

LH10#,11#,12#,140,16#,17#,18#

 1
99556-30300

RZH10#,11#,12#

長さ=300

 1
87248A - PIPE, HEATER WATER INLET, A
87208-26150

KZH10#,11#,12#,13#

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26130

KZH100,11#,13#..DX

 1
87208-95J52

RZH100,102,11#,12#..HRF,SRF

 1
87208-95J51

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26320

RZH100,102,11#,124..HRF,SRF

 1
87208-26680

RZH102,11#,12#..DX

 1
87208-26740

KZH10#,11#,12#,13#

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26700

RZH10#,11#,12#,133

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26330

RZH10#,11#,124,133..CTM,DX,GL,SCL,SCM,SCMM

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26720

KZH11#,13#

 1
87248A - PIPE, HEATER WATER INLET, A
87208-26150

KZH10#,11#,12#,13#

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26130

KZH100,11#,13#..DX

 1
87208-95J52

RZH100,102,11#,12#..HRF,SRF

 1
87208-95J51

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26320

RZH100,102,11#,124..HRF,SRF

 1
87208-26680

RZH102,11#,12#..DX

 1
87208-26740

KZH10#,11#,12#,13#

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26700

RZH10#,11#,12#,133

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26330

RZH10#,11#,124,133..CTM,DX,GL,SCL,SCM,SCMM

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26720

KZH11#,13#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-26160

KZH10#,11#,12#,13#

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26140

KZH100,11#,13#..DX

 1
87208-95J44

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26750

KZH10#,11#,12#,13#

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26690

RZH102,11#,12#..DX

 1
87208-95J45

RZH100,102,11#,12#..HRF,SRF

 1
87208-26350

RZH10#,11#,124,133..CTM,DX,GL,SCL,SCM,SCMM

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26710

RZH10#,11#,12#,133

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26730

KZH11#,13#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-26160

KZH10#,11#,12#,13#

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26140

KZH100,11#,13#..DX

 1
87208-95J44

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26750

KZH10#,11#,12#,13#

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26690

RZH102,11#,12#..DX

 1
87208-95J45

RZH100,102,11#,12#..HRF,SRF

 1
87208-26350

RZH10#,11#,124,133..CTM,DX,GL,SCL,SCM,SCMM

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26710

RZH10#,11#,12#,133

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26730

KZH11#,13#

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99556-20200

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=140

 1
99556-20200

RZH102,112..GL;RZH112..5F..DX;RZH112..V2..SRF..4FC;KZH10#,11#,12#,13#,RZH111

*H,L=145

 1
99556-20200

RZH10#,11#,12#,133..CTM,DX,GL,SCL,SCM,SCMM,SGL

*H,L=160

 1
99556-20200

KZH10#,11#,12#

*H,L=110

 1
99556-20200

LH10#,11#,12#..DX,GL,SGL

*H,L=170

 1
99556-20200

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

*H,L=180

 1
99556-20200

RZH112..V1..(DX,GL);KZH10#,11#,12#,LH10#,11#,12#,RZH10#,124..05S,06S,07S,08S,09S,10S,15S

*H,L=145

 1
99556-20200

LH10#,11#,12#,16#,17#,18#..DX,GL,SGL

*H,L=170

 1
Common parts
87124-28030
87124-28040
90460-24039
90467-22008
91651-40816
96112-30250
96134-42100
Linked diagrams
1603
8712

ILLUST NO. 1 OF 2(9308-9907)KZH10#,11#,12#,13#

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 1105 1603 1625867010 8712 8712428030 8712428030 8712428030 8712428030 8712428030 8712428030 8712428040 87208J 87240 87245A 87245C 87245E 87246A 87246A 87246E 87248A 87248A 87249A 87249A 87256E 9046719022 9046724002 9046724002 9165140816 9165140816 9165140816 9165140816 9165140816 9418560600 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442300 9613442300
Part # Description Qty Price
87208J - PIPE SUB-ASSY, HEATER WATER, J
87208-26100

KZH10#,11#,12#,13#

 1
87240 - VALVE ASSY, HEATER WATER
87240-95J08

LH10#,11#,12#,140,RZH10#,11#,12#

 1
87240-26060

KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95J46

LH10#,11#,12#,140,16#,17#,18#

 1
87245-26180

KZH10#,11#,12#,13#

 1
87245-95J48

RZH10#,11#,12#,133

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-26200

KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133

 1
87245-95J50

LH10#,11#,12#,140,RZH10#,11#,12#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95J49

LH10#,11#,12#,140,RZH10#,11#,12#

 1
87245-26290

KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-26220

KZH10#,11#,12#,13#

 1
87245-95J05

LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-26220

KZH10#,11#,12#,13#

 1
87245-95J05

LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
87246E - HOSE, HEATER WATER, OUTLET E
99556-30300

RZH10#,11#,124,133

*H,L=280

 1
99556-30300

RZH10#,11#,12#,133

*H,L=260

 1
87245-26190

KZH10#,11#,12#,13#

 1
87245-95J47

LH10#,11#,12#,140,16#,17#,18#

 1
99556-30300

RZH10#,11#,12#

長さ=300

 1
87248A - PIPE, HEATER WATER INLET, A
87208-26150

KZH10#,11#,12#,13#

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26130

KZH100,11#,13#..DX

 1
87208-95J52

RZH100,102,11#,12#..HRF,SRF

 1
87208-95J51

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26320

RZH100,102,11#,124..HRF,SRF

 1
87208-26680

RZH102,11#,12#..DX

 1
87208-26740

KZH10#,11#,12#,13#

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26700

RZH10#,11#,12#,133

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26330

RZH10#,11#,124,133..CTM,DX,GL,SCL,SCM,SCMM

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26720

KZH11#,13#

 1
87248A - PIPE, HEATER WATER INLET, A
87208-26150

KZH10#,11#,12#,13#

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26130

KZH100,11#,13#..DX

 1
87208-95J52

RZH100,102,11#,12#..HRF,SRF

 1
87208-95J51

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26320

RZH100,102,11#,124..HRF,SRF

 1
87208-26680

RZH102,11#,12#..DX

 1
87208-26740

KZH10#,11#,12#,13#

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26700

RZH10#,11#,12#,133

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26330

RZH10#,11#,124,133..CTM,DX,GL,SCL,SCM,SCMM

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26720

KZH11#,13#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-26160

KZH10#,11#,12#,13#

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26140

KZH100,11#,13#..DX

 1
87208-95J44

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26750

KZH10#,11#,12#,13#

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26690

RZH102,11#,12#..DX

 1
87208-95J45

RZH100,102,11#,12#..HRF,SRF

 1
87208-26350

RZH10#,11#,124,133..CTM,DX,GL,SCL,SCM,SCMM

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26710

RZH10#,11#,12#,133

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26730

KZH11#,13#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-26160

KZH10#,11#,12#,13#

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26140

KZH100,11#,13#..DX

 1
87208-95J44

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26750

KZH10#,11#,12#,13#

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26690

RZH102,11#,12#..DX

 1
87208-95J45

RZH100,102,11#,12#..HRF,SRF

 1
87208-26350

RZH10#,11#,124,133..CTM,DX,GL,SCL,SCM,SCMM

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26710

RZH10#,11#,12#,133

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26730

KZH11#,13#

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99556-20200

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=140

 1
99556-20200

RZH102,112..GL;RZH112..5F..DX;RZH112..V2..SRF..4FC;KZH10#,11#,12#,13#,RZH111

*H,L=145

 1
99556-20200

RZH10#,11#,12#,133..CTM,DX,GL,SCL,SCM,SCMM,SGL

*H,L=160

 1
99556-20200

KZH10#,11#,12#

*H,L=110

 1
99556-20200

LH10#,11#,12#..DX,GL,SGL

*H,L=170

 1
99556-20200

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

*H,L=180

 1
99556-20200

RZH112..V1..(DX,GL);KZH10#,11#,12#,LH10#,11#,12#,RZH10#,124..05S,06S,07S,08S,09S,10S,15S

*H,L=145

 1
99556-20200

LH10#,11#,12#,16#,17#,18#..DX,GL,SGL

*H,L=170

 1
Common parts
16258-67010
87124-28030
87124-28040
90467-19022
90467-24002
91651-40816
94185-60600
96134-42100
96134-42300
Linked diagrams
1105
1603
8712

ILLUST NO. 2 OF 2(8908-9508)LH102,103,109,113,119 ; (9508-9808)LH10#,11#

Click highlighted areas on diagram

ﾘﾔ-ﾄﾘﾑ(2)

diagram 5736295J01 87029 8712 8712895J01 87208A 87208B 87208C 87208D 87208E 87237 87240A 87255A 87255B 87255B 87255C 87255D 87255E 87256A 87256B 87256C 87256C 87256D 87256E 9015960025 9015960025 9015960191 9017908123 9018905163 9018905163 9046719010 9046719010 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9338116012 9611230220
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-95J59

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-95J55

RZH102,112..850K;RZH10#,11#,12#..(COM,V1,WG)..(CTM,DX,GL,SCL,SCM,SCMM)

 1
87208-95J57

LH10#,11#,123,125,129,140..(COM,V1,WG)..(05S,06S,07S,08S,09S,10S,15S)

 1
87208-26190

KZH10#,11#,12#,RZH10#,112,124..(COM,V1,WG)..(06S,07S,08S,09S,10S,15S)

 1
87208-26510

KZH10#,11#,12#,13#,RZH10#,11#,124,133..(COM,V1,WG)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM)

 1
87208-26880

KZH11#..5F;KZH10#,12#,RZH10#,11#,12#,133..COM,V1,WG

 1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-26200

KZH10#,11#,LH10#,11#,RZH10#,112..(V1,WG)..4D..(05S,06S,07S,08S,09S,10S)

 1
87208-26540

KZH10#,11#,LH10#,11#,RZH10#,11#..(V1,WG)..4D..(05S,06S,07S,08S,09S,10S)

 1
87208-95J70

RZH102,112..850K;LH10#,110,113,117,119,140,RZH10#,11#..(V1,WG)..4D..(05S,06S,07S,08S,09S,10S)

 1
87208-2F070

KZH10#,11#,LH16#,17#,RZH10#,11#..(V1,WG)..4D..SG

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔﾋ-ﾀ)

 1
87240A - VALVE ASSY, REAR HEATER WATER
87240-95J10

RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-20200

LH10#,11#,123,125,129,140..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S)

*H,L=140

 1
99556-20200

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=180

 1
99556-20200

KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124..05S,06S,07S,08S,09S,10S,15S

*H,L=180

 1
99556-20200

LH10#,11#,12#

*H,L=130

 1
99556-20200

LH10#,11#,12#,16#,17#,18#..DX,GL,SGL

*H,L=140

 1
99556-20200

KZH10#,11#,12#,13#,RZH10#,11#,12#,133..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL

*H,L=180

 1
87255B - HOSE, REAR HEATER WATER INLET, B
99556-20300

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=240

 1
99556-20200

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
99556-20200

LH10#,11#,12#,16#,17#,18#..DX,GL,SGL

*H,L=130

 1
99556-20200

KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
99556-20180

LH10#,11#,12#

*H,L=180

 1
99556-20200

KZH10#,11#,12#,13#,RZH10#,11#,12#,133..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL

*H,L=140

 1
87255B - HOSE, REAR HEATER WATER INLET, B
99556-20300

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=240

 1
99556-20200

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
99556-20200

LH10#,11#,12#,16#,17#,18#..DX,GL,SGL

*H,L=130

 1
99556-20200

KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
99556-20180

LH10#,11#,12#

*H,L=180

 1
99556-20200

KZH10#,11#,12#,13#,RZH10#,11#,12#,133..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL

*H,L=140

 1
87255C - HOSE, REAR HEATER WATER INLET, C
99556-20200

RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

長さ=200

 1
99556-20300

KZH10#,11#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

*H,L=280

 1
87255D - HOSE, REAR HEATER WATER INLET, D
99556-20200

RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

*H,L=140

 1
99556-20200

KZH10#,11#,LH10#,11#,16#,17#,RZH10#,11#..(V1,WG)..4D..(05S,06S,07S,08S,09S,10S)

*H,L=145

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-95J63

RZH102,112..850K;LH10#,110,113,119,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87245-95J63

LH125..GL;KZH10#,11#,LH10#,11#,123,129,RZH10#,112,124..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87245-95J63

LH125,184,186,RZH125..GL;KZH10#,11#,13#,LH10#,11#,123,129,16#,17#,182,188,RZH10#,11#..(V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-95J64

RZH102,112..850K;LH10#,110,113,119,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87245-95J64

LH125..GL;KZH10#,11#,LH10#,11#,123,129,RZH10#,112,124..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87245-95J64

LH125,184,186,RZH125..GL;KZH10#,11#,13#,LH10#,11#,123,129,16#,17#,182,188,RZH10#,11#..(V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99556-20200

RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

*H,L=190

 1
99556-20300

KZH10#,11#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

長さ=300

 1
99556-20300

KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124..05S,06S,07S,08S,09S,10S,15S

長さ=300

 1
87256D - HOSE, REAR HEATER WATER OUTLET, D
99556-20180

LH10#,11#,123,125,129..CTM,DX,GL,SCL,SCM,SCMM,SGL

*H,L=180

 1
99556-20140

LH10#,11#,12#

*H,L=140

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99556-20200

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=140

 1
99556-20200

RZH102,112..GL;RZH112..5F..DX;RZH112..V2..SRF..4FC;KZH10#,11#,12#,13#,RZH111

*H,L=145

 1
99556-20200

RZH10#,11#,12#,133..CTM,DX,GL,SCL,SCM,SCMM,SGL

*H,L=160

 1
99556-20200

KZH10#,11#,12#

*H,L=110

 1
99556-20200

LH10#,11#,12#..DX,GL,SGL

*H,L=170

 1
99556-20200

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

*H,L=180

 1
99556-20200

RZH112..V1..(DX,GL);KZH10#,11#,12#,LH10#,11#,12#,RZH10#,124..05S,06S,07S,08S,09S,10S,15S

*H,L=145

 1
99556-20200

LH10#,11#,12#,16#,17#,18#..DX,GL,SGL

*H,L=170

 1
Common parts
57362-95J01
87128-95J01
90159-60025
90159-60191
90179-08123
90189-05163
90467-19010
90467-19022
91651-40816
93381-16012
96112-30220
Linked diagrams
8712

ILLUST NO. 2 OF 2(8908-9808)LH10#,11#,12#,140

Click highlighted areas on diagram

ﾘﾔ-ﾄﾘﾑ(1)

diagram 8712 8712428040 8712428040 8712428040 8712428040 8712428040 8712428040 87208A 87208B 87208C 87240A 87248Y 87248Y 87255A 87255B 87255C 87255C 87255D 87255E 87256A 87256B 87256B 87256D 87256E 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-95J59

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-95J55

RZH102,112..850K;RZH10#,11#,12#..(COM,V1,WG)..(CTM,DX,GL,SCL,SCM,SCMM)

 1
87208-95J57

LH10#,11#,123,125,129,140..(COM,V1,WG)..(05S,06S,07S,08S,09S,10S,15S)

 1
87208-26190

KZH10#,11#,12#,RZH10#,112,124..(COM,V1,WG)..(06S,07S,08S,09S,10S,15S)

 1
87208-26510

KZH10#,11#,12#,13#,RZH10#,11#,124,133..(COM,V1,WG)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM)

 1
87208-26880

KZH11#..5F;KZH10#,12#,RZH10#,11#,12#,133..COM,V1,WG

 1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-26200

KZH10#,11#,LH10#,11#,RZH10#,112..(V1,WG)..4D..(05S,06S,07S,08S,09S,10S)

 1
87208-26540

KZH10#,11#,LH10#,11#,RZH10#,11#..(V1,WG)..4D..(05S,06S,07S,08S,09S,10S)

 1
87208-95J70

RZH102,112..850K;LH10#,110,113,117,119,140,RZH10#,11#..(V1,WG)..4D..(05S,06S,07S,08S,09S,10S)

 1
87208-2F070

KZH10#,11#,LH16#,17#,RZH10#,11#..(V1,WG)..4D..SG

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔﾋ-ﾀ)

 1
87240A - VALVE ASSY, REAR HEATER WATER
87240-95J10

RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-20200

LH10#,11#,123,125,129,140..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S)

*H,L=140

 1
99556-20200

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=180

 1
99556-20200

KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124..05S,06S,07S,08S,09S,10S,15S

*H,L=180

 1
99556-20200

LH10#,11#,12#

*H,L=130

 1
99556-20200

LH10#,11#,12#,16#,17#,18#..DX,GL,SGL

*H,L=140

 1
99556-20200

KZH10#,11#,12#,13#,RZH10#,11#,12#,133..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL

*H,L=180

 1
87255B - HOSE, REAR HEATER WATER INLET, B
99556-20300

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=240

 1
99556-20200

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
99556-20200

LH10#,11#,12#,16#,17#,18#..DX,GL,SGL

*H,L=130

 1
99556-20200

KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
99556-20180

LH10#,11#,12#

*H,L=180

 1
99556-20200

KZH10#,11#,12#,13#,RZH10#,11#,12#,133..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL

*H,L=140

 1
87255C - HOSE, REAR HEATER WATER INLET, C
99556-20200

RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

長さ=200

 1
99556-20300

KZH10#,11#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

*H,L=280

 1
87255C - HOSE, REAR HEATER WATER INLET, C
99556-20200

RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

長さ=200

 1
99556-20300

KZH10#,11#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

*H,L=280

 1
87255D - HOSE, REAR HEATER WATER INLET, D
99556-20200

RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

*H,L=140

 1
99556-20200

KZH10#,11#,LH10#,11#,16#,17#,RZH10#,11#..(V1,WG)..4D..(05S,06S,07S,08S,09S,10S)

*H,L=145

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-95J63

RZH102,112..850K;LH10#,110,113,119,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87245-95J63

LH125..GL;KZH10#,11#,LH10#,11#,123,129,RZH10#,112,124..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87245-95J63

LH125,184,186,RZH125..GL;KZH10#,11#,13#,LH10#,11#,123,129,16#,17#,182,188,RZH10#,11#..(V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-95J64

RZH102,112..850K;LH10#,110,113,119,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87245-95J64

LH125..GL;KZH10#,11#,LH10#,11#,123,129,RZH10#,112,124..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87245-95J64

LH125,184,186,RZH125..GL;KZH10#,11#,13#,LH10#,11#,123,129,16#,17#,182,188,RZH10#,11#..(V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99556-20200

RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

*H,L=190

 1
99556-20300

KZH10#,11#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

長さ=300

 1
99556-20300

KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124..05S,06S,07S,08S,09S,10S,15S

長さ=300

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99556-20200

RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

*H,L=190

 1
99556-20300

KZH10#,11#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

長さ=300

 1
99556-20300

KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124..05S,06S,07S,08S,09S,10S,15S

長さ=300

 1
87256D - HOSE, REAR HEATER WATER OUTLET, D
99556-20180

LH10#,11#,123,125,129..CTM,DX,GL,SCL,SCM,SCMM,SGL

*H,L=180

 1
99556-20140

LH10#,11#,12#

*H,L=140

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99556-20200

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=140

 1
99556-20200

RZH102,112..GL;RZH112..5F..DX;RZH112..V2..SRF..4FC;KZH10#,11#,12#,13#,RZH111

*H,L=145

 1
99556-20200

RZH10#,11#,12#,133..CTM,DX,GL,SCL,SCM,SCMM,SGL

*H,L=160

 1
99556-20200

KZH10#,11#,12#

*H,L=110

 1
99556-20200

LH10#,11#,12#..DX,GL,SGL

*H,L=170

 1
99556-20200

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

*H,L=180

 1
99556-20200

RZH112..V1..(DX,GL);KZH10#,11#,12#,LH10#,11#,12#,RZH10#,124..05S,06S,07S,08S,09S,10S,15S

*H,L=145

 1
99556-20200

LH10#,11#,12#,16#,17#,18#..DX,GL,SGL

*H,L=170

 1
Common parts
87124-28040
90467-19022
91651-40816
Linked diagrams
8712

ILLUST NO. 2 OF 2(9808-9907)KZH11#,13#

Click highlighted areas on diagram

diagram 8712 87208B 87208C 87240A 87248B 87248Y 87248Y 87255A 87255B 87255C 87255C 87255D 87255E 87256A 87256B 87256C 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816
Part # Description Qty Price
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-95J55

RZH102,112..850K;RZH10#,11#,12#..(COM,V1,WG)..(CTM,DX,GL,SCL,SCM,SCMM)

 1
87208-95J57

LH10#,11#,123,125,129,140..(COM,V1,WG)..(05S,06S,07S,08S,09S,10S,15S)

 1
87208-26190

KZH10#,11#,12#,RZH10#,112,124..(COM,V1,WG)..(06S,07S,08S,09S,10S,15S)

 1
87208-26510

KZH10#,11#,12#,13#,RZH10#,11#,124,133..(COM,V1,WG)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM)

 1
87208-26880

KZH11#..5F;KZH10#,12#,RZH10#,11#,12#,133..COM,V1,WG

 1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-26200

KZH10#,11#,LH10#,11#,RZH10#,112..(V1,WG)..4D..(05S,06S,07S,08S,09S,10S)

 1
87208-26540

KZH10#,11#,LH10#,11#,RZH10#,11#..(V1,WG)..4D..(05S,06S,07S,08S,09S,10S)

 1
87208-95J70

RZH102,112..850K;LH10#,110,113,117,119,140,RZH10#,11#..(V1,WG)..4D..(05S,06S,07S,08S,09S,10S)

 1
87208-2F070

KZH10#,11#,LH16#,17#,RZH10#,11#..(V1,WG)..4D..SG

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔﾋ-ﾀ)

 1
87240A - VALVE ASSY, REAR HEATER WATER
87240-95J10

RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

 1
87248B - PIPE, HEATER WATER INLET, B
87208-95J61

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

 1
87208-95J60

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87208-26840

KZH10#,11#,12#,13#,RZH10#,11#,12#,133

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-20200

LH10#,11#,123,125,129,140..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S)

*H,L=140

 1
99556-20200

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=180

 1
99556-20200

KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124..05S,06S,07S,08S,09S,10S,15S

*H,L=180

 1
99556-20200

LH10#,11#,12#

*H,L=130

 1
99556-20200

LH10#,11#,12#,16#,17#,18#..DX,GL,SGL

*H,L=140

 1
99556-20200

KZH10#,11#,12#,13#,RZH10#,11#,12#,133..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL

*H,L=180

 1
87255B - HOSE, REAR HEATER WATER INLET, B
99556-20300

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=240

 1
99556-20200

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
99556-20200

LH10#,11#,12#,16#,17#,18#..DX,GL,SGL

*H,L=130

 1
99556-20200

KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
99556-20180

LH10#,11#,12#

*H,L=180

 1
99556-20200

KZH10#,11#,12#,13#,RZH10#,11#,12#,133..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL

*H,L=140

 1
87255C - HOSE, REAR HEATER WATER INLET, C
99556-20200

RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

長さ=200

 1
99556-20300

KZH10#,11#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

*H,L=280

 1
87255C - HOSE, REAR HEATER WATER INLET, C
99556-20200

RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

長さ=200

 1
99556-20300

KZH10#,11#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

*H,L=280

 1
87255D - HOSE, REAR HEATER WATER INLET, D
99556-20200

RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

*H,L=140

 1
99556-20200

KZH10#,11#,LH10#,11#,16#,17#,RZH10#,11#..(V1,WG)..4D..(05S,06S,07S,08S,09S,10S)

*H,L=145

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-95J63

RZH102,112..850K;LH10#,110,113,119,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87245-95J63

LH125..GL;KZH10#,11#,LH10#,11#,123,129,RZH10#,112,124..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87245-95J63

LH125,184,186,RZH125..GL;KZH10#,11#,13#,LH10#,11#,123,129,16#,17#,182,188,RZH10#,11#..(V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-95J64

RZH102,112..850K;LH10#,110,113,119,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87245-95J64

LH125..GL;KZH10#,11#,LH10#,11#,123,129,RZH10#,112,124..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87245-95J64

LH125,184,186,RZH125..GL;KZH10#,11#,13#,LH10#,11#,123,129,16#,17#,182,188,RZH10#,11#..(V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99556-20200

RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

*H,L=190

 1
99556-20300

KZH10#,11#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

長さ=300

 1
99556-20300

KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124..05S,06S,07S,08S,09S,10S,15S

長さ=300

 1
Common parts
90467-19022
91651-40816
Linked diagrams
8712
