KZH116G-GHMDT (1993)

Toyota Hiace/Regiusace

Production Aug 1993 - Jul 1999
Engine 1KZTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9308-9907)KZH106,116,126,138,LH109,119,129,168,178,186,188

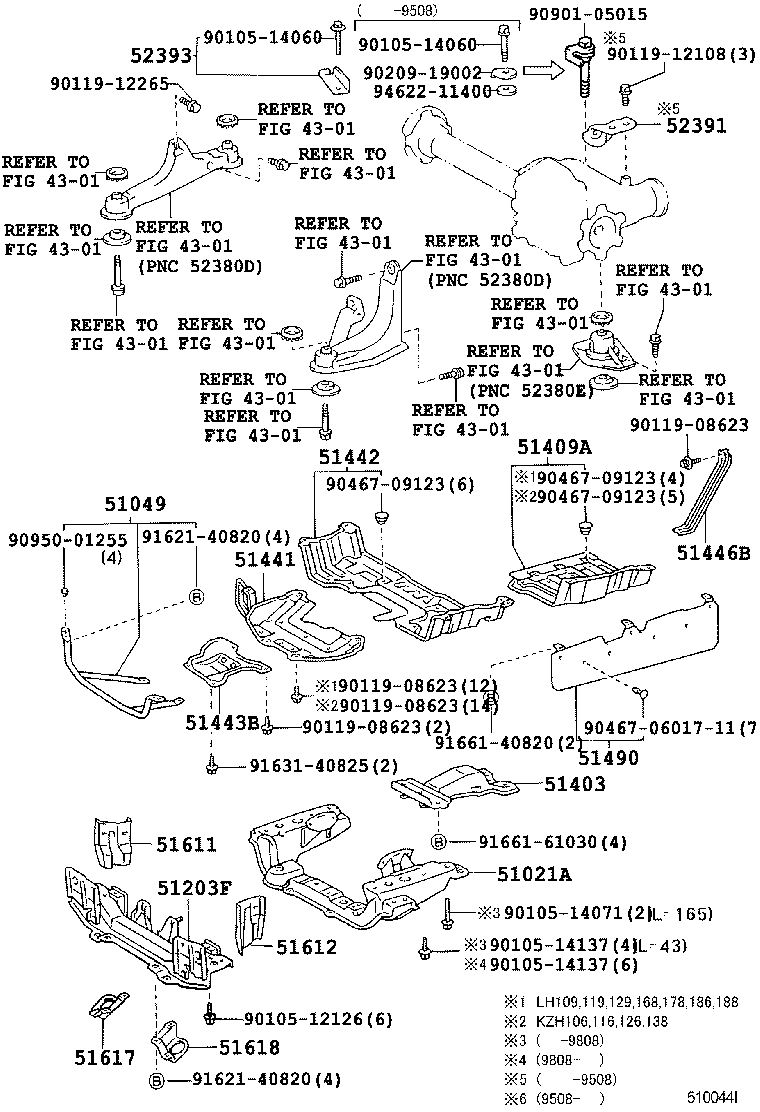

Click highlighted areas on diagram

diagram 4301 4301 4301 4301 4301 4301 4301 4301 4301 4301 4301 4301 4301 4301 4301 4301 51021A 51049 51203F 51403 51409A 51441 51442 51443B 51446B 51490 51611 51612 51617 51618 52391 52393 9010512126 9010514060 9010514060 9010514071 9010514137 9010514137 9011908623 9011908623 9011908623 9011908623 9011912108 9011912265 9020919002 904670601711 9046709123 9046709123 9046709123 9090105015 9095001255 9162140820 9162140820 9163140825 9166140820 9166161030 9462211400
Part # Description Qty Price
51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT
51021-26041

KZH106,116,126,138

 1
51021-26040

KZH106,116,126,138

 1
51021-95J09

RZH10#,11#,12#,133

 1
51049 - BAR SUB-ASSY, UNDER GUARD, FRONT
51040-29015

KZH106,116,126,138,LH107,109,117,119,129

 1
51040-26030

KZH106,116,126,138,LH109,119,129,168,178,186,188

 1
51203F - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51203-26170

KZH106,116,126,138,LH109,119,129

 1
51203-95J09

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 1
51203-26171

KZH106,116,126,138,LH109,119,129,168,178,186,188

 1
51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING
51403-26030

KZH106,116,126,138

 1
51409A - COVER SUB-ASSY, ENGINE UNDER, NO.4
51409-26050

LH10#,11#,12#,16#,17#,18#

 1
51443B - COVER, ENGINE UNDER, NO.3
51443-95J02

KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188

 1
51611 - STOPPER, FRONT SUSPENSION BOUND, RH
51611-26030

KZH106,116,126,138,LH109,119,129,168,178,186,188

 1
51612 - STOPPER, FRONT SUSPENSION BOUND, LH
51612-26030

KZH106,116,126,138,LH109,119,129,168,178,186,188

 1
51617 - GUARD, FRONT DIFFERENTIAL SUPPORT, RH
51617-95J00

KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188

 1
51618 - GUARD, FRONT DIFFERENTIAL SUPPORT, LH
51618-95J00

KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188

 1
52393 - SUPPORT, FRONT DIFFERENTIAL, NO.2
52393-26030

KZH106,116,126,138,LH107,109,117,119,129,168,178,186,188

 1
Common parts
90105-12126
90105-14060
90105-14071
90105-14137
90119-08623
90119-12108
90119-12265
90209-19002
90467-0601711
90467-09123
90901-05015
90950-01255
91621-40820
91631-40825
91661-40820
91661-61030
94622-11400
Linked diagrams
4301
