KZH116G-GHMDT (1993)
Toyota Hiace/Regiusace
(9308-9508)KZH106,116,126 ; (9508- )4WD

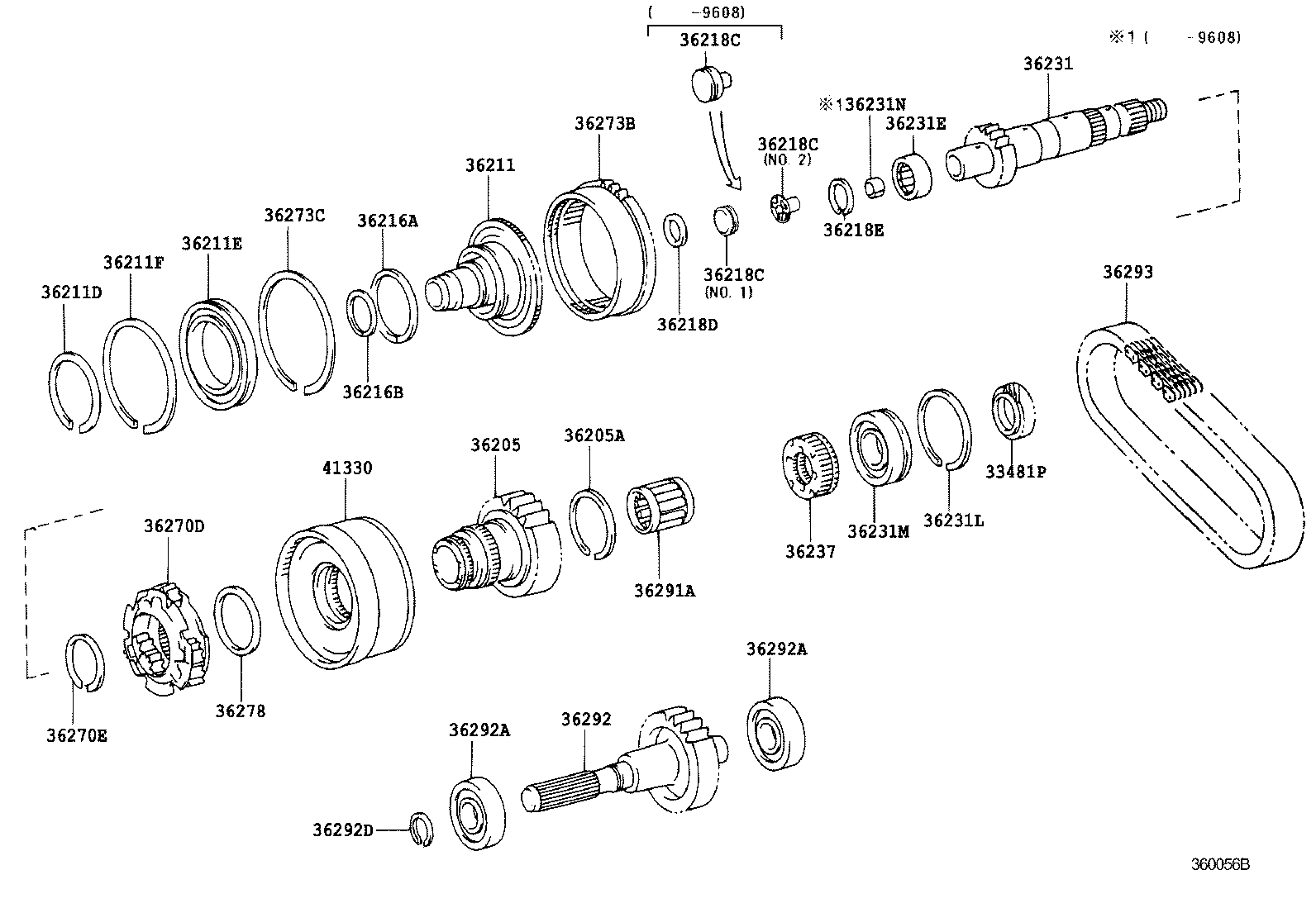

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) | ||||
| 33481-28030 |
KZH106,116,126,138 歯数=7,ﾏｰｸ 3 |
1 | ||
| 33481-28030 |
KZH106,116,126..08S,09S,10S 歯数=7,ﾏｰｸ 3 |
1 | ||
| 36205 - SPROCKET SUB-ASSY, TRANSFER DRIVE | ||||
| 36205-28011 |
KZH106,116,126 |
1 | ||
| 36205-28020 |
KZH106,116,126 |
1 | ||
| 36205-26020 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 |
1 | ||
| 36205-28020 |
KZH106,116,126,138,LH109,119,129 |
1 | ||
| 36205A - RING, SHAFT SNAP | ||||
| 90520-60002 |
KZH106,116,126 |
1 | ||
| 90520-60002 |
KZH106,116,126,138,LH109,119,129 |
1 | ||
| 36211 - SHAFT, TRANSFER INPUT | ||||
| 36211-28030 |
KZH106,116,126,138;LH119,129,178,186,188..4FC |
1 | ||
| 36211-28030 |
KZH106,116,126 |
1 | ||
| 36211D - RING, HOLE SNAP (FOR TRANSFER INPUT SHAFT) | ||||
| 90520-72003 |
KZH106,116,126 厚さ=1.55,ﾏｰｸ 3 |
1 | ||
| 90520-72004 |
KZH106,116,126 厚さ=1.60,ﾏｰｸ 4 |
1 | ||
| 90520-72001 |
KZH106,116,126 厚さ=1.45,ﾏｰｸ 1 |
1 | ||
| 90520-72005 |
KZH106,116,126 厚さ=1.65,ﾏｰｸ 5 |
1 | ||
| 90520-72005 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 厚さ=1.65,ﾏｰｸ 5 |
1 | ||
| 90520-72002 |
KZH106,116,126 厚さ=1.50,ﾏｰｸ 2 |
1 | ||
| 90520-72003 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 厚さ=1.55,ﾏｰｸ 3 |
1 | ||
| 90520-72004 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 厚さ=1.60,ﾏｰｸ 4 |
1 | ||
| 90520-72002 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 厚さ=1.50,ﾏｰｸ 2 |
1 | ||
| 90520-72001 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 厚さ=1.45,ﾏｰｸ 1 |
1 | ||
| 36211E - BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT) | ||||
| 90363-75001 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 |
1 | ||
| 90363-75001 |
KZH106,116,126 |
1 | ||
| 36211F - RING, SHAFT SNAP (FOR TRANSFER INPUT SHAFT) | ||||
| 90520-99001 |
KZH106,116,126 |
1 | ||
| 90520-99001 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 |
1 | ||
| 36216A - RING, TRANSFER INPUT SHAFT SEAL, NO.1 | ||||
| 36216-28010 |
KZH106,116,126 |
1 | ||
| 36216-28010 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 |
1 | ||
| 36216B - RING, TRANSFER INPUT SHAFT SEAL, NO.2 | ||||
| 36216-28020 |
KZH106,116,126 |
1 | ||
| 36216-28020 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 |
1 | ||
| 36218C - PLUG, TRANSFER INPUT SHAFT | ||||
| 36218-28030 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 NO.1 |
1 | ||
| 36218-28020 |
KZH106,116,126 |
1 | ||
| 36218-28020 |
KZH106,116,126,138,LH109,119,129 |
1 | ||
| 36218-28040 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 NO.2 |
1 | ||
| 36218C - PLUG, TRANSFER INPUT SHAFT | ||||
| 36218-28030 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 NO.1 |
1 | ||
| 36218-28020 |
KZH106,116,126 |
1 | ||
| 36218-28020 |
KZH106,116,126,138,LH109,119,129 |
1 | ||
| 36218-28040 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 NO.2 |
1 | ||
| 36218C - PLUG, TRANSFER INPUT SHAFT | ||||
| 36218-28030 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 NO.1 |
1 | ||
| 36218-28020 |
KZH106,116,126 |
1 | ||
| 36218-28020 |
KZH106,116,126,138,LH109,119,129 |
1 | ||
| 36218-28040 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 NO.2 |
1 | ||
| 36218D - RING, O (FOR TRANSFER INPUT SHAFT PLUG) | ||||
| 96721-24028 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 |
1 | ||
| 96721-24028 |
KZH106,116,126 |
1 | ||
| 36218E - RING, HOLE SNAP (FOR TRANSFER INPUT SHAFT PLUG) | ||||
| 90521-38004 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 |
1 | ||
| 90521-38004 |
KZH106,116,126 |
1 | ||
| 36231 - SHAFT, TRANSFER OUTPUT, REAR | ||||
| 36231-28040 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 |
1 | ||
| 36231-28020 |
KZH106,116,126 |
1 | ||
| 36231-28020 |
KZH106,116,126,138,LH109,119,129 |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-31007 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 |
1 | ||
| 90364-31007 |
KZH106,116,126 |
1 | ||
| 36231L - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT REAR) | ||||
| 90520-71221 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 厚さ=1.65,内径=71.1 |
1 | ||
| 90520-71221 |
KZH106,116,126 厚さ=1.65,内径=71.1 |
1 | ||
| 36231M - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR) | ||||
| 90363-32006 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 |
1 | ||
| 90363-32006 |
KZH106,116,126 |
1 | ||
| 36231N - PIN, SLOTTED SPRING (FOR TRANSFER OUTPUT SHAFT REAR) | ||||
| 90254-18001 |
KZH106,116,126,138,LH109,119,129 |
1 | ||
| 90254-18001 |
KZH106,116,126 |
1 | ||
| 36237 - HUB, TRANSFER CLUTCH | ||||
| 36255-28020 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 |
1 | ||
| 36237-28010 |
KZH106,116,126,138,LH109,119,129 |
1 | ||
| 36237-28010 |
KZH106,116,126 |
1 | ||
| 36270D - GEAR ASSY, MANUAL TRANSFER PLANETARY | ||||
| 36270-28021 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 |
1 | ||
| 36270-28021 |
KZH106,116,126 |
1 | ||
| 36270E - RING, SHAFT SNAP (FOR MANUAL TRANSFER PLANETARY GEAR) | ||||
| 90520-48002 |
KZH106,116,126 厚さ=1.55,ﾏｰｸ A |
1 | ||
| 90520-48004 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 厚さ=1.65,ﾏｰｸ C |
1 | ||
| 90520-48003 |
KZH106,116,126 厚さ=1.60,ﾏｰｸ B |
1 | ||
| 90520-48005 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 厚さ=1.70,ﾏｰｸ D |
1 | ||
| 90520-48004 |
KZH106,116,126 厚さ=1.65,ﾏｰｸ C |
1 | ||
| 90520-48005 |
KZH106,116,126 厚さ=1.70,ﾏｰｸ D |
1 | ||
| 90520-48002 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 厚さ=1.55,ﾏｰｸ A |
1 | ||
| 90520-48003 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 厚さ=1.60,ﾏｰｸ B |
1 | ||
| 90520-48006 |
KZH106,116,126 厚さ=1.75,ﾏｰｸ E |
1 | ||
| 90520-48006 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 厚さ=1.75,ﾏｰｸ E |
1 | ||
| 36273B - GEAR, MANUAL TRANSFER PLANETARY RING | ||||
| 36273-28020 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 |
1 | ||
| 36273-28020 |
KZH106,116,126 |
1 | ||
| 36273C - RING, HOLE SNAP (FOR MANUAL TRANSFER PLANETARY RING GEA | ||||
| 90521-99108 |
KZH106,116,126 |
1 | ||
| 90521-99108 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 |
1 | ||
| 36278 - WASHER, MANUAL TRANSFER PLANETARY CARRIER | ||||
| 36278-28010 |
KZH106,116,126 厚さ=1.3,ﾏｰｸ A |
1 | ||
| 36278-28040 |
KZH106,116,126 厚さ=1.6,ﾏｰｸ D |
1 | ||
| 36278-28050 |
KZH106,116,126 厚さ=1.7,ﾏｰｸ E |
1 | ||
| 36278-28030 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 厚さ=1.5,ﾏｰｸ C |
1 | ||
| 36278-28050 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 厚さ=1.7,ﾏｰｸ E |
1 | ||
| 36278-28060 |
KZH106,116,126 厚さ=1.8,ﾏｰｸ F |
1 | ||
| 36278-28010 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 厚さ=1.3,ﾏｰｸ A |
1 | ||
| 36278-28040 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 厚さ=1.6,ﾏｰｸ D |
1 | ||
| 36278-28020 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 厚さ=1.4,ﾏｰｸ B |
1 | ||
| 36278-28020 |
KZH106,116,126 厚さ=1.4,ﾏｰｸ B |
1 | ||
| 36278-28060 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 厚さ=1.8,ﾏｰｸ F |
1 | ||
| 36278-28030 |
KZH106,116,126 厚さ=1.5,ﾏｰｸ C |
1 | ||
| 36291A - BEARING (FOR TRANSFER DRIVE SPROCKET) | ||||
| 90364-40001 |
KZH106,116,126 |
1 | ||
| 90364-40001 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 |
1 | ||
| 36292 - SPROCKET, TRANSFER DRIVEN | ||||
| 36292-28031 |
KZH106,116,126 |
1 | ||
| 36292-28032 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 |
1 | ||
| 36292-28032 |
KZH106,116,126 |
1 | ||
| 36292A - BEARING (FOR TRANSFER DRIVEN SPROCKET) | ||||
| 90363-30064 |
KZH106,116,126 ﾌﾛﾝﾄ |
1 | ||
| 90363-28006 |
KZH106,116,126 ﾘﾔ |
1 | ||
| 90363-30064 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 ﾌﾛﾝﾄ |
1 | ||
| 90363-28004 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 ﾘﾔ |
1 | ||
| 90363-28006 |
KZH106,116,126,138,LH109,119,129 ﾘﾔ |
1 | ||
| 36292A - BEARING (FOR TRANSFER DRIVEN SPROCKET) | ||||
| 90363-30064 |
KZH106,116,126 ﾌﾛﾝﾄ |
1 | ||
| 90363-28006 |
KZH106,116,126 ﾘﾔ |
1 | ||
| 90363-30064 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 ﾌﾛﾝﾄ |
1 | ||
| 90363-28004 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 ﾘﾔ |
1 | ||
| 90363-28006 |
KZH106,116,126,138,LH109,119,129 ﾘﾔ |
1 | ||
| 36292D - RING SHAFT SNAP(FOR TRANSFER DRIVEN SPROCKET) | ||||
| 90520-27025 |
KZH106,116,126 厚さ=2.00,ﾏｰｸ 2 |
1 | ||
| 90520-27026 |
KZH106,116,126 厚さ=2.05,ﾏｰｸ 3 |
1 | ||
| 90520-27030 |
KZH106,116,126 厚さ=2.25,ﾏｰｸ 7 |
1 | ||
| 90520-27029 |
KZH106,116,126 厚さ=2.20,ﾏｰｸ 6 |
1 | ||
| 90520-27031 |
KZH106,116,126 厚さ=2.30,ﾏｰｸ 8 |
1 | ||
| 90520-27033 |
KZH106,116,126 厚さ=2.40,ﾏｰｸ 10 |
1 | ||
| 90520-27028 |
KZH106,116,126 厚さ=2.15,ﾏｰｸ 5 |
1 | ||
| 90520-27024 |
KZH106,116,126 厚さ=1.95,ﾏｰｸ 1 |
1 | ||
| 90520-27027 |
KZH106,116,126 厚さ=2.10,ﾏｰｸ 4 |
1 | ||
| 90520-27035 |
KZH106,116,126 厚さ=2.50,ﾏｰｸ 12 |
1 | ||
| 90520-27032 |
KZH106,116,126 厚さ=2.35,ﾏｰｸ 9 |
1 | ||
| 90520-27034 |
KZH106,116,126 厚さ=2.45,ﾏｰｸ 11 |
1 | ||
| 36293 - CHAIN, TRANSFER FRONT DRIVE | ||||
| 36293-28021 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 |
1 | ||
| 36293-28021 |
KZH106,116,126 |
1 | ||
| 41330 - COUPLING ASSY, CENTER DIFFERENTIAL CONTROL | ||||
| 41330-26011 |
KZH106,116,126,138,LH109,119,129,168,178,186,188 |
1 | ||
| 41330-26012 |
KZH106,116,126,138,LH168,178,186,188 |
1 | ||
| 41330-26010 |
KZH106,116,126,138,LH109,119,129 |
1 | ||
| 41330-28012 |
KZH106,116,126,138 |
1 | ||
