KZH116G-GHMDT (1993)
Toyota Hiace/Regiusace
Production
Aug 1993
-
Jul 1999
Engine
1KZTE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9308- )KZH106,116,126..5F

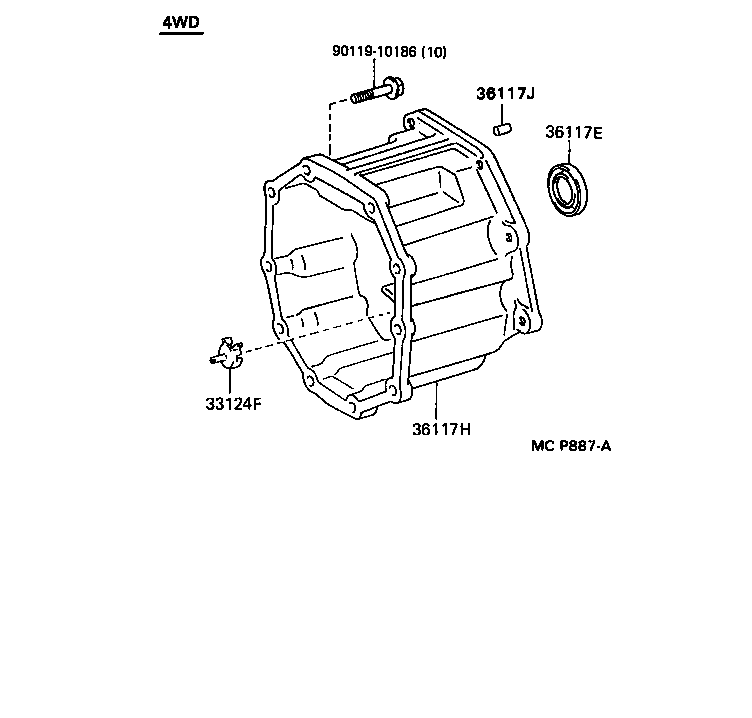

Click highlighted areas on diagram
R351F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING) | ||||
| 33124-36010 |
KZH10#,11#,12#,LH100,102,103,110,113,115,120,123,125,140,RZH100,102,11#,12#..5F |
1 | ||
| 33124-35100 |
KZH10#,11#,12#..5F |
1 | ||
| 36117E - SEAL, OIL(FOR TRANSFER ADAPTER) | ||||
| 90310-40003 |
KZH106,116,126..5F |
1 | ||
| 90310-40004 |
KZH106,116,126..5F |
1 | ||
| 36117H - ADAPTER SUB-ASSY, TRANSFER | ||||
| 36117-26020 |
KZH106,116,126..5F |
1 | ||
| 36117-26030 |
KZH106,116,126..5F |
1 | ||
| 36117J - PIN, STRAIGHT | ||||
| 90250-10214 |
KZH106,116,126,LH107,109,117,119,129,168,178,186,188..5F |
2 | ||
| Common parts | ||||
| 90119-10186 | ||||
