KZH110G-GHPDT (1995)
Toyota Hiace/Regiusace

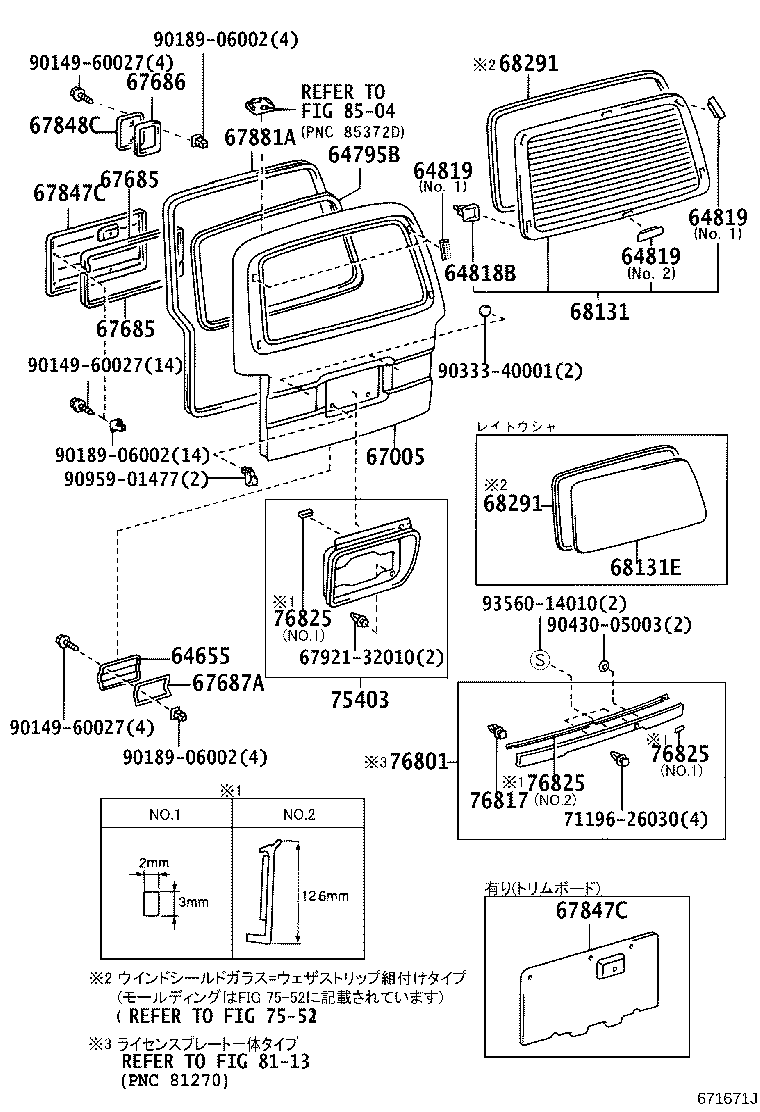

ILLUST NO. 2 OF 2(8908-9907)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64795B - TRIM, BACK WINDOW OPENING | ||||
| 64795-26020 |
KZH11#..4FC ｸﾙ-ｼﾞﾝｸﾞ ｷﾔﾋﾞﾝ X |
1 | ||
| 64795-26020 |
KZH10#,11# |
1 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-26030 |
KZH11#..4FC ｸﾙ-ｼﾞﾝｸﾞ ｷﾔﾋﾞﾝ X |
2 | ||
| 64818-26030 |
KZH10#,11# |
2 | ||
| 64819 - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-26040 |
KZH10#,11#,RZH101 NO.2 |
2 | ||
| 64819-26010 |
KZH10#,11#,RZH101 NO.1 |
6 | ||
| 64819-26010 |
KZH11#..4FC ｸﾙ-ｼﾞﾝｸﾞ ｷﾔﾋﾞﾝ X |
8 | ||
| 64819 - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-26040 |
KZH10#,11#,RZH101 NO.2 |
2 | ||
| 64819-26010 |
KZH10#,11#,RZH101 NO.1 |
6 | ||
| 64819-26010 |
KZH11#..4FC ｸﾙ-ｼﾞﾝｸﾞ ｷﾔﾋﾞﾝ X |
8 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-95N65 |
LH102,109,113,115,119,RZH102,11#..SRF..(CD,DX,GL) ｱﾘ(*RWD & *RW & *RUM) |
1 | ||
| 67005-95N63 |
LH113,119..SGL;KZH100,11#,LH100,102,103,110,117,RZH100,110,111..(05S,09S,10S)..(DX,SGL) ｱﾘ(*RWD & *RW & *RUM & ﾊﾞﾂｸﾄﾞｱ ﾄﾘﾑ) |
1 | ||
| 67005-2N200 |
KZH11#..4FC ｱﾘ(*RWD & *RW & *RUM & *RCL & ﾊﾞﾂｸﾄﾞｱ ﾄﾘﾑ) |
1 | ||
| 67005-2F190 |
KZH11#..4FC;KZH10#,RZH101..CTM ｱﾘ(*RWD & *RW & *RUM & *RCL & ﾊﾞﾂｸﾄﾞｱ ﾄﾘﾑ) |
1 | ||
| 67005-2N660 |
KZH110;KZH116..4FC ｱﾘ(*RWD & *RW & *RUM) |
1 | ||
| 67005-2N670 |
KZH11#,RZH111 ｱﾘ(*RWD & *RW & *RUM & ﾊﾞﾂｸﾄﾞｱ ﾄﾘﾑ) |
1 | ||
| 67005-2N210 |
KZH11#..4FC;KZH10#,RZH101..08S ｱﾘ(*RWD & *RW & *RUM & *RCL & *HSL=LEDｼｷ & ﾊﾞﾂｸﾄﾞｱ ﾄﾘﾑ) |
1 | ||
| 67005-95N65 |
LH10#,11#,16#,17#,RZH102,112..SRF..(CD,DX) ｱﾘ(*RWD & *RW & *RUM) |
1 | ||
| 67005-2N200 |
KZH11# ｱﾘ(*RWD & *RW & *RUM & *RCL & ﾊﾞﾂｸﾄﾞｱ ﾄﾘﾑ) |
1 | ||
| 67005-2N660 |
KZH11# ｱﾘ(*RWD & *RW & *RUM) |
1 | ||
| 67005-2N670 |
KZH11#,RZH111 ｱﾘ(*RWD & *RW & *RUM & ﾊﾞﾂｸﾄﾞｱ ﾄﾘﾑ) |
1 | ||
| 67685 - PACKING, BACK DOOR SERVICE HOLE, NO.1 | ||||
| 67685-95J01 |
LH102,109,113,115,119,123,125,129,RZH102,11#,12#..CD,DX,GL |
2 | ||
| 67685 - PACKING, BACK DOOR SERVICE HOLE, NO.1 | ||||
| 67685-95J01 |
LH102,109,113,115,119,123,125,129,RZH102,11#,12#..CD,DX,GL |
2 | ||
| 67686 - PACKING, BACK DOOR SERVICE HOLE, NO.2 | ||||
| 67526-95A00 |
LH102,109,113,115,119,123,125,129,RZH102,11#,12#..CD,DX,GL |
2 | ||
| 67847C - COVER, BACK DOOR SERVICE HOLE, NO.1 | ||||
| 67847-95J08 |
KZH10#,11#,12#,LH100,107,110,117,120,RZH100,101,110,111..CTM,DX,GCGE,GCGN,SCL,SCM,SCMM ﾎﾟﾘｴﾁﾚﾝ ﾌｨﾙﾑ |
1 | ||
| 67847-95J09 |
KZH11# ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 67847-95J09 |
KZH11#..4FC ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 67847-95J08 |
KZH10#,11#,120,RZH101,111 |
1 | ||
| 67847C - COVER, BACK DOOR SERVICE HOLE, NO.1 | ||||
| 67847-95J08 |
KZH10#,11#,12#,LH100,107,110,117,120,RZH100,101,110,111..CTM,DX,GCGE,GCGN,SCL,SCM,SCMM ﾎﾟﾘｴﾁﾚﾝ ﾌｨﾙﾑ |
1 | ||
| 67847-95J09 |
KZH11# ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 67847-95J09 |
KZH11#..4FC ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 67847-95J08 |
KZH10#,11#,120,RZH101,111 |
1 | ||
| 67848C - COVER, BACK DOOR SERVICE HOLE, NO.2 | ||||
| 67848-95J00 |
LH102,109,113,115,119,123,125,129,RZH102,11#,12#..CD,DX,GL |
2 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-95J16 |
LH100,102,109,11#,RZH100,102,11#..SRF..(CD,DX) |
1 | ||
| 67881-95J16 |
KZH10#,11#,LH16#,17#,RZH10#,11#,TRH102,112..MRF,SMRF,SRF |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68131-95J11 |
LH107,110,120;LH125,RZH100..CTM,GL,SCM,SCMM;LH100,102,113,119,RZH101..CTM,SGL *EHTT,厚さ=4.0 |
1 | ||
| 68131-95J09 |
LH125..DX;LH100,102,109,11#,123,129,140,RZH100,102,11#,12#..CD,DX,GL,SW *EHT,厚さ=4.0 |
1 | ||
| 68131-95J13 |
LH100,107,110,117,120,RZH100,101..07S,08S,10S *EHT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68131-26190 |
KZH11#,13#,LH10#,11#,12#,16#,17#,18#,RZH102,11#,12#,133 *EHT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68131-26200 |
KZH11#..4FC *TEM,厚さ=3.5,ｸﾞﾘｰﾝ,ｸﾙ-ｼﾞﾝｸﾞ ｷﾔﾋﾞﾝ X |
1 | ||
| 68131-26080 |
KZH126;KZH11#,120,13#..4FC *EHT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68131-26290 |
LH10#,11#,123,129,16#,17#,182,188,RZH102,112 *EHT,厚さ=3.5,ｸﾞﾚｰ |
1 | ||
| 68131-26080 |
KZH11#,120,13# *EHT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68131-26070 |
LH123,129..06S;KZH11#,LH113..(05S,10S)..4FC;LH119,125..(05S,08S,15S)..(GL,SGL);KZH10#,13#,LH103,RZH101..(03S,05S,08S,09S)..(CTM,DX,SCM,SCMM,SGL) *EHTT,厚さ=3.5 |
1 | ||
| 68131-26500 |
KZH10#,11#,RZH101..08S,10S *TEM,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68291 - WEATHERSTRIP, BACK DOOR GLASS | ||||
| 68291-95J05 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 |
1 | ||
| 68291-95J05 |
KZH11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH102,11#,12#,133 |
1 | ||
| 68291 - WEATHERSTRIP, BACK DOOR GLASS | ||||
| 68291-95J05 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 |
1 | ||
| 68291-95J05 |
KZH11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH102,11#,12#,133 |
1 | ||
| 75403 - ORNAMENT SUB-ASSY, BACK DOOR | ||||
| 75403-26010 |
LH123..06S;KZH11#..4FC;KZH10#,12#,13#,LH129,RZH101 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 75403-26030 |
KZH10#,11# |
1 | ||
| 75403-26030 |
KZH11#..4FC;KZH10#,RZH101 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 75403 - ORNAMENT SUB-ASSY, BACK DOOR | ||||
| 75403-26010 |
LH123..06S;KZH11#..4FC;KZH10#,12#,13#,LH129,RZH101 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 75403-26030 |
KZH10#,11# |
1 | ||
| 75403-26030 |
KZH11#..4FC;KZH10#,RZH101 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 76801-26170 |
KZH10#,11# 塗装不要 |
1 | ||
| 76801-26011 |
LH123..06S;KZH11#..4FC;KZH10#,13#,LH129,RZH101..CTM,DX 塗装不要,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 76801-26080 |
KZH11#..4FC;KZH10#,RZH101..SCM 塗装不要,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 76801-26170 |
KZH10#,11# 塗装不要 |
1 | ||
| 76801-26011 |
LH123..06S;KZH11#..4FC;KZH10#,13#,LH129,RZH101..CTM,DX 塗装不要,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 76801-26080 |
KZH11#..4FC;KZH10#,RZH101..SCM 塗装不要,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-95J01 |
LH123..06S;KZH11#..4FC;KZH10#,12#,13#,LH129,RZH101 NO.1 |
3 | ||
| 76817-26010 |
KZH11#..4FC;KZH10#,RZH101 |
2 | ||
| 76817-95J00 |
LH123..06S;KZH11#..4FC;KZH10#,12#,13#,LH129,RZH101 NO.2 |
6 | ||
| 76817-26010 |
KZH10#,11# |
2 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-95J01 |
LH123..06S;KZH11#..4FC;KZH10#,12#,13#,LH129,RZH101 NO.1 |
3 | ||
| 76817-26010 |
KZH11#..4FC;KZH10#,RZH101 |
2 | ||
| 76817-95J00 |
LH123..06S;KZH11#..4FC;KZH10#,12#,13#,LH129,RZH101 NO.2 |
6 | ||
| 76817-26010 |
KZH10#,11# |
2 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-95J01 |
LH123..06S;KZH11#..4FC;KZH10#,12#,13#,LH129,RZH101 NO.1 |
3 | ||
| 76817-26010 |
KZH11#..4FC;KZH10#,RZH101 |
2 | ||
| 76817-95J00 |
LH123..06S;KZH11#..4FC;KZH10#,12#,13#,LH129,RZH101 NO.2 |
6 | ||
| 76817-26010 |
KZH10#,11# |
2 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-26080 |
KZH11#..4FC;KZH10#,RZH101 |
6 | ||
| 76825-26100 |
KZH10#,11#,RZH101 NO.2 |
1 | ||
| 76825-26030 |
KZH11#..4FC;KZH10#,RZH101 |
4 | ||
| 76825-26080 |
KZH10#,11#,RZH101 NO.1 |
6 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-26080 |
KZH11#..4FC;KZH10#,RZH101 |
6 | ||
| 76825-26100 |
KZH10#,11#,RZH101 NO.2 |
1 | ||
| 76825-26030 |
KZH11#..4FC;KZH10#,RZH101 |
4 | ||
| 76825-26080 |
KZH10#,11#,RZH101 NO.1 |
6 | ||
| Common parts | ||||
| 62955-95700 | ||||
| 67921-32010 | ||||
| 71196-26030 | ||||
| 90149-60027 | ||||
| 90179-06070 | ||||
| 90189-06002 | ||||
| 90333-40001 | ||||
| 90430-05003 | ||||
| 90950-01004 | ||||
| 90959-01477 | ||||
| 93560-14010 | ||||
| 93560-55016 | ||||
| 94334-15000 | ||||
| Linked diagrams | ||||
| 7552 | ||||
| 8113 | ||||
| 8504 | ||||
ILLUST NO. 2 OF 2(9907- )KZH10#,11#,RZH101
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64795B - TRIM, BACK WINDOW OPENING | ||||
| 64795-26020 |
KZH11#..4FC ｸﾙ-ｼﾞﾝｸﾞ ｷﾔﾋﾞﾝ X |
1 | ||
| 64795-26020 |
KZH10#,11# |
1 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-26030 |
KZH11#..4FC ｸﾙ-ｼﾞﾝｸﾞ ｷﾔﾋﾞﾝ X |
2 | ||
| 64818-26030 |
KZH10#,11# |
2 | ||
| 64819 - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-26040 |
KZH10#,11#,RZH101 NO.2 |
2 | ||
| 64819-26010 |
KZH10#,11#,RZH101 NO.1 |
6 | ||
| 64819-26010 |
KZH11#..4FC ｸﾙ-ｼﾞﾝｸﾞ ｷﾔﾋﾞﾝ X |
8 | ||
| 64819 - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-26040 |
KZH10#,11#,RZH101 NO.2 |
2 | ||
| 64819-26010 |
KZH10#,11#,RZH101 NO.1 |
6 | ||
| 64819-26010 |
KZH11#..4FC ｸﾙ-ｼﾞﾝｸﾞ ｷﾔﾋﾞﾝ X |
8 | ||
| 64819 - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-26040 |
KZH10#,11#,RZH101 NO.2 |
2 | ||
| 64819-26010 |
KZH10#,11#,RZH101 NO.1 |
6 | ||
| 64819-26010 |
KZH11#..4FC ｸﾙ-ｼﾞﾝｸﾞ ｷﾔﾋﾞﾝ X |
8 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-95N65 |
LH102,109,113,115,119,RZH102,11#..SRF..(CD,DX,GL) ｱﾘ(*RWD & *RW & *RUM) |
1 | ||
| 67005-95N63 |
LH113,119..SGL;KZH100,11#,LH100,102,103,110,117,RZH100,110,111..(05S,09S,10S)..(DX,SGL) ｱﾘ(*RWD & *RW & *RUM & ﾊﾞﾂｸﾄﾞｱ ﾄﾘﾑ) |
1 | ||
| 67005-2N200 |
KZH11#..4FC ｱﾘ(*RWD & *RW & *RUM & *RCL & ﾊﾞﾂｸﾄﾞｱ ﾄﾘﾑ) |
1 | ||
| 67005-2F190 |
KZH11#..4FC;KZH10#,RZH101..CTM ｱﾘ(*RWD & *RW & *RUM & *RCL & ﾊﾞﾂｸﾄﾞｱ ﾄﾘﾑ) |
1 | ||
| 67005-2N660 |
KZH110;KZH116..4FC ｱﾘ(*RWD & *RW & *RUM) |
1 | ||
| 67005-2N670 |
KZH11#,RZH111 ｱﾘ(*RWD & *RW & *RUM & ﾊﾞﾂｸﾄﾞｱ ﾄﾘﾑ) |
1 | ||
| 67005-2N210 |
KZH11#..4FC;KZH10#,RZH101..08S ｱﾘ(*RWD & *RW & *RUM & *RCL & *HSL=LEDｼｷ & ﾊﾞﾂｸﾄﾞｱ ﾄﾘﾑ) |
1 | ||
| 67005-95N65 |
LH10#,11#,16#,17#,RZH102,112..SRF..(CD,DX) ｱﾘ(*RWD & *RW & *RUM) |
1 | ||
| 67005-2N200 |
KZH11# ｱﾘ(*RWD & *RW & *RUM & *RCL & ﾊﾞﾂｸﾄﾞｱ ﾄﾘﾑ) |
1 | ||
| 67005-2N660 |
KZH11# ｱﾘ(*RWD & *RW & *RUM) |
1 | ||
| 67005-2N670 |
KZH11#,RZH111 ｱﾘ(*RWD & *RW & *RUM & ﾊﾞﾂｸﾄﾞｱ ﾄﾘﾑ) |
1 | ||
| 67685 - PACKING, BACK DOOR SERVICE HOLE, NO.1 | ||||
| 67685-95J01 |
LH102,109,113,115,119,123,125,129,RZH102,11#,12#..CD,DX,GL |
2 | ||
| 67685 - PACKING, BACK DOOR SERVICE HOLE, NO.1 | ||||
| 67685-95J01 |
LH102,109,113,115,119,123,125,129,RZH102,11#,12#..CD,DX,GL |
2 | ||
| 67686 - PACKING, BACK DOOR SERVICE HOLE, NO.2 | ||||
| 67526-95A00 |
LH102,109,113,115,119,123,125,129,RZH102,11#,12#..CD,DX,GL |
2 | ||
| 67847C - COVER, BACK DOOR SERVICE HOLE, NO.1 | ||||
| 67847-95J08 |
KZH10#,11#,12#,LH100,107,110,117,120,RZH100,101,110,111..CTM,DX,GCGE,GCGN,SCL,SCM,SCMM ﾎﾟﾘｴﾁﾚﾝ ﾌｨﾙﾑ |
1 | ||
| 67847-95J09 |
KZH11# ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 67847-95J09 |
KZH11#..4FC ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 67847-95J08 |
KZH10#,11#,120,RZH101,111 |
1 | ||
| 67847C - COVER, BACK DOOR SERVICE HOLE, NO.1 | ||||
| 67847-95J08 |
KZH10#,11#,12#,LH100,107,110,117,120,RZH100,101,110,111..CTM,DX,GCGE,GCGN,SCL,SCM,SCMM ﾎﾟﾘｴﾁﾚﾝ ﾌｨﾙﾑ |
1 | ||
| 67847-95J09 |
KZH11# ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 67847-95J09 |
KZH11#..4FC ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 67847-95J08 |
KZH10#,11#,120,RZH101,111 |
1 | ||
| 67848C - COVER, BACK DOOR SERVICE HOLE, NO.2 | ||||
| 67848-95J00 |
LH102,109,113,115,119,123,125,129,RZH102,11#,12#..CD,DX,GL |
2 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-95J16 |
LH100,102,109,11#,RZH100,102,11#..SRF..(CD,DX) |
1 | ||
| 67881-95J16 |
KZH10#,11#,LH16#,17#,RZH10#,11#,TRH102,112..MRF,SMRF,SRF |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68131-95J11 |
LH107,110,120;LH125,RZH100..CTM,GL,SCM,SCMM;LH100,102,113,119,RZH101..CTM,SGL *EHTT,厚さ=4.0 |
1 | ||
| 68131-95J09 |
LH125..DX;LH100,102,109,11#,123,129,140,RZH100,102,11#,12#..CD,DX,GL,SW *EHT,厚さ=4.0 |
1 | ||
| 68131-95J13 |
LH100,107,110,117,120,RZH100,101..07S,08S,10S *EHT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68131-26190 |
KZH11#,13#,LH10#,11#,12#,16#,17#,18#,RZH102,11#,12#,133 *EHT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68131-26200 |
KZH11#..4FC *TEM,厚さ=3.5,ｸﾞﾘｰﾝ,ｸﾙ-ｼﾞﾝｸﾞ ｷﾔﾋﾞﾝ X |
1 | ||
| 68131-26080 |
KZH126;KZH11#,120,13#..4FC *EHT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68131-26290 |
LH10#,11#,123,129,16#,17#,182,188,RZH102,112 *EHT,厚さ=3.5,ｸﾞﾚｰ |
1 | ||
| 68131-26080 |
KZH11#,120,13# *EHT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68131-26070 |
LH123,129..06S;KZH11#,LH113..(05S,10S)..4FC;LH119,125..(05S,08S,15S)..(GL,SGL);KZH10#,13#,LH103,RZH101..(03S,05S,08S,09S)..(CTM,DX,SCM,SCMM,SGL) *EHTT,厚さ=3.5 |
1 | ||
| 68131-26500 |
KZH10#,11#,RZH101..08S,10S *TEM,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68291 - WEATHERSTRIP, BACK DOOR GLASS | ||||
| 68291-95J05 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 |
1 | ||
| 68291-95J05 |
KZH11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH102,11#,12#,133 |
1 | ||
| 68291 - WEATHERSTRIP, BACK DOOR GLASS | ||||
| 68291-95J05 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 |
1 | ||
| 68291-95J05 |
KZH11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH102,11#,12#,133 |
1 | ||
| 75403 - ORNAMENT SUB-ASSY, BACK DOOR | ||||
| 75403-26010 |
LH123..06S;KZH11#..4FC;KZH10#,12#,13#,LH129,RZH101 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 75403-26030 |
KZH10#,11# |
1 | ||
| 75403-26030 |
KZH11#..4FC;KZH10#,RZH101 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 76801-26170 |
KZH10#,11# 塗装不要 |
1 | ||
| 76801-26011 |
LH123..06S;KZH11#..4FC;KZH10#,13#,LH129,RZH101..CTM,DX 塗装不要,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 76801-26080 |
KZH11#..4FC;KZH10#,RZH101..SCM 塗装不要,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-95J01 |
LH123..06S;KZH11#..4FC;KZH10#,12#,13#,LH129,RZH101 NO.1 |
3 | ||
| 76817-26010 |
KZH11#..4FC;KZH10#,RZH101 |
2 | ||
| 76817-95J00 |
LH123..06S;KZH11#..4FC;KZH10#,12#,13#,LH129,RZH101 NO.2 |
6 | ||
| 76817-26010 |
KZH10#,11# |
2 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-26080 |
KZH11#..4FC;KZH10#,RZH101 |
6 | ||
| 76825-26100 |
KZH10#,11#,RZH101 NO.2 |
1 | ||
| 76825-26030 |
KZH11#..4FC;KZH10#,RZH101 |
4 | ||
| 76825-26080 |
KZH10#,11#,RZH101 NO.1 |
6 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-26080 |
KZH11#..4FC;KZH10#,RZH101 |
6 | ||
| 76825-26100 |
KZH10#,11#,RZH101 NO.2 |
1 | ||
| 76825-26030 |
KZH11#..4FC;KZH10#,RZH101 |
4 | ||
| 76825-26080 |
KZH10#,11#,RZH101 NO.1 |
6 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-26080 |
KZH11#..4FC;KZH10#,RZH101 |
6 | ||
| 76825-26100 |
KZH10#,11#,RZH101 NO.2 |
1 | ||
| 76825-26030 |
KZH11#..4FC;KZH10#,RZH101 |
4 | ||
| 76825-26080 |
KZH10#,11#,RZH101 NO.1 |
6 | ||
| Common parts | ||||
| 67921-32010 | ||||
| 71196-26030 | ||||
| 90149-60027 | ||||
| 90189-06002 | ||||
| 90333-40001 | ||||
| 90430-05003 | ||||
| 90959-01477 | ||||
| 93560-14010 | ||||
| Linked diagrams | ||||
| 7552 | ||||
| 8113 | ||||
| 8504 | ||||
ILLUST NO. 2 OF 2(9907- )KZH120,13#,LH16#,17#,18#,RZH102,11#,12#,18#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-95N65 |
LH102,109,113,115,119,RZH102,11#..SRF..(CD,DX,GL) ｱﾘ(*RWD & *RW & *RUM) |
1 | ||
| 67005-95N63 |
LH113,119..SGL;KZH100,11#,LH100,102,103,110,117,RZH100,110,111..(05S,09S,10S)..(DX,SGL) ｱﾘ(*RWD & *RW & *RUM & ﾊﾞﾂｸﾄﾞｱ ﾄﾘﾑ) |
1 | ||
| 67005-2N200 |
KZH11#..4FC ｱﾘ(*RWD & *RW & *RUM & *RCL & ﾊﾞﾂｸﾄﾞｱ ﾄﾘﾑ) |
1 | ||
| 67005-2F190 |
KZH11#..4FC;KZH10#,RZH101..CTM ｱﾘ(*RWD & *RW & *RUM & *RCL & ﾊﾞﾂｸﾄﾞｱ ﾄﾘﾑ) |
1 | ||
| 67005-2N660 |
KZH110;KZH116..4FC ｱﾘ(*RWD & *RW & *RUM) |
1 | ||
| 67005-2N670 |
KZH11#,RZH111 ｱﾘ(*RWD & *RW & *RUM & ﾊﾞﾂｸﾄﾞｱ ﾄﾘﾑ) |
1 | ||
| 67005-2N210 |
KZH11#..4FC;KZH10#,RZH101..08S ｱﾘ(*RWD & *RW & *RUM & *RCL & *HSL=LEDｼｷ & ﾊﾞﾂｸﾄﾞｱ ﾄﾘﾑ) |
1 | ||
| 67005-95N65 |
LH10#,11#,16#,17#,RZH102,112..SRF..(CD,DX) ｱﾘ(*RWD & *RW & *RUM) |
1 | ||
| 67005-2N200 |
KZH11# ｱﾘ(*RWD & *RW & *RUM & *RCL & ﾊﾞﾂｸﾄﾞｱ ﾄﾘﾑ) |
1 | ||
| 67005-2N660 |
KZH11# ｱﾘ(*RWD & *RW & *RUM) |
1 | ||
| 67005-2N670 |
KZH11#,RZH111 ｱﾘ(*RWD & *RW & *RUM & ﾊﾞﾂｸﾄﾞｱ ﾄﾘﾑ) |
1 | ||
| 67685 - PACKING, BACK DOOR SERVICE HOLE, NO.1 | ||||
| 67685-95J01 |
LH102,109,113,115,119,123,125,129,RZH102,11#,12#..CD,DX,GL |
2 | ||
| 67685 - PACKING, BACK DOOR SERVICE HOLE, NO.1 | ||||
| 67685-95J01 |
LH102,109,113,115,119,123,125,129,RZH102,11#,12#..CD,DX,GL |
2 | ||
| 67686 - PACKING, BACK DOOR SERVICE HOLE, NO.2 | ||||
| 67526-95A00 |
LH102,109,113,115,119,123,125,129,RZH102,11#,12#..CD,DX,GL |
2 | ||
| 67847C - COVER, BACK DOOR SERVICE HOLE, NO.1 | ||||
| 67847-95J08 |
KZH10#,11#,12#,LH100,107,110,117,120,RZH100,101,110,111..CTM,DX,GCGE,GCGN,SCL,SCM,SCMM ﾎﾟﾘｴﾁﾚﾝ ﾌｨﾙﾑ |
1 | ||
| 67847-95J09 |
KZH11# ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 67847-95J09 |
KZH11#..4FC ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 67847-95J08 |
KZH10#,11#,120,RZH101,111 |
1 | ||
| 67847C - COVER, BACK DOOR SERVICE HOLE, NO.1 | ||||
| 67847-95J08 |
KZH10#,11#,12#,LH100,107,110,117,120,RZH100,101,110,111..CTM,DX,GCGE,GCGN,SCL,SCM,SCMM ﾎﾟﾘｴﾁﾚﾝ ﾌｨﾙﾑ |
1 | ||
| 67847-95J09 |
KZH11# ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 67847-95J09 |
KZH11#..4FC ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 67847-95J08 |
KZH10#,11#,120,RZH101,111 |
1 | ||
| 67848C - COVER, BACK DOOR SERVICE HOLE, NO.2 | ||||
| 67848-95J00 |
LH102,109,113,115,119,123,125,129,RZH102,11#,12#..CD,DX,GL |
2 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-95J16 |
LH100,102,109,11#,RZH100,102,11#..SRF..(CD,DX) |
1 | ||
| 67881-95J16 |
KZH10#,11#,LH16#,17#,RZH10#,11#,TRH102,112..MRF,SMRF,SRF |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68131-95J11 |
LH107,110,120;LH125,RZH100..CTM,GL,SCM,SCMM;LH100,102,113,119,RZH101..CTM,SGL *EHTT,厚さ=4.0 |
1 | ||
| 68131-95J09 |
LH125..DX;LH100,102,109,11#,123,129,140,RZH100,102,11#,12#..CD,DX,GL,SW *EHT,厚さ=4.0 |
1 | ||
| 68131-95J13 |
LH100,107,110,117,120,RZH100,101..07S,08S,10S *EHT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68131-26190 |
KZH11#,13#,LH10#,11#,12#,16#,17#,18#,RZH102,11#,12#,133 *EHT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68131-26200 |
KZH11#..4FC *TEM,厚さ=3.5,ｸﾞﾘｰﾝ,ｸﾙ-ｼﾞﾝｸﾞ ｷﾔﾋﾞﾝ X |
1 | ||
| 68131-26080 |
KZH126;KZH11#,120,13#..4FC *EHT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68131-26290 |
LH10#,11#,123,129,16#,17#,182,188,RZH102,112 *EHT,厚さ=3.5,ｸﾞﾚｰ |
1 | ||
| 68131-26080 |
KZH11#,120,13# *EHT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68131-26070 |
LH123,129..06S;KZH11#,LH113..(05S,10S)..4FC;LH119,125..(05S,08S,15S)..(GL,SGL);KZH10#,13#,LH103,RZH101..(03S,05S,08S,09S)..(CTM,DX,SCM,SCMM,SGL) *EHTT,厚さ=3.5 |
1 | ||
| 68131-26500 |
KZH10#,11#,RZH101..08S,10S *TEM,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68291 - WEATHERSTRIP, BACK DOOR GLASS | ||||
| 68291-95J05 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 |
1 | ||
| 68291-95J05 |
KZH11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH102,11#,12#,133 |
1 | ||
| 68291 - WEATHERSTRIP, BACK DOOR GLASS | ||||
| 68291-95J05 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 |
1 | ||
| 68291-95J05 |
KZH11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH102,11#,12#,133 |
1 | ||
| 75403 - ORNAMENT SUB-ASSY, BACK DOOR | ||||
| 75403-26010 |
LH123..06S;KZH11#..4FC;KZH10#,12#,13#,LH129,RZH101 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 75403-26030 |
KZH10#,11# |
1 | ||
| 75403-26030 |
KZH11#..4FC;KZH10#,RZH101 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 76801-26170 |
KZH10#,11# 塗装不要 |
1 | ||
| 76801-26011 |
LH123..06S;KZH11#..4FC;KZH10#,13#,LH129,RZH101..CTM,DX 塗装不要,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 76801-26080 |
KZH11#..4FC;KZH10#,RZH101..SCM 塗装不要,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-95J01 |
LH123..06S;KZH11#..4FC;KZH10#,12#,13#,LH129,RZH101 NO.1 |
3 | ||
| 76817-26010 |
KZH11#..4FC;KZH10#,RZH101 |
2 | ||
| 76817-95J00 |
LH123..06S;KZH11#..4FC;KZH10#,12#,13#,LH129,RZH101 NO.2 |
6 | ||
| 76817-26010 |
KZH10#,11# |
2 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-95J01 |
LH123..06S;KZH11#..4FC;KZH10#,12#,13#,LH129,RZH101 NO.1 |
3 | ||
| 76817-26010 |
KZH11#..4FC;KZH10#,RZH101 |
2 | ||
| 76817-95J00 |
LH123..06S;KZH11#..4FC;KZH10#,12#,13#,LH129,RZH101 NO.2 |
6 | ||
| 76817-26010 |
KZH10#,11# |
2 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-95J01 |
LH123..06S;KZH11#..4FC;KZH10#,12#,13#,LH129,RZH101 NO.1 |
3 | ||
| 76817-26010 |
KZH11#..4FC;KZH10#,RZH101 |
2 | ||
| 76817-95J00 |
LH123..06S;KZH11#..4FC;KZH10#,12#,13#,LH129,RZH101 NO.2 |
6 | ||
| 76817-26010 |
KZH10#,11# |
2 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-26080 |
KZH11#..4FC;KZH10#,RZH101 |
6 | ||
| 76825-26100 |
KZH10#,11#,RZH101 NO.2 |
1 | ||
| 76825-26030 |
KZH11#..4FC;KZH10#,RZH101 |
4 | ||
| 76825-26080 |
KZH10#,11#,RZH101 NO.1 |
6 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-26080 |
KZH11#..4FC;KZH10#,RZH101 |
6 | ||
| 76825-26100 |
KZH10#,11#,RZH101 NO.2 |
1 | ||
| 76825-26030 |
KZH11#..4FC;KZH10#,RZH101 |
4 | ||
| 76825-26080 |
KZH10#,11#,RZH101 NO.1 |
6 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-26080 |
KZH11#..4FC;KZH10#,RZH101 |
6 | ||
| 76825-26100 |
KZH10#,11#,RZH101 NO.2 |
1 | ||
| 76825-26030 |
KZH11#..4FC;KZH10#,RZH101 |
4 | ||
| 76825-26080 |
KZH10#,11#,RZH101 NO.1 |
6 | ||
| Common parts | ||||
| 62955-95700 | ||||
| 71196-26030 | ||||
| 90149-60027 | ||||
| 90179-06070 | ||||
| 90189-06002 | ||||
| 90333-40001 | ||||
| 90950-01004 | ||||
| 90959-01477 | ||||
| 93560-55016 | ||||
| 94334-15000 | ||||
| Linked diagrams | ||||
| 8504 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
