KZH110G-GHMDT (1993)

Toyota Hiace/Regiusace

Production Aug 1993 - Jul 1999
Engine 1KZTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9308- )1KZTE

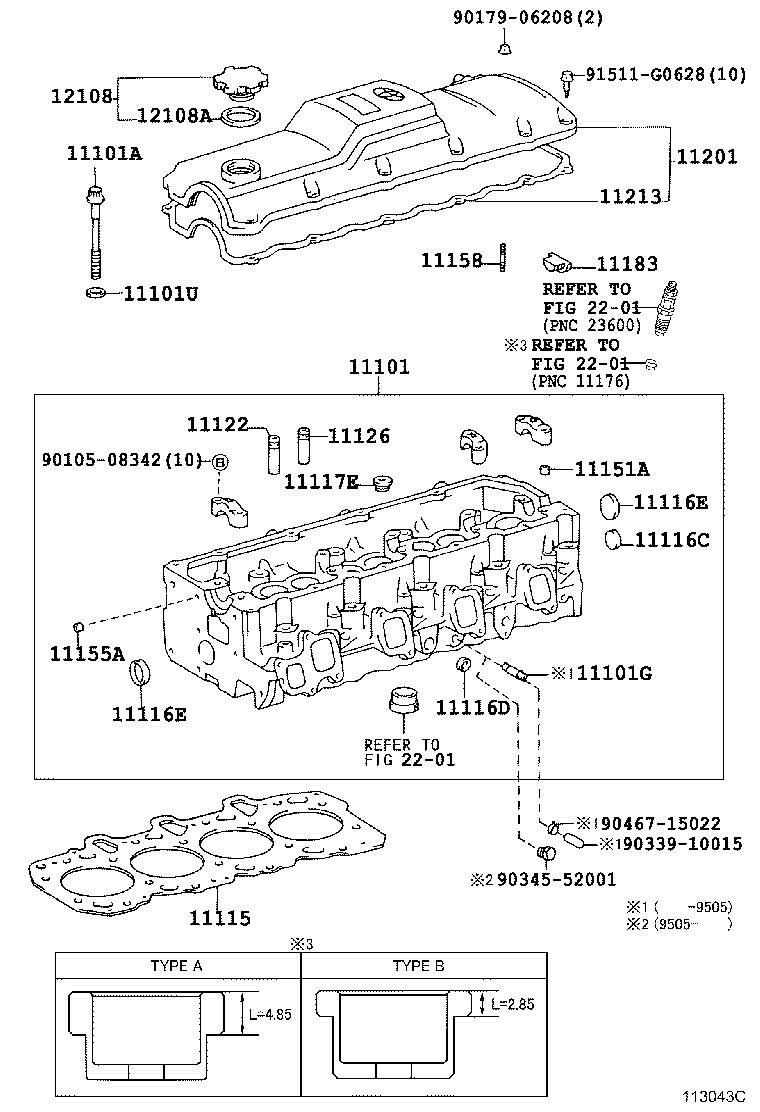

Click highlighted areas on diagram

diagram 11101 11101A 11101G 11101U 11115 11116C 11116D 11116E 11116E 11117E 11122 11126 11151A 11155A 11158 11183 11201 11213 12108 12108A 2201 2201 2201 9010508342 9017906208 9033910015 9034552001 9046715022 91511G0628
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-69126

1KZTE..KZH10#,11#,12#,13#

 1
11101-69127

1KZTE..KZH10#,11#,12#,13#

 1
11101-69125

1KZTE..KZH10#,11#,12#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02112

1KZTE..KZH10#,11#,12#,13#

 18
11101G - UNION(FOR CYLINDER HEAD)
90406-10019

1KZTE..KZH10#,11#,12#

 1
11101U - SPACER(FOR CYLINDER HEAD SET BOLT)
90560-13023

1KZTE..KZH10#,11#,12#,13#

 18
11115 - GASKET, CYLINDER HEAD
11115-6702005

1KZTE..KZH10#,11#,12#,13#

MARK 5

 1
11115-6704003

1KZTE..KZH10#,11#,12#,13#

MARK 3

 1
11115-6702001

1KZTE..KZH10#,11#,12#,13#

MARK 1

 1
11115-6702003

1KZTE..KZH10#,11#,12#,13#

MARK 3

 1
11115-6704001

1KZTE..KZH10#,11#,12#,13#

MARK 1

 1
11115-6705003

1KZTE..KZH10#,11#,12#,13#

MARK 3

 1
11115-6704005

1KZTE..KZH10#,11#,12#,13#

MARK 5

 1
11116C - PLUG, TIGHT, NO.3
96411-43000

1KZTE..KZH10#,11#,12#

 1
96411-63000

1KZTE..KZH10#,11#,12#,13#

 1
11116D - PLUG, TIGHT, NO.4
96411-62000

1KZTE..KZH10#,11#,12#,13#

 1
11116E - PLUG, TIGHT, NO.5
96411-63500

1KZTE..KZH10#,11#,12#,13#

 2
11116E - PLUG, TIGHT, NO.5
96411-63500

1KZTE..KZH10#,11#,12#,13#

 2
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90341-22008

1KZTE..KZH10#,11#,12#,13#

 4
11122 - BUSH, INTAKE VALVE GUIDE
11123-67020

1KZTE..KZH10#,11#,12#,13#

O/S 0.05

 4
11122-67020

1KZTE..KZH10#,11#,12#,13#

STD

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-67020

1KZTE..KZH10#,11#,12#,13#

STD

 4
11123-67020

1KZTE..KZH10#,11#,12#,13#

O/S 0.05

 4
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-11021

1KZTE..KZH10#,11#,12#,13#

長さ=8,外径=11

 5
90253-11021

1KZTE..KZH10#,11#,12#

長さ=8,外径=11

 10
11155A - PIN, RING W/HEAD
90253-10004

1KZTE..KZH10#,11#,12#,13#

 2
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
90116-06095

1KZTE..KZH10#,11#,12#

ﾈｼﾞ部長さ=9 & 16,長さ=37

 2
90116-06149

1KZTE..KZH10#,11#,12#,13#

ﾈｼﾞ部長さ=9 & 16,長さ=37

 2
11183 - PLUG, SEMICIRCULAR
11183-54020

1KZTE..KZH10#,11#,12#,13#

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11210-67010

1KZTE..KZH10#,11#,12#,13#

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-67010

1KZTE..KZH10#,11#,12#,13#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-55010

1KZTE..KZH10#,11#,12#,13#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37004

1KZTE..KZH10#,11#,12#,13#

 1
Common parts
90105-08342
90179-06208
90339-10015
90345-52001
90467-15022
91511-G0628
Linked diagrams
2201
