KZH100G-MRMGT (1993)

Toyota Hiace/Regiusace

Production Aug 1993 - Aug 1995
Engine 1KZTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9308- )KZH10#,11#,12#,13#

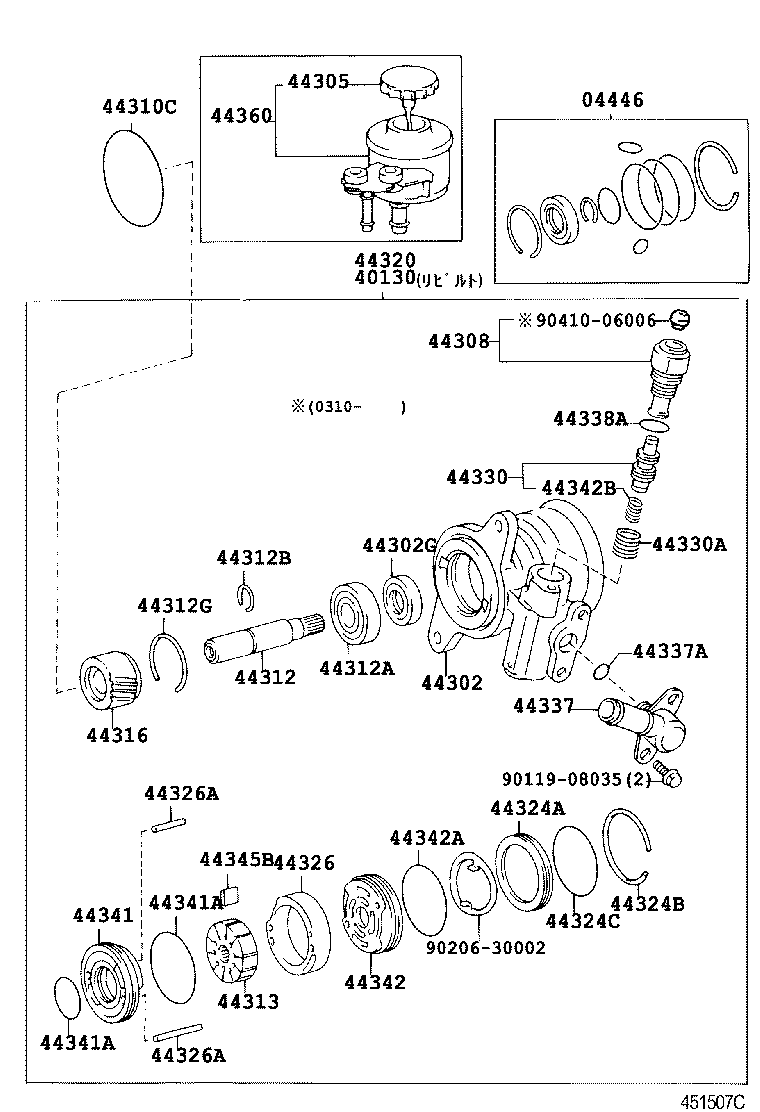

Click highlighted areas on diagram

diagram 04446 40130 44302 44302G 44305 44308 44310C 44312 44312A 44312B 44312G 44313 44316 44320 44324A 44324B 44324C 44326 44326A 44326A 44330 44330A 44337 44337A 44338A 44341 44341A 44341A 44342 44342A 44342B 44345B 44360 9011908035 9020630002 9041006006
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-26040

KZH10#,11#,12#

 1
40130 - PUMP ASSY,VANE REBUILT
40130-26200

KZH10#,11#,12#

TOYODA KOKI

 1
40130-26200

KZH10#,11#,12#..08S,09S,10S

TOYODA KOKI

 1
44308 - UNION SUB-ASSY, PRESSURE PORT
44308-26080

KZH10#,11#,12#..08S,09S,10S

 1
44313 - ROTOR, VANE PUMP
44313-26090

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

ﾏｰｸ 3

 1
44313-26070

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

ﾏｰｸ 1

 1
44313-26100

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

ﾏｰｸ 4

 1
44313-26060

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

ﾏｰｸ無し

 1
44313-26080

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

ﾏｰｸ 2

 1
44320 - PUMP ASSY, VANE
44310-26200

KZH10#,11#,12#..08S,09S,10S

 1
44310-26200

KZH10#,11#,12#

 1
44330 - VALVE ASSY, FLOW CONTROL
44330-26200

KZH10#,11#,12#

ﾏｰｸ B

 1
44330-26210

KZH10#,11#,12#

ﾏｰｸ C

 1
44330-26190

KZH10#,11#,12#

ﾏｰｸ A

 1
44330-26220

KZH10#,11#,12#

ﾏｰｸ D

 1
44330-26230

KZH10#,11#,12#

ﾏｰｸ E

 1
44330-26240

KZH10#,11#,12#

ﾏｰｸ F

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-11010

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-19003

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

内径=19.5,外径=22.5

 1
44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE)
90301-53006

KZH10#,11#,12#

外側

 1
44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE)
90301-53006

KZH10#,11#,12#

外側

 1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-53006

KZH10#,11#,12#

 1
44345B - PLATE, VANE PUMP
44345-26040

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

長さ=14.994

 10
44345-26020

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

長さ=14.998

 10
44345-26010

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

長さ=15.000

 10
44345-26030

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

長さ=14.996

 10
44345-26050

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

長さ=14.992

 10
Common parts
90119-08035
90206-30002
90410-06006
