KZH100G-MRMGT (1993)
Toyota Hiace/Regiusace

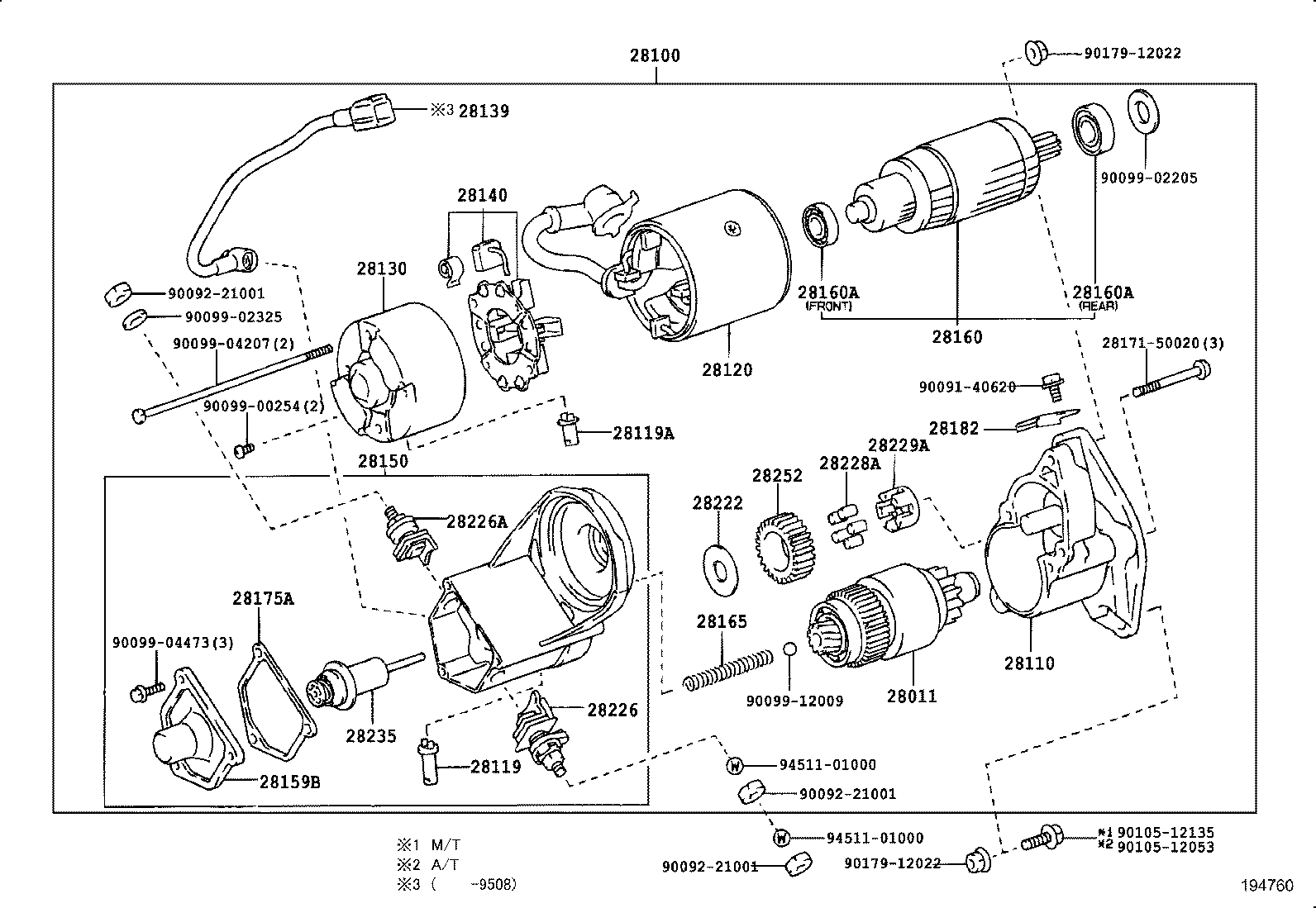

(9308- )1KZTE
12V 2.7KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28100 - STARTER ASSY | ||||
| 28100-67030 |
1KZTE..KZH10#,11#,12#..5F 12V 2.2KW |
1 | ||
| 28100-67020 |
1KZTE..KZH10#,11#,12# 12V 2.7KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-67020 |
1KZTE..KZH10#,11#,12# 12V 2.7KW |
1 | ||
| 28110-67030 |
1KZTE..KZH10#,11#,12#..5F 12V 2.2KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-56231 |
1KZTE..KZH10#,11#,12# 12V 2.7KW |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-67020 |
1KZTE..KZH10#,11#,12# 12V 2.7KW |
1 | ||
| 28139-67031 |
1KZTE..KZH10#,11#,12#..5F 12V 2.2KW |
1 | ||
| 28139-67030 |
1KZTE..KZH10#,11#,12#..5F 12V 2.2KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-67020 |
1KZTE..KZH10#,11#,12# 12V 2.7KW |
1 | ||
| 28150-67030 |
1KZTE..KZH10#,11#,12#..5F 12V 2.2KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54140 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW,ﾌﾛﾝﾄ |
1 | ||
| 90099-10119 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW,ﾘﾔ |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW,ﾌﾛﾝﾄ |
1 | ||
| 90099-10119 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW,ﾘﾔ |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-77090 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
1 | ||
| 28165-26040 |
1RZ#,2RZE..RZH10#,111,112,124,133;1KZTE,1RZ#..KZH10#,11#,12#,RZH110,12#..5F 12V 1.0KW |
1 | ||
| 28182 - STAY, STARTER COMMUTATOR END FRAME | ||||
| 28182-67020 |
1KZTE..KZH10#,11#,12# |
1 | ||
| 28222 - WASHER, STARTER IDLE GEAR CLUTCH | ||||
| 28222-77090 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-54220 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-56080 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
5 | ||
| 28228-26040 |
1KZTE,2L,2LT#,3L..KZH10#,11#,12#,LH10#,11#,12#,140..5F 12V 2.0KW |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-56080 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
1RZ#,2RZE..RZH10#,111,112,124,133;1KZTE,1RZ#..KZH10#,11#,12#,RZH110,12#..5F 12V 1.0KW |
1 | ||
| 28235-17030 |
1KZTE,2L,2LTE,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-77090 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
1 | ||
| Common parts | ||||
| 28171-50020 | ||||
| 90091-40620 | ||||
| 90092-21001 | ||||
| 90099-00254 | ||||
| 90099-02205 | ||||
| 90099-02325 | ||||
| 90099-04207 | ||||
| 90099-04473 | ||||
| 90099-12009 | ||||
| 90105-12053 | ||||
| 90105-12135 | ||||
| 90179-12022 | ||||
| 94511-01000 | ||||

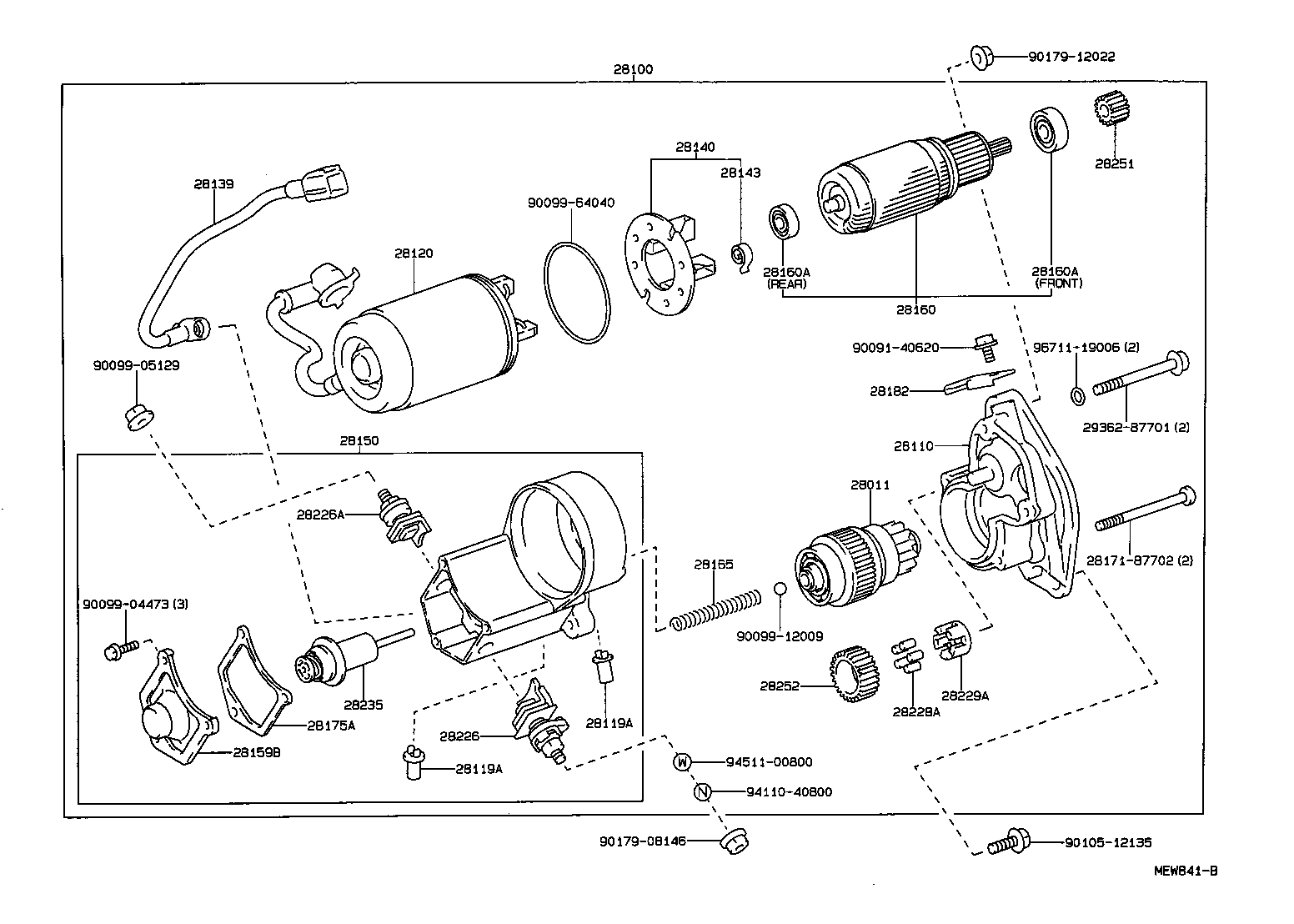

(9308-9508)1KZTE
12V 2.2KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28100 - STARTER ASSY | ||||
| 28100-67030 |
1KZTE..KZH10#,11#,12#..5F 12V 2.2KW |
1 | ||
| 28100-67020 |
1KZTE..KZH10#,11#,12# 12V 2.7KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-67020 |
1KZTE..KZH10#,11#,12# 12V 2.7KW |
1 | ||
| 28110-67030 |
1KZTE..KZH10#,11#,12#..5F 12V 2.2KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-56231 |
1KZTE..KZH10#,11#,12# 12V 2.7KW |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-67020 |
1KZTE..KZH10#,11#,12# 12V 2.7KW |
1 | ||
| 28139-67031 |
1KZTE..KZH10#,11#,12#..5F 12V 2.2KW |
1 | ||
| 28139-67030 |
1KZTE..KZH10#,11#,12#..5F 12V 2.2KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-67020 |
1KZTE..KZH10#,11#,12# 12V 2.7KW |
1 | ||
| 28150-67030 |
1KZTE..KZH10#,11#,12#..5F 12V 2.2KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54140 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW,ﾌﾛﾝﾄ |
1 | ||
| 90099-10119 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW,ﾘﾔ |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW,ﾌﾛﾝﾄ |
1 | ||
| 90099-10119 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW,ﾘﾔ |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-77090 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
1 | ||
| 28165-26040 |
1RZ#,2RZE..RZH10#,111,112,124,133;1KZTE,1RZ#..KZH10#,11#,12#,RZH110,12#..5F 12V 1.0KW |
1 | ||
| 28182 - STAY, STARTER COMMUTATOR END FRAME | ||||
| 28182-67020 |
1KZTE..KZH10#,11#,12# |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-54220 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-56080 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
5 | ||
| 28228-26040 |
1KZTE,2L,2LT#,3L..KZH10#,11#,12#,LH10#,11#,12#,140..5F 12V 2.0KW |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-56080 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
1RZ#,2RZE..RZH10#,111,112,124,133;1KZTE,1RZ#..KZH10#,11#,12#,RZH110,12#..5F 12V 1.0KW |
1 | ||
| 28235-17030 |
1KZTE,2L,2LTE,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-77090 |
1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW |
1 | ||
| Common parts | ||||
| 28171-87702 | ||||
| 29362-87701 | ||||
| 90091-40620 | ||||
| 90099-04473 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90099-64040 | ||||
| 90105-12135 | ||||
| 90179-08146 | ||||
| 90179-12022 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 96711-19006 | ||||
