Toyota Hiace/regiusace KZH100 STARTER

KZH100G-JRPET (1993)

Toyota Hiace/Regiusace

Production Aug 1993 - Aug 2004

Engine 1KZTE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

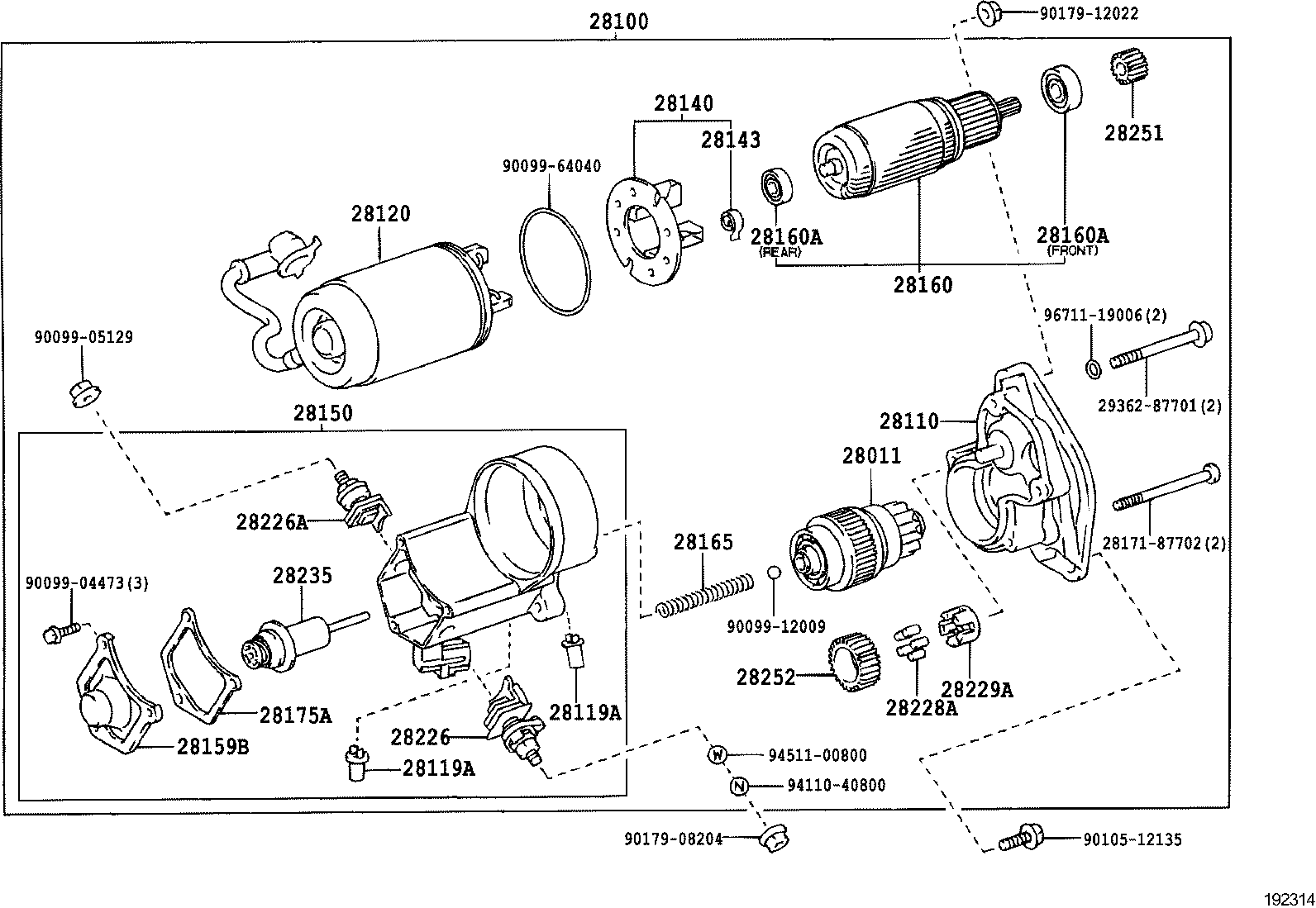

(9508- )1KZTE

Click highlighted areas on diagram

12V 2.2KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-67020	1KZTE..KZH10#,11#,12#,13# 12V 2.7KW	08/1993 - 07/1999	1
28011-67020	1KZTE..KZH10#,11#,120,13# 12V 2.7KW	07/1999 - 08/2004	1
28100 - STARTER ASSY
28100-67040	1KZTE..KZH10#,11#,12#,13# 12V 2.7KW	08/1995 - 09/1995	1
28100-67020	1KZTE..KZH10#,11#,12# 12V 2.7KW	08/1993 - 08/1995	1
28100-67070	1KZTE..KZH10#,11#,120,13# 12V 2.7KW	07/1999 - 08/2004	1
28100-67070	1KZTE..KZH10#,11#,12#,13# 12V 2.7KW	09/1995 - 07/1999	1
28110 - HOUSING ASSY, STARTER DRIVE
28110-67020	1KZTE..KZH10#,11#,12# 12V 2.7KW	08/1993 - 08/1995	1
28110-67040	1KZTE..KZH10#,11#,120,13# 12V 2.7KW	07/1999 - 08/2004	1
28110-67040	1KZTE..KZH10#,11#,12#,13# 12V 2.7KW	08/1995 - 07/1999	1
28120 - YOKE ASSY, STARTER
28120-56231	1KZTE..KZH10#,11#,12# 12V 2.7KW	08/1993 - 07/1994	1
28120-67020	1KZTE..KZH10#,11#,12#,13# 12V 2.7KW	07/1994 - 07/1999	1
28120-67020	1KZTE..KZH10#,11#,120,13# 12V 2.7KW	07/1999 - 08/2004	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-77090	1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18#..CD,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL 12V 2.7KW	07/1999 - 08/2004	1
28140-77090	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW	08/1989 - 07/1999	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-67020	1KZTE..KZH10#,11#,12# 12V 2.7KW	08/1993 - 08/1995	1
28150-67040	1KZTE..KZH10#,11#,12#,13# 12V 2.7KW	08/1995 - 09/1995	1
28150-67070	1KZTE..KZH10#,11#,12#,13# 12V 2.7KW	09/1995 - 07/1999	1
28150-67070	1KZTE..KZH10#,11#,120,13# 12V 2.7KW	07/1999 - 08/2004	1
28159B - COVER, MAGNET SWITCH
28159-17030	1KZTE..KZH10#,11#,12#,13# 12V 2.7KW	08/1993 - 07/1999	1
28159-17030	1KZTE..KZH10#,11#,120,13# 12V 2.7KW	07/1999 - 08/2004	1
28160 - ARMATURE ASSY, STARTER
28160-54140	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW	08/1989 - 07/1999	1
28160-54140	1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18#..CD,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL 12V 2.7KW	07/1999 - 08/2004	1
28160A - BEARING, STARTER ARMATURE
90099-10107	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW,ﾌﾛﾝﾄ	08/1989 - 07/1999	1
90099-10119	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW,ﾘﾔ	08/1989 - 07/1999	1
90099-10107	1KZTE..KZH10#,11#,120,13# 12V 2.7KW,ﾌﾛﾝﾄ	07/1999 - 08/2004	1
90099-10119	5L..LH178,186,188..5F;1KZTE,5L..KZH10#,11#,120,13#,LH168 12V 2.7KW,ﾘﾔ	07/1999 - 08/2004	1
28160A - BEARING, STARTER ARMATURE
90099-10107	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW,ﾌﾛﾝﾄ	08/1989 - 07/1999	1
90099-10119	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW,ﾘﾔ	08/1989 - 07/1999	1
90099-10107	1KZTE..KZH10#,11#,120,13# 12V 2.7KW,ﾌﾛﾝﾄ	07/1999 - 08/2004	1
90099-10119	5L..LH178,186,188..5F;1KZTE,5L..KZH10#,11#,120,13#,LH168 12V 2.7KW,ﾘﾔ	07/1999 - 08/2004	1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-77090	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW	08/1989 - 07/1999	1
28165-77090	1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18# 12V 2.7KW	07/1999 - 08/2004	1
28175A - GASKET, MAGNET SWITCH COVER
28175-56310	1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18# 12V 2.7KW	07/1999 - 08/2004	1
28226 - STARTER KIT, BATTERY TERMINAL
28226-54320	1KZTE,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18# 12V 2.7KW	08/1993 - 07/1999	1
28226-54320	1KZTE..KZH10#,11#,120,13# 12V 2.7KW	07/1999 - 08/2004	1
28226A - STARTER KIT, MOTOR TERMINAL
28226-54220	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW	08/1989 - 07/1999	1
28226-54220	1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18# 12V 2.7KW	07/1999 - 08/2004	1
28228A - ROLLER, STARTER CLUTCH
28228-56080	1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18# 12V 2.7KW	07/1999 - 08/2004	5
28228-56080	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW	08/1989 - 07/1999	5
28229A - RETAINER, STARTER IDLE GEAR
28229-56080	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW	08/1989 - 07/1999	1
28229-56080	1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18# 12V 2.7KW	07/1999 - 08/2004	1
28235 - PLUNGER, MAGNET SWITCH
28235-17030	1KZTE,2L,2LTE,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW	08/1989 - 07/1999	1
28235-17030	1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18# 12V 2.7KW	07/1999 - 08/2004	1
28252 - GEAR, STARTER IDLE
28254-77090	1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18# 12V 2.7KW	07/1999 - 08/2004	1
28254-77090	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW	08/1989 - 07/1999	1
Common parts
28171-87702
29362-87701
90099-04473
90099-05129
90099-12009
90099-64040
90105-12135
90179-08204
90179-12022
94110-40800
94511-00800
96711-19006

(9308- )1KZTE

Click highlighted areas on diagram

12V 2.7KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-67020	1KZTE..KZH10#,11#,12#,13# 12V 2.7KW	08/1993 - 07/1999	1
28011-67020	1KZTE..KZH10#,11#,120,13# 12V 2.7KW	07/1999 - 08/2004	1
28100 - STARTER ASSY
28100-67040	1KZTE..KZH10#,11#,12#,13# 12V 2.7KW	08/1995 - 09/1995	1
28100-67020	1KZTE..KZH10#,11#,12# 12V 2.7KW	08/1993 - 08/1995	1
28100-67070	1KZTE..KZH10#,11#,120,13# 12V 2.7KW	07/1999 - 08/2004	1
28100-67070	1KZTE..KZH10#,11#,12#,13# 12V 2.7KW	09/1995 - 07/1999	1
28110 - HOUSING ASSY, STARTER DRIVE
28110-67020	1KZTE..KZH10#,11#,12# 12V 2.7KW	08/1993 - 08/1995	1
28110-67040	1KZTE..KZH10#,11#,120,13# 12V 2.7KW	07/1999 - 08/2004	1
28110-67040	1KZTE..KZH10#,11#,12#,13# 12V 2.7KW	08/1995 - 07/1999	1
28119 - COVER, STARTER END FRAME
28199-54190	1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18#	07/1999 - 08/2004	1
28120 - YOKE ASSY, STARTER
28120-56231	1KZTE..KZH10#,11#,12# 12V 2.7KW	08/1993 - 07/1994	1
28120-67020	1KZTE..KZH10#,11#,12#,13# 12V 2.7KW	07/1994 - 07/1999	1
28120-67020	1KZTE..KZH10#,11#,120,13# 12V 2.7KW	07/1999 - 08/2004	1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-67020	1KZTE..KZH10#,11#,120,13# 12V 2.7KW	07/1999 - 08/2004	1
28130-67020	1KZTE..KZH10#,11#,12#,13# 12V 2.7KW	08/1993 - 07/1999	1
28139 - WIRE, LEAD, NO.1(FOR STARTER)
28139-67020	1KZTE..KZH10#,11#,12# 12V 2.7KW	08/1993 - 08/1995	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-77090	1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18#..CD,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL 12V 2.7KW	07/1999 - 08/2004	1
28140-77090	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW	08/1989 - 07/1999	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-67020	1KZTE..KZH10#,11#,12# 12V 2.7KW	08/1993 - 08/1995	1
28150-67040	1KZTE..KZH10#,11#,12#,13# 12V 2.7KW	08/1995 - 09/1995	1
28150-67070	1KZTE..KZH10#,11#,12#,13# 12V 2.7KW	09/1995 - 07/1999	1
28150-67070	1KZTE..KZH10#,11#,120,13# 12V 2.7KW	07/1999 - 08/2004	1
28159B - COVER, MAGNET SWITCH
28159-17030	1KZTE..KZH10#,11#,12#,13# 12V 2.7KW	08/1993 - 07/1999	1
28159-17030	1KZTE..KZH10#,11#,120,13# 12V 2.7KW	07/1999 - 08/2004	1
28160 - ARMATURE ASSY, STARTER
28160-54140	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW	08/1989 - 07/1999	1
28160-54140	1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18#..CD,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL 12V 2.7KW	07/1999 - 08/2004	1
28160A - BEARING, STARTER ARMATURE
90099-10107	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW,ﾌﾛﾝﾄ	08/1989 - 07/1999	1
90099-10119	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW,ﾘﾔ	08/1989 - 07/1999	1
90099-10107	1KZTE..KZH10#,11#,120,13# 12V 2.7KW,ﾌﾛﾝﾄ	07/1999 - 08/2004	1
90099-10119	5L..LH178,186,188..5F;1KZTE,5L..KZH10#,11#,120,13#,LH168 12V 2.7KW,ﾘﾔ	07/1999 - 08/2004	1
28160A - BEARING, STARTER ARMATURE
90099-10107	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW,ﾌﾛﾝﾄ	08/1989 - 07/1999	1
90099-10119	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW,ﾘﾔ	08/1989 - 07/1999	1
90099-10107	1KZTE..KZH10#,11#,120,13# 12V 2.7KW,ﾌﾛﾝﾄ	07/1999 - 08/2004	1
90099-10119	5L..LH178,186,188..5F;1KZTE,5L..KZH10#,11#,120,13#,LH168 12V 2.7KW,ﾘﾔ	07/1999 - 08/2004	1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-77090	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW	08/1989 - 07/1999	1
28165-77090	1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18# 12V 2.7KW	07/1999 - 08/2004	1
28175A - GASKET, MAGNET SWITCH COVER
28175-56310	1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18# 12V 2.7KW	07/1999 - 08/2004	1
28182 - STAY, STARTER COMMUTATOR END FRAME
28182-67020	1KZTE..KZH10#,11#,12#	08/1993 - 08/1995	1
28222 - WASHER, STARTER IDLE GEAR CLUTCH
28222-77090	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW	08/1989 - 07/1999	1
28222-77090	1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18#	07/1999 - 08/2004	1
28226 - STARTER KIT, BATTERY TERMINAL
28226-54320	1KZTE,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18# 12V 2.7KW	08/1993 - 07/1999	1
28226-54320	1KZTE..KZH10#,11#,120,13# 12V 2.7KW	07/1999 - 08/2004	1
28226A - STARTER KIT, MOTOR TERMINAL
28226-54220	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW	08/1989 - 07/1999	1
28226-54220	1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18# 12V 2.7KW	07/1999 - 08/2004	1
28228A - ROLLER, STARTER CLUTCH
28228-56080	1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18# 12V 2.7KW	07/1999 - 08/2004	5
28228-56080	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW	08/1989 - 07/1999	5
28229A - RETAINER, STARTER IDLE GEAR
28229-56080	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW	08/1989 - 07/1999	1
28229-56080	1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18# 12V 2.7KW	07/1999 - 08/2004	1
28235 - PLUNGER, MAGNET SWITCH
28235-17030	1KZTE,2L,2LTE,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW	08/1989 - 07/1999	1
28235-17030	1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18# 12V 2.7KW	07/1999 - 08/2004	1
28252 - GEAR, STARTER IDLE
28254-77090	1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18# 12V 2.7KW	07/1999 - 08/2004	1
28254-77090	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW	08/1989 - 07/1999	1
Common parts
28171-50020
90091-40620
90092-21001
90099-00254
90099-02205
90099-02325
90099-04207
90099-04473
90099-12009
90105-12053
90105-12135
90179-12022
94511-01000

(9308-9508)1KZTE

Click highlighted areas on diagram

12V 2.2KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-67020	1KZTE..KZH10#,11#,12#,13# 12V 2.7KW	08/1993 - 07/1999	1
28011-67020	1KZTE..KZH10#,11#,120,13# 12V 2.7KW	07/1999 - 08/2004	1
28100 - STARTER ASSY
28100-67040	1KZTE..KZH10#,11#,12#,13# 12V 2.7KW	08/1995 - 09/1995	1
28100-67020	1KZTE..KZH10#,11#,12# 12V 2.7KW	08/1993 - 08/1995	1
28100-67070	1KZTE..KZH10#,11#,120,13# 12V 2.7KW	07/1999 - 08/2004	1
28100-67070	1KZTE..KZH10#,11#,12#,13# 12V 2.7KW	09/1995 - 07/1999	1
28110 - HOUSING ASSY, STARTER DRIVE
28110-67020	1KZTE..KZH10#,11#,12# 12V 2.7KW	08/1993 - 08/1995	1
28110-67040	1KZTE..KZH10#,11#,120,13# 12V 2.7KW	07/1999 - 08/2004	1
28110-67040	1KZTE..KZH10#,11#,12#,13# 12V 2.7KW	08/1995 - 07/1999	1
28120 - YOKE ASSY, STARTER
28120-56231	1KZTE..KZH10#,11#,12# 12V 2.7KW	08/1993 - 07/1994	1
28120-67020	1KZTE..KZH10#,11#,12#,13# 12V 2.7KW	07/1994 - 07/1999	1
28120-67020	1KZTE..KZH10#,11#,120,13# 12V 2.7KW	07/1999 - 08/2004	1
28139 - WIRE, LEAD, NO.1(FOR STARTER)
28139-67020	1KZTE..KZH10#,11#,12# 12V 2.7KW	08/1993 - 08/1995	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-77090	1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18#..CD,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL 12V 2.7KW	07/1999 - 08/2004	1
28140-77090	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW	08/1989 - 07/1999	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-67020	1KZTE..KZH10#,11#,12# 12V 2.7KW	08/1993 - 08/1995	1
28150-67040	1KZTE..KZH10#,11#,12#,13# 12V 2.7KW	08/1995 - 09/1995	1
28150-67070	1KZTE..KZH10#,11#,12#,13# 12V 2.7KW	09/1995 - 07/1999	1
28150-67070	1KZTE..KZH10#,11#,120,13# 12V 2.7KW	07/1999 - 08/2004	1
28159B - COVER, MAGNET SWITCH
28159-17030	1KZTE..KZH10#,11#,12#,13# 12V 2.7KW	08/1993 - 07/1999	1
28159-17030	1KZTE..KZH10#,11#,120,13# 12V 2.7KW	07/1999 - 08/2004	1
28160 - ARMATURE ASSY, STARTER
28160-54140	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW	08/1989 - 07/1999	1
28160-54140	1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18#..CD,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL 12V 2.7KW	07/1999 - 08/2004	1
28160A - BEARING, STARTER ARMATURE
90099-10107	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW,ﾌﾛﾝﾄ	08/1989 - 07/1999	1
90099-10119	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW,ﾘﾔ	08/1989 - 07/1999	1
90099-10107	1KZTE..KZH10#,11#,120,13# 12V 2.7KW,ﾌﾛﾝﾄ	07/1999 - 08/2004	1
90099-10119	5L..LH178,186,188..5F;1KZTE,5L..KZH10#,11#,120,13#,LH168 12V 2.7KW,ﾘﾔ	07/1999 - 08/2004	1
28160A - BEARING, STARTER ARMATURE
90099-10107	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW,ﾌﾛﾝﾄ	08/1989 - 07/1999	1
90099-10119	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW,ﾘﾔ	08/1989 - 07/1999	1
90099-10107	1KZTE..KZH10#,11#,120,13# 12V 2.7KW,ﾌﾛﾝﾄ	07/1999 - 08/2004	1
90099-10119	5L..LH178,186,188..5F;1KZTE,5L..KZH10#,11#,120,13#,LH168 12V 2.7KW,ﾘﾔ	07/1999 - 08/2004	1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-77090	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW	08/1989 - 07/1999	1
28165-77090	1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18# 12V 2.7KW	07/1999 - 08/2004	1
28175A - GASKET, MAGNET SWITCH COVER
28175-56310	1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18# 12V 2.7KW	07/1999 - 08/2004	1
28182 - STAY, STARTER COMMUTATOR END FRAME
28182-67020	1KZTE..KZH10#,11#,12#	08/1993 - 08/1995	1
28226 - STARTER KIT, BATTERY TERMINAL
28226-54320	1KZTE,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18# 12V 2.7KW	08/1993 - 07/1999	1
28226-54320	1KZTE..KZH10#,11#,120,13# 12V 2.7KW	07/1999 - 08/2004	1
28226A - STARTER KIT, MOTOR TERMINAL
28226-54220	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW	08/1989 - 07/1999	1
28226-54220	1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18# 12V 2.7KW	07/1999 - 08/2004	1
28228A - ROLLER, STARTER CLUTCH
28228-56080	1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18# 12V 2.7KW	07/1999 - 08/2004	5
28228-56080	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW	08/1989 - 07/1999	5
28229A - RETAINER, STARTER IDLE GEAR
28229-56080	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW	08/1989 - 07/1999	1
28229-56080	1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18# 12V 2.7KW	07/1999 - 08/2004	1
28235 - PLUNGER, MAGNET SWITCH
28235-17030	1KZTE,2L,2LTE,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW	08/1989 - 07/1999	1
28235-17030	1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18# 12V 2.7KW	07/1999 - 08/2004	1
28252 - GEAR, STARTER IDLE
28254-77090	1KZTE,5L..KZH10#,11#,120,13#,LH16#,17#,18# 12V 2.7KW	07/1999 - 08/2004	1
28254-77090	1KZTE,2L,2LT#,3L,5L..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18# 12V 2.7KW	08/1989 - 07/1999	1
Common parts
28171-87702
29362-87701
90091-40620
90099-04473
90099-05129
90099-12009
90099-64040
90105-12135
90179-08146
90179-12022
94110-40800
94511-00800
96711-19006

KZH100G-JRPET (1993)

(9508- )1KZTE

(9308- )1KZTE

(9308-9508)1KZTE

Part Price Details
