KZH100G-GRMDT (1993)

Toyota Hiace/Regiusace

Production Aug 1993 - Aug 1995
Engine 1KZTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9308-9508)KZH10#,11#,12#

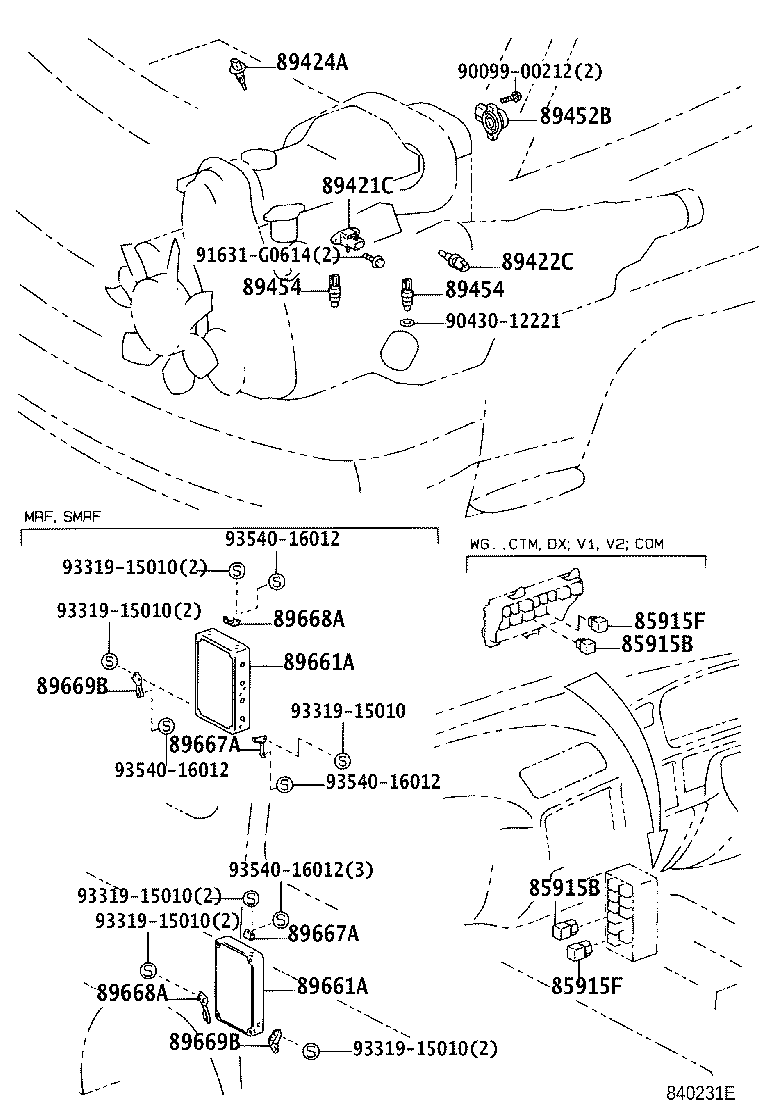

Click highlighted areas on diagram

diagram 85915B 85915B 85915F 85915F 89421C 89422C 89424A 89452B 89454 89454 89661A 89661A 89667A 89667A 89668A 89668A 89669B 89669B 9009900212 9043012221 91631G0614 9331915010 9331915010 9331915010 9331915010 9331915010 9331915010 9354016012 9354016012 9354016012 9354016012
Part # Description Qty Price
85915B - RELAY, MAIN (FOR DIESEL TURBO)
90987-02009

KZH10#,11#,12#

 1
85915B - RELAY, MAIN (FOR DIESEL TURBO)
90987-02009

KZH10#,11#,12#

 1
85915F - RELAY, SPILL VALVE
90987-02009

KZH10#,11#,12#

 1
85915F - RELAY, SPILL VALVE
90987-02009

KZH10#,11#,12#

 1
89661A - COMPUTER, ENGINE CONTROL
89661-26160

KZH10#,11#,12#..5F

DENSO

 1
89661A - COMPUTER, ENGINE CONTROL
89661-26160

KZH10#,11#,12#..5F

DENSO

 1
Common parts
90099-00212
90430-12221
91631-G0614
93319-15010
93540-16012
