KZH100G-GRMDT (1993)
Toyota Hiace/Regiusace

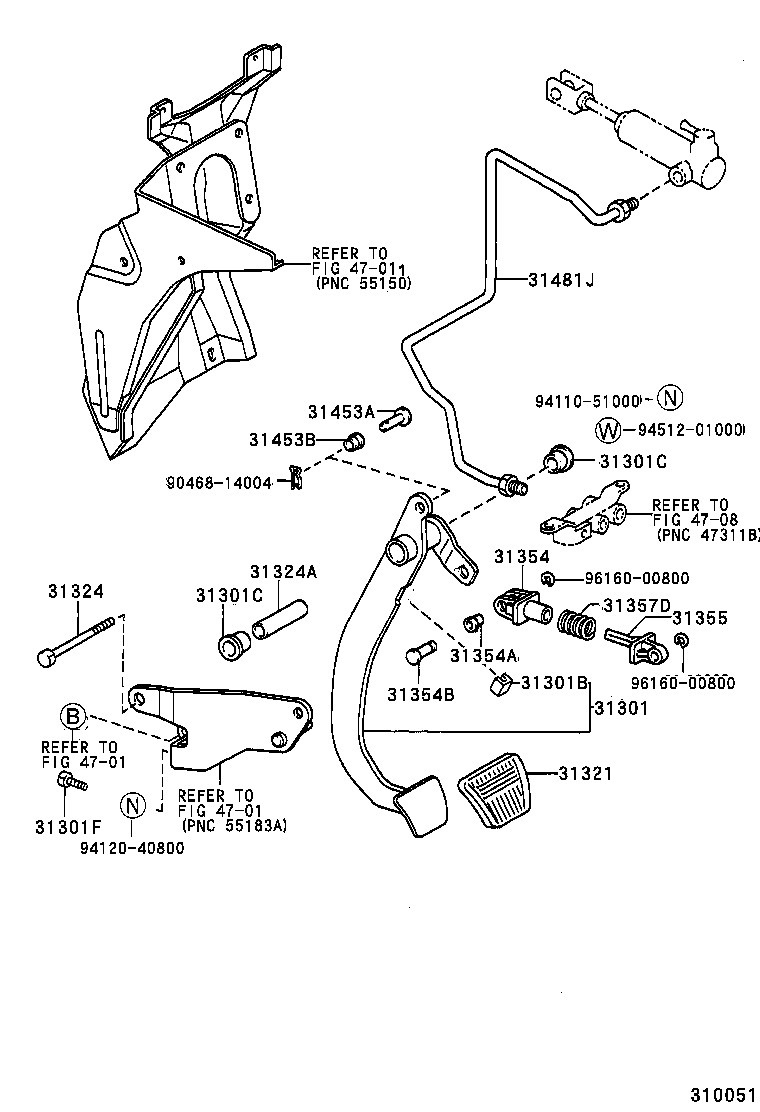

ILLUST NO. 1 OF 2(8908-9605)5F..TDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 47131-10010 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-08052 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10004 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F 長さ=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| Common parts | ||||
| 90468-14004 | ||||
| 94110-51000 | ||||
| 94120-40800 | ||||
| 94512-01000 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 4701 | ||||
| 4708 | ||||

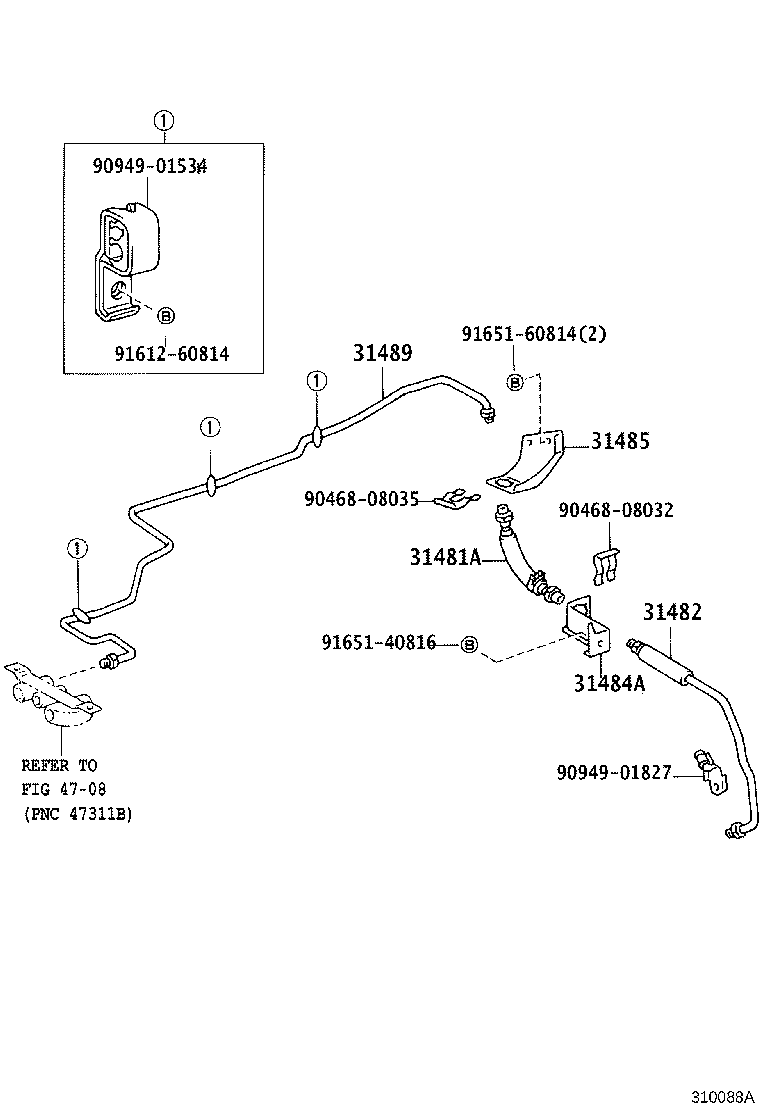

ILLUST NO. 2 OF 2(9308- )KZH10#,11#,12#..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-08032 | ||||
| 90468-08035 | ||||
| 90949-01534 | ||||
| 90949-01827 | ||||
| 91612-60814 | ||||
| 91651-40816 | ||||
| 91651-60814 | ||||
