Toyota Hiace/regiusace KDH227 HEATING & AIR CONDITIONING - WATER PIPING

Manufacturers Home
Toyota
JP
HIACE/REGIUSACE
KDH227B-LEPNY5 (2005)
8716 - HEATING & AIR CONDITIONING - WATER PIPING

KDH227B-LEPNY5 (2005)

Toyota Hiace/Regiusace

Production Jan 2005 - Sep 2007

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0408- )TRH214,219..DX ; (0501-0709)KDH222,227..CBU ; (0501- )TRH224,229 ; (0

Click highlighted areas on diagram

ﾘﾔ:ﾌﾛｱ

Part #	Description	Period	Qty
87248F - PIPE, HEATER WATER INLET, F
87248-26800	KDH222,223,227,TRH214,219,223,224,228,229	08/2004 - 12/2013	1
87248-26800	KDH222,223,227,TRH214,219,223,224,228,229	08/2004 - 12/2013	1
87249F - PIPE, HEATER WATER OUTLET, F
87248-26810	KDH222,223,227,TRH214,219,223,224,228,229	08/2004 - 12/2013	1
87248-26810	KDH222,223,227,TRH214,219,223,224,228,229	08/2004 - 12/2013	1
Common parts
87121-26130
87121-26140
87124-26481
90099-00275
90466-18001
91553-80818
Linked diagrams
8712

ILLUST NO. 1 OF 2(0501-0610)KDH22#

Click highlighted areas on diagram

ﾌﾛﾝﾄ:ﾘﾔﾋｰﾀｰﾂｷ

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-26B20	KDH211,22#,TRH21#,22#	08/2004 - 12/2013	1
87245B - HOSE, HEATER WATER, INLET B
87245-26C00	KDH201,206..DX..CBU;KDH200,205,220,221,222,225,227	08/2004 - 12/2013	1
87245-26B80	TRH21#,22#	08/2004 - 12/2013	1
87245C - HOSE, HEATER WATER ,INLET C
99556-20300	KDH200,205..IV5;KDH200,205,222,227..05S,15S *H,L=210	08/2004 - 12/2013	1
87245D - HOSE, HEATER WATER, INLET D
99556-20200	KDH200,205..IV5;KDH200,205,222,227..05S,15S *H,L=60	08/2004 - 12/2013	1
87245E - HOSE, HEATER WATER, INLET E
87245-26B60	TRH200,21#,22#	08/2004 - 12/2013	1
87245-26C10	KDH201,206..DX..CBU;KDH200,205,220,221,222,225,227	08/2004 - 12/2013	1
87245H - HOSE, HEATER WATER, INLET H
99556-30100	KDH200,205..IV5;KDH200,205,222,227..05S,15S	08/2004 - 12/2013	1
87246 - HOSE, HEATER WATER, OUTLET
87245-26B30	KDH211,22#,TRH21#,22#	08/2004 - 12/2013	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26C20	KDH200,205..IV5;KDH200,205,222,227..05S,15S	08/2004 - 12/2013	1
87245-26B90	TRH21#,22#	08/2004 - 12/2013	1
87246C - HOSE, HEATER WATER, OUTLET C
99556-20300	KDH200,205..IV5;KDH200,205,222,227..05S,15S *H,L=210	08/2004 - 12/2013	1
87246D - HOSE, HEATER WATER, OUTLET D
87245-26C50	KDH200,205..IV5;KDH200,205,222,227..05S,15S	08/2004 - 12/2013	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26B70	TRH200,21#,22#	08/2004 - 12/2013	1
87245-26C30	KDH200,205..IV5;KDH200,205,222,227..05S,15S	08/2004 - 12/2013	1
87248A - PIPE, HEATER WATER INLET, A
87248-26440	KDH211,22#,TRH21#,22#	08/2004 - 12/2013	1
87248B - PIPE, HEATER WATER INLET, B
87248-26580	KDH222,227	01/2005 - 10/2006	1
87248C - PIPE, HEATER WATER INLET, C
87248-26540	KDH200,205..IV5;KDH200,205,222,227..05S,15S	08/2004 - 12/2013	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26450	KDH211,22#,TRH21#,22#	08/2004 - 12/2013	1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26590	KDH222,227	01/2005 - 10/2006	1
87249C - PIPE, HEATER WATER OUTLET, C
87248-60460	KDH20#..IV5;KDH20#,211,222,223,227..05S,15S	08/2004 - 07/2011	2
87249C - PIPE, HEATER WATER OUTLET, C
87248-60460	KDH20#..IV5;KDH20#,211,222,223,227..05S,15S	08/2004 - 07/2011	2
Common parts
87121-26100
87121-26110
87121-26120
87124-26450
87124-26460
87124-26520
90467-19022
91553-80814
96134-42100
96136-42501
Linked diagrams
1603
8714

ILLUST NO. 2 OF 2(0501-0709)KDH220,225 ; (0501- )TRH221,226..HRF ; (0709- )SHRF ; (0709- )K

Click highlighted areas on diagram

ﾘﾔ:ﾄﾘﾑ

Part #	Description	Period	Qty
87248F - PIPE, HEATER WATER INLET, F
87248-26800	KDH222,223,227,TRH214,219,223,224,228,229	08/2004 - 12/2013	1
87249F - PIPE, HEATER WATER OUTLET, F
87248-26810	KDH222,223,227,TRH214,219,223,224,228,229	08/2004 - 12/2013	1
Common parts
87121-26130
87121-26140
87124-26481
87124-26510
90099-00275
90464-00558
90466-18001
91553-80818
Linked diagrams
8712

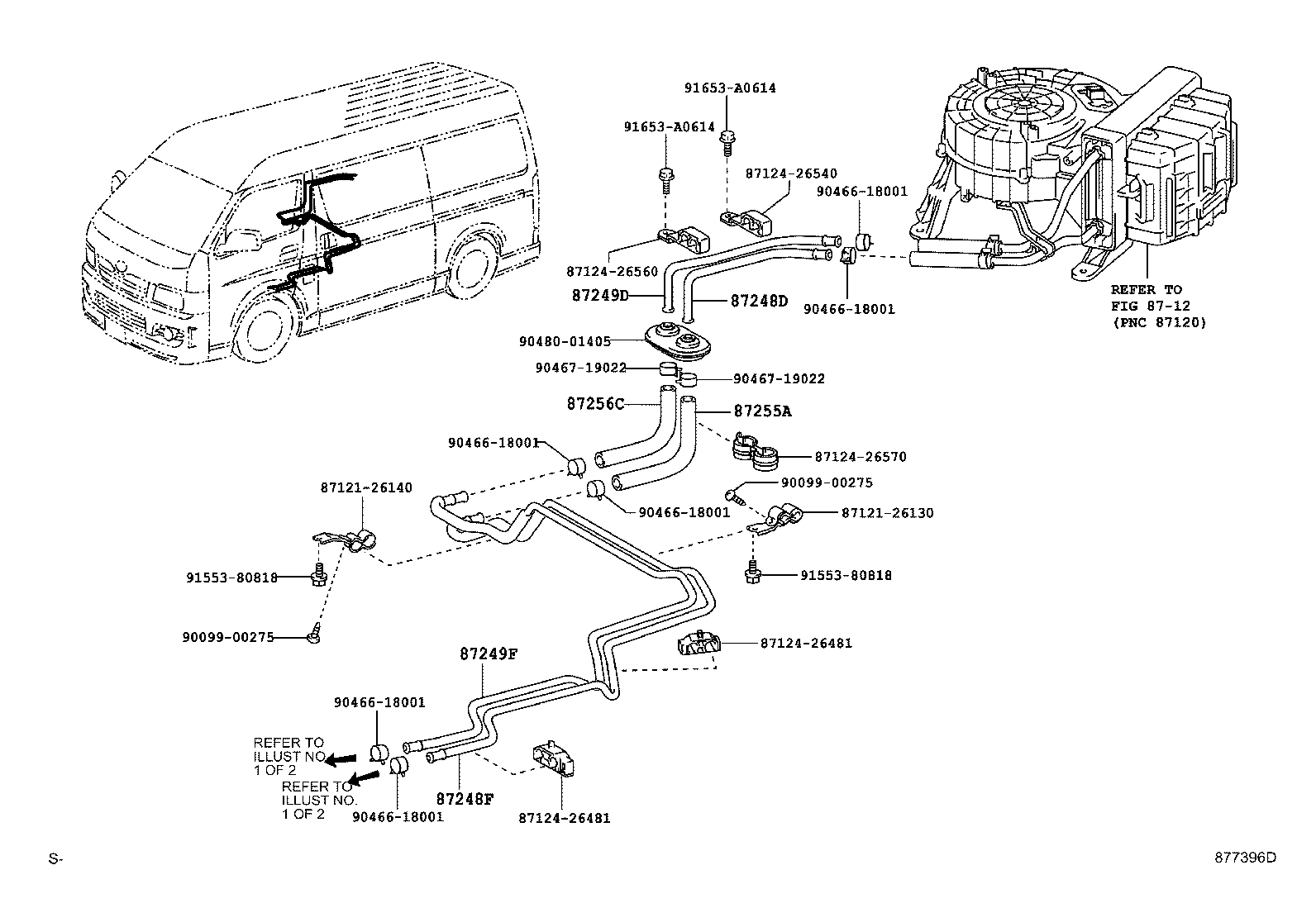

ILLUST NO. 2 OF 2(0501-0709)KDH222,227..IV5 ; (0501- )TRH223,228..IV5 ; (0709- )KDH223..IV5

Click highlighted areas on diagram

ﾘﾔ:ﾌﾛｱ

Part #	Description	Period	Qty
87248D - PIPE, HEATER WATER INLET, D
87248-26700	KDH222,227..IV5	01/2005 - 09/2007	1
87248F - PIPE, HEATER WATER INLET, F
87248-26800	KDH222,223,227,TRH214,219,223,224,228,229	08/2004 - 12/2013	1
87249D - PIPE, HEATER WATER OUTLET, D
87248-26710	KDH222,227..IV5	01/2005 - 09/2007	1
87249F - PIPE, HEATER WATER OUTLET, F
87248-26810	KDH222,223,227,TRH214,219,223,224,228,229	08/2004 - 12/2013	1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-20300	KDH222,223,227,TRH223,228..IV5 *H,L=290	01/2005 - 12/2999	1
87256C - HOSE, REAR HEATER WATER OUTLET, C
99556-20300	KDH222,223,227,TRH223,228..IV5 *H,L=240	01/2005 - 12/2999	1
Common parts
87121-26130
87121-26140
87124-26481
87124-26540
87124-26560
87124-26570
90099-00275
90466-18001
90467-19022
90480-01405
91553-80818
91653-A0614
Linked diagrams
8712

ILLUST NO. 1 OF 2(0610-0709)KDH22# ; (0709- )KDH211,22#

Click highlighted areas on diagram

ﾌﾛﾝﾄ:ﾘﾔﾋｰﾀｰﾂｷ

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-26B20	KDH211,22#,TRH21#,22#	08/2004 - 12/2013	1
87245B - HOSE, HEATER WATER, INLET B
87245-26C00	KDH201,206..DX..CBU;KDH200,205,220,221,222,225,227	08/2004 - 12/2013	1
87245-26B80	TRH21#,22#	08/2004 - 12/2013	1
87245C - HOSE, HEATER WATER ,INLET C
99556-20300	KDH200,205..IV5;KDH200,205,222,227..05S,15S *H,L=210	08/2004 - 12/2013	1
87245D - HOSE, HEATER WATER, INLET D
99556-20200	KDH200,205..IV5;KDH200,205,222,227..05S,15S *H,L=60	08/2004 - 12/2013	1
87245E - HOSE, HEATER WATER, INLET E
87245-26B60	TRH200,21#,22#	08/2004 - 12/2013	1
87245-26C10	KDH201,206..DX..CBU;KDH200,205,220,221,222,225,227	08/2004 - 12/2013	1
87245H - HOSE, HEATER WATER, INLET H
99556-30100	KDH200,205..IV5;KDH200,205,222,227..05S,15S	08/2004 - 12/2013	1
87246 - HOSE, HEATER WATER, OUTLET
87245-26B30	KDH211,22#,TRH21#,22#	08/2004 - 12/2013	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26C20	KDH200,205..IV5;KDH200,205,222,227..05S,15S	08/2004 - 12/2013	1
87245-26B90	TRH21#,22#	08/2004 - 12/2013	1
87246C - HOSE, HEATER WATER, OUTLET C
99556-20300	KDH200,205..IV5;KDH200,205,222,227..05S,15S *H,L=210	08/2004 - 12/2013	1
87246D - HOSE, HEATER WATER, OUTLET D
87245-26C50	KDH200,205..IV5;KDH200,205,222,227..05S,15S	08/2004 - 12/2013	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26B70	TRH200,21#,22#	08/2004 - 12/2013	1
87245-26C30	KDH200,205..IV5;KDH200,205,222,227..05S,15S	08/2004 - 12/2013	1
87248A - PIPE, HEATER WATER INLET, A
87248-26440	KDH211,22#,TRH21#,22#	08/2004 - 12/2013	1
87248B - PIPE, HEATER WATER INLET, B
87248-26580	KDH222,227	01/2005 - 10/2006	1
87248C - PIPE, HEATER WATER INLET, C
87248-26540	KDH200,205..IV5;KDH200,205,222,227..05S,15S	08/2004 - 12/2013	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26450	KDH211,22#,TRH21#,22#	08/2004 - 12/2013	1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26590	KDH222,227	01/2005 - 10/2006	1
87249C - PIPE, HEATER WATER OUTLET, C
87248-60460	KDH20#..IV5;KDH20#,211,222,223,227..05S,15S	08/2004 - 07/2011	2
87249C - PIPE, HEATER WATER OUTLET, C
87248-60460	KDH20#..IV5;KDH20#,211,222,223,227..05S,15S	08/2004 - 07/2011	2
Common parts
87121-26100
87121-26110
87124-26450
87124-26460
87124-26481
87124-26520
90467-19022
91553-80814
96134-42100
96136-42501
Linked diagrams
1603
8714

(1312-1712)TRH224..4FC ; (1312-1712)KDH223,TRH214,219,223,228,229..4FC..CBU ; (1501

Click highlighted areas on diagram

ﾘﾔ:ﾌﾛｱ

Part #	Description	Period	Qty	Price
Common parts
87121-26130
87121-26140
87124-26481
90099-00275
90466-18001
91553-80818
Linked diagrams
8712

(1312-1712)KDH206..CBU ; (1312-1712)KDH201,TRH200..V1..SP..4FC,5F ; (1312-1712)KDH2

Click highlighted areas on diagram

ﾘﾔ:ﾄﾘﾑ

Part #	Description	Period	Qty	Price
Common parts
87121-26130
87121-26170
87124-26481
87124-26510
90099-00275
90464-00558
90466-18001
91553-80818
Linked diagrams
8712

(1312-1712)KDH211,221,TRH211,216,221,226..4FC ;(1501-1712)TRH211,216,221,226 ; (15

Click highlighted areas on diagram

ﾘﾔ:ﾄﾘﾑ

Part #	Description	Period	Qty	Price
Common parts
87121-26130
87121-26140
87124-26481
87124-26510
90099-00275
90464-00558
90466-18001
91553-80818
Linked diagrams
8712

(1312-1712)TRH21#,22#..4FC ; (1501-1712)TRH21#,22#

Click highlighted areas on diagram

ﾌﾛﾝﾄ:ﾘﾔﾋｰﾀｰﾂｷ

Part #	Description	Period	Qty	Price
Common parts
87121-26080
87121-26090
87124-25110
87124-26450
87124-26460
87124-26520
87124-47030
90467-19022
91553-80814
96134-42100
96136-42501
Linked diagrams
1104
1603
8714
