Toyota Hiace/regiusace KDH227 SEAT & SEAT TRACK

KDH227B-LEPNY5 (2005)

Toyota Hiace/Regiusace

Production Jan 2005 - Sep 2007

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0501- )GL ; (0510- )TRH224,229..IV5

Click highlighted areas on diagram

ｾﾝﾀ

Part #	Description	Period	Qty
58801D - BOX ASSY, CONSOLE
58801-26100B0	KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#	08/2004 - 08/2010	1
58839C - COVER, FRONT SEAT BACK CONTROL PANEL HOLE
58839-26050B0	KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#,NO.2	08/2004 - 08/2010	1
58839-26040B0	KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#,NO.1	08/2004 - 08/2010	1
58839C - COVER, FRONT SEAT BACK CONTROL PANEL HOLE
58839-26050B0	KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#,NO.2	08/2004 - 08/2010	1
58839-26040B0	KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#,NO.1	08/2004 - 08/2010	1
71031S - COVER SUB-ASSY, CENTER SEAT CUSHION
71097-26050B2	KDH222,227,TRH223,228..GL GRAY,TRIM1#	01/2005 - 09/2007	1
71035S - COVER, FRONT SEAT BACK, CENTER
71095-26220B2	KDH222,227,TRH223,228..GL GRAY,TRIM1#	01/2005 - 09/2007	1
71365S - PAD, CENTER SEAT BACK
71033-26020	KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S	08/2004 - 05/2012	1
71389 - SPACER, CENTER SEAT HINGE
71389-26020	KDH20#,220,221,222,225,227,TRH200,221,226..03S,06S,09S,15S	08/2004 - 12/2013	2
71389 - SPACER, CENTER SEAT HINGE
71389-26020	KDH20#,220,221,222,225,227,TRH200,221,226..03S,06S,09S,15S	08/2004 - 12/2013	2
72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-26030B0	KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#,ﾌﾛﾝﾄｼｰﾄ	08/2004 - 08/2010	1
72848A - CAP, SEAT ARMREST, NO.1
90339-10001P8	KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#	08/2004 - 08/2010	2
72881 - SUPPORT, REAR SEAT CENTER ARMREST, RH
72881-26020	KDH20#,220,221,222,225,227,TRH200,221,226..03S,06S,09S,15S	08/2004 - 12/2013	1
72881A - SUPPORT, REAR SEAT CENTER ARMREST, LH
72881-26010	KDH20#,220,221,222,225,227,TRH200,221,226..03S,06S,09S,15S	08/2004 - 12/2013	1
78631 - TABLE, FRONT SEAT SIDE
78061-26030B0	KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#	08/2004 - 08/2010	1
Common parts
72702-26100
72702-26110
72702-26120
78899-52030
90109-10164
90119-10949
90159-40082
90386-14013
91515-81020
93249-14008
93249-54006
93269-54016
93560-54012
C9916-40001
Linked diagrams
7152

(0408-0709)KDH20#,222,227..GL,SGL

Click highlighted areas on diagram

ｳﾝﾃﾝｾｷ

Part #	Description	Period	Qty

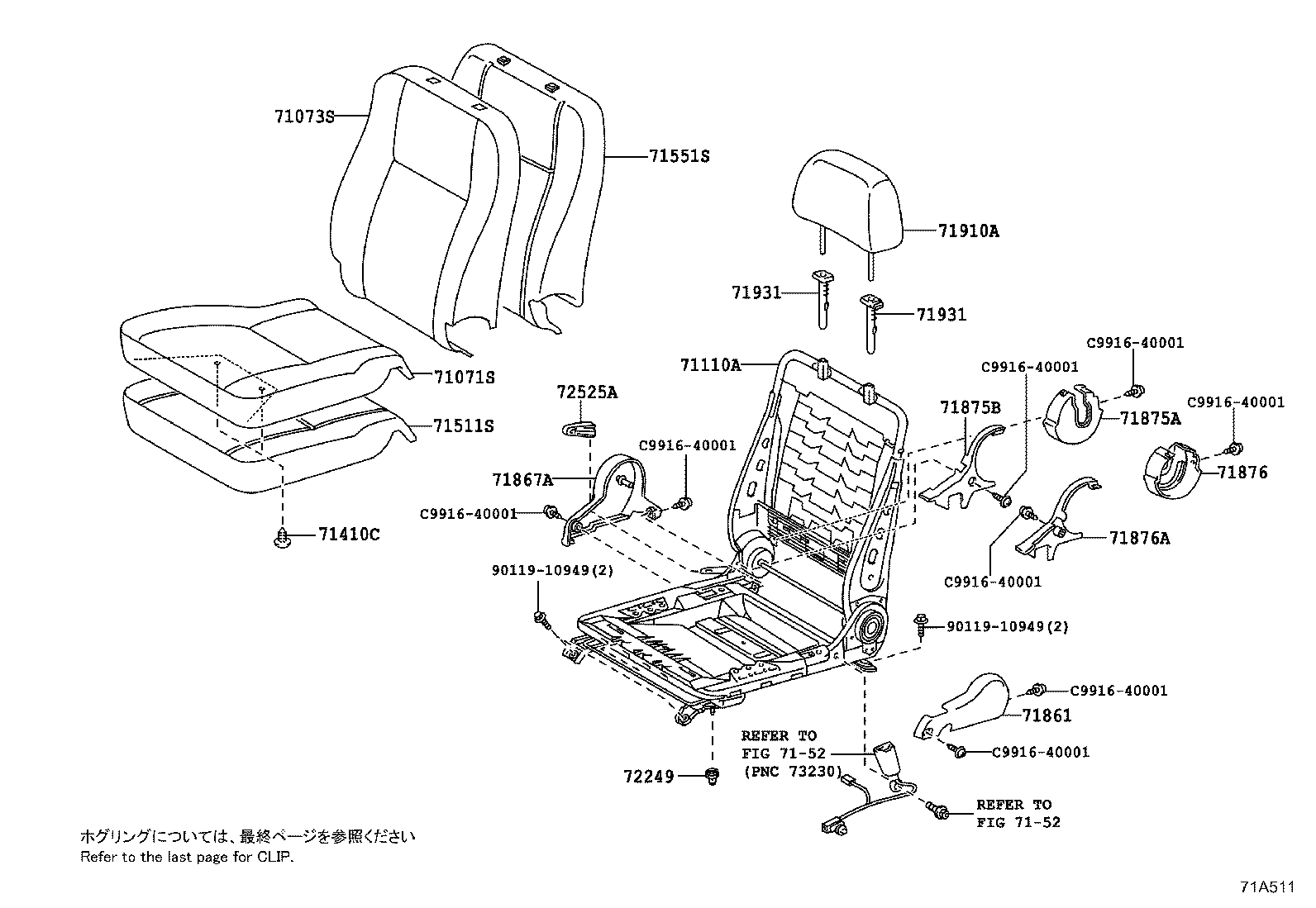

71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-26A60B5	TRH221,226..02S;KDH222,227,TRH223,228..GL GRAY,TRIM1#	01/2005 - 09/2007	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-26A10B3	TRH221,226..02S;KDH222,227,TRH223,228..GL GRAY,TRIM1#	01/2005 - 09/2007	1
71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH
71110-26020	TRH221,226..02S;KDH20#,211,222,223,227,TRH200,21#,223,224,228,229..GC,GL,SGL	08/2004 - 09/2008	1
71410C - CLIP(FOR FRONT SEAT CUSHION)
90467-08188	TRH21#,221,226..02S,10S;KDH20#,222,227,TRH200,223,224,228,229..GC,GL,SGL	08/2004 - 02/2006	4
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-26170	TRH224,229..CBU;KDH20#,211,22#,TRH200,21#,221,223,226,228	08/2004 - 12/2013	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-26280	TRH221,226..02S;KDH20#,211,222,223,227,TRH200,21#,223,224,228,229..GC,GL,SGL	08/2004 - 12/2013	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-26010B0	KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1#	08/2004 - 08/2010	1
71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
71867-26010B0	KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1#	08/2004 - 08/2010	1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26010B0	KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1#	08/2004 - 08/2010	1
71875B - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26020B0	KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1#	08/2004 - 08/2010	1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26010B0	KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1#	08/2004 - 08/2010	1
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26030B0	KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1#	08/2004 - 08/2010	1
71910A - HEADREST ASSY, FRONT SEAT
71940-26360B2	TRH221,226..02S;KDH222,227,TRH223,224,228,229..GC,GL GRAY,TRIM1#	01/2005 - 09/2007	2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020B8	TRH221,226..02S;KDH222,227,TRH223,224,228,229..GC,GL ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1#	08/2004 - 06/2007	2
71931-42020B8	TRH221,226..02S;KDH20#,211,222,223,227,TRH200,21#,223,224,228,229..GC,GL,SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1#	08/2004 - 08/2010	2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020B8	TRH221,226..02S;KDH222,227,TRH223,224,228,229..GC,GL ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1#	08/2004 - 06/2007	2
71931-42020B8	TRH221,226..02S;KDH20#,211,222,223,227,TRH200,21#,223,224,228,229..GC,GL,SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1#	08/2004 - 08/2010	2
72249 - GUIDE, SEAT TRACK LOCKING
72249-26030	TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL 右側ｼｰﾄ	08/2004 - 12/2013	1
72249-26020	TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL 左側ｼｰﾄ	08/2004 - 12/2013	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-26080B0	KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1#	08/2004 - 08/2010	1
Common parts
90119-10949
C9916-40001
Linked diagrams
7152

(0408-0709)KDH20#,222,227..GL,SGL

Click highlighted areas on diagram

ｼﾞｮｼｭｾｷ

Part #	Description	Period	Qty

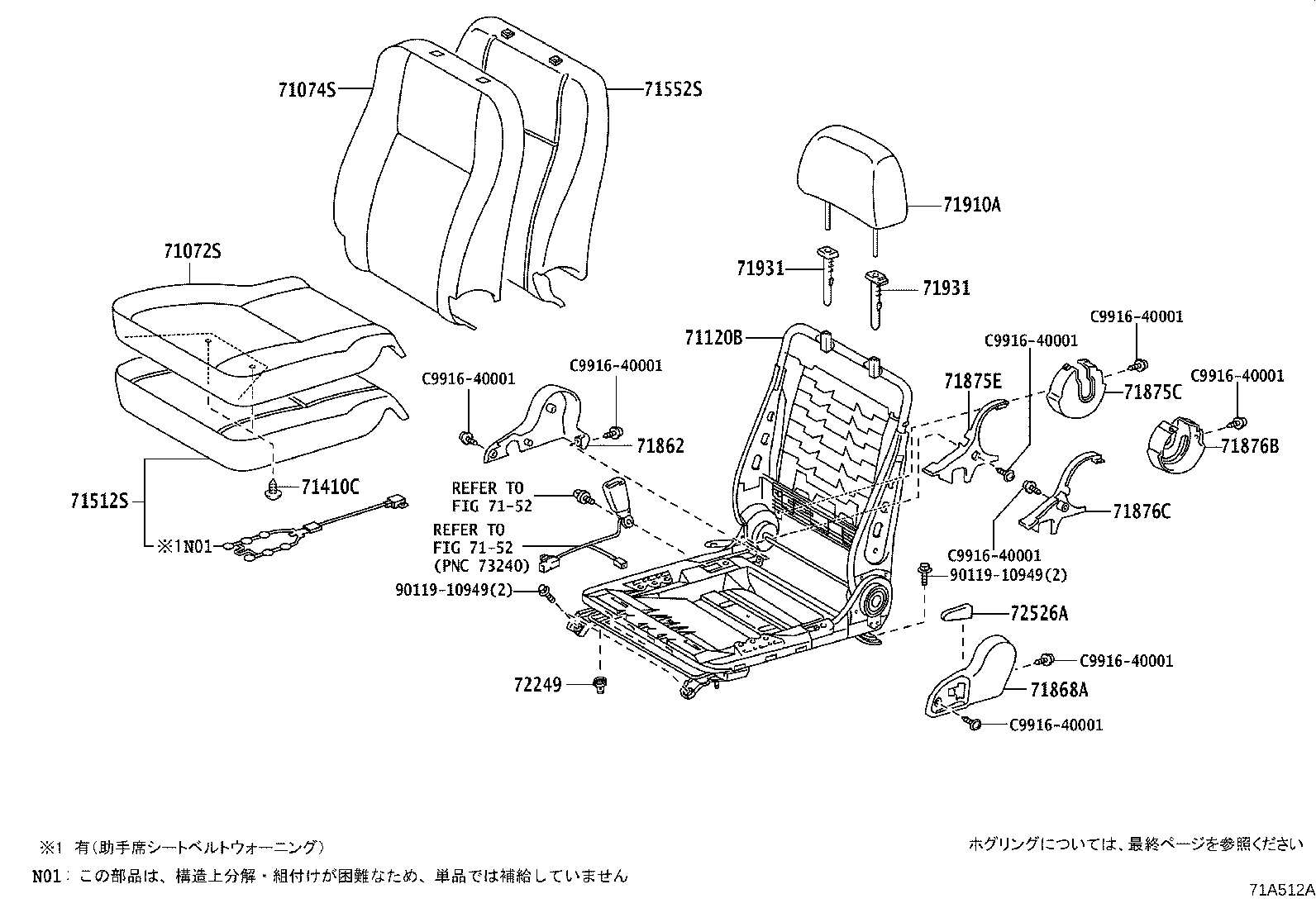

71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-26780B5	KDH222,227,TRH223,228..GL GRAY,TRIM1#	01/2005 - 09/2007	1
71072-26790B5	KDH222,227,TRH223,228..GL SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),GRAY,TRIM1#	01/2005 - 09/2007	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-26A10B3	TRH221,226..02S;KDH222,227,TRH223,228..GL GRAY,TRIM1#	01/2005 - 09/2007	1
71410C - CLIP(FOR FRONT SEAT CUSHION)
90467-08188	TRH21#,221,226..02S,10S;KDH20#,222,227,TRH200,223,224,228,229..GC,GL,SGL	08/2004 - 02/2006	4
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-26090	KDH20#,211,222,223,227,TRH200,211,216,223,228..GL,SGL	08/2004 - 12/2013	1
71052-26050	KDH20#,211,222,223,227,TRH200,211,216,223,228..GL,SGL SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側)	08/2004 - 12/2013	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-26280	TRH221,226..02S;KDH20#,211,222,223,227,TRH200,21#,223,224,228,229..GC,GL,SGL	08/2004 - 12/2013	1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-26010B0	TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL GRAY,TRIM1#	08/2004 - 08/2010	1
71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
71868-26010B0	TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL GRAY,TRIM1#	08/2004 - 08/2010	1
71875C - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26010B0	TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL GRAY,TRIM1#	08/2004 - 08/2010	1
71875E - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26020B0	TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL GRAY,TRIM1#	08/2004 - 08/2010	1
71876B - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26010B0	TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL GRAY,TRIM1#	08/2004 - 08/2010	1
71876C - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26030B0	TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL GRAY,TRIM1#	08/2004 - 08/2010	1
71910A - HEADREST ASSY, FRONT SEAT
71940-26360B2	TRH221,226..02S;KDH222,227,TRH223,224,228,229..GC,GL GRAY,TRIM1#	01/2005 - 09/2007	2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020B8	TRH221,226..02S;KDH222,227,TRH223,224,228,229..GC,GL ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1#	08/2004 - 06/2007	2
71931-42020B8	TRH221,226..02S;KDH20#,211,222,223,227,TRH200,21#,223,224,228,229..GC,GL,SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1#	08/2004 - 08/2010	2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020B8	TRH221,226..02S;KDH222,227,TRH223,224,228,229..GC,GL ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1#	08/2004 - 06/2007	2
71931-42020B8	TRH221,226..02S;KDH20#,211,222,223,227,TRH200,21#,223,224,228,229..GC,GL,SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1#	08/2004 - 08/2010	2
72249 - GUIDE, SEAT TRACK LOCKING
72249-26030	TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL 右側ｼｰﾄ	08/2004 - 12/2013	1
72249-26020	TRH214,219,221,226..02S,10S;KDH20#,211,222,223,227,TRH200,211,216,223,224,228,229..GC,GL,SGL 左側ｼｰﾄ	08/2004 - 12/2013	1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-26020B0	TRH221,226..02S;TRH224,229..IV5;TRH200..V1..HRF..5D;KDH201,206,221,223,TRH214,219;KDH200,205,211,222,227,TRH200,211,216,223,228..GL,SGL GRAY,TRIM1#	08/2004 - 08/2010	1
Common parts
90119-10949
C9916-40001
Linked diagrams
7152

KDH227B-LEPNY5 (2005)

(0501- )GL ; (0510- )TRH224,229..IV5

(0408-0709)KDH20#,222,227..GL,SGL

(0408-0709)KDH20#,222,227..GL,SGL
