KDH225K-LRPDY (2005)

Toyota Hiace/Regiusace

Production Jan 2005 - Sep 2007
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )KDH220,221,225,TRH221,226..HRF

Click highlighted areas on diagram

diagram 63310D 63310D 63310D 63310K 63310K 63310K 63311A 63311D 63311D 63311F 63312A 63313A 63314A 63375C 63375C 63375D 63391A 63399C
Part # Description Qty Price
63311A - HEADLINING, ROOF NO.1
63310-26A70B1

KDH220,225,TRH221,226..06S

ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ,LIGHT GRAY,TRIM1#

 1
63311D - CLIP(HEADLINING, ROOF, FRONT)
63399-26050B0

KDH20#,TRH200..IV5;KDH220,221,225,TRH221,226..06S

LT.GRAY,TRIM1#

 4
63311D - CLIP(HEADLINING, ROOF, FRONT)
63399-26050B0

KDH20#,TRH200..IV5;KDH220,221,225,TRH221,226..06S

LT.GRAY,TRIM1#

 4
63311F - CLIP, ROOF HEADLINING, NO.1
63399-26050B0

KDH223,TRH223,224,228..CBU;KDH20#,211,220,221,222,225,227,TRH200,21#,221,226,229..HRF,SMRF,SRF

LT.GRAY,TRIM1#

 1
63391A - CLIP(FOR ROOF HEADLINING TRIM)
90467-06177B5

KDH20#,22#,TRH200,22#..HRF

LT.GRAY,TRIM1#

 2
63399C - CLIP, ROOF HEADLINING
63399-26040

KDH200,201,206,220,221,225,TRH200,221,226..HRF..06S..CBU

ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ

 2
63399-26040

KDH200,201,206,220,221,225,TRH200,221,226..HRF..06S..CBU

 3

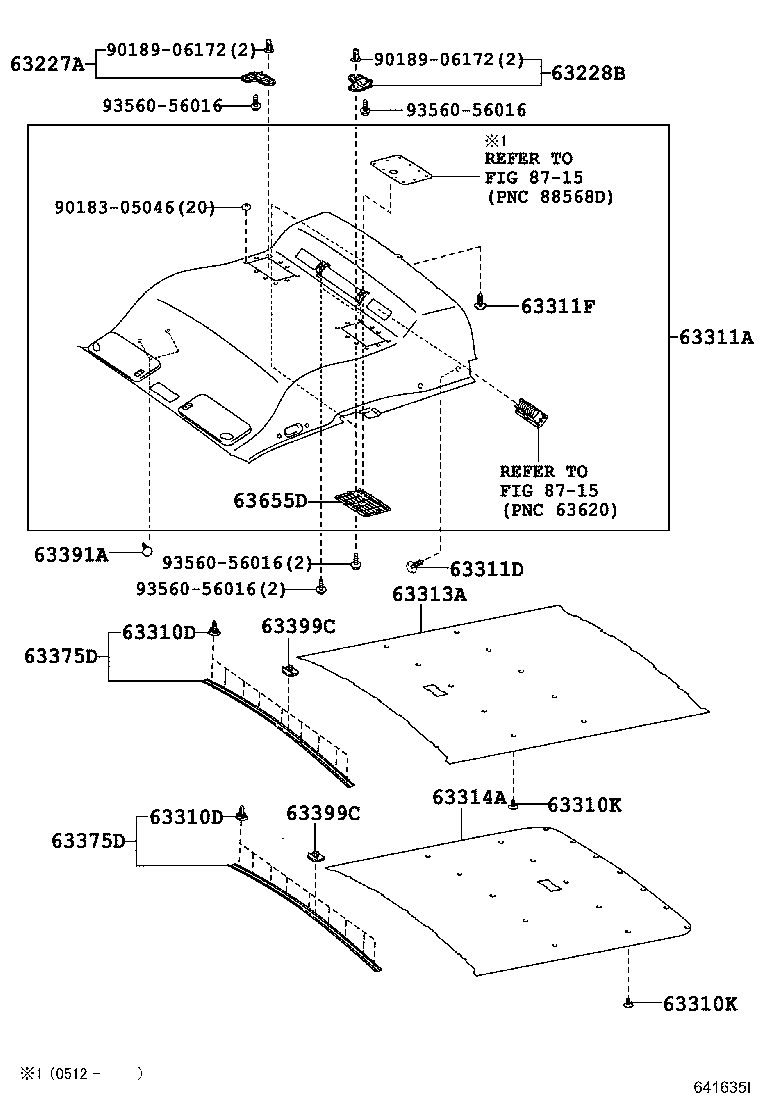

(0501-0611)KDH220,225,TRH221,226

Click highlighted areas on diagram

ｱﾘ(ﾃﾞｭｱﾙ ｴｱｺﾝ)

diagram 63227A 63228B 63310D 63310D 63310K 63310K 63311A 63311D 63311F 63313A 63314A 63375D 63375D 63391A 63399C 63399C 63655D 8715 8715 9018305046 9018906172 9018906172 9356056016 9356056016 9356056016 9356056016
Part # Description Qty Price
63227A - BRACKET, ROOF HEADLINING, FRONT RH
63227-26130

KDH220,225,TRH221,226..06S

ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ

 1
63228B - BRACKET, ROOF HEADLINING, FRONT LH
63228-26060

KDH220,225,TRH221,226..06S

ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ

 1
63311A - HEADLINING, ROOF NO.1
63310-26A70B1

KDH220,225,TRH221,226..06S

ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ,LIGHT GRAY,TRIM1#

 1
63311D - CLIP(HEADLINING, ROOF, FRONT)
63399-26050B0

KDH20#,TRH200..IV5;KDH220,221,225,TRH221,226..06S

LT.GRAY,TRIM1#

 4
63311F - CLIP, ROOF HEADLINING, NO.1
63399-26050B0

KDH223,TRH223,224,228..CBU;KDH20#,211,220,221,222,225,227,TRH200,21#,221,226,229..HRF,SMRF,SRF

LT.GRAY,TRIM1#

 1
63391A - CLIP(FOR ROOF HEADLINING TRIM)
90467-06177B5

KDH20#,22#,TRH200,22#..HRF

LT.GRAY,TRIM1#

 2
63399C - CLIP, ROOF HEADLINING
63399-26040

KDH200,201,206,220,221,225,TRH200,221,226..HRF..06S..CBU

ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ

 2
63399-26040

KDH200,201,206,220,221,225,TRH200,221,226..HRF..06S..CBU

 3
63399C - CLIP, ROOF HEADLINING
63399-26040

KDH200,201,206,220,221,225,TRH200,221,226..HRF..06S..CBU

ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ

 2
63399-26040

KDH200,201,206,220,221,225,TRH200,221,226..HRF..06S..CBU

 3
63655D - COVER, AIR INTAKE
63655-26020B0

KDH220,225,TRH221,226..06S

ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ,LT.GRAY,TRIM1#

 2
Common parts
90183-05046
90189-06172
93560-56016
Linked diagrams
8715

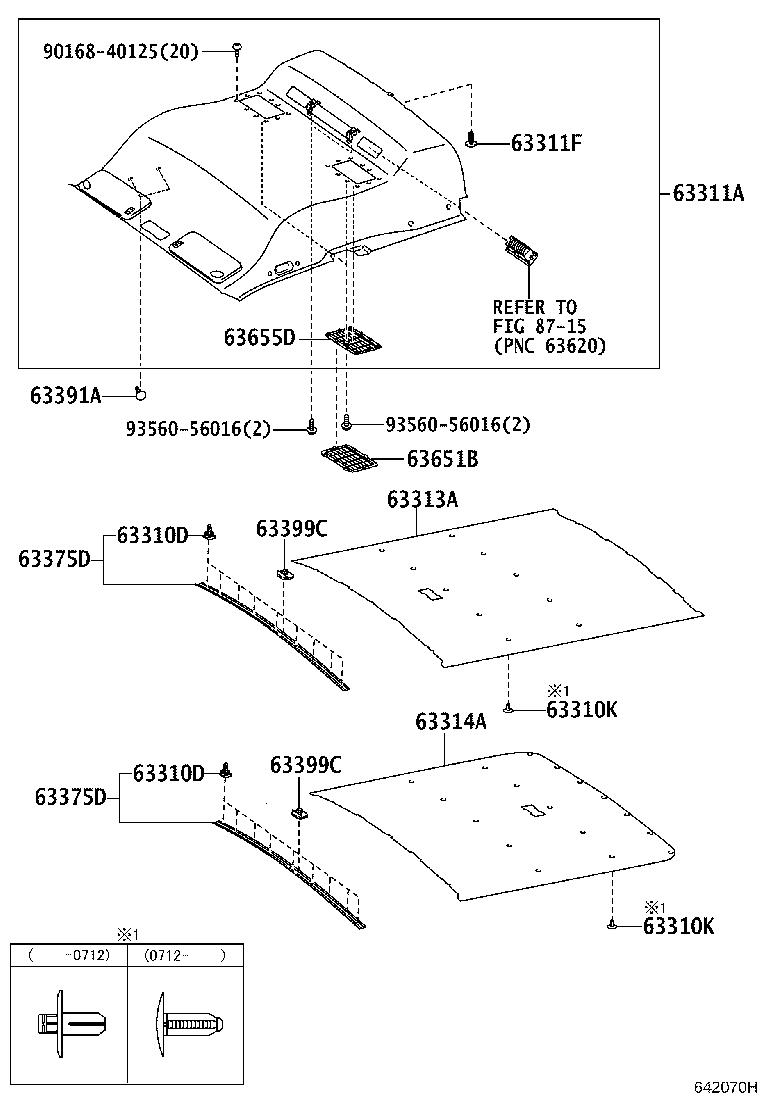

(0611- )KDH220,221,225,TRH221,226..HRF

Click highlighted areas on diagram

ｱﾘ(ﾃﾞｭｱﾙ ｴｱｺﾝ)

diagram 63310D 63310D 63310K 63310K 63311A 63311F 63313A 63314A 63375D 63375D 63391A 63399C 63399C 63651B 63655D 8715 9016840125 9356056016 9356056016
Part # Description Qty Price
63311A - HEADLINING, ROOF NO.1
63310-26A70B1

KDH220,225,TRH221,226..06S

ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ,LIGHT GRAY,TRIM1#

 1
63311F - CLIP, ROOF HEADLINING, NO.1
63399-26050B0

KDH223,TRH223,224,228..CBU;KDH20#,211,220,221,222,225,227,TRH200,21#,221,226,229..HRF,SMRF,SRF

LT.GRAY,TRIM1#

 1
63391A - CLIP(FOR ROOF HEADLINING TRIM)
90467-06177B5

KDH20#,22#,TRH200,22#..HRF

LT.GRAY,TRIM1#

 2
63399C - CLIP, ROOF HEADLINING
63399-26040

KDH200,201,206,220,221,225,TRH200,221,226..HRF..06S..CBU

ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ

 2
63399-26040

KDH200,201,206,220,221,225,TRH200,221,226..HRF..06S..CBU

 3
63399C - CLIP, ROOF HEADLINING
63399-26040

KDH200,201,206,220,221,225,TRH200,221,226..HRF..06S..CBU

ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ

 2
63399-26040

KDH200,201,206,220,221,225,TRH200,221,226..HRF..06S..CBU

 3
63655D - COVER, AIR INTAKE
63655-26020B0

KDH220,225,TRH221,226..06S

ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ,LT.GRAY,TRIM1#

 2
Common parts
90168-40125
93560-56016
Linked diagrams
8715
