KDH223B-LEPNY5 (2013)
Toyota Hiace/Regiusace
ILLUST NO. 3 OF 3(1312- )TRH214,219,221,226..4D ; (1312- )GDH20#,211,221,226,KDH20#,211,22#,TR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-26090 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
1 | ||
| 04477-26090 |
TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5) |
1 | ||
| 31478D - CAP, BLEEDER PLUG(FOR LSPV) | ||||
| 31478-30010 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
1 | ||
| 31478-30010 |
TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5) |
1 | ||
| 47900 - VALVE ASSY, LOAD SENSING W/SPRING | ||||
| 47900-26550 |
TRH224..4FC..CBU;TRH221,224,226..02S;KDH221,TRH214,219,221,223,226,228,229..4FC..(CBU,IV5) |
1 | ||
| 47900-26550 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-26550 |
TRH224..4FC..CBU;TRH221,224,226..02S;KDH221,TRH214,219,221,223,226,228,229..4FC..(CBU,IV5) |
1 | ||
| 47910-26550 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
1 | ||
| 47910B - PLUG, BLEEDER | ||||
| 47547-27030 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
1 | ||
| 47547-27030 |
TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5) |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-26550 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
1 | ||
| 47920-26550 |
TRH224..4FC..CBU;TRH221,224,226..02S;KDH221,TRH214,219,221,223,226,228,229..4FC..(CBU,IV5) |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
3 | ||
| 90387-08099 |
TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5) |
3 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
3 | ||
| 90387-08099 |
TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5) |
3 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
3 | ||
| 90387-08099 |
TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5) |
3 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5) |
1 | ||
| 90467-31110 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
2 | ||
| 90202-10103 |
TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5) |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
2 | ||
| 90202-10103 |
TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5) |
2 | ||
| 47924 - BUSH, LOAD SENSING VALVE | ||||
| 47924-35010 |
TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5) |
2 | ||
| 47924-35010 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
2 | ||
| 47924 - BUSH, LOAD SENSING VALVE | ||||
| 47924-35010 |
TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5) |
2 | ||
| 47924-35010 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-26510 |
TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5) |
1 | ||
| 47931-26510 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35030 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
1 | ||
| 47935-35030 |
TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5) |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-35050 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
1 | ||
| 47936-35050 |
TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5) |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-26020 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
1 | ||
| 47937-26020 |
TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5) |
1 | ||
| 47938 - INSULATOR, LOAD SENSING SPRING SHACKLE HAET | ||||
| 47938-26010 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
1 | ||
| 47938-26010 |
TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5) |
1 | ||
| Common parts | ||||
| 90015-AA103 | ||||
| 90170-08016 | ||||
| 90201-23360 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||

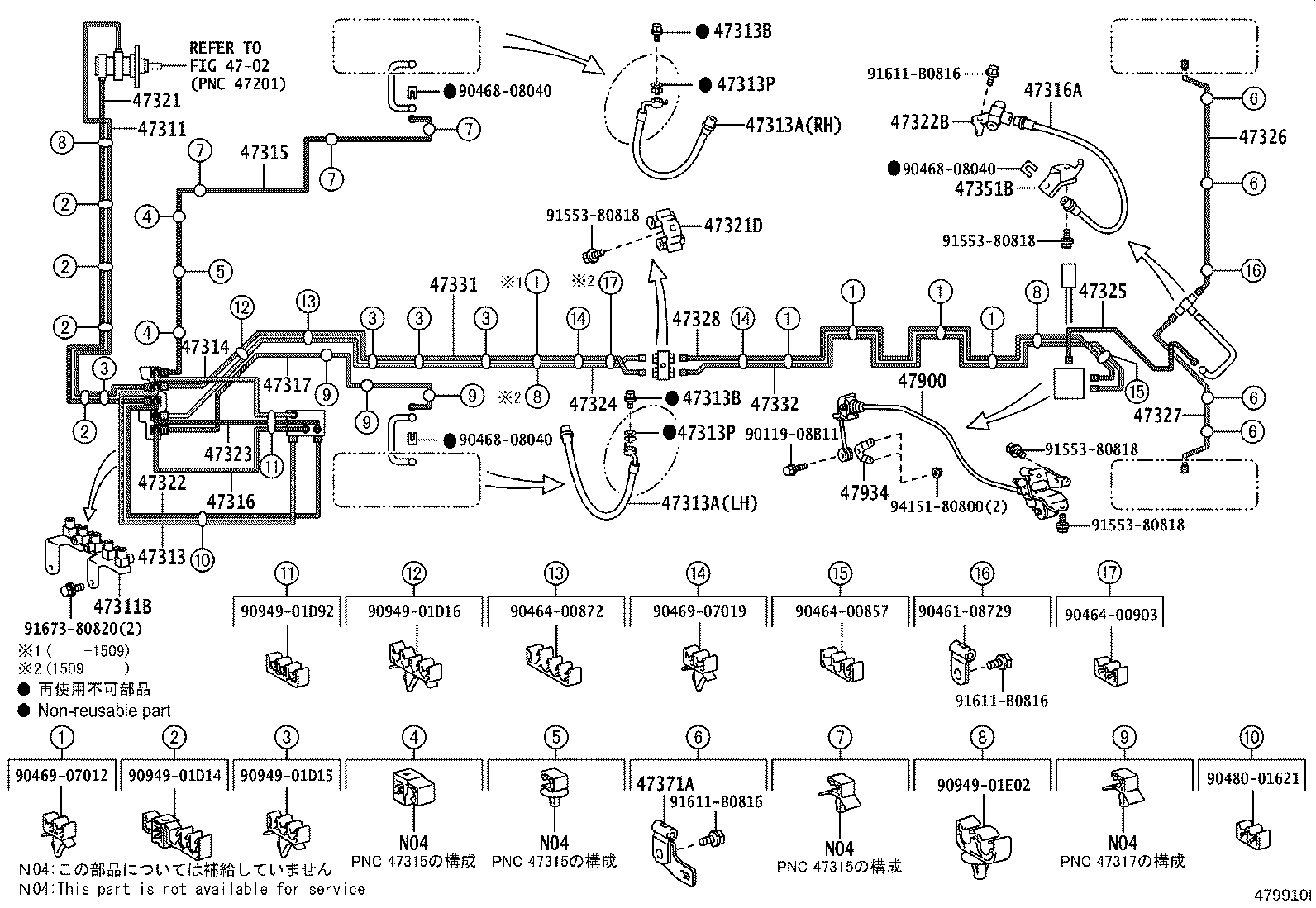

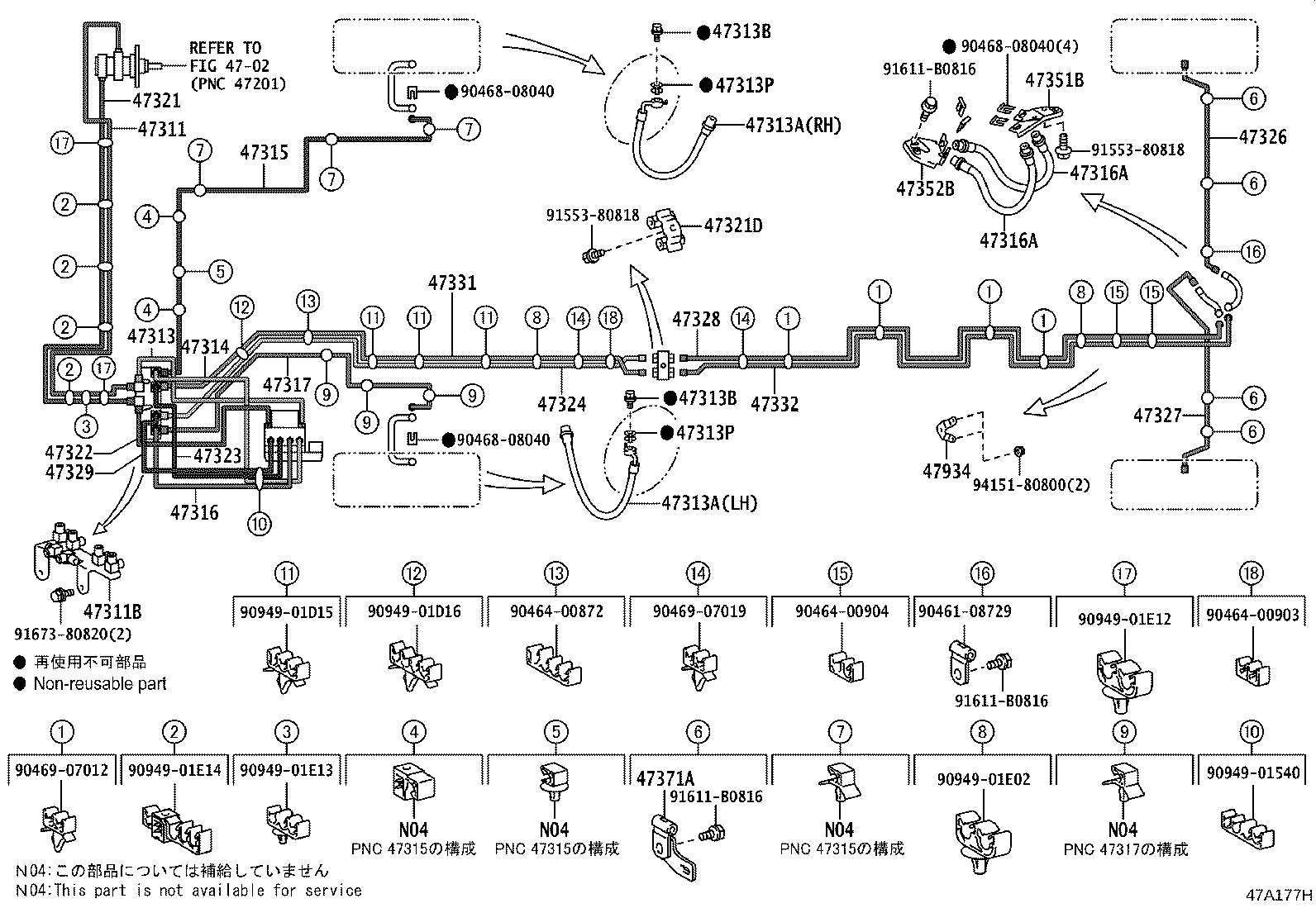

ILLUST NO. 1 OF 3(1312-1501)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-26A10 |
KDH211,22#,TRH21#,22# |
1 | ||
| 47311-26A40 |
KDH223,TRH214,219,223,228,229 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10305 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 90413-10338 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-26390 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47313-26320 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 47313-26400 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02F53 |
KDH201,211,22#,TRH200,211,214,221,223,224 右側 |
1 | ||
| 90947-02F54 |
KDH201,211,22#,TRH200,211,214,221,223,224 左側 |
1 | ||
| 90947-02G74 |
TRH200..6FC;KDH201,223,TRH223,224;GDH201,211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7 右側 |
1 | ||
| 90947-02H54 |
TRH200..6FC;KDH201,223,TRH223,224;GDH201,211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7 左側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02F53 |
KDH201,211,22#,TRH200,211,214,221,223,224 右側 |
1 | ||
| 90947-02F54 |
KDH201,211,22#,TRH200,211,214,221,223,224 左側 |
1 | ||
| 90947-02G74 |
TRH200..6FC;KDH201,223,TRH223,224;GDH201,211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7 右側 |
1 | ||
| 90947-02H54 |
TRH200..6FC;KDH201,223,TRH223,224;GDH201,211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7 左側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
TRH200..5F;GDH201,223..IV5 |
2 | ||
| 90401-10058 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
TRH200..5F;GDH201,223..IV5 |
2 | ||
| 90401-10058 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-26370 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 47314-26390 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47314-26410 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-26301 |
KDH211,22#,TRH211,214,221,223,224 |
1 | ||
| 47315-26340 |
KDH223,TRH223,224;GDH211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-26490 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47316-26510 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
1 | ||
| 47316-26470 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02F56 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 90947-02H57 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 90947-02H58 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-26340 |
KDH201,211,22#,TRH200,211,214,221,223,224 |
1 | ||
| 47317-26360 |
TRH200..6FC;KDH201,223,TRH223,224;GDH201,211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-26280 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-26360 |
KDH22#,TRH22# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-26790 |
KDH223,TRH214,219,223,228,229 |
1 | ||
| 47321-26760 |
KDH211,22#,TRH21#,22# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10166 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 90412-10285 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-26430 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47322-26420 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10307 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 90413-10337 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-26420 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47323-26410 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 47323-26430 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-26550 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 47324-26570 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 47324-26571 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-26410 |
KDH211,22#,TRH21#,22# |
1 | ||
| 47325-26430 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-26510 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47326-26480 |
KDH211,22#,TRH21#,22# |
1 | ||
| 47326-26540 |
KDH223,TRH223,228;GDH211,22#,TRH214,219,224,229..CBU,IV6 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-26360 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47327-26390 |
KDH223,TRH223,228;GDH211,22#,TRH214,219,224,229..CBU,IV6 |
1 | ||
| 47327-26330 |
KDH211,22#,TRH21#,22# |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-26160 |
KDH22#,TRH22# |
1 | ||
| 47328-26180 |
TRH224..CBU;KDH223,TRH223,228,229 |
1 | ||
| 47328-26210 |
KDH223,TRH223,228;GDH22#,TRH224,229..CBU,IV6 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-26210 |
TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5) |
1 | ||
| 47351-26220 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
1 | ||
| 47351-26210 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-26200 |
TRH200..5F;GDH201,223..IV5 |
4 | ||
| 47371-26200 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
4 | ||
| 47900 - VALVE ASSY, LOAD SENSING W/SPRING | ||||
| 47900-26550 |
TRH224..4FC..CBU;TRH221,224,226..02S;KDH221,TRH214,219,221,223,226,228,229..4FC..(CBU,IV5) |
1 | ||
| 47900-26550 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
1 | ||
| 47934 - BRACKET, LOAD SENSING | ||||
| 47934-26110 |
TRH200..5F;GDH201,223..IV5 |
1 | ||
| 47934-26110 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| Common parts | ||||
| 90119-08B11 | ||||
| 90461-08729 | ||||
| 90464-00872 | ||||
| 90464-00873 | ||||
| 90468-08040 | ||||
| 90469-07012 | ||||
| 90469-07019 | ||||
| 90469-07020 | ||||
| 90480-01621 | ||||
| 90949-01A25 | ||||
| 90949-01D14 | ||||
| 90949-01D15 | ||||
| 90949-01D16 | ||||
| 91553-80818 | ||||
| 91611-B0816 | ||||
| 91673-80820 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 4702 | ||||
ILLUST NO. 1 OF 3(1501- )TRH221 ; (1501- )GDH221,KDH22#,TRH223,224..CBU,IV5
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-26A10 |
KDH211,22#,TRH21#,22# |
1 | ||
| 47311-26A40 |
KDH223,TRH214,219,223,228,229 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10305 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 90413-10338 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-26390 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47313-26320 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 47313-26400 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02F53 |
KDH201,211,22#,TRH200,211,214,221,223,224 右側 |
1 | ||
| 90947-02F54 |
KDH201,211,22#,TRH200,211,214,221,223,224 左側 |
1 | ||
| 90947-02G74 |
TRH200..6FC;KDH201,223,TRH223,224;GDH201,211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7 右側 |
1 | ||
| 90947-02H54 |
TRH200..6FC;KDH201,223,TRH223,224;GDH201,211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7 左側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02F53 |
KDH201,211,22#,TRH200,211,214,221,223,224 右側 |
1 | ||
| 90947-02F54 |
KDH201,211,22#,TRH200,211,214,221,223,224 左側 |
1 | ||
| 90947-02G74 |
TRH200..6FC;KDH201,223,TRH223,224;GDH201,211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7 右側 |
1 | ||
| 90947-02H54 |
TRH200..6FC;KDH201,223,TRH223,224;GDH201,211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7 左側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
TRH200..5F;GDH201,223..IV5 |
2 | ||
| 90401-10058 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
TRH200..5F;GDH201,223..IV5 |
2 | ||
| 90401-10058 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-26370 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 47314-26390 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47314-26410 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-26301 |
KDH211,22#,TRH211,214,221,223,224 |
1 | ||
| 47315-26340 |
KDH223,TRH223,224;GDH211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-26490 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47316-26510 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
1 | ||
| 47316-26470 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02F56 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 90947-02H57 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 90947-02H58 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-26340 |
KDH201,211,22#,TRH200,211,214,221,223,224 |
1 | ||
| 47317-26360 |
TRH200..6FC;KDH201,223,TRH223,224;GDH201,211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-26790 |
KDH223,TRH214,219,223,228,229 |
1 | ||
| 47321-26760 |
KDH211,22#,TRH21#,22# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10166 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 90412-10285 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-26430 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47322-26420 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10307 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 90413-10337 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-26420 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47323-26410 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 47323-26430 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-26550 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 47324-26570 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 47324-26571 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-26410 |
KDH211,22#,TRH21#,22# |
1 | ||
| 47325-26430 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-26510 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47326-26480 |
KDH211,22#,TRH21#,22# |
1 | ||
| 47326-26540 |
KDH223,TRH223,228;GDH211,22#,TRH214,219,224,229..CBU,IV6 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-26360 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47327-26390 |
KDH223,TRH223,228;GDH211,22#,TRH214,219,224,229..CBU,IV6 |
1 | ||
| 47327-26330 |
KDH211,22#,TRH21#,22# |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-26160 |
KDH22#,TRH22# |
1 | ||
| 47328-26180 |
TRH224..CBU;KDH223,TRH223,228,229 |
1 | ||
| 47328-26210 |
KDH223,TRH223,228;GDH22#,TRH224,229..CBU,IV6 |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-26250 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 47331-26251 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-26170 |
TRH224..CBU;KDH223,TRH223,228,229 |
1 | ||
| 47332-26200 |
KDH223,TRH223,228;GDH22#,TRH224,229..CBU,IV6 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-26210 |
TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5) |
1 | ||
| 47351-26220 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
1 | ||
| 47351-26210 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-26200 |
TRH200..5F;GDH201,223..IV5 |
4 | ||
| 47371-26200 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
4 | ||
| 47900 - VALVE ASSY, LOAD SENSING W/SPRING | ||||
| 47900-26550 |
TRH224..4FC..CBU;TRH221,224,226..02S;KDH221,TRH214,219,221,223,226,228,229..4FC..(CBU,IV5) |
1 | ||
| 47900-26550 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
1 | ||
| 47934 - BRACKET, LOAD SENSING | ||||
| 47934-26110 |
TRH200..5F;GDH201,223..IV5 |
1 | ||
| 47934-26110 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| Common parts | ||||
| 90119-08B11 | ||||
| 90461-08729 | ||||
| 90464-00857 | ||||
| 90464-00872 | ||||
| 90464-00903 | ||||
| 90468-08040 | ||||
| 90469-07012 | ||||
| 90469-07019 | ||||
| 90480-01621 | ||||
| 90949-01D14 | ||||
| 90949-01D15 | ||||
| 90949-01D16 | ||||
| 90949-01D92 | ||||
| 90949-01E02 | ||||
| 91553-80818 | ||||
| 91611-B0816 | ||||
| 91673-80820 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 4702 | ||||
ILLUST NO. 2 OF 3(1312- )TRH221,226 ; (1312- )GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,223,224
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

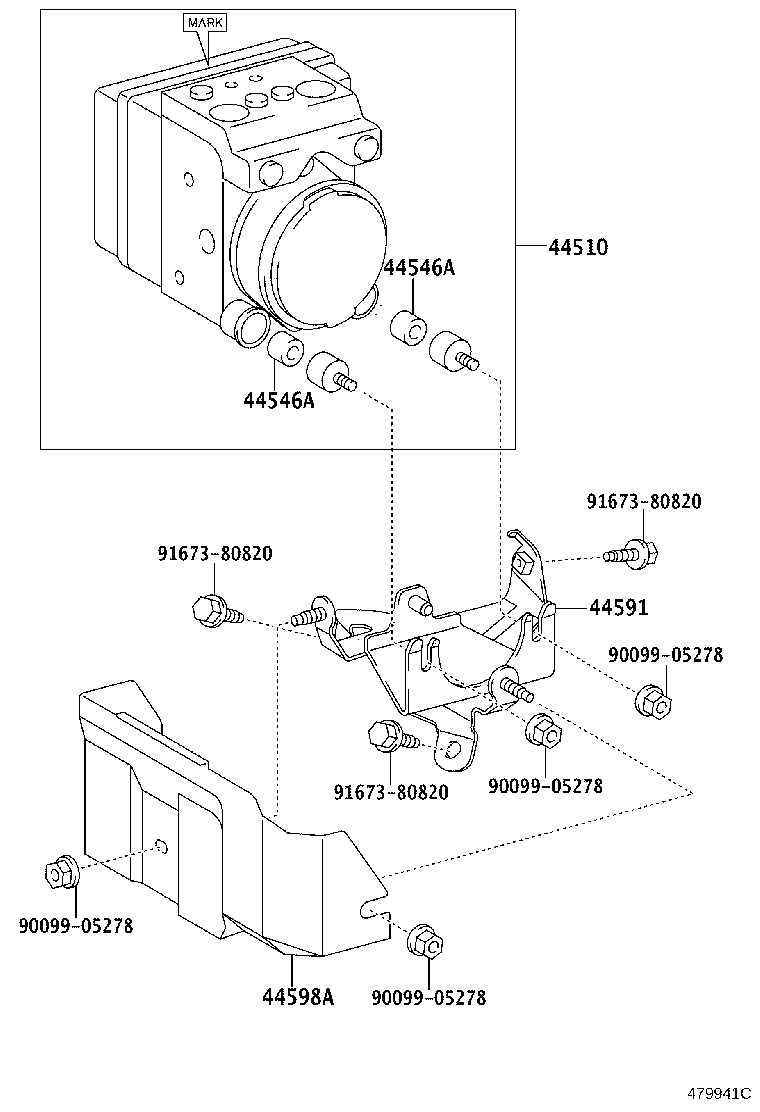

| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-26101 |
KDH22#,TRH221,223,224 ﾏｰｸ=44510−26111 |
1 | ||
| 44050-26200 |
TRH224..CBU;KDH223,TRH223 ﾏｰｸ=44510−26190 |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-60060 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
3 | ||
| 44546-52020 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
3 | ||
| 44546-60060 |
TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-60060 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
3 | ||
| 44546-52020 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
3 | ||
| 44546-60060 |
TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5) |
3 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44590-26050 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
1 | ||
| 44590-26040 |
TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5) |
1 | ||
| 44590-26040 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
1 | ||
| 44598A - COVER, BRAKE ACTUATOR | ||||
| 44598-26010 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
1 | ||
| 44598-26010 |
TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5) |
1 | ||
| Common parts | ||||
| 90099-05278 | ||||
| 91673-80820 | ||||
ILLUST NO. 1 OF 3(1606- )GDH20#,211,22#,KDH223,TRH200,21#,22#
ｱﾘ(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-26A10 |
KDH211,22#,TRH21#,22# |
1 | ||
| 47311-26A40 |
KDH223,TRH214,219,223,228,229 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10305 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 90413-10338 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-26390 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47313-26320 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 47313-26400 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02F53 |
KDH201,211,22#,TRH200,211,214,221,223,224 右側 |
1 | ||
| 90947-02F54 |
KDH201,211,22#,TRH200,211,214,221,223,224 左側 |
1 | ||
| 90947-02G74 |
TRH200..6FC;KDH201,223,TRH223,224;GDH201,211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7 右側 |
1 | ||
| 90947-02H54 |
TRH200..6FC;KDH201,223,TRH223,224;GDH201,211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7 左側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02F53 |
KDH201,211,22#,TRH200,211,214,221,223,224 右側 |
1 | ||
| 90947-02F54 |
KDH201,211,22#,TRH200,211,214,221,223,224 左側 |
1 | ||
| 90947-02G74 |
TRH200..6FC;KDH201,223,TRH223,224;GDH201,211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7 右側 |
1 | ||
| 90947-02H54 |
TRH200..6FC;KDH201,223,TRH223,224;GDH201,211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7 左側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
TRH200..5F;GDH201,223..IV5 |
2 | ||
| 90401-10058 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
TRH200..5F;GDH201,223..IV5 |
2 | ||
| 90401-10058 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-26370 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 47314-26390 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47314-26410 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-26301 |
KDH211,22#,TRH211,214,221,223,224 |
1 | ||
| 47315-26340 |
KDH223,TRH223,224;GDH211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-26490 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47316-26510 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
1 | ||
| 47316-26470 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02F56 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 90947-02H57 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 90947-02H58 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02F56 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 90947-02H57 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 90947-02H58 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-26340 |
KDH201,211,22#,TRH200,211,214,221,223,224 |
1 | ||
| 47317-26360 |
TRH200..6FC;KDH201,223,TRH223,224;GDH201,211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-26790 |
KDH223,TRH214,219,223,228,229 |
1 | ||
| 47321-26760 |
KDH211,22#,TRH21#,22# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10166 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 90412-10285 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-26430 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47322-26420 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-26420 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47323-26410 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 47323-26430 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-26550 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 47324-26570 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 47324-26571 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-26510 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47326-26480 |
KDH211,22#,TRH21#,22# |
1 | ||
| 47326-26540 |
KDH223,TRH223,228;GDH211,22#,TRH214,219,224,229..CBU,IV6 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-26360 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47327-26390 |
KDH223,TRH223,228;GDH211,22#,TRH214,219,224,229..CBU,IV6 |
1 | ||
| 47327-26330 |
KDH211,22#,TRH21#,22# |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-26160 |
KDH22#,TRH22# |
1 | ||
| 47328-26180 |
TRH224..CBU;KDH223,TRH223,228,229 |
1 | ||
| 47328-26210 |
KDH223,TRH223,228;GDH22#,TRH224,229..CBU,IV6 |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-26480 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-26250 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 47331-26251 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-26170 |
TRH224..CBU;KDH223,TRH223,228,229 |
1 | ||
| 47332-26200 |
KDH223,TRH223,228;GDH22#,TRH224,229..CBU,IV6 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-26210 |
TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5) |
1 | ||
| 47351-26220 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
1 | ||
| 47351-26210 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-26190 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-26200 |
TRH200..5F;GDH201,223..IV5 |
4 | ||
| 47371-26200 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
4 | ||
| 47934 - BRACKET, LOAD SENSING | ||||
| 47934-26110 |
TRH200..5F;GDH201,223..IV5 |
1 | ||
| 47934-26110 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| Common parts | ||||
| 90461-08729 | ||||
| 90464-00872 | ||||
| 90464-00903 | ||||
| 90464-00904 | ||||
| 90468-08040 | ||||
| 90469-07012 | ||||
| 90469-07019 | ||||
| 90949-01540 | ||||
| 90949-01D15 | ||||
| 90949-01D16 | ||||
| 90949-01E02 | ||||
| 90949-01E12 | ||||
| 90949-01E13 | ||||
| 90949-01E14 | ||||
| 91553-80818 | ||||
| 91611-B0816 | ||||
| 91673-80820 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 4702 | ||||
ILLUST NO. 2 OF 3(1501- )GDH20#,211,22#,KDH223,TRH200,21#,22#
ｱﾘ(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-26101 |
KDH22#,TRH221,223,224 ﾏｰｸ=44510−26111 |
1 | ||
| 44050-26200 |
TRH224..CBU;KDH223,TRH223 ﾏｰｸ=44510−26190 |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-60060 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
3 | ||
| 44546-52020 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
3 | ||
| 44546-60060 |
TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-60060 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
3 | ||
| 44546-52020 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
3 | ||
| 44546-60060 |
TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-60060 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
3 | ||
| 44546-52020 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
3 | ||
| 44546-60060 |
TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5) |
3 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44590-26050 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
1 | ||
| 44590-26040 |
TRH221,224,226..02S;GDH201,TRH200..V2..03S..6FC;TRH200,224..(03S,05S,06S,09S,10S)..4FC;KDH20#,211,221,TRH21#,221,223,226,228,229..(4FC,5F)..(CBU,IV5) |
1 | ||
| 44590-26040 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
1 | ||
| Common parts | ||||
| 44521-12050 | ||||
| 90119-06844 | ||||
| 91673-80820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
