KDH223B-LEPNY (2013)

Toyota Hiace/Regiusace

Production Dec 2013 - Nov 2017
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )GC,GL,SGL..CBU

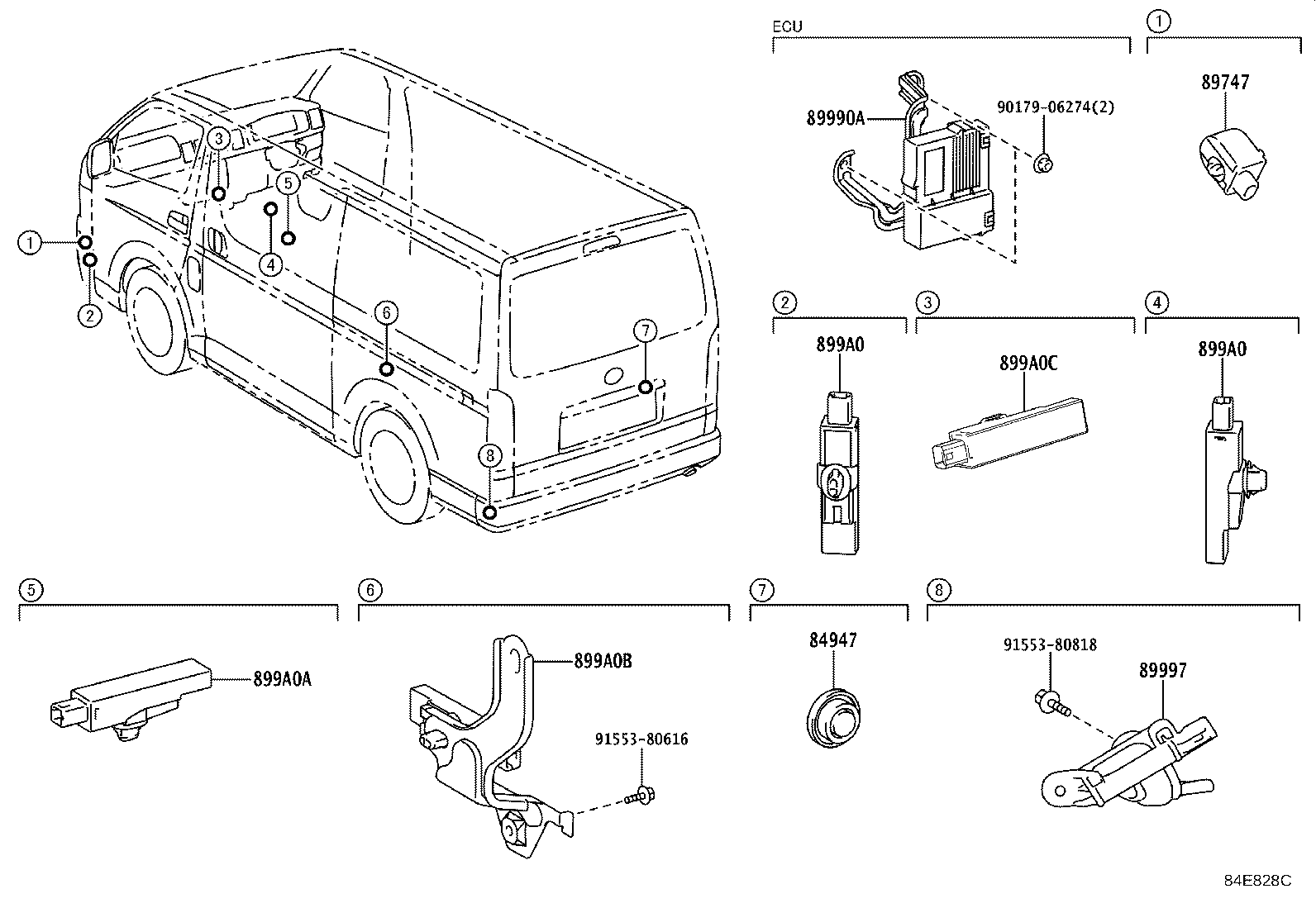

Click highlighted areas on diagram

ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ)

diagram 84947 89747 89990A 89997 899A0 899A0 899A0A 899A0B 899A0C 9017906274 9155380616 9155380818
Part # Description Qty Price
84947 - COVER, DOOR ELECTRICAL KEY SWITCH
84947-26010

TRH214,219..4D..GL;GDH20#,211,223,KDH20#,211,223,TRH200,211,216,223,224,228,229..(GC,GL,SGL)..CBU

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(*DRS&*PAS&ﾊﾞｯｸﾄﾞｱ))

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-52010

TRH214,219..4D..GL;GDH20#,211,223,KDH20#,211,223,TRH200,211,216,223,224,228,229..(GC,GL,SGL)..CBU

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(*DRS&*PAS&ﾊﾞｯｸﾄﾞｱ))

 1
89990A - COMPUTER ASSY, SMART KEY
89990-26020

KDH211,223,TRH21#,223,224,228,229..(GC,GL,SGL)..CBU

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(*DRS&*PAS&ﾊﾞｯｸﾄﾞｱ))

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-26010

TRH214,219..4D..GL;GDH20#,211,223,KDH20#,211,223,TRH200,211,216,223,224,228,229..(GC,GL,SGL)..CBU

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(*DRS&*PAS&ﾊﾞｯｸﾄﾞｱ))

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-26010

TRH214,219..4D..GL;GDH20#,211,223,KDH20#,211,223,TRH200,211,216,223,224,228,229..(GC,GL,SGL)..CBU

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(*DRS&*PAS&ﾊﾞｯｸﾄﾞｱ))

 2
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-26010

TRH214,219..4D..GL;GDH20#,211,223,KDH20#,211,223,TRH200,211,216,223,224,228,229..(GC,GL,SGL)..CBU

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(*DRS&*PAS&ﾊﾞｯｸﾄﾞｱ))

 2
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-26020

TRH214,219..4D..GL;GDH20#,211,223,KDH20#,211,223,TRH200,211,216,223,224,228,229..(GC,GL,SGL)..CBU

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(*DRS&*PAS&ﾊﾞｯｸﾄﾞｱ))

 1
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
899A0-26030

TRH214,219..4D..GL;GDH20#,211,223,KDH20#,211,223,TRH200,211,216,223,224,228,229..(GC,GL,SGL)..CBU

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(*DRS&*PAS&ﾊﾞｯｸﾄﾞｱ))

 1
Common parts
90179-06274
91553-80616
91553-80818

(1312- )TRH214,219..4D ; (1312- )GDH20#,211,22#,KDH20#,211,22#,TRH200,211,216

Click highlighted areas on diagram

ﾅｼ(ｽﾏｰﾄｴﾝﾄﾘ)

diagram 89741 9011906923
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89741-26220

KDH20#,211,223,TRH200,21#,223,224,228,229..(GC,GL,SGL)..CBU

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(*DRS&*PAS&ﾊﾞｯｸﾄﾞｱ))

 1
89741-26220

KDH20#,211,22#,TRH200,21#,22#

 1
89741-26220

KDH223,TRH223,228..GL..CBU

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ(*DRS&*PAS&ﾊﾞｯｸﾄﾞｱ))&*POSD(左側)&*ECS(左側)

 1
89741-26221

GDH201..DX..CBU;TRH200,223,228..4D..(02S,03S,06S,09S)..6FC;KDH20#,211,223,TRH224..02S,03S,05S,06S,09S,14S;GDH206,22#,KDH221,TRH214,219,221,223,226,228..DX

 1
Common parts
90119-06923
