Toyota Hiace/regiusace KDH223 SUSPENSION CROSSMEMBER & UNDER COVER

Manufacturers Home
Toyota
JP
HIACE/REGIUSACE
KDH223B-LEPNY (2013)
5152 - SUSPENSION CROSSMEMBER & UNDER COVER

KDH223B-LEPNY (2013)

Toyota Hiace/Regiusace

Production Dec 2013 - Nov 2017

Engine 1KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(1312- )KDH211,22#,TRH211,214,221,223,224

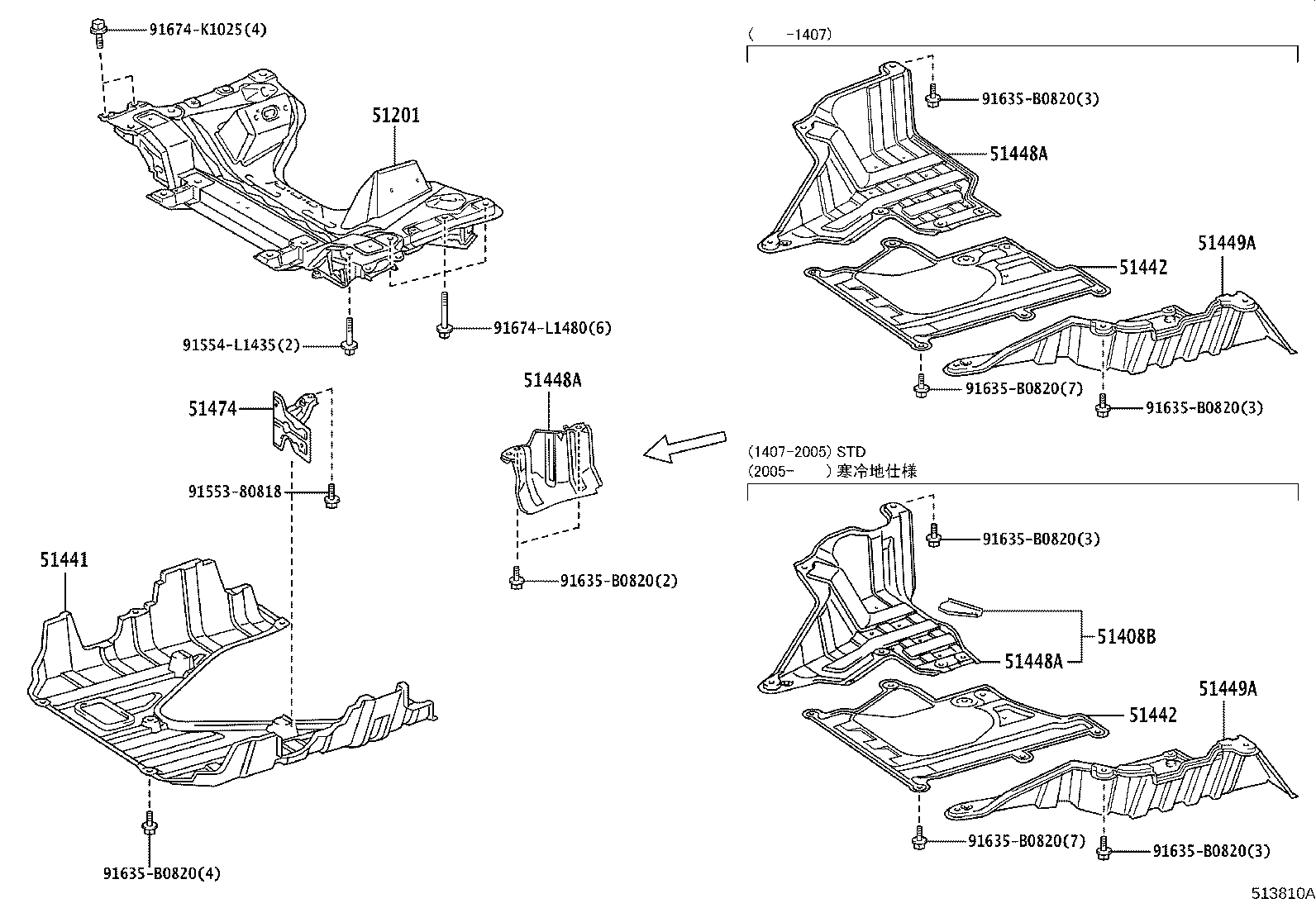

Click highlighted areas on diagram

Part #	Description	Period	Qty
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-26360	KDH223,TRH223;GDH211,221,223,KDH211,221,TRH211,214,221,224..CBU,IV6,IV7	07/2016 - 12/2999	1
51201-26250	KDH211,22#,TRH211,214,221,223,224	12/2013 - 07/2016	1
51408B - COVER SUB-ASSY, ENGINE UNDER, RH
51408-26070	KDH211,22#,TRH211,214,221,223,224	07/2014 - 11/2017	1
51441 - COVER, ENGINE UNDER, NO.1
51441-26240	KDH223,TRH223,224;GDH211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7	12/2013 - 12/2999	1
51442 - COVER, ENGINE UNDER, NO.2
51442-26180	TRH211,214,221,223,224	12/2013 - 07/2014	1
51442-26150	KDH211,22#	12/2013 - 07/2014	1
51442-26220	TRH211,214,221,223,224	07/2014 - 12/2999	1
51442 - COVER, ENGINE UNDER, NO.2
51442-26180	TRH211,214,221,223,224	12/2013 - 07/2014	1
51442-26150	KDH211,22#	12/2013 - 07/2014	1
51442-26220	TRH211,214,221,223,224	07/2014 - 12/2999	1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-26080	KDH211,22#,TRH211,214,221,223,224	07/2014 - 11/2017	1
51448-26030	KDH211,22#,TRH211,214,221,223,224	12/2013 - 07/2014	1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-26080	KDH211,22#,TRH211,214,221,223,224	07/2014 - 11/2017	1
51448-26030	KDH211,22#,TRH211,214,221,223,224	12/2013 - 07/2014	1
51449A - COVER, ENGINE SIDE UNDER, LH
51449-26050	GDH211,221,223,KDH211,22#	12/2013 - 05/2020	1
51044-26010	TRH211,214,221,223,224	12/2013 - 12/2999	1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51074-26010	KDH201,223;GDH201,211,221,223,KDH211,221..CBU,IV6	12/2013 - 12/2999	1
Common parts
91553-80818
91554-L1435
91635-B0820
91674-K1025
91674-L1480

(1312- )GDH211,221,223

Click highlighted areas on diagram

Part #	Description	Period	Qty
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-26360	KDH223,TRH223;GDH211,221,223,KDH211,221,TRH211,214,221,224..CBU,IV6,IV7	07/2016 - 12/2999	1
51201-26250	KDH211,22#,TRH211,214,221,223,224	12/2013 - 07/2016	1
51408B - COVER SUB-ASSY, ENGINE UNDER, RH
51408-26070	KDH211,22#,TRH211,214,221,223,224	07/2014 - 11/2017	1
51441 - COVER, ENGINE UNDER, NO.1
51441-26240	KDH223,TRH223,224;GDH211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7	12/2013 - 12/2999	1
51442 - COVER, ENGINE UNDER, NO.2
51442-26180	TRH211,214,221,223,224	12/2013 - 07/2014	1
51442-26150	KDH211,22#	12/2013 - 07/2014	1
51442-26220	TRH211,214,221,223,224	07/2014 - 12/2999	1
51442 - COVER, ENGINE UNDER, NO.2
51442-26180	TRH211,214,221,223,224	12/2013 - 07/2014	1
51442-26150	KDH211,22#	12/2013 - 07/2014	1
51442-26220	TRH211,214,221,223,224	07/2014 - 12/2999	1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-26080	KDH211,22#,TRH211,214,221,223,224	07/2014 - 11/2017	1
51448-26030	KDH211,22#,TRH211,214,221,223,224	12/2013 - 07/2014	1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-26080	KDH211,22#,TRH211,214,221,223,224	07/2014 - 11/2017	1
51448-26030	KDH211,22#,TRH211,214,221,223,224	12/2013 - 07/2014	1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-26080	KDH211,22#,TRH211,214,221,223,224	07/2014 - 11/2017	1
51448-26030	KDH211,22#,TRH211,214,221,223,224	12/2013 - 07/2014	1
51449A - COVER, ENGINE SIDE UNDER, LH
51449-26050	GDH211,221,223,KDH211,22#	12/2013 - 05/2020	1
51044-26010	TRH211,214,221,223,224	12/2013 - 12/2999	1
51449A - COVER, ENGINE SIDE UNDER, LH
51449-26050	GDH211,221,223,KDH211,22#	12/2013 - 05/2020	1
51044-26010	TRH211,214,221,223,224	12/2013 - 12/2999	1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51074-26010	KDH201,223;GDH201,211,221,223,KDH211,221..CBU,IV6	12/2013 - 12/2999	1
Common parts
91553-80818
91554-L1435
91635-B0820
91674-K1025
91674-L1480

KDH223B-LEPNY (2013)

(1312- )KDH211,22#,TRH211,214,221,223,224

(1312- )GDH211,221,223
