Toyota Hiace/regiusace KDH223 STARTER

KDH223B-LEPNY (2007)

Toyota Hiace/Regiusace

Production Sep 2007 - Dec 2013

Engine 1KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0408-1008)1KDFTV,2KDFTV..4FC

Click highlighted areas on diagram

12V 3.0KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-30050	1KDFTV..KDH20#,211,22#..4FC 寒冷地仕様	08/2010 - 12/2999	1
28011-30050	1KDFTV,2KDFTV..KDH20#,211,22#..4FC	08/2004 - 08/2010	1
28011-67030	1KDFTV..KDH20#,211,22#..4FC	08/2010 - 12/2999	1
28100 - STARTER ASSY
28100-30050	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 12V 2.7KW	08/2004 - 05/2009	1
28100-30100	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 12V 3.0KW,寒冷地仕様	08/2004 - 05/2009	1
28100-30051	1KDFTV..KDH20#,211,22#..4FC 12V 2.7KW	06/2009 - 08/2010	1
28100-30101	1KDFTV..KDH20#,211,22#..4FC 12V 3.0KW,寒冷地仕様	06/2009 - 08/2010	1
28100-30051	1KDFTV..KDH20#,211,22#..4FC 12V 2.7KW,寒冷地仕様	08/2010 - 12/2013	1
28100-67051	1KDFTV..KDH20#,211,22#..4FC 12V 2.2KW	08/2010 - 12/2013	1
28100 - STARTER ASSY
28100-30050	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 12V 2.7KW	08/2004 - 05/2009	1
28100-30100	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 12V 3.0KW,寒冷地仕様	08/2004 - 05/2009	1
28100-30051	1KDFTV..KDH20#,211,22#..4FC 12V 2.7KW	06/2009 - 08/2010	1
28100-30101	1KDFTV..KDH20#,211,22#..4FC 12V 3.0KW,寒冷地仕様	06/2009 - 08/2010	1
28100-30051	1KDFTV..KDH20#,211,22#..4FC 12V 2.7KW,寒冷地仕様	08/2010 - 12/2013	1
28100-67051	1KDFTV..KDH20#,211,22#..4FC 12V 2.2KW	08/2010 - 12/2013	1
28120 - YOKE ASSY, STARTER
28120-67020	1KDFTV,2KDFTV..KDH20#,211,22#..4FC	08/2004 - 08/2010	1
28120-64040	1KDFTV..KDH20#,211,22#..4FC	08/2010 - 12/2013	1
28120-67020	1KDFTV..KDH20#,211,22#..4FC 寒冷地仕様	08/2010 - 12/2013	1
28120-67090	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 寒冷地仕様	08/2004 - 08/2010	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-77090	1KDFTV,2KDFTV..KDH20#,211,22#..4FC	08/2004 - 08/2010	1
28140-67090	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 寒冷地仕様	08/2004 - 08/2010	1
28140-64040	1KDFTV..KDH20#,211,22#..4FC	08/2010 - 12/2013	1
28140-77090	1KDFTV..KDH20#,211,22#..4FC 寒冷地仕様	08/2010 - 12/2013	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-30050	1KDFTV,2KDFTV..KDH20#,211,22#..4FC	08/2004 - 08/2010	1
28150-30050	1KDFTV..KDH20#,211,22#..4FC 寒冷地仕様	08/2010 - 12/2013	1
28150-30070	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 寒冷地仕様	08/2004 - 08/2010	1
28150-67050	1KDFTV..KDH20#,211,22#..4FC	08/2010 - 12/2013	1
28160 - ARMATURE ASSY, STARTER
28160-54140	1KDFTV,2KDFTV..KDH20#,211,22#..4FC	08/2004 - 08/2010	1
28160-30100	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 寒冷地仕様	08/2004 - 08/2010	1
28160-64041	1KDFTV..KDH20#,211,22#..4FC	08/2010 - 12/2013	1
28160-54140	1KDFTV..KDH20#,211,22#..4FC 寒冷地仕様	08/2010 - 12/2013	1
Common parts
90105-12053
90179-10195
90179-12022

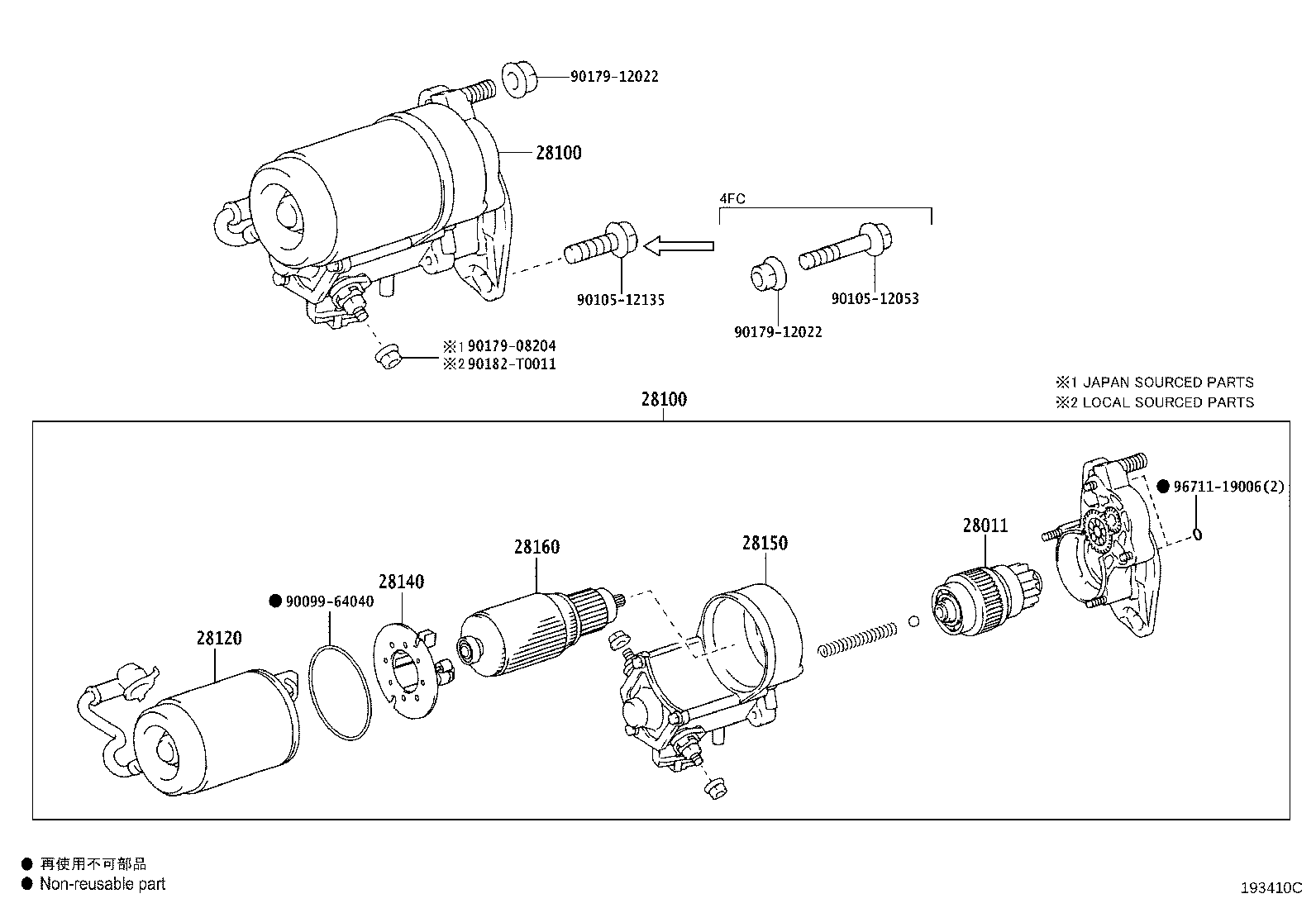

(0709- )1KDFTV..KDH20#..5F ; (1008- )1KDFTV..4FC

Click highlighted areas on diagram

12V 2.2KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-30050	1KDFTV..KDH20#,211,22#..4FC 寒冷地仕様	08/2010 - 12/2999	1
28011-30050	1KDFTV,2KDFTV..KDH20#,211,22#..4FC	08/2004 - 08/2010	1
28011-67030	1KDFTV..KDH20#,211,22#..4FC	08/2010 - 12/2999	1
28100 - STARTER ASSY
28100-30050	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 12V 2.7KW	08/2004 - 05/2009	1
28100-30100	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 12V 3.0KW,寒冷地仕様	08/2004 - 05/2009	1
28100-30051	1KDFTV..KDH20#,211,22#..4FC 12V 2.7KW	06/2009 - 08/2010	1
28100-30101	1KDFTV..KDH20#,211,22#..4FC 12V 3.0KW,寒冷地仕様	06/2009 - 08/2010	1
28100-30051	1KDFTV..KDH20#,211,22#..4FC 12V 2.7KW,寒冷地仕様	08/2010 - 12/2013	1
28100-67051	1KDFTV..KDH20#,211,22#..4FC 12V 2.2KW	08/2010 - 12/2013	1
28100 - STARTER ASSY
28100-30050	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 12V 2.7KW	08/2004 - 05/2009	1
28100-30100	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 12V 3.0KW,寒冷地仕様	08/2004 - 05/2009	1
28100-30051	1KDFTV..KDH20#,211,22#..4FC 12V 2.7KW	06/2009 - 08/2010	1
28100-30101	1KDFTV..KDH20#,211,22#..4FC 12V 3.0KW,寒冷地仕様	06/2009 - 08/2010	1
28100-30051	1KDFTV..KDH20#,211,22#..4FC 12V 2.7KW,寒冷地仕様	08/2010 - 12/2013	1
28100-67051	1KDFTV..KDH20#,211,22#..4FC 12V 2.2KW	08/2010 - 12/2013	1
28120 - YOKE ASSY, STARTER
28120-67020	1KDFTV,2KDFTV..KDH20#,211,22#..4FC	08/2004 - 08/2010	1
28120-64040	1KDFTV..KDH20#,211,22#..4FC	08/2010 - 12/2013	1
28120-67020	1KDFTV..KDH20#,211,22#..4FC 寒冷地仕様	08/2010 - 12/2013	1
28120-67090	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 寒冷地仕様	08/2004 - 08/2010	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-77090	1KDFTV,2KDFTV..KDH20#,211,22#..4FC	08/2004 - 08/2010	1
28140-67090	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 寒冷地仕様	08/2004 - 08/2010	1
28140-64040	1KDFTV..KDH20#,211,22#..4FC	08/2010 - 12/2013	1
28140-77090	1KDFTV..KDH20#,211,22#..4FC 寒冷地仕様	08/2010 - 12/2013	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-30050	1KDFTV,2KDFTV..KDH20#,211,22#..4FC	08/2004 - 08/2010	1
28150-30050	1KDFTV..KDH20#,211,22#..4FC 寒冷地仕様	08/2010 - 12/2013	1
28150-30070	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 寒冷地仕様	08/2004 - 08/2010	1
28150-67050	1KDFTV..KDH20#,211,22#..4FC	08/2010 - 12/2013	1
28160 - ARMATURE ASSY, STARTER
28160-54140	1KDFTV,2KDFTV..KDH20#,211,22#..4FC	08/2004 - 08/2010	1
28160-30100	1KDFTV,2KDFTV..KDH20#,211,22#..4FC 寒冷地仕様	08/2004 - 08/2010	1
28160-64041	1KDFTV..KDH20#,211,22#..4FC	08/2010 - 12/2013	1
28160-54140	1KDFTV..KDH20#,211,22#..4FC 寒冷地仕様	08/2010 - 12/2013	1
Common parts
90099-64040
90105-12053
90105-12135
90179-08204
90179-12022
90182-T0011
96711-19006

KDH223B-LEPNY (2007)

(0408-1008)1KDFTV,2KDFTV..4FC

(0709- )1KDFTV..KDH20#..5F ; (1008- )1KDFTV..4FC
