KDH222B-LEPDY (2005)

Toyota Hiace/Regiusace

Production Jan 2005 - Sep 2007
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408-0709)KDH20#,22# ; (0709- )KDH20#,211,22#

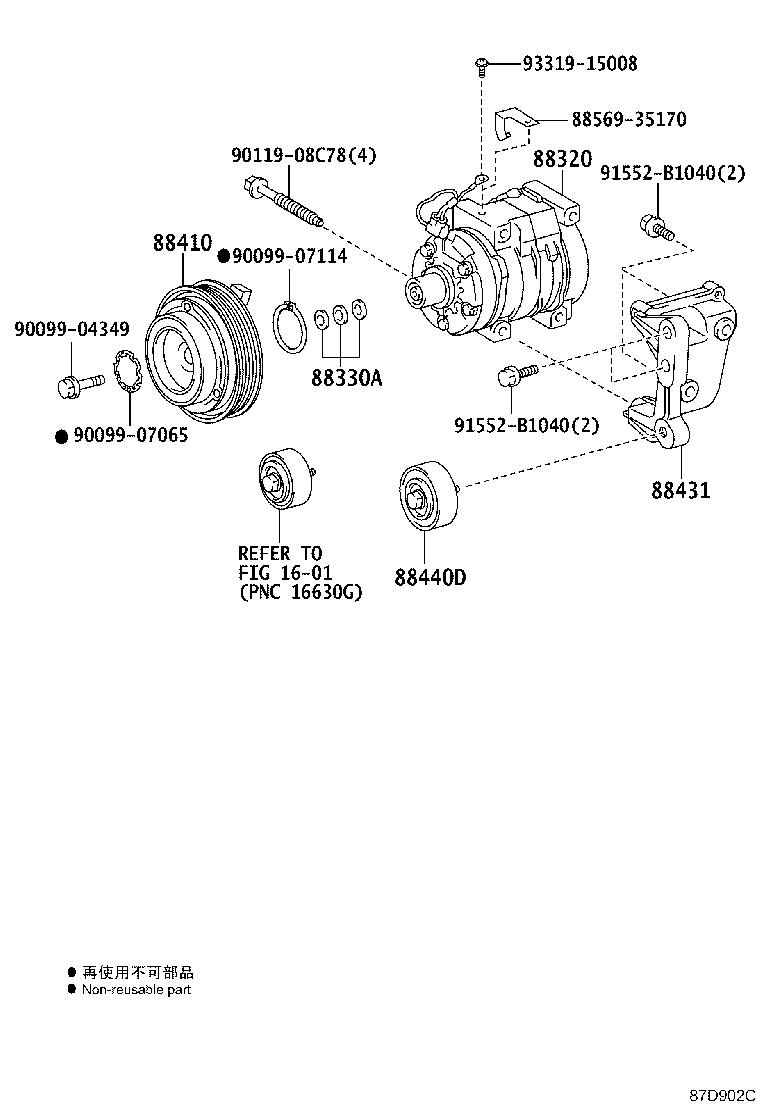

Click highlighted areas on diagram

diagram 1601 88320 88330A 88410 88431 88440D 8856935170 9009904349 9009907065 9009907114 9011908C78 91552B1040 91552B1040 9331915008
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-2F020

KDH20#..IV5;KDH20#,211,222,223,227..05S,15S

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

KDH20#,211,22#

 1
88410 - CLUTCH ASSY, MAGNET
88410-28200

KDH20#,211,22#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35250

KDH20#,211,22#

 1
88431-26430

TRH200,21#,22#

ﾌﾞｯｼｭ無し

 1
88440D - PULLEY ASSY, IDLE NO.2
88440-35120

KDH20#,211,22#

 1
Common parts
88569-35170
90099-04349
90099-07065
90099-07114
90119-08C78
91552-B1040
93319-15008
Linked diagrams
1601

(0408- )TRH200,21#,22#

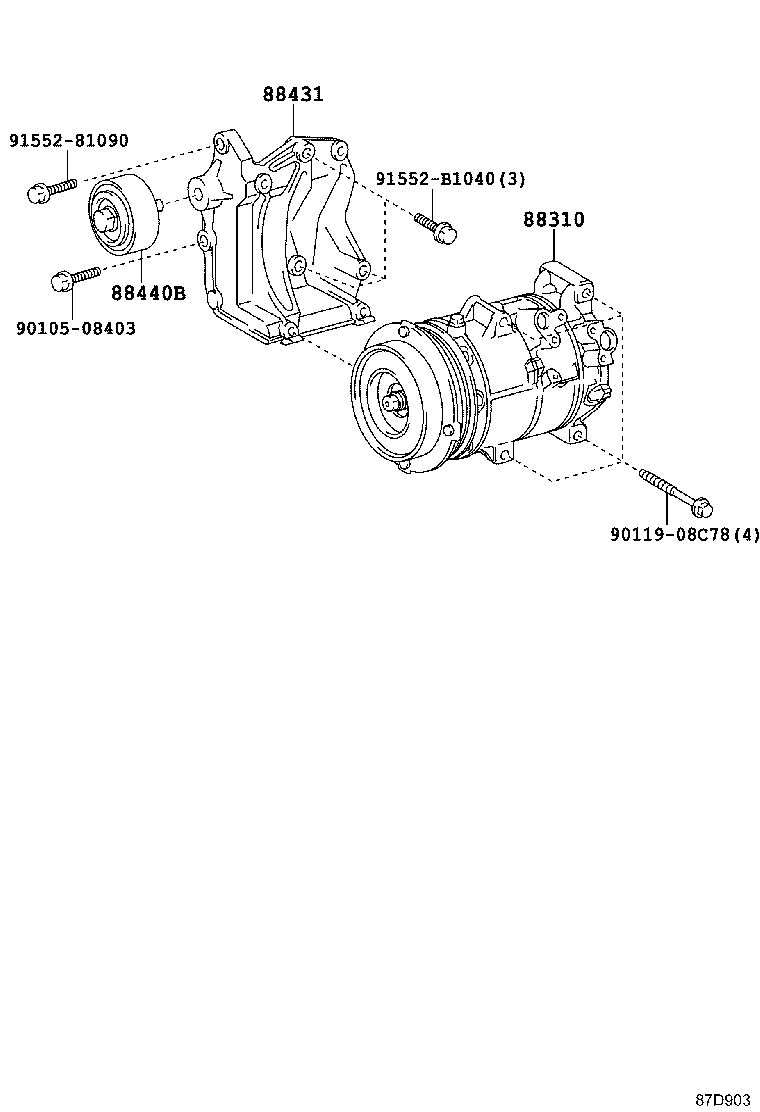

Click highlighted areas on diagram

diagram 88310 88431 88440B 9010508403 9011908C78 9155281090 91552B1040
Part # Description Qty Price
88310 - COMPRESSOR ASSY, W/PULLEY
88310-2F030

TRH200,21#,22#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35250

KDH20#,211,22#

 1
88431-26430

TRH200,21#,22#

ﾌﾞｯｼｭ無し

 1
88440B - PULLEY ASSY, IDLE
88440-25070

TRH200,21#,22#

 1
Common parts
90105-08403
90119-08C78
91552-81090
91552-B1040

(1312- )KDH20#,211,22#

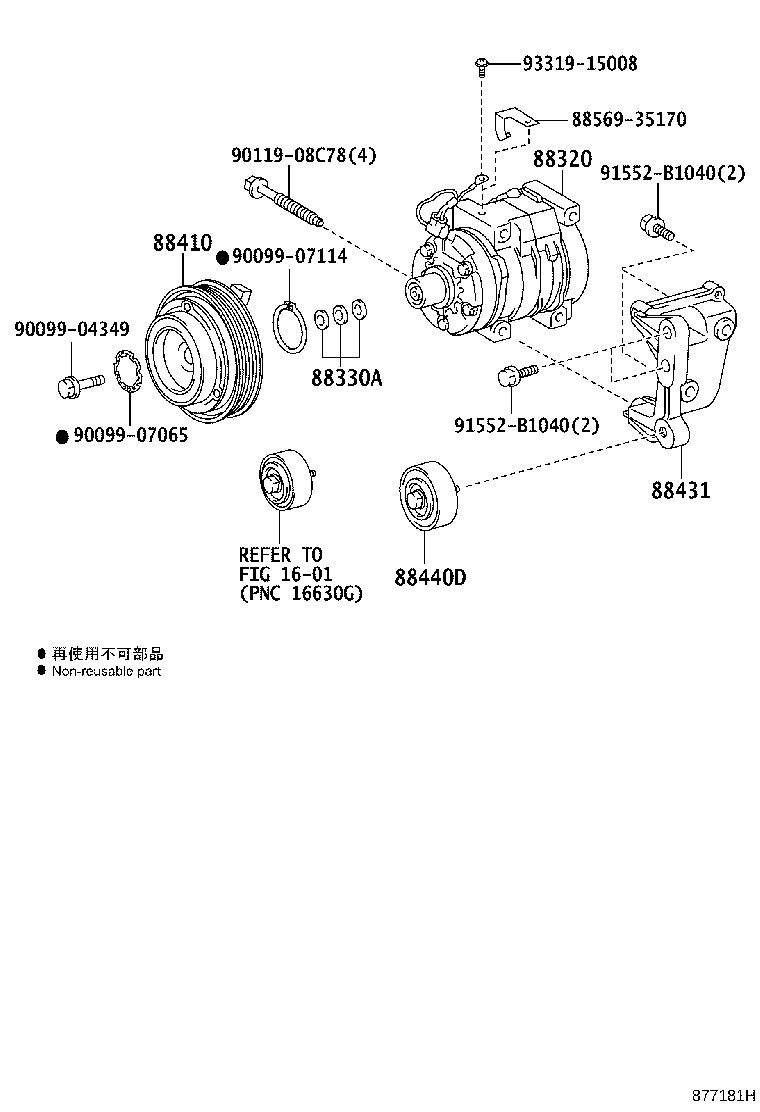

Click highlighted areas on diagram

diagram 1601 88320 88330A 88410 88431 88440D 8856935170 9009904349 9009907065 9009907114 9011908C78 91552B1040 91552B1040 9331915008
Part # Description Qty Price
Common parts
88569-35170
90099-04349
90099-07065
90099-07114
90119-08C78
91552-B1040
93319-15008
Linked diagrams
1601

(1312- )TRH200,21#,22#

Click highlighted areas on diagram

diagram 88310 88431 88440B 9010508403 9011908C78 9155281090 91552B1040
Part # Description Qty Price
Common parts
90105-08403
90119-08C78
91552-81090
91552-B1040
