Toyota Hiace/regiusace KDH222 HEATING & AIR CONDITIONING - WATER PIPING

Manufacturers Home
Toyota
JP
HIACE/REGIUSACE
KDH222B-LEPDY (2005)
8716 - HEATING & AIR CONDITIONING - WATER PIPING

KDH222B-LEPDY (2005)

Toyota Hiace/Regiusace

Production Jan 2005 - Sep 2007

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0501-0610)KDH22#

Click highlighted areas on diagram

ﾌﾛﾝﾄ:ﾘﾔﾋｰﾀｰﾂｷ

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-26B20	KDH211,22#,TRH21#,22#	08/2004 - 12/2013	1
87245B - HOSE, HEATER WATER, INLET B
87245-26C00	KDH201,206..DX..CBU;KDH200,205,220,221,222,225,227	08/2004 - 12/2013	1
87245-26B80	TRH21#,22#	08/2004 - 12/2013	1
87245C - HOSE, HEATER WATER ,INLET C
99556-20300	KDH200,205..IV5;KDH200,205,222,227..05S,15S *H,L=210	08/2004 - 12/2013	1
87245D - HOSE, HEATER WATER, INLET D
99556-20200	KDH200,205..IV5;KDH200,205,222,227..05S,15S *H,L=60	08/2004 - 12/2013	1
87245E - HOSE, HEATER WATER, INLET E
87245-26B60	TRH200,21#,22#	08/2004 - 12/2013	1
87245-26C10	KDH201,206..DX..CBU;KDH200,205,220,221,222,225,227	08/2004 - 12/2013	1
87245H - HOSE, HEATER WATER, INLET H
99556-30100	KDH200,205..IV5;KDH200,205,222,227..05S,15S	08/2004 - 12/2013	1
87246 - HOSE, HEATER WATER, OUTLET
87245-26B30	KDH211,22#,TRH21#,22#	08/2004 - 12/2013	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26C20	KDH200,205..IV5;KDH200,205,222,227..05S,15S	08/2004 - 12/2013	1
87245-26B90	TRH21#,22#	08/2004 - 12/2013	1
87246C - HOSE, HEATER WATER, OUTLET C
99556-20300	KDH200,205..IV5;KDH200,205,222,227..05S,15S *H,L=210	08/2004 - 12/2013	1
87246D - HOSE, HEATER WATER, OUTLET D
87245-26C50	KDH200,205..IV5;KDH200,205,222,227..05S,15S	08/2004 - 12/2013	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26B70	TRH200,21#,22#	08/2004 - 12/2013	1
87245-26C30	KDH200,205..IV5;KDH200,205,222,227..05S,15S	08/2004 - 12/2013	1
87248A - PIPE, HEATER WATER INLET, A
87248-26440	KDH211,22#,TRH21#,22#	08/2004 - 12/2013	1
87248B - PIPE, HEATER WATER INLET, B
87248-26580	KDH222,227	01/2005 - 10/2006	1
87248C - PIPE, HEATER WATER INLET, C
87248-26540	KDH200,205..IV5;KDH200,205,222,227..05S,15S	08/2004 - 12/2013	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26450	KDH211,22#,TRH21#,22#	08/2004 - 12/2013	1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26590	KDH222,227	01/2005 - 10/2006	1
87249C - PIPE, HEATER WATER OUTLET, C
87248-60460	KDH20#..IV5;KDH20#,211,222,223,227..05S,15S	08/2004 - 07/2011	2
87249C - PIPE, HEATER WATER OUTLET, C
87248-60460	KDH20#..IV5;KDH20#,211,222,223,227..05S,15S	08/2004 - 07/2011	2
Common parts
87121-26100
87121-26110
87121-26120
87124-26450
87124-26460
87124-26520
90467-19022
91553-80814
96134-42100
96136-42501
Linked diagrams
1603
8714

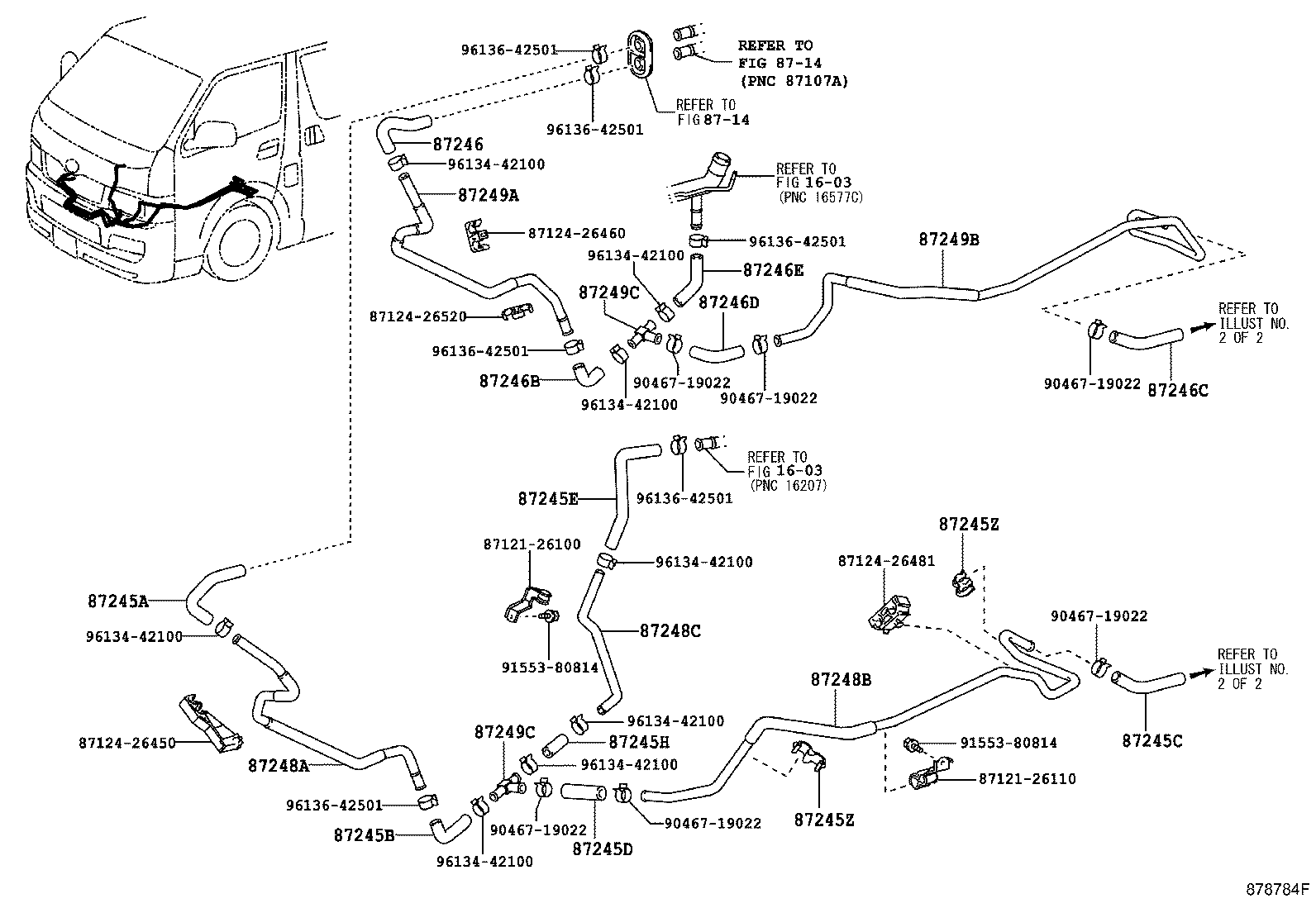

ILLUST NO. 1 OF 2(0610-0709)KDH22# ; (0709- )KDH211,22#

Click highlighted areas on diagram

ﾌﾛﾝﾄ:ﾘﾔﾋｰﾀｰﾂｷ

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-26B20	KDH211,22#,TRH21#,22#	08/2004 - 12/2013	1
87245B - HOSE, HEATER WATER, INLET B
87245-26C00	KDH201,206..DX..CBU;KDH200,205,220,221,222,225,227	08/2004 - 12/2013	1
87245-26B80	TRH21#,22#	08/2004 - 12/2013	1
87245C - HOSE, HEATER WATER ,INLET C
99556-20300	KDH200,205..IV5;KDH200,205,222,227..05S,15S *H,L=210	08/2004 - 12/2013	1
87245D - HOSE, HEATER WATER, INLET D
99556-20200	KDH200,205..IV5;KDH200,205,222,227..05S,15S *H,L=60	08/2004 - 12/2013	1
87245E - HOSE, HEATER WATER, INLET E
87245-26B60	TRH200,21#,22#	08/2004 - 12/2013	1
87245-26C10	KDH201,206..DX..CBU;KDH200,205,220,221,222,225,227	08/2004 - 12/2013	1
87245H - HOSE, HEATER WATER, INLET H
99556-30100	KDH200,205..IV5;KDH200,205,222,227..05S,15S	08/2004 - 12/2013	1
87246 - HOSE, HEATER WATER, OUTLET
87245-26B30	KDH211,22#,TRH21#,22#	08/2004 - 12/2013	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26C20	KDH200,205..IV5;KDH200,205,222,227..05S,15S	08/2004 - 12/2013	1
87245-26B90	TRH21#,22#	08/2004 - 12/2013	1
87246C - HOSE, HEATER WATER, OUTLET C
99556-20300	KDH200,205..IV5;KDH200,205,222,227..05S,15S *H,L=210	08/2004 - 12/2013	1
87246D - HOSE, HEATER WATER, OUTLET D
87245-26C50	KDH200,205..IV5;KDH200,205,222,227..05S,15S	08/2004 - 12/2013	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26B70	TRH200,21#,22#	08/2004 - 12/2013	1
87245-26C30	KDH200,205..IV5;KDH200,205,222,227..05S,15S	08/2004 - 12/2013	1
87248A - PIPE, HEATER WATER INLET, A
87248-26440	KDH211,22#,TRH21#,22#	08/2004 - 12/2013	1
87248B - PIPE, HEATER WATER INLET, B
87248-26580	KDH222,227	01/2005 - 10/2006	1
87248C - PIPE, HEATER WATER INLET, C
87248-26540	KDH200,205..IV5;KDH200,205,222,227..05S,15S	08/2004 - 12/2013	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26450	KDH211,22#,TRH21#,22#	08/2004 - 12/2013	1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26590	KDH222,227	01/2005 - 10/2006	1
87249C - PIPE, HEATER WATER OUTLET, C
87248-60460	KDH20#..IV5;KDH20#,211,222,223,227..05S,15S	08/2004 - 07/2011	2
87249C - PIPE, HEATER WATER OUTLET, C
87248-60460	KDH20#..IV5;KDH20#,211,222,223,227..05S,15S	08/2004 - 07/2011	2
Common parts
87121-26100
87121-26110
87124-26450
87124-26460
87124-26481
87124-26520
90467-19022
91553-80814
96134-42100
96136-42501
Linked diagrams
1603
8714

(1312-1712)TRH21#,22#..4FC ; (1501-1712)TRH21#,22#

Click highlighted areas on diagram

ﾌﾛﾝﾄ:ﾘﾔﾋｰﾀｰﾂｷ

Part #	Description	Period	Qty	Price
Common parts
87121-26080
87121-26090
87124-25110
87124-26450
87124-26460
87124-26520
87124-47030
90467-19022
91553-80814
96134-42100
96136-42501
Linked diagrams
1104
1603
8714

(1312- )KDH211,22#

Click highlighted areas on diagram

ﾌﾛﾝﾄ:ﾘﾔﾋｰﾀｰﾂｷ

Part #	Description	Period	Qty	Price
Common parts
87121-26100
87121-26110
87124-26450
87124-26460
87124-26481
87124-26520
87124-26590
90467-19022
91553-80814
96134-42100
96136-42501
Linked diagrams
1603
8714
