KDH222B-LEPDY (2005)

Toyota Hiace/Regiusace

Production Jan 2005 - Sep 2007
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )

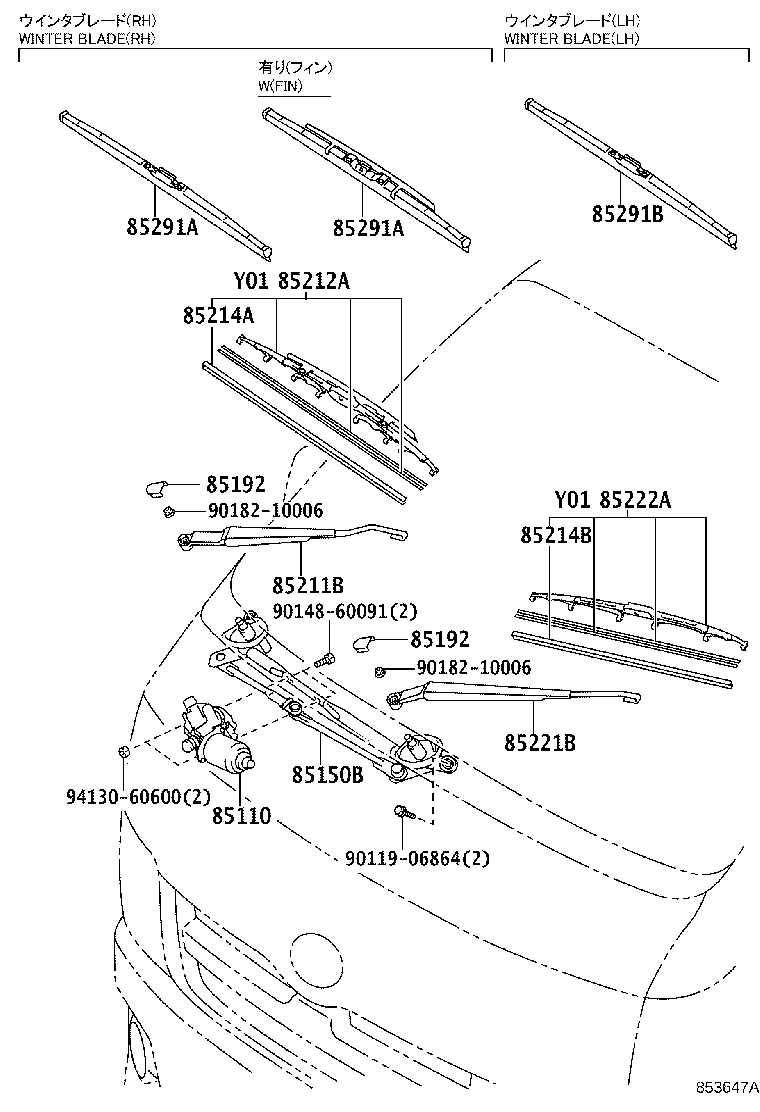

Click highlighted areas on diagram

diagram 85110 85150B 85192 85192 85211B 85212A 85214A 85214B 85221B 85222A 85291A 85291A 85291B 9011906864 9014860091 9018210006 9018210006 9413060600
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-52270

KDH211,22#,TRH21#,22#

 1
85110-26220

KDH211,22#,TRH21#,22#

寒冷地仕様

 1
85150B - LINK ASSY, WIPER
85150-26150

KDH211,22#,TRH21#,22#

 1
85192 - COVER, WINDSHIELD WIPER ARM
85292-13010

KDH20#,211,22#,TRH200,21#,22#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85292-13010

KDH20#,211,22#,TRH200,21#,22#

 2
85211B - ARM, FRONT WIPER, RH
85211-26100

KDH211,22#,TRH21#,22#

 1
85212A - BLADE, FR WIPER, RH
85212-26130

KDH211,22#,TRH21#,22#

 1
85214A - RUBBER, WIPER, RH
85214-48010

KDH211,22#,TRH21#,22#

 1
85214B - RUBBER, WIPER, LH
85214-48010

KDH211,22#,TRH21#,22#

 1
85221B - ARM, FRONT WIPER, LH
85221-26090

KDH211,22#,TRH21#,22#

 1
85222A - BLADE, FR WIPER, LH
85212-26130

KDH211,22#,TRH21#,22#

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-22100

KDH211,22#,TRH21#,22#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ)

 1
85291-22090

KDH211,22#,TRH21#,22#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-22100

KDH211,22#,TRH21#,22#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ)

 1
85291-22090

KDH211,22#,TRH21#,22#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-22090

KDH211,22#,TRH21#,22#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
Common parts
90119-06864
90148-60091
90182-10006
94130-60600

(1312- )

Click highlighted areas on diagram

diagram 85110 85150B 85192 85192 85211B 85212A 85214A 85214B 85221B 85222A 85291A 85291A 85291B 9011906864 9014860091 9018210006 9018210006 90182T0029 90182T0029 9413060600
Part # Description Qty Price
Common parts
90119-06864
90148-60091
90182-10006
90182-T0029
94130-60600
