Toyota Hiace/regiusace KDH222 REAR COMBINATION LAMP

KDH222B-LEPDY (2005)

Toyota Hiace/Regiusace

Production Jan 2005 - Sep 2007

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0408-0510)

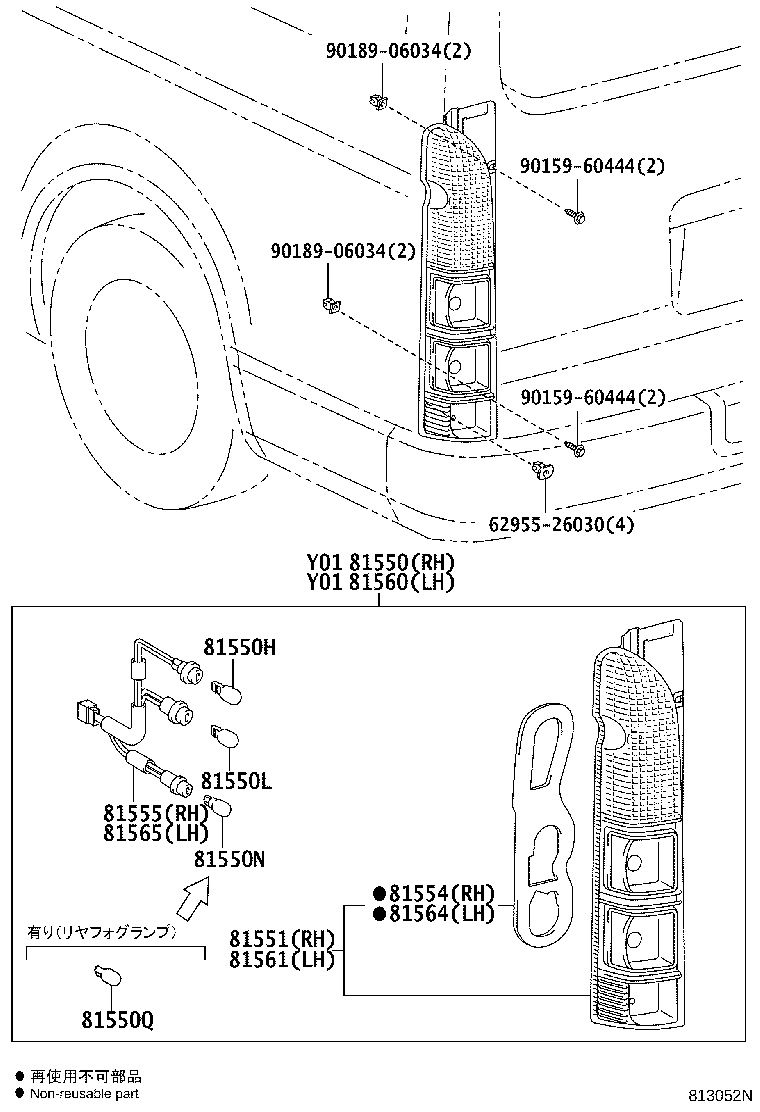

Click highlighted areas on diagram

Part #	Description	Period	Qty
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-26200	KDH20#,22#,TRH200,21#,22#	08/2004 - 11/2006	1
81550-26420	KDH222,223,227,TRH214,219,223,224,228,229 寒冷地仕様	08/2004 - 12/2013	1
81550H - BULB, TAIL & STOP LAMP
90981-13044	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15011	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	2
81550N - BULB, BACK UP LAMP
90981-11059	KDH222,223,227,TRH214,219,223,224,228,229 寒冷地仕様	08/2004 - 12/2013	1
90981-11059	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	2
81550Q - BULB, REAR FOG LAMP, NO.1
90981-13043	KDH222,223,227,TRH214,219,223,224,228,229 12V 21W,寒冷地仕様	08/2004 - 12/2013	1
81551 - LENS, REAR COMBINATION LAMP, RH
81551-26420	KDH222,223,227,TRH214,219,223,224,228,229 寒冷地仕様	08/2004 - 12/2013	1
81551-26200	KDH20#,22#,TRH200,21#,22#	08/2004 - 12/2006	1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81552-26200	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-26200	KDH20#,22#,TRH200,21#,22#	08/2004 - 09/2005	1
81555-26420	KDH222,227,TRH21#,223,224,228,229 寒冷地仕様	08/2004 - 10/2005	1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-26200	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-26200	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81562-26200	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-26200	KDH20#,22#,TRH200,21#,22#	08/2004 - 09/2005	1
Common parts
62955-26030
90159-60444
90189-06034

(0510- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-26200	KDH20#,22#,TRH200,21#,22#	08/2004 - 11/2006	1
81550-26420	KDH222,223,227,TRH214,219,223,224,228,229 寒冷地仕様	08/2004 - 12/2013	1
81550H - BULB, TAIL & STOP LAMP
90981-13044	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15011	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	2
81550N - BULB, BACK UP LAMP
90981-11059	KDH222,223,227,TRH214,219,223,224,228,229 寒冷地仕様	08/2004 - 12/2013	1
90981-11059	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	2
81550Q - BULB, REAR FOG LAMP, NO.1
90981-13043	KDH222,223,227,TRH214,219,223,224,228,229 12V 21W,寒冷地仕様	08/2004 - 12/2013	1
81551 - LENS, REAR COMBINATION LAMP, RH
81551-26420	KDH222,223,227,TRH214,219,223,224,228,229 寒冷地仕様	08/2004 - 12/2013	1
81551-26200	KDH20#,22#,TRH200,21#,22#	08/2004 - 12/2006	1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81552-26200	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-26200	KDH20#,22#,TRH200,21#,22#	08/2004 - 09/2005	1
81555-26420	KDH222,227,TRH21#,223,224,228,229 寒冷地仕様	08/2004 - 10/2005	1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-26200	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-26200	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81562-26200	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-26200	KDH20#,22#,TRH200,21#,22#	08/2004 - 09/2005	1
Common parts
62955-26030
90159-60444
90189-06034

(1312- )

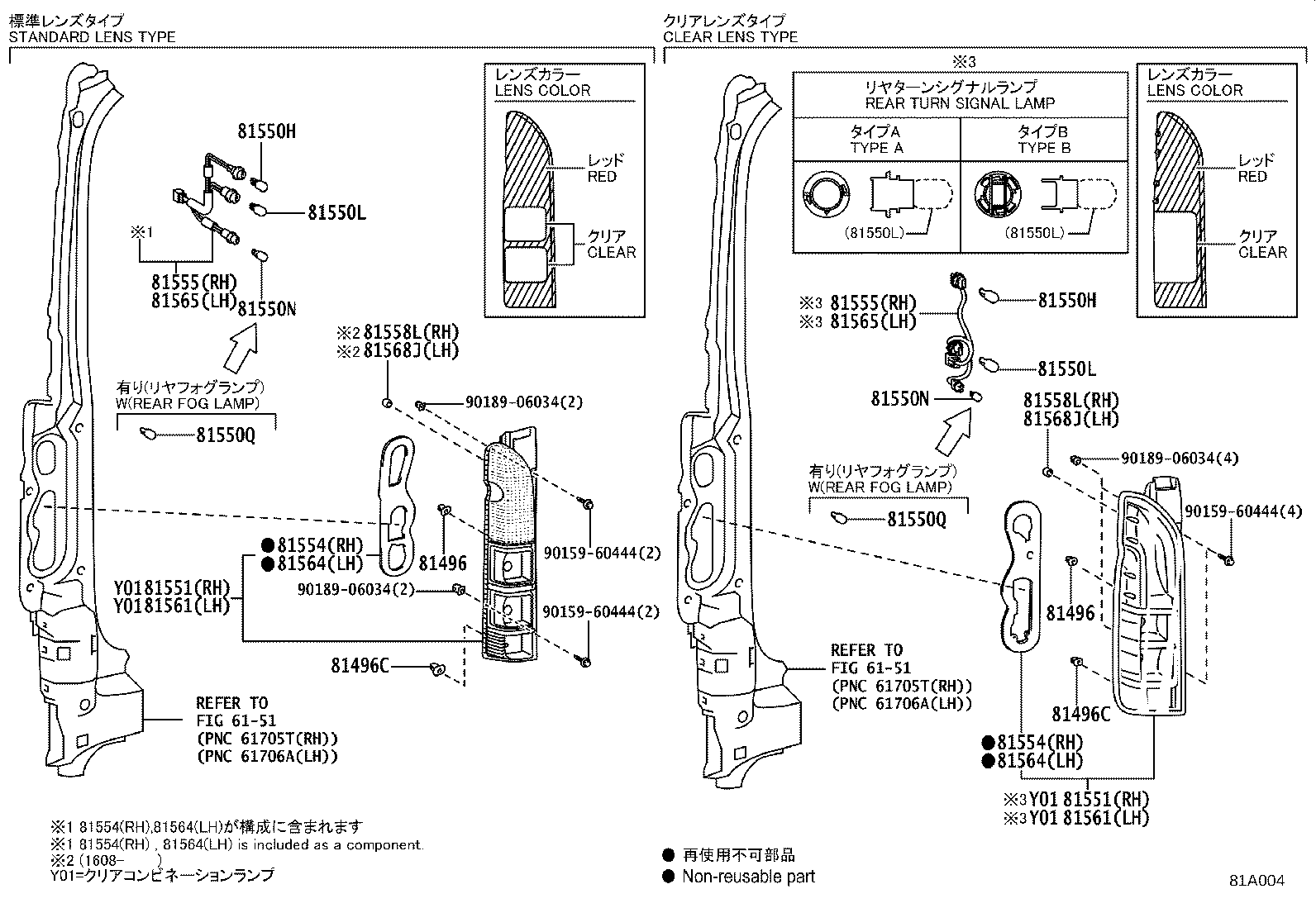

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90159-60444
90189-06034
Linked diagrams
6151

KDH222B-LEPDY (2005)

(0408-0510)

(0510- )

(1312- )
