KDH222B-LEPDY (2005)
Toyota Hiace/Regiusace
(0408- )03S,06S,09S,10S,15S..DX
ｳﾝﾃﾝｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-26A50B2 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71027-26040B3 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-26010 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90467-08188 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX |
2 | ||
| 90467-08188 |
KDH222,227,TRH223,228..DX 幼児ﾊﾞｽ |
4 | ||
| 90467-08188 |
KDH222,227,TRH223,228..DX 幼児ﾊﾞｽ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側) |
4 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-26170 |
TRH224,229..CBU;KDH20#,211,22#,TRH200,21#,221,223,226,228 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-26270 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-26010 |
KDH222,227,TRH223,228..DX 幼児ﾊﾞｽ |
1 | ||
| 71848-26010 |
KDH222,227,TRH223,228..DX 幼児ﾊﾞｽ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側) |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-26010B0 |
KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-26010B0 |
KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26010B0 |
KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26020B0 |
KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26010B0 |
KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26030B0 |
KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1# |
1 | ||
| 72249 - GUIDE, SEAT TRACK LOCKING | ||||
| 72249-26030 |
KDH20#,220,221,222,225,227,TRH200,221,226..(03S,06S,09S,15S)..DX |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-26080B0 |
KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10949 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(0408-0512)03S,06S,09S,15S..DX
ｼﾞｮｼｭｾｷ-2ﾆﾝｶﾞｹ ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58801D - BOX ASSY, CONSOLE | ||||
| 58801-26100B0 |
KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1# |
1 | ||
| 58839C - COVER, FRONT SEAT BACK CONTROL PANEL HOLE | ||||
| 58839-26050B0 |
KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#,NO.2 |
1 | ||
| 58839-26040B0 |
KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#,NO.1 |
1 | ||
| 58839C - COVER, FRONT SEAT BACK CONTROL PANEL HOLE | ||||
| 58839-26050B0 |
KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#,NO.2 |
1 | ||
| 58839-26040B0 |
KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#,NO.1 |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-26170 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX |
1 | ||
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71095-26200B3 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-26700B2 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1# |
1 | ||
| 71072-26850B0 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 70169-26080B2 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1# |
1 | ||
| 71149C - COVER, FRONT SEAT LEG, LH (FOR LH SEAT) | ||||
| 71148-26010 |
KDH20#,220,221,222,225,227,TRH200,221,226..(03S,06S,09S,15S)..DX |
1 | ||
| 71365S - PAD, CENTER SEAT BACK | ||||
| 71033-26020 |
KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S |
1 | ||
| 71389 - SPACER, CENTER SEAT HINGE | ||||
| 71389-26020 |
KDH20#,220,221,222,225,227,TRH200,221,226..03S,06S,09S,15S |
2 | ||
| 71389 - SPACER, CENTER SEAT HINGE | ||||
| 71389-26020 |
KDH20#,220,221,222,225,227,TRH200,221,226..03S,06S,09S,15S |
2 | ||
| 71395B - COVER, CENTER SEAT HINGE, RH | ||||
| 71395-26030B0 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1# |
1 | ||
| 71396B - COVER, CENTER SEAT HINGE, LH | ||||
| 71396-26010B0 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1# |
1 | ||
| 71398H - COVER, CENTER SEAT HINGE, UPPER LH | ||||
| 71398-26010B0 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-26040 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側) |
1 | ||
| 71502-26080 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-26300 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX |
1 | ||
| 71788B - WASHER, FRONT SEAT BACK BOARD SETTING | ||||
| 71788-26010 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX |
1 | ||
| 71788-26010 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側) |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-26020B0 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26030B0 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26030B0 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26020B0 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-26090 |
KDH200,205,220,221,222,225,227,TRH221,226..(03S,06S,09S,15S)..DX |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-26010B0 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1# |
1 | ||
| 72526-26020B0 |
KDH222,227,TRH223,228..DX 幼児ﾊﾞｽ,GRAY,TRIM1# |
1 | ||
| 72526-26020B0 |
KDH222,227,TRH223,228..DX 幼児ﾊﾞｽ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),GRAY,TRIM1# |
1 | ||
| 72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-26030B0 |
KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#,ﾌﾛﾝﾄ ｼｰﾄ |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 90339-10001P8 |
KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1# |
2 | ||
| 72881 - SUPPORT, REAR SEAT CENTER ARMREST, RH | ||||
| 72881-26020 |
KDH20#,220,221,222,225,227,TRH200,221,226..03S,06S,09S,15S |
1 | ||
| 72881A - SUPPORT, REAR SEAT CENTER ARMREST, LH | ||||
| 72881-26010 |
KDH20#,220,221,222,225,227,TRH200,221,226..03S,06S,09S,15S |
1 | ||
| 78631 - TABLE, FRONT SEAT SIDE | ||||
| 78061-26030B0 |
KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-26100 | ||||
| 72702-26110 | ||||
| 72702-26120 | ||||
| 78899-52030 | ||||
| 90105-10261 | ||||
| 90119-10949 | ||||
| 90159-40082 | ||||
| 90386-12036 | ||||
| 93249-14008 | ||||
| 93249-54006 | ||||
| 93269-54016 | ||||
| C9916-40001 | ||||

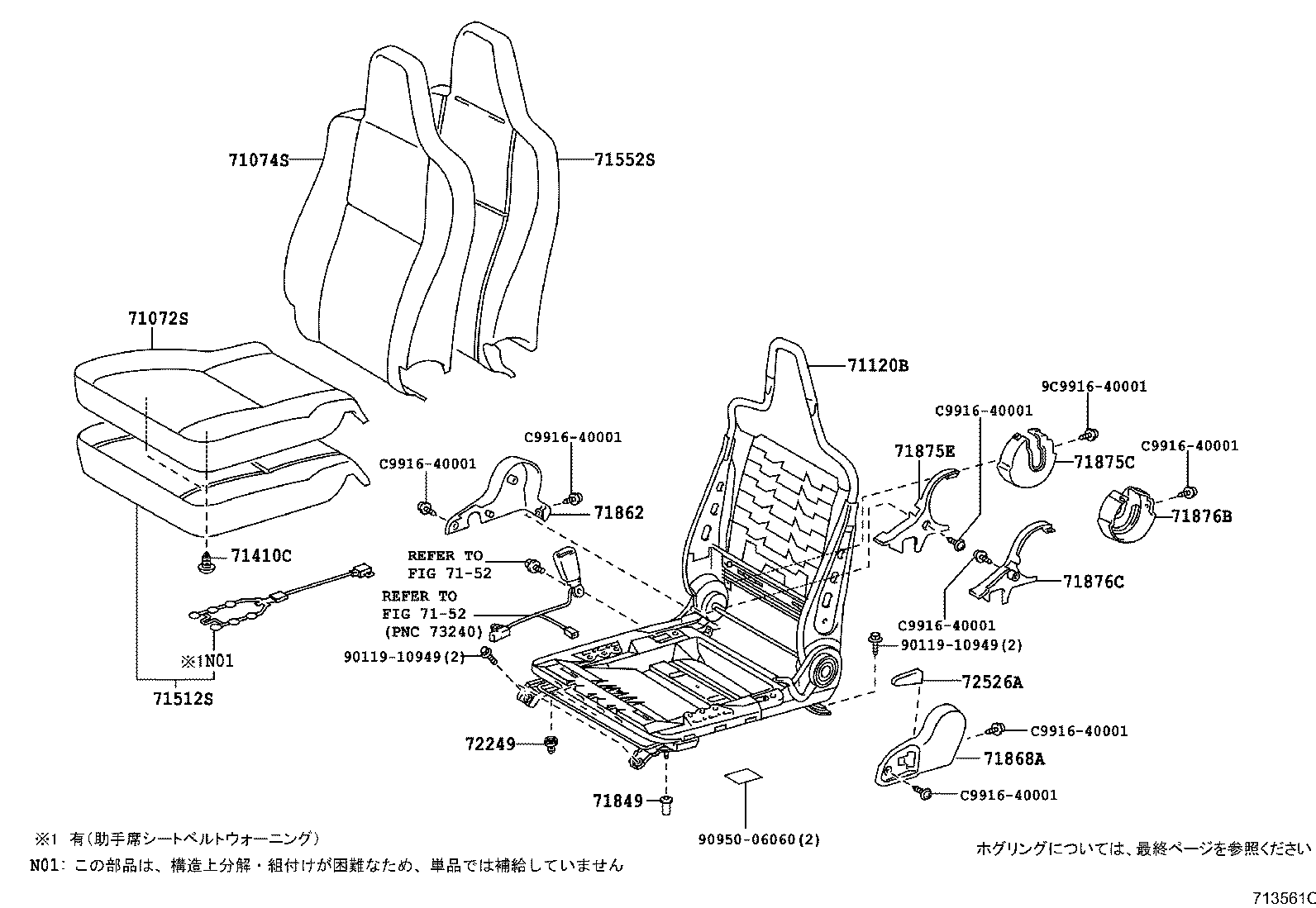

(0408- )KDH222,223,227,TRH214,219,223,228..DX
ｼﾞｮｼｭｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-26700B2 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1# |
1 | ||
| 71072-26850B0 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 70169-26080B2 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1# |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90467-08188 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX |
2 | ||
| 90467-08188 |
KDH222,227,TRH223,228..DX 幼児ﾊﾞｽ |
4 | ||
| 90467-08188 |
KDH222,227,TRH223,228..DX 幼児ﾊﾞｽ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側) |
4 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-26040 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側) |
1 | ||
| 71502-26080 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-26300 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-26020B0 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26030B0 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26030B0 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26020B0 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1# |
1 | ||
| 72249 - GUIDE, SEAT TRACK LOCKING | ||||
| 72249-26030 |
KDH20#,220,221,222,225,227,TRH200,221,226..(03S,06S,09S,15S)..DX |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-26010B0 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1# |
1 | ||
| 72526-26020B0 |
KDH222,227,TRH223,228..DX 幼児ﾊﾞｽ,GRAY,TRIM1# |
1 | ||
| 72526-26020B0 |
KDH222,227,TRH223,228..DX 幼児ﾊﾞｽ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10949 | ||||
| 90950-06060 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(0512- )03S,06S,09S,15S..DX
ｼﾞｮｼｭｾｷ-2ﾆﾝｶﾞｹ ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58801D - BOX ASSY, CONSOLE | ||||
| 58801-26100B0 |
KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1# |
1 | ||
| 58839C - COVER, FRONT SEAT BACK CONTROL PANEL HOLE | ||||
| 58839-26050B0 |
KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#,NO.2 |
1 | ||
| 58839-26040B0 |
KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#,NO.1 |
1 | ||
| 58839C - COVER, FRONT SEAT BACK CONTROL PANEL HOLE | ||||
| 58839-26050B0 |
KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#,NO.2 |
1 | ||
| 58839-26040B0 |
KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#,NO.1 |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-26170 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX |
1 | ||
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71095-26200B3 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-26700B2 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1# |
1 | ||
| 71072-26850B0 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 70169-26080B2 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1# |
1 | ||
| 71149C - COVER, FRONT SEAT LEG, LH (FOR LH SEAT) | ||||
| 71148-26010 |
KDH20#,220,221,222,225,227,TRH200,221,226..(03S,06S,09S,15S)..DX |
1 | ||
| 71365S - PAD, CENTER SEAT BACK | ||||
| 71033-26020 |
KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S |
1 | ||
| 71389 - SPACER, CENTER SEAT HINGE | ||||
| 71389-26020 |
KDH20#,220,221,222,225,227,TRH200,221,226..03S,06S,09S,15S |
2 | ||
| 71389 - SPACER, CENTER SEAT HINGE | ||||
| 71389-26020 |
KDH20#,220,221,222,225,227,TRH200,221,226..03S,06S,09S,15S |
2 | ||
| 71395B - COVER, CENTER SEAT HINGE, RH | ||||
| 71395-26030B0 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1# |
1 | ||
| 71396B - COVER, CENTER SEAT HINGE, LH | ||||
| 71396-26010B0 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1# |
1 | ||
| 71398H - COVER, CENTER SEAT HINGE, UPPER LH | ||||
| 71398-26010B0 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-26040 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側) |
1 | ||
| 71502-26080 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-26300 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX |
1 | ||
| 71788B - WASHER, FRONT SEAT BACK BOARD SETTING | ||||
| 71788-26010 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX |
1 | ||
| 71788-26010 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側) |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-26020B0 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-26030B0 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-26030B0 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-26020B0 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-26090 |
KDH200,205,220,221,222,225,227,TRH221,226..(03S,06S,09S,15S)..DX |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-26010B0 |
KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1# |
1 | ||
| 72526-26020B0 |
KDH222,227,TRH223,228..DX 幼児ﾊﾞｽ,GRAY,TRIM1# |
1 | ||
| 72526-26020B0 |
KDH222,227,TRH223,228..DX 幼児ﾊﾞｽ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),GRAY,TRIM1# |
1 | ||
| 72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-26030B0 |
KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#,ﾌﾛﾝﾄ ｼｰﾄ |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 90339-10001P8 |
KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1# |
2 | ||
| 72881 - SUPPORT, REAR SEAT CENTER ARMREST, RH | ||||
| 72881-26020 |
KDH20#,220,221,222,225,227,TRH200,221,226..03S,06S,09S,15S |
1 | ||
| 72881A - SUPPORT, REAR SEAT CENTER ARMREST, LH | ||||
| 72881-26010 |
KDH20#,220,221,222,225,227,TRH200,221,226..03S,06S,09S,15S |
1 | ||
| 78631 - TABLE, FRONT SEAT SIDE | ||||
| 78061-26030B0 |
KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-26100 | ||||
| 72702-26110 | ||||
| 72702-26120 | ||||
| 78899-52030 | ||||
| 90105-10261 | ||||
| 90119-10949 | ||||
| 90159-40082 | ||||
| 90386-12036 | ||||
| 93249-14008 | ||||
| 93249-54006 | ||||
| 93269-54016 | ||||
| 93560-54012 | ||||
| C9916-40001 | ||||
(0408- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
