KDH222B-LEPDY (2005)

Toyota Hiace/Regiusace

Production Jan 2005 - Sep 2007
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )KDH222,223,227,TRH223,228..DX

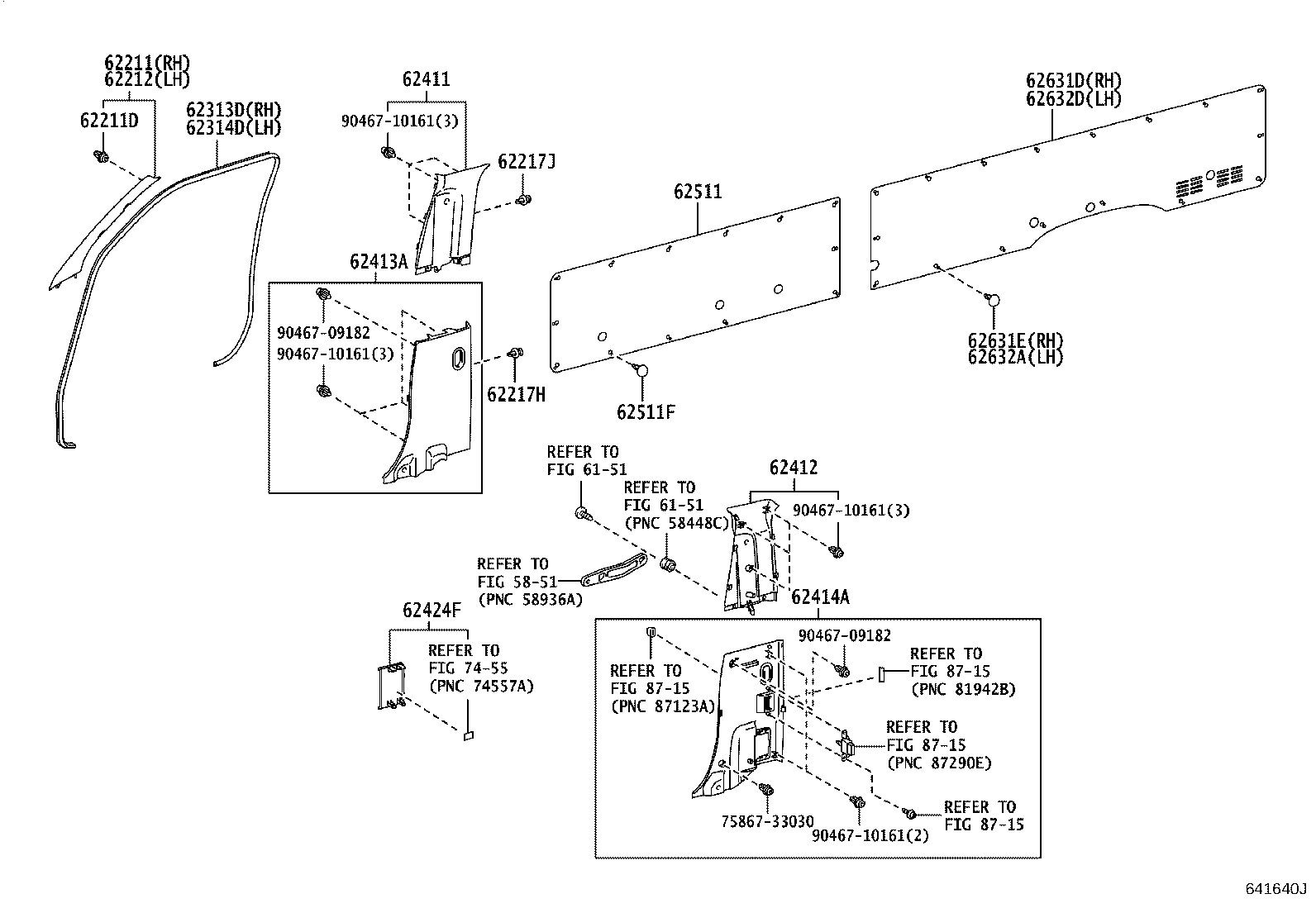

Click highlighted areas on diagram

diagram 5851 6151 6151 62211 62211D 62212 62217H 62217J 62313D 62314D 62411 62412 62413A 62414A 62424F 62511 62511F 62631D 62631E 62632A 62632D 7455 7586733030 8715 8715 8715 8715 9046709182 9046709182 9046710161 9046710161 9046710161 9046710161
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62210-26050B0

TRH224,229..IV5;KDH20#,TRH200..SGL;KDH20#,22#,TRH200,21#,221,223,226,228..HRF,SMRF

LT.GRAY,TRIM1#

 1
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90467-10161

KDH20#,TRH200..SGL;KDH20#,211,22#,TRH200,21#,22#..HRF,SHRF,SMRF

 2
62212 - GARNISH, FRONT PILLAR, LH
62220-26030B0

TRH224,229..IV5;KDH20#,TRH200..SGL;KDH20#,22#,TRH200,21#,221,223,226,228..HRF,SMRF

LT.GRAY,TRIM1#

 1
62217H - CLIP, CENTER PILLER GARNISH
62489-26010B1

KDH222,223,227,TRH214,219,221,223,226,228..(02S,10S,15S)..DX

GRAY,TRIM12

 1
62489-26010B0

KDH222,227,TRH223,228..DX

LT.GRAY,TRIM12

 1
62217J - CLIP, CENTER PILLER GARNISH
62489-26010B0

KDH222,227,TRH223,228..DX

LT.GRAY,TRIM12

 1
62489-26010B1

KDH222,223,227,TRH214,219,221,223,226,228..(02S,10S,15S)..DX

GRAY,TRIM12

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-26010C0

TRH214,219..DX;KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S

BLACK,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62314-26010C0

TRH214,219..DX;KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S

BLACK,TRIM1#

 1
62411 - GARNISH, CENTER PILLAR, RH
62410-26050B0

KDH222,223,227,TRH214,219,221,223,226,228..(02S,10S,15S)..DX

LT.GRAY,TRIM1#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-26180B1

KDH222,223,227,TRH214,219,223,228..DX

幼児ﾊﾞｽ,GRAY,TRIM1#

 1
62413-26190B1

KDH222,227,TRH214,219,221,223,226,228..(02S,10S,15S)..DX

GRAY,TRIM1#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-26340B1

TRH214,219..DX;KDH222,227..CBU

GRAY,TRIM1#

 1
62414-26330B1

KDH222,227,TRH214,219,223,228..DX

幼児ﾊﾞｽ,GRAY,TRIM1#

 1
62424F - COVER, CENTER PILLAR GARNISH, LOWER LH
62424-26030B1

KDH20#,211,22#,TRH200,21#,22#

GRAY,TRIM1#

 1
62511F - RETAINER (FOR QUARTER INSIDE TRIM BOARD)
75867-33030

KDH222,223,227,TRH214,219,223,228..DX

 14
Common parts
75867-33030
90467-09182
90467-10161
Linked diagrams
5851
6151
7455
8715
