Toyota Hiace/regiusace KDH222 SIDE MEMBER

KDH222B-LEPDY (2005)

Toyota Hiace/Regiusace

Production Jan 2005 - Sep 2007

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

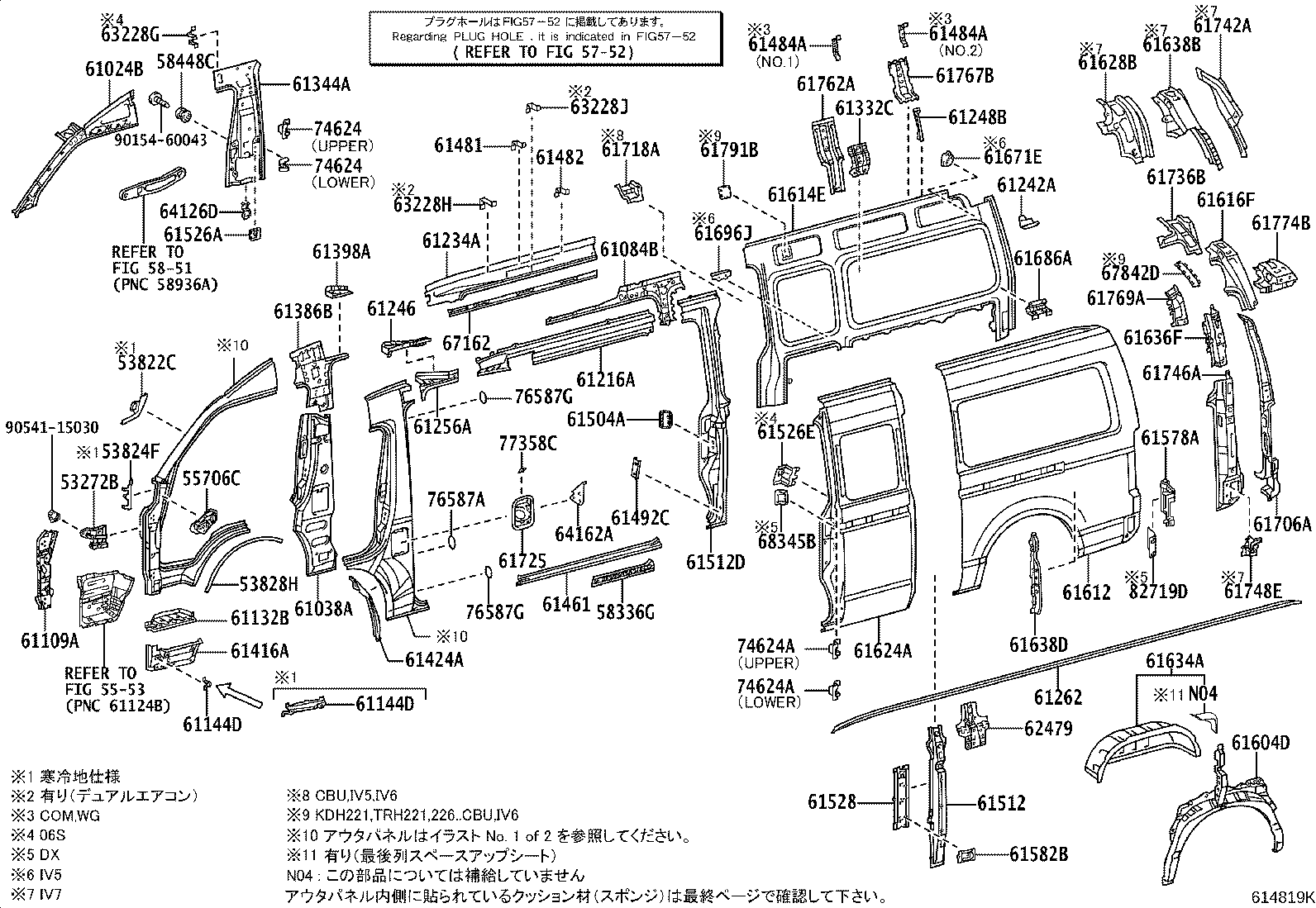

ILLUST NO. 2 OF 2(0501- )KDH22#,TRH22#..HRF

Click highlighted areas on diagram

Part #	Description	Period	Qty
53272B - BRACKET, HEADLAMP MOUNTING, LH
53272-26011	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
53822C - PROTECTOR, FRONT SIDE PANEL, NO.1 LH
53822-26020	KDH20#,22#,TRH200,21#,22# 寒冷地仕様	07/2006 - 08/2007	1
53824F - PROTECTOR, FRONT SIDE PANEL, NO.2 LH
53824-26010	KDH20#,22#,TRH200,21#,22# 寒冷地仕様	07/2006 - 08/2007	1
53828H - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53827-26010	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
55706C - PANEL SUB-ASSY, COWL TOP SIDE, LH
55706-26040	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
58336G - PLATE, FLOOR SIDE, FR LH
58336-26040	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
58448C - HOOK, ENGINE SERVICE HOLE COVER, NO.2 LH
58448-26010B0	KDH20#,211,22#,TRH200,21#,22# LT.GRAY,TRIM1#	08/2004 - 12/2013	1
61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61038-26010	KDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,15S	08/2004 - 12/2013	1
61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61109-26010	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
61132B - PILLAR, FRONT BODY, OUTER LH
61132-26120	KDH20#,22#,TRH200,21#,22#	08/2004 - 09/2007	1
61144D - RETAINER, FRONT BUMPER SIDE, LH
61144-26010	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
61144D - RETAINER, FRONT BUMPER SIDE, LH
61144-26010	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
61262 - CHANNEL, ROOF DRIP, LH
61262-26050	KDH22#,TRH22#	01/2005 - 08/2007	1
61416A - PANEL, FRONT STEP UNDER, LH
61416-26020	KDH20#,22#,TRH200,21#,22#	08/2004 - 09/2007	1
61424A - PANEL, FENDER, INNER LOWER LH
61424-26030	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
61492C - PLATE, NO.3 LOWER RAIL, INNER LH
61491-26010	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
61504A - REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, LH
61503-26030	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
61526A - RETAINER, SEPARATOR BAR BRACKET, LH
61526-26050	KDH222,223,227,TRH214,219,223,228..DX 幼児ﾊﾞｽ	08/2004 - 12/2013	1
61578A - PLATE, CAB REAR PILLAR, LOWER LH
61578-26030	KDH20#,211,220,221,222,225,227,TRH200,211,216,221,224,226,229..CBU	08/2004 - 12/2013	1
61582B - BRACKET, REAR SEAT, NO.2 LH
61581-26040	KDH222,223,227,TRH223,224,228,229..CBU	01/2005 - 12/2999	1
61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH
61606-26670	KDH222,227,TRH223,228..DX	01/2005 - 10/2005	1
61606-26690	KDH222,227,TRH223,228..DX ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝﾒﾀﾘｯｸ(ｶﾗｰNO.058を除く)&幼児ﾊﾞｽ&寒冷地仕様	01/2005 - 10/2005	1
61606-26690	KDH222,227,TRH223,228..DX ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝ 3ｺｰﾃｨﾝｸﾞ(ｶﾗｰNO.058)&幼児ﾊﾞｽ&寒冷地仕様	01/2005 - 10/2005	1
61606-26660	KDH222,227,TRH223,228..DX 幼児ﾊﾞｽ	01/2005 - 10/2005	1
61606-26600	KDH222,227,TRH223,228..DX ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝ 3ｺｰﾃｨﾝｸﾞ(ｶﾗｰNO.058)&寒冷地仕様	01/2005 - 07/2007	1
61606-26600	KDH222,227,TRH223,228..DX ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝﾒﾀﾘｯｸ(ｶﾗｰNO.058を除く)&寒冷地仕様	01/2005 - 07/2007	1
61606-26700	KDH222,227,TRH223,228..DX ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝﾒﾀﾘｯｸ(ｶﾗｰNO.058を除く)&幼児ﾊﾞｽ&寒冷地仕様	10/2005 - 07/2007	1
61606-26770	KDH222,227,TRH223,228..DX	10/2005 - 07/2007	1
61606-26700	KDH222,227,TRH223,228..DX ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝ 3ｺｰﾃｨﾝｸﾞ(ｶﾗｰNO.058)&幼児ﾊﾞｽ&寒冷地仕様	10/2005 - 07/2007	1
61606-26680	KDH222,227,TRH223,228..DX 幼児ﾊﾞｽ	10/2005 - 07/2007	1
61614E - PANEL, QUARTER, INNER LH
61614-26F00	KDH222,227,TRH223,228..DX 幼児ﾊﾞｽ	01/2005 - 12/2005	1
61636F - REINFORCEMENT, QUARTER PANEL, UPR LH
61636-26040	KDH223,TRH223,228..IV5;KDH20#,211,220,221,222,225,227,TRH200,211,216,221,224,226,229	08/2004 - 12/2013	1
61638D - REINFORCEMENT, QUARTER, INNER LH
61638-26030	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
61686A - BRACKET, REAR SEAT BACK STOPPER, LH
61686-26020	KDH222,223,227,TRH223,228..CBU	01/2005 - 12/2999	1
61725 - BOX, FUEL INLET
61725-26040	KDH20#,22#,TRH200,21#,22#	08/2004 - 11/2005	1
61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH
61746-26040	KDH20#,211,22#,TRH200,21#,22#..HRF,SMRF,SRF	08/2004 - 12/2013	1
64126D - ANCHOR, PILLAR SEAT BELT, LH
64126-26030	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
68345B - COVER, SLIDE DOOR CENTER RAIL, RH
68345-26020	KDH20#,22#,TRH200,214,219,221,223,226,228..4D..DX..CBU	08/2004 - 08/2010	1
77358C - STOPPER, FUEL FILLER OPENING LID, NO.1
77358-26010	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
82719D - COVER, WIRE HANRESS SERVICE HOLE
82719-26040B0	KDH20#,22#,TRH200,221,223,226,228..DX..CBU GRAY,TRIM1#	08/2004 - 08/2010	1
Common parts
90154-60043
90541-15030
Linked diagrams
5553
5752
5851

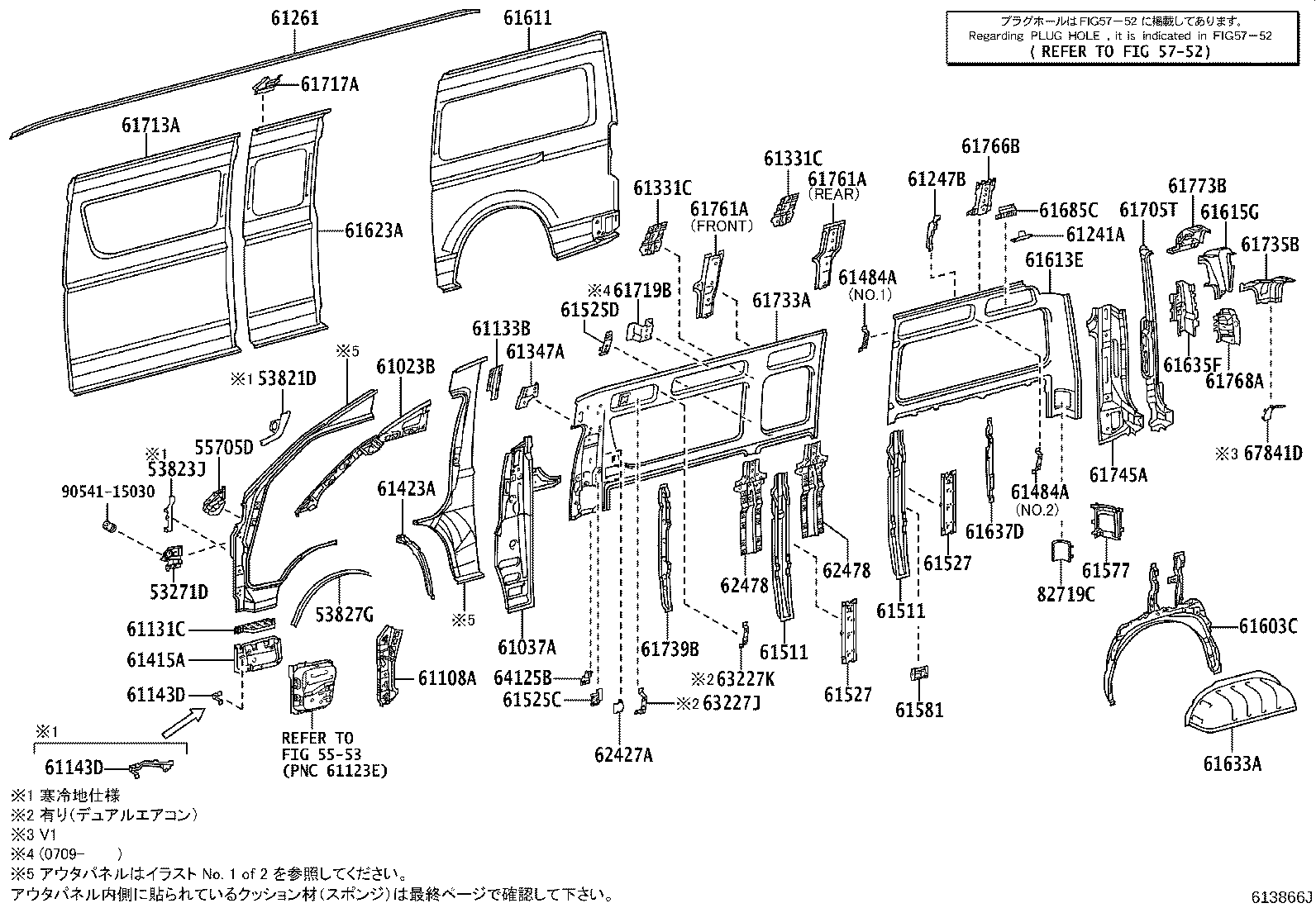

ILLUST NO. 2 OF 2(0501- )KDH22#,TRH22#..HRF

Click highlighted areas on diagram

Part #	Description	Period	Qty
53271D - BRACKET, HEADLAMP MOUNTING, RH
53271-26021	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
53821D - PROTECTOR, FRONT SIDE PANEL, NO.1 RH
53821-26030	KDH20#,22#,TRH200,21#,22# 寒冷地仕様	07/2006 - 08/2007	1
53823J - PROTECTOR, FRONT SIDE PANEL, NO.2 RH
53823-26010	KDH20#,22#,TRH200,21#,22# 寒冷地仕様	07/2006 - 08/2007	1
53827G - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-26010	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
55705D - PANEL SUB-ASSY, COWL TOP SIDE, RH,
55705-26080	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61037-26040	KDH20#,22#,TRH200,214,219,22#..4D	08/2004 - 12/2013	1
61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61108-26010	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
61131C - PILLAR, FRONT BODY, OUTER RH
61131-26080	KDH20#,22#,TRH200,21#,22#	08/2004 - 09/2007	1
61143D - RETAINER, FRONT BUMPER SIDE, RH
61143-26010	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
61143D - RETAINER, FRONT BUMPER SIDE, RH
61143-26010	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
61261 - CHANNEL, ROOF DRIP, RH
61261-26060	KDH22#,TRH22#	01/2005 - 08/2007	1
61347A - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH
61347-26040	KDH20#,22#,TRH200,214,219,22#..4D	08/2004 - 12/2013	1
61415A - PANEL, FRONT STEP, UNDER, RH
61415-26020	KDH20#,22#,TRH200,21#,22#	08/2004 - 09/2007	1
61423A - PANEL, FENDER, INNER LOWER RH
61423-26030	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
61525C - RETAINER, SEPARATOR BAR BRACKET, RH NO.2
61525-26090	KDH222,223,227,TRH223,228..DX 幼児ﾊﾞｽ	08/2004 - 12/2013	1
61577 - PLATE, CAB REAR PILLAR, LOWER RH
61577-26020	KDH223,TRH223,228..IV5;KDH20#,211,220,221,222,225,227,TRH200,211,216,221,224,226,229	08/2004 - 12/2013	1
61581 - BRACKET, REAR SEAT, NO.1
61581-26040	KDH222,223,227,TRH223,224,228,229..CBU	01/2005 - 12/2999	1
61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH
61605-26290	KDH222,227,TRH223,228..DX	01/2005 - 10/2005	1
61605-26210	KDH222,227,TRH21#,223,228..DX 幼児ﾊﾞｽ	08/2004 - 10/2005	1
61605-26670	KDH222,227,TRH223,228..DX	10/2005 - 07/2007	1
61605-26330	KDH222,227,TRH21#,223,228..DX 幼児ﾊﾞｽ	10/2005 - 04/2007	1
61635F - REINFORCEMENT, QUARTER PANEL, UPR RH
61635-26050	KDH223,TRH223,228..IV5;KDH20#,211,220,221,222,225,227,TRH200,211,216,221,224,226,229..HRF,SMRF,SRF	08/2004 - 12/2013	1
61637D - REINFORCEMENT, QUARTER, INNER RH
61637-26030	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
61685C - BRACKET, REAR SEAT BACK STOPPER, RH
61685-26020	KDH222,223,227,TRH223,228..CBU	01/2005 - 12/2999	1
61739B - REINFORCEMENT, EXTENSION QUARTER INNER PANEL
61739-26040	KDH20#,TRH200..IV5;KDH222,223,227,TRH214,219,223,224,228,229	08/2004 - 12/2013	1
61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH
61745-26050	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
62427A - BRACKET, CENTER PILLAR GARNISH, RH
62427-26050	KDH222,223,227,TRH214,219,221,223,226,228..(02S,10S,15S)..DX	08/2004 - 12/2999	2
64125B - ANCHOR, PILLAR SEAT BELT
64125-26050	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
82719C - COVER, WIRE HANRESS SERVICE HOLE
82719-26030B0	KDH20#,22#,TRH200,221,223,226,228..DX..CBU GRAY,TRIM1#	08/2004 - 08/2010	1
Common parts
90541-15030
Linked diagrams
5553
5752

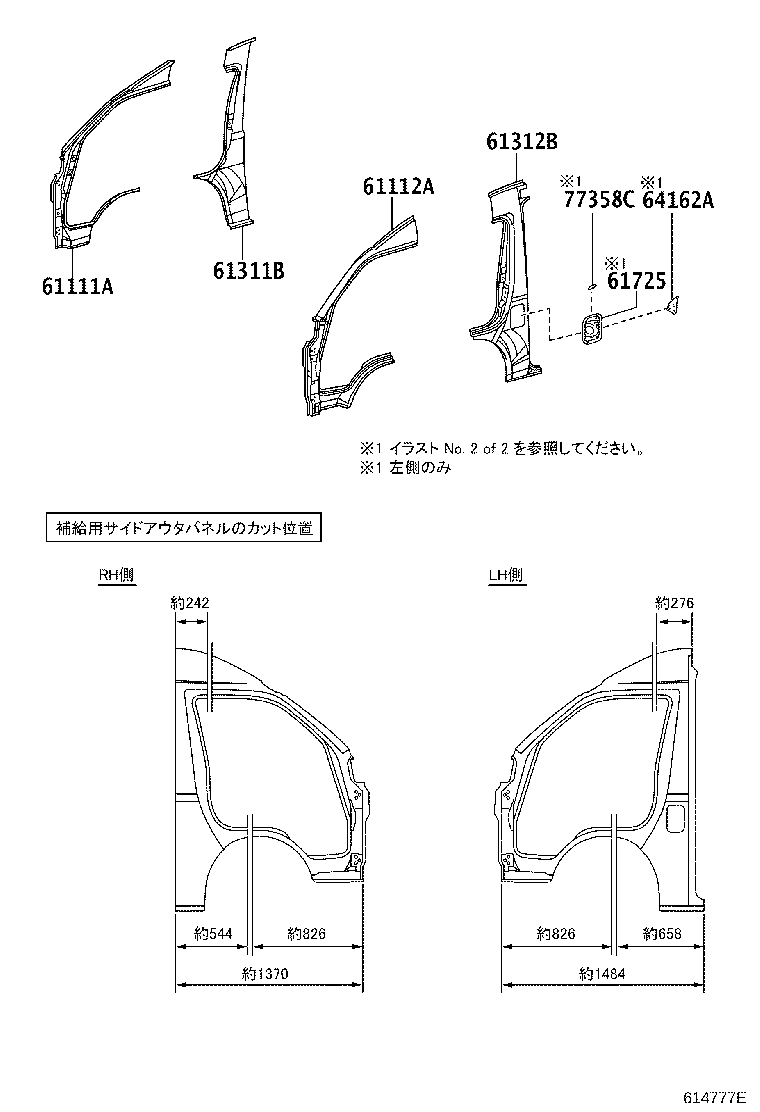

ILLUST NO. 1 OF 2(0408- )KDH22#,TRH22#

Click highlighted areas on diagram

ｱｳﾀﾊﾟﾈﾙ,ｱﾘ(ｶｯﾄﾎｷｭｳﾖｳ)

Part #	Description	Period	Qty	Price

(0408- )

Click highlighted areas on diagram

ｸｯｼｮﾝｻﾞｲ(ｽﾎﾟﾝｼﾞ)

Part #	Description	Period	Qty	Price
Common parts
61667-26310
61667-26320
61667-26330
61667-26340
61667-26350
61667-26360
61667-26390
61667-26400
61667-26420

ILLUST NO. 1 OF 2(1312-1712)KDH22#,TRH22#

Click highlighted areas on diagram

ｱｳﾀﾊﾟﾈﾙ,ｱﾘ(ｶｯﾄﾎｷｭｳﾖｳ)

Part #	Description	Period	Qty	Price

ILLUST NO. 2 OF 2(1312- )GDH22#,KDH22#,TRH22#

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90541-15030
Linked diagrams
5553
5752

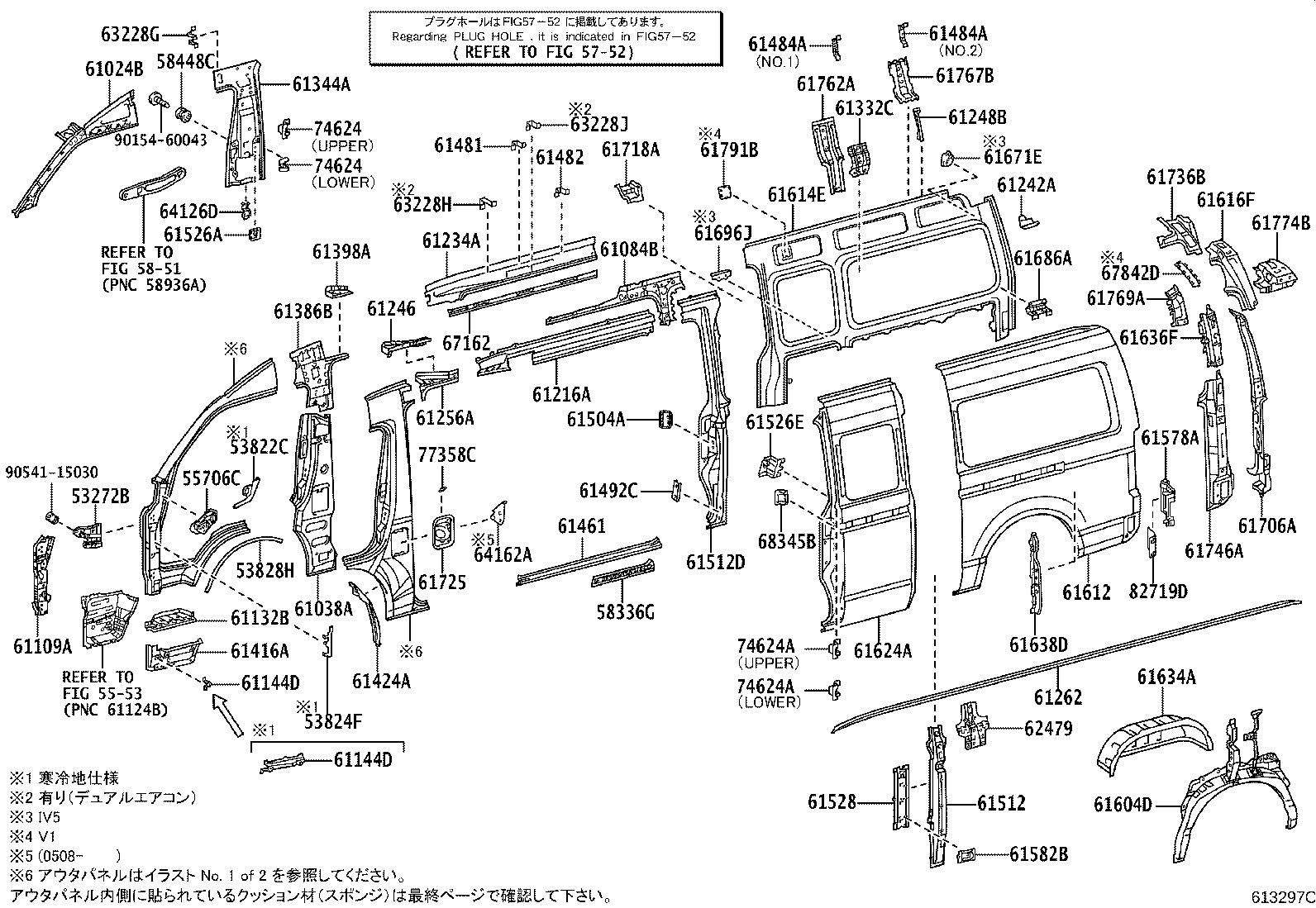

ILLUST NO. 2 OF 2(1312-1712)KDH22#,TRH22#

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90154-60043
90541-15030
Linked diagrams
5553
5752
5851

(1312- )

Click highlighted areas on diagram

ｸｯｼｮﾝｻﾞｲ(ｽﾎﾟﾝｼﾞ)

Part #	Description	Period	Qty	Price
Common parts
61667-26330
61667-26340
61667-26350
61667-26360
61667-26390
61667-26400
61667-26420
