KDH222B-LEPDY (2005)

Toyota Hiace/Regiusace

Production Jan 2005 - Sep 2007
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )

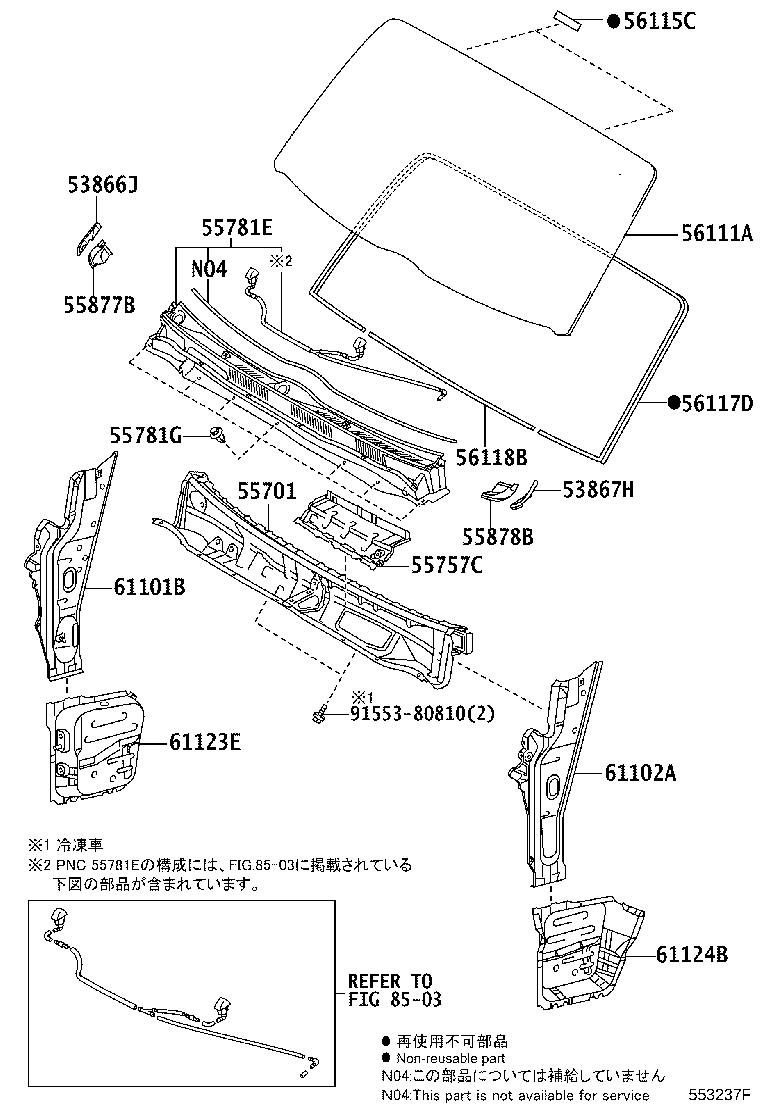

Click highlighted areas on diagram

diagram 53866J 53867H 55701 55757C 55781E 55781G 55877B 55878B 56111A 56115C 56117D 56118B 61101B 61102A 61123E 61124B 8503 9155380810
Part # Description Qty Price
53866J - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-26010

KDH20#,211,22#,TRH200,21#,22#

 1
53867H - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-26010

KDH20#,211,22#,TRH200,21#,22#

 1
55701 - PANEL SUB-ASSY, COWL
55700-26470

KDH211,22#,TRH21#,22#

 1
55757C - PLATE, HEATER AIR DUCT SUB
55757-26060

KDH211,22#,TRH21#,22#

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-26120

KDH22#,TRH21#,22#

 1
55708-26130

KDH22#,TRH21#,22#

寒冷地仕様

 1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-06168

KDH211,22#,TRH21#,22#

 7
55877B - COVER, COWL VENT, RH
55877-26020

KDH211,22#,TRH21#,22#

 1
55878B - COVER, COWL VENT, LH
55878-26020

KDH211,22#,TRH21#,22#

 1
56115C - STOPPER, WINDSHIELD GLASS
56116-35050

KDH20#,211,22#,TRH200,21#,22#

 2
56117D - DAM, WINDSHIELD GLASS ADHESIVE
56117-26060

KDH211,22#,TRH21#,22#

長さ=3308

 1
56118B - DAM, WINDOW GLASS ADHESIVE, NO.2
56118-26020

KDH211,22#,TRH21#,22#

長さ=945

 1
61101B - PANEL SUB-ASSY, COWL SIDE, RH
61101-26030

KDH20#,211,22#,TRH200,21#,22#

 1
61102A - PANEL SUB-ASSY, COWL SIDE, LH
61102-26030

KDH20#,211,22#,TRH200,21#,22#

 1
61123E - PANEL, COWL SIDE, LOWER RH
61123-26010

KDH200,205,220,222,225,227,TRH200,21#,22#

 1
61124B - PANEL, COWL SIDE, LWR LH
61124-26010

KDH20#,211,22#,TRH200,21#,22#

 1
Common parts
91553-80810
Linked diagrams
8503

(1312- )

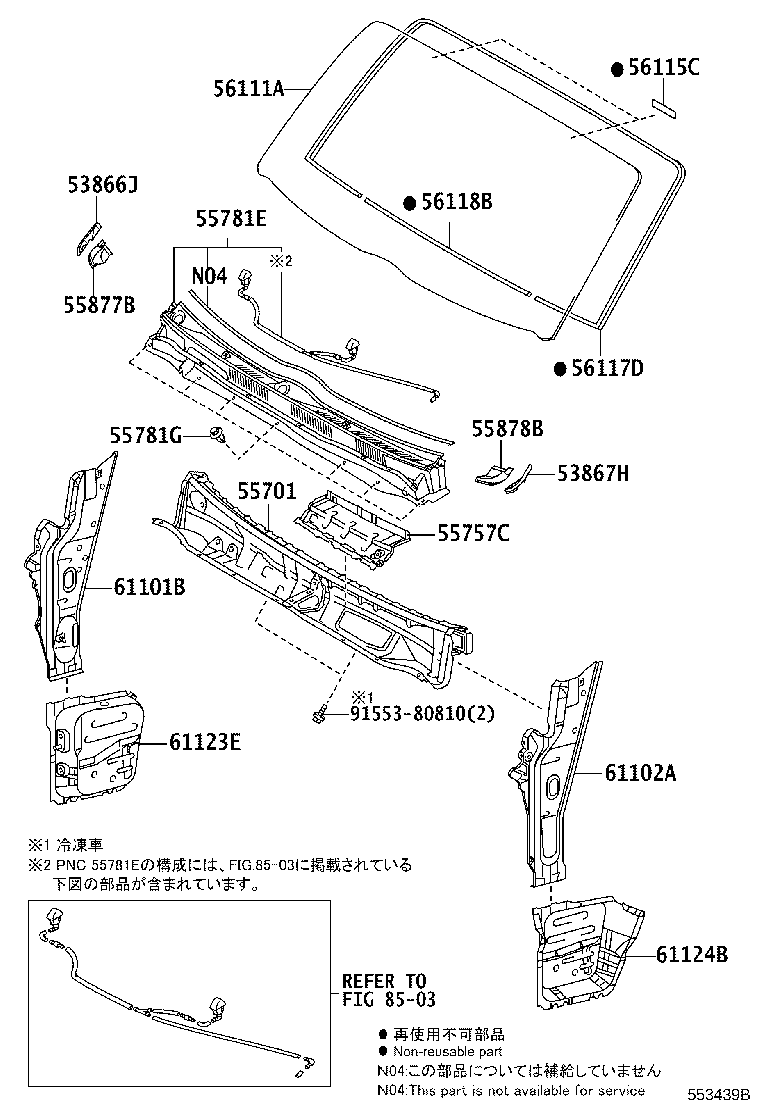

Click highlighted areas on diagram

ﾉｿﾞｸ ﾖﾎﾞｳｱﾝｾﾞﾝﾊﾟｯｹｰｼﾞ

diagram 53866J 53867H 55701 55757C 55781E 55781G 55877B 55878B 56111A 56115C 56117D 56118B 61101B 61102A 61123E 61124B 8503 9155380810
Part # Description Qty Price
Common parts
91553-80810
Linked diagrams
8503
