KDH222B-LEPDY (2005)

Toyota Hiace/Regiusace

Production Jan 2005 - Sep 2007
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0408- )KDH211,22#,TRH21#,22#

Click highlighted areas on diagram

diagram 53752B 55101 55112 55127 55135C 55137A 55149C 55161C 55162A 55184A 55223A 58197D 9011506166 9017406002 9017408008
Part # Description Qty Price
53752B - BRACKET, WASHER TANK MOUNTING
53752-26010

KDH20#,211,22#,TRH200,21#,22#

 1
55101 - PANEL SUB-ASSY, DASH
55015-26904

KDH22#

 1
55015-26380

TRH21#,22#

 1
55112 - PANEL, DASH, NO.2
55112-26110

KDH20#,211,22#,TRH200,21#,22#

 1
55127 - REINFORCEMENT, PARKING BRAKE
55127-26010

KDH20#,211,22#,TRH200,21#,22#

 1
55135C - BRACKET, BRAKE PEDAL, NO.2
55135-26020

KDH20#,211,22#,TRH200,21#,22#

 1
55137A - BRACE, DASH TO FRAME, RH
55137-26010

KDH211,22#,TRH21#,22#

 1
55149C - BRACKET, DASH WIRING HARNESS
55149-26010

KDH20#,211,22#,TRH200,21#,22#

 1
55161C - BRACKET, HEATER MOUNTING
55161-26040

KDH20#,211,22#,TRH200,21#,22#

 1
55162A - BRACKET, HEATER MOUNTING, LWR
55162-26060

KDH211,22#,TRH21#,22#

 1
55184A - BRACKET, DASH PANEL
55184-26020

KDH20#,211,22#

 1
58197D - RETAINER, INSTR PANEL BRACE MT BRACKET
58197-26010

KDH20#,211,22#,TRH200,21#,22#

 1
Common parts
90115-06166
90174-06002
90174-08008

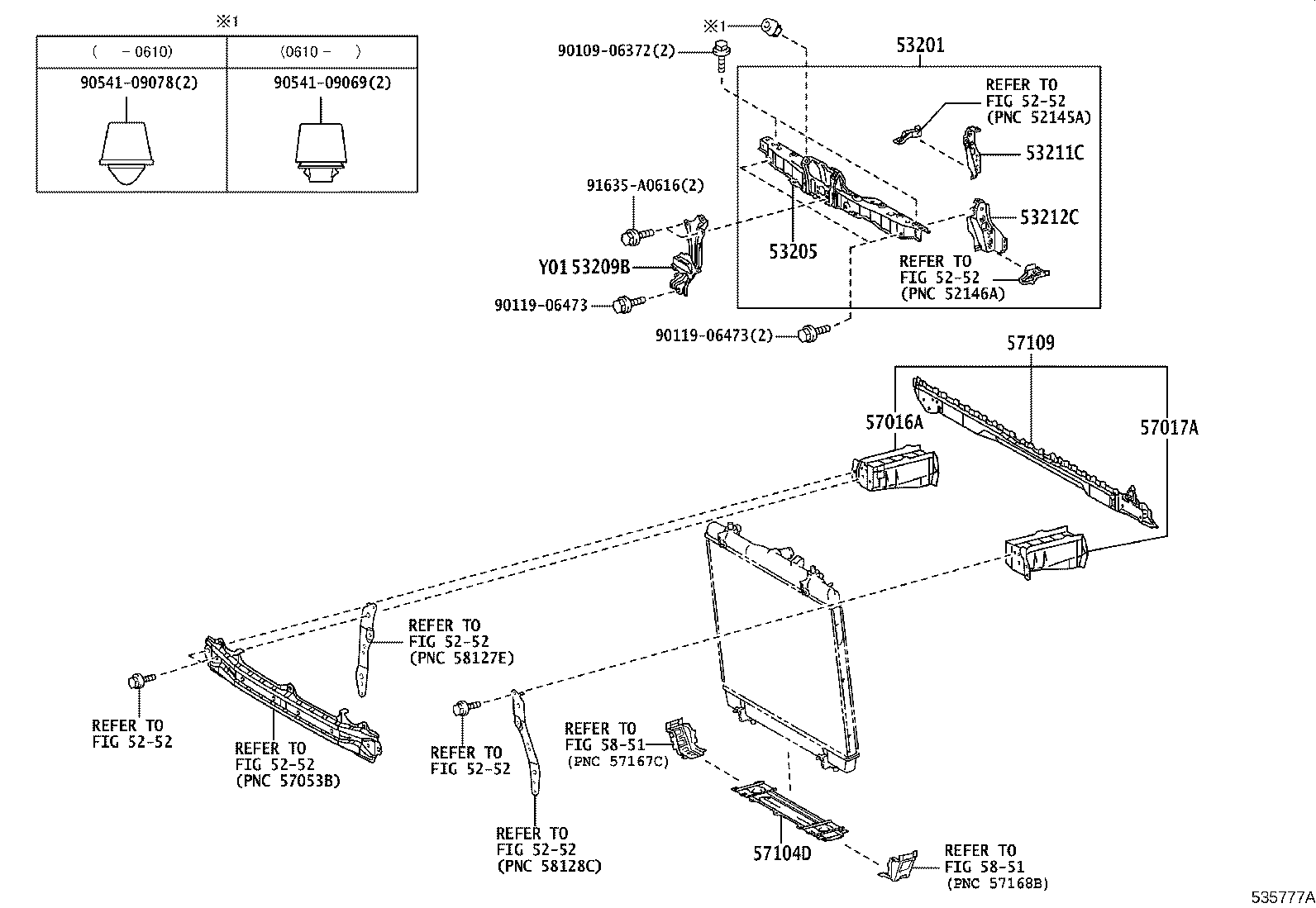

ILLUST NO. 1 OF 2(0408- )KDH211,22#

Click highlighted areas on diagram

diagram 5252 5252 5252 5252 5252 5252 5252 53201 53205 53209B 53211C 53212C 57016A 57017A 57104D 57109 5851 5851 9010906372 9011906473 9011906473 9054109069 9054109078 91635A0616
Part # Description Qty Price
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-26090

KDH22#,TRH21#,22#

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-26020

KDH22#,TRH21#,22#

 1
53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT
53209-26110

KDH211,22#,TRH21#,22#

 1
53211C - SUPPORT, RADIATOR, RH
53211-26080

KDH20#,211,22#,TRH200,21#,22#

 1
53212C - SUPPORT, RADIATOR, LH
53212-26080

KDH20#,211,22#,TRH200,21#,22#

 1
57016A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57016-26020

KDH211,22#,TRH21#,22#

 1
57017A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57017-26020

KDH211,22#,TRH21#,22#

 1
57104D - MEMBER SUB-ASSY, FRONT CROSS
57104-26200

KDH211,22#,TRH21#,22#

 1
57109 - REINFORCEMENT SUB-ASSY, DASH PANEL CROSS MEMBER
57109-26040

TRH21#,22#

 1
Common parts
90109-06372
90119-06473
90541-09069
90541-09078
91635-A0616
Linked diagrams
5252
5851

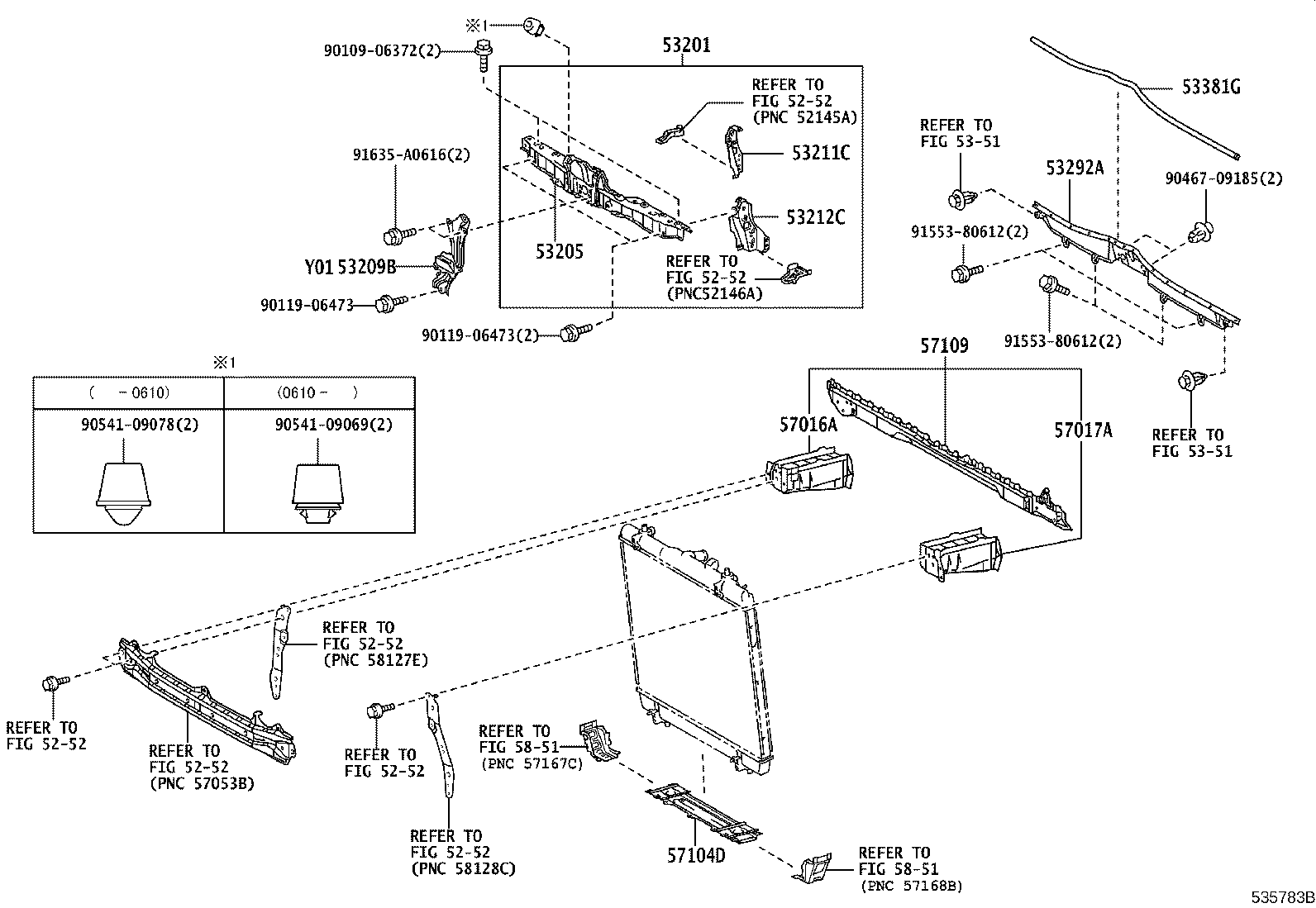

ILLUST NO. 1 OF 2(0408- )TRH21#,22#

Click highlighted areas on diagram

diagram 5252 5252 5252 5252 5252 5252 5252 53201 53205 53209B 53211C 53212C 53292A 53381G 5351 5351 57016A 57017A 57104D 57109 5851 5851 9010906372 9011906473 9011906473 9046709185 9054109069 9054109078 9155380612 9155380612 91635A0616
Part # Description Qty Price
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-26090

KDH22#,TRH21#,22#

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-26020

KDH22#,TRH21#,22#

 1
53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT
53209-26110

KDH211,22#,TRH21#,22#

 1
53211C - SUPPORT, RADIATOR, RH
53211-26080

KDH20#,211,22#,TRH200,21#,22#

 1
53212C - SUPPORT, RADIATOR, LH
53212-26080

KDH20#,211,22#,TRH200,21#,22#

 1
53292A - SEAL, RADIATOR SUPPORT, UPPER
53292-26080

TRH21#,22#

 1
53381G - SEAL, HOOD TO RADIATOR SUPPORT, NO.1
53381-26120

TRH21#,22#

 1
57016A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57016-26020

KDH211,22#,TRH21#,22#

 1
57017A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57017-26020

KDH211,22#,TRH21#,22#

 1
57104D - MEMBER SUB-ASSY, FRONT CROSS
57104-26200

KDH211,22#,TRH21#,22#

 1
57109 - REINFORCEMENT SUB-ASSY, DASH PANEL CROSS MEMBER
57109-26040

TRH21#,22#

 1
Common parts
90109-06372
90119-06473
90467-09185
90541-09069
90541-09078
91553-80612
91635-A0616
Linked diagrams
5252
5351
5851

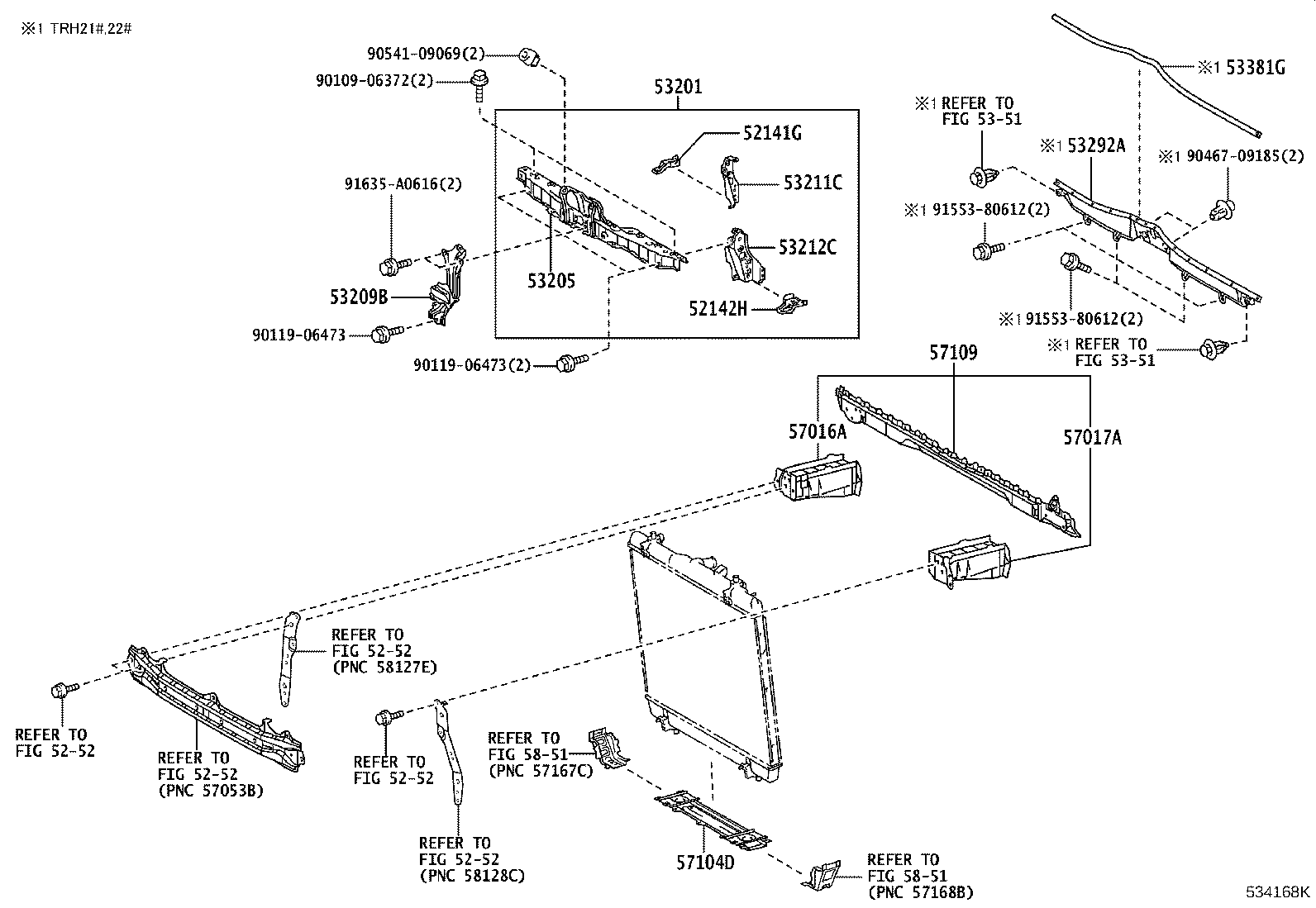

ILLUST NO. 1 OF 2(1312- )GDH211,22#,KDH211,22#,TRH21#,22#

Click highlighted areas on diagram

diagram 52141G 52142H 5252 5252 5252 5252 5252 53201 53205 53209B 53211C 53212C 53292A 53381G 5351 5351 57016A 57017A 57104D 57109 5851 5851 9010906372 9011906473 9011906473 9046709185 9054109069 9155380612 9155380612 91635A0616
Part # Description Qty Price
Common parts
90109-06372
90119-06473
90467-09185
90541-09069
91553-80612
91635-A0616
Linked diagrams
5252
5351
5851

ILLUST NO. 2 OF 2(1312- )GDH211,22#,KDH211,22#,TRH21#,22#

Click highlighted areas on diagram

diagram 53752B 55101 55112 55127 55135C 55137A 55149C 55161C 55162A 55184A 55223A 58197D 9011506166 9017406002 9017408008
Part # Description Qty Price
Common parts
90115-06166
90174-06002
90174-08008
