KDH222B-LEPDY (2005)
Toyota Hiace/Regiusace
Production
Jan 2005
-
Sep 2007
Engine
2KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

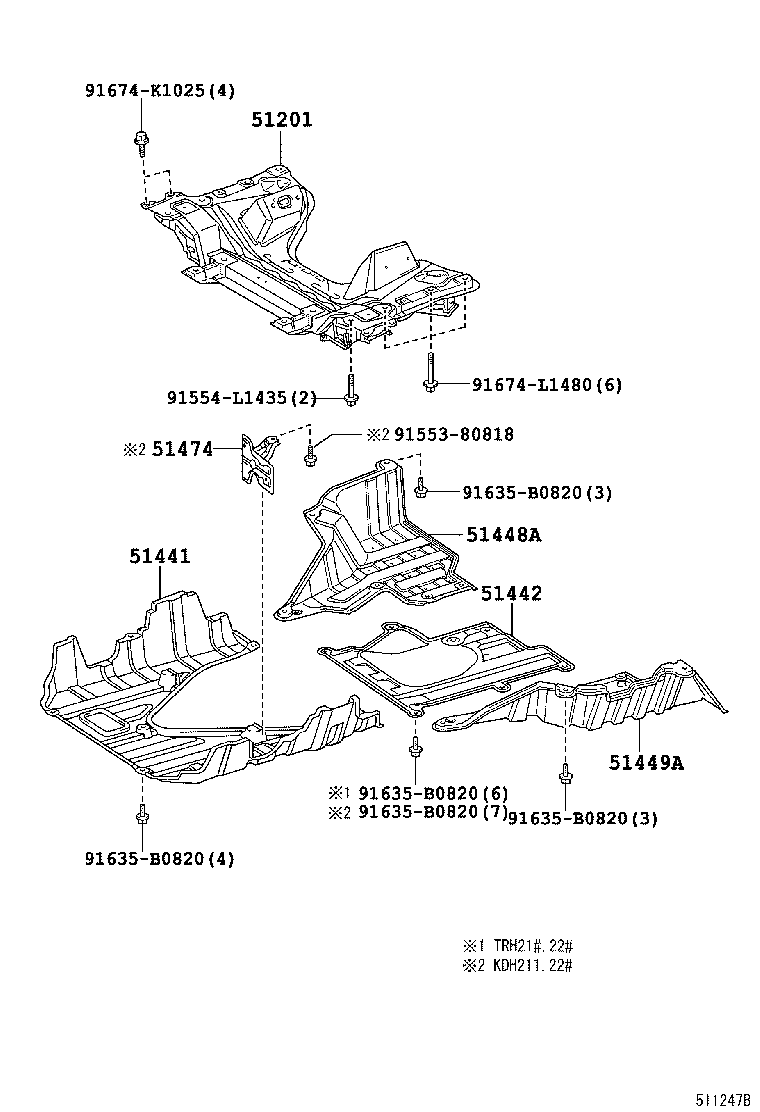

(0408- )KDH211,220,221,222,223,TRH211,214,221,223,224
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-26250 |
KDH211,220,221,222,223,TRH211,214,221,223,224 |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-26180 |
KDH220,222,TRH211,214,221,223,224 |
1 | ||
| 51448A - COVER, ENGINE SIDE UNDER, RH | ||||
| 51448-26030 |
KDH211,220,221,222,223,TRH211,214,221,223,224 |
1 | ||
| 51449A - COVER, ENGINE SIDE UNDER, LH | ||||
| 51044-26010 |
KDH220,222,TRH211,214,221,223,224 |
1 | ||
| 51474 - COVER SUB-ASSY, ENGINE SIDE, LH | ||||
| 51074-26010 |
KDH20#,211,22# |
1 | ||
| Common parts | ||||
| 91553-80818 | ||||
| 91554-L1435 | ||||
| 91635-B0820 | ||||
| 91674-K1025 | ||||
| 91674-L1480 | ||||

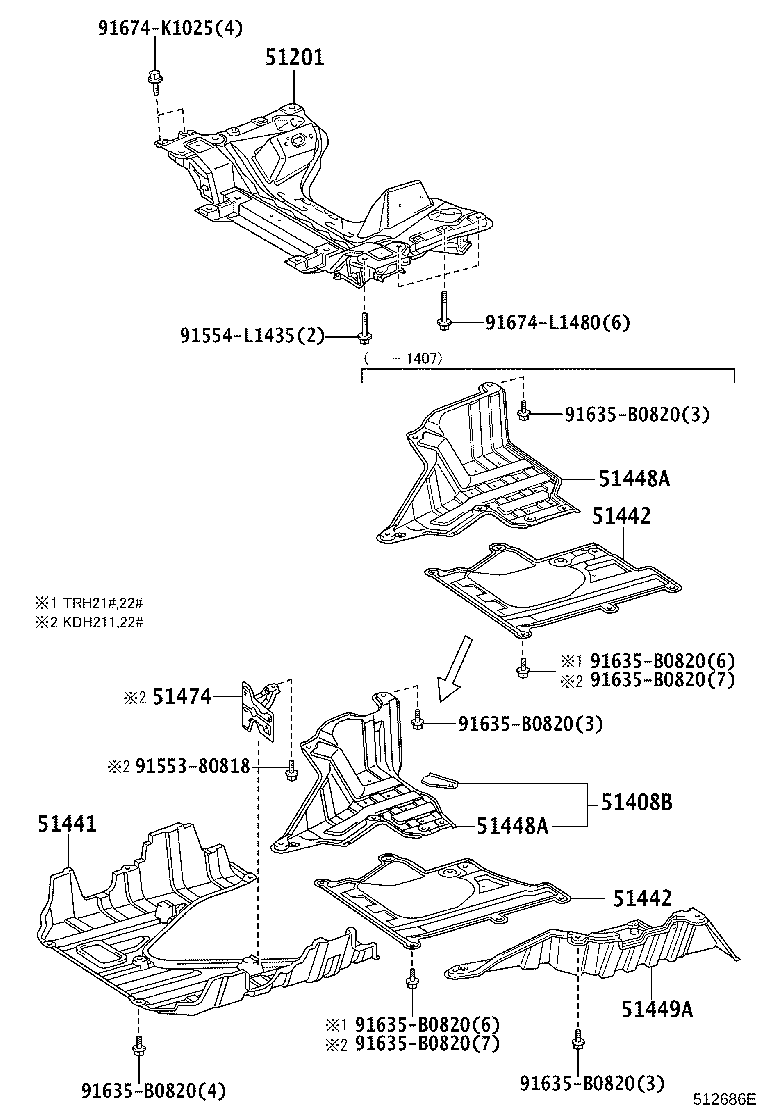

(1312- )KDH211,22#,TRH211,214,221,223,224
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91553-80818 | ||||
| 91554-L1435 | ||||
| 91635-B0820 | ||||
| 91674-K1025 | ||||
| 91674-L1480 | ||||
