Toyota Hiace/regiusace KDH222 REAR SPRING & SHOCK ABSORBER

Manufacturers Home
Toyota
JP
HIACE/REGIUSACE
KDH222B-LEPDY (2005)
4804 - REAR SPRING & SHOCK ABSORBER

KDH222B-LEPDY (2005)

Toyota Hiace/Regiusace

Production Jan 2005 - Sep 2007

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

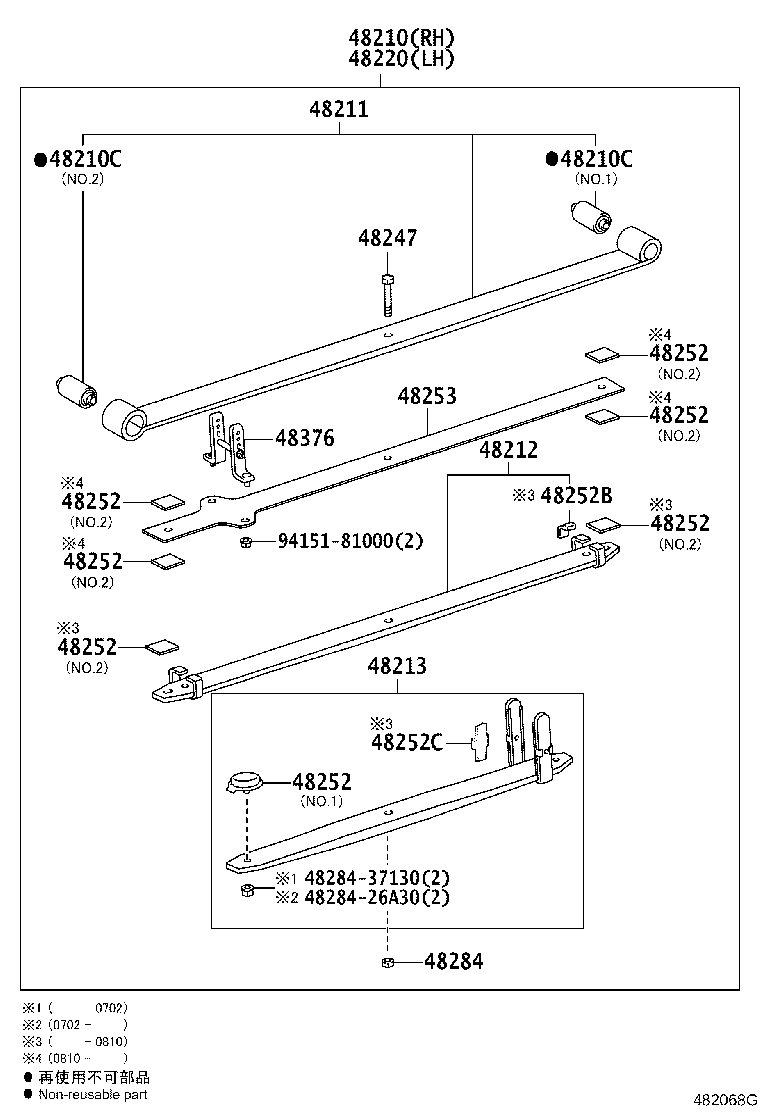

ILLUST NO. 2 OF 2(0501- )KDH222,223,227,TRH223,228..CBU

Click highlighted areas on diagram

3-ﾘｰﾌ

Part #	Description	Period	Qty
48210C - BUSH(FOR REAR SPRING LEAF)
90389-14037	KDH20#,211,22#,TRH200,21#,22# NO.2	08/2004 - 12/2013	2
90389-14007	KDH20#,211,22#,TRH200,21#,22# NO.1	08/2004 - 12/2013	2
48210C - BUSH(FOR REAR SPRING LEAF)
90389-14037	KDH20#,211,22#,TRH200,21#,22# NO.2	08/2004 - 12/2013	2
90389-14007	KDH20#,211,22#,TRH200,21#,22# NO.1	08/2004 - 12/2013	2
48247 - BOLT, REAR SPRING, CENTER
48247-26250	KDH222,227,TRH223,228..CBU	01/2005 - 02/2007	2
48252 - SILENCER, REAR SPRING
48252-26A00	KDH200,205,220,222,223,225,227,TRH223,228..CBU NO.2	08/2004 - 10/2008	4
48252-28170	KDH20#,211,22#,TRH200,211,216,221,223,226,228..CBU NO.1	08/2004 - 12/2013	4
48252 - SILENCER, REAR SPRING
48252-26A00	KDH200,205,220,222,223,225,227,TRH223,228..CBU NO.2	08/2004 - 10/2008	4
48252-28170	KDH20#,211,22#,TRH200,211,216,221,223,226,228..CBU NO.1	08/2004 - 12/2013	4
48252 - SILENCER, REAR SPRING
48252-26A00	KDH200,205,220,222,223,225,227,TRH223,228..CBU NO.2	08/2004 - 10/2008	4
48252-28170	KDH20#,211,22#,TRH200,211,216,221,223,226,228..CBU NO.1	08/2004 - 12/2013	4
48252 - SILENCER, REAR SPRING
48252-26A00	KDH200,205,220,222,223,225,227,TRH223,228..CBU NO.2	08/2004 - 10/2008	4
48252-28170	KDH20#,211,22#,TRH200,211,216,221,223,226,228..CBU NO.1	08/2004 - 12/2013	4
48252 - SILENCER, REAR SPRING
48252-26A00	KDH200,205,220,222,223,225,227,TRH223,228..CBU NO.2	08/2004 - 10/2008	4
48252-28170	KDH20#,211,22#,TRH200,211,216,221,223,226,228..CBU NO.1	08/2004 - 12/2013	4
48252 - SILENCER, REAR SPRING
48252-26A00	KDH200,205,220,222,223,225,227,TRH223,228..CBU NO.2	08/2004 - 10/2008	4
48252-28170	KDH20#,211,22#,TRH200,211,216,221,223,226,228..CBU NO.1	08/2004 - 12/2013	4
48252 - SILENCER, REAR SPRING
48252-26A00	KDH200,205,220,222,223,225,227,TRH223,228..CBU NO.2	08/2004 - 10/2008	4
48252-28170	KDH20#,211,22#,TRH200,211,216,221,223,226,228..CBU NO.1	08/2004 - 12/2013	4
48252C - SILENCER, REAR SPRING, NO.2
48252-37630	KDH200,222,223,227,TRH223,228..(05S,15S)..CBU	08/2004 - 10/2008	4
48284 - NUT, REAR SPRING CENTER BOLT
48284-37130	KDH20#,22#,TRH200,21#,22#	08/2004 - 02/2007	2
Common parts
48284-26A30
48284-37130
94151-81000

ILLUST NO. 1 OF 2(0408- )KDH222,223,227,TRH200,214,219,223,224,228,229 ; (1008- )TRH211

Click highlighted areas on diagram

Part #	Description	Period	Qty
04483 - SHACKLE KIT, REAR SPRING
04483-26150	KDH222,223,227,TRH200,214,219,223,224,228,229	08/2004 - 12/2013	2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-26130	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
48046A - BOLT, U(FOR REAR SPRING)
90117-14001	KDH201,205,206,TRH200..IV5;KDH200,220,222,223,227,TRH214,219,223,224,228,229..COM,V1,WG 長さ=170	08/2004 - 12/2013	4
48046A - BOLT, U(FOR REAR SPRING)
90117-14001	KDH201,205,206,TRH200..IV5;KDH200,220,222,223,227,TRH214,219,223,224,228,229..COM,V1,WG 長さ=170	08/2004 - 12/2013	4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48046-26130	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18008	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18008	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	4
48375 - DAMPER, LEAF SPRING DYNAMIC
48375-26080	KDH222,223,227,TRH200,214,219,223,224,228,229 NO.2	08/2004 - 12/2013	2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80738	KDH222,227,TRH223,228..CBU ﾏｰｸ 48531−26870	01/2005 - 12/2005	1
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03011	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	2
48530F - RETAINER, SHOCK ABSORBER CUSHION(FOR REAR)
90385-16009	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	2
48530H - BUSH, REAR SHOCK ABSORBER
90385-19006	KDH20#,211,22#,TRH200,21#,22#	08/2004 - 12/2013	2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80738	KDH222,227,TRH223,228..CBU ﾏｰｸ 48531−26870	01/2005 - 12/2005	1
Common parts
90105-14169
90105-14170
90119-08A89
90119-10355
90119-12088
90387-14011
91673-80820
94151-21401
94622-51400
