KDH222B-LEPDY (2005)
Toyota Hiace/Regiusace
(0501-0709)KDH22#,TRH22#

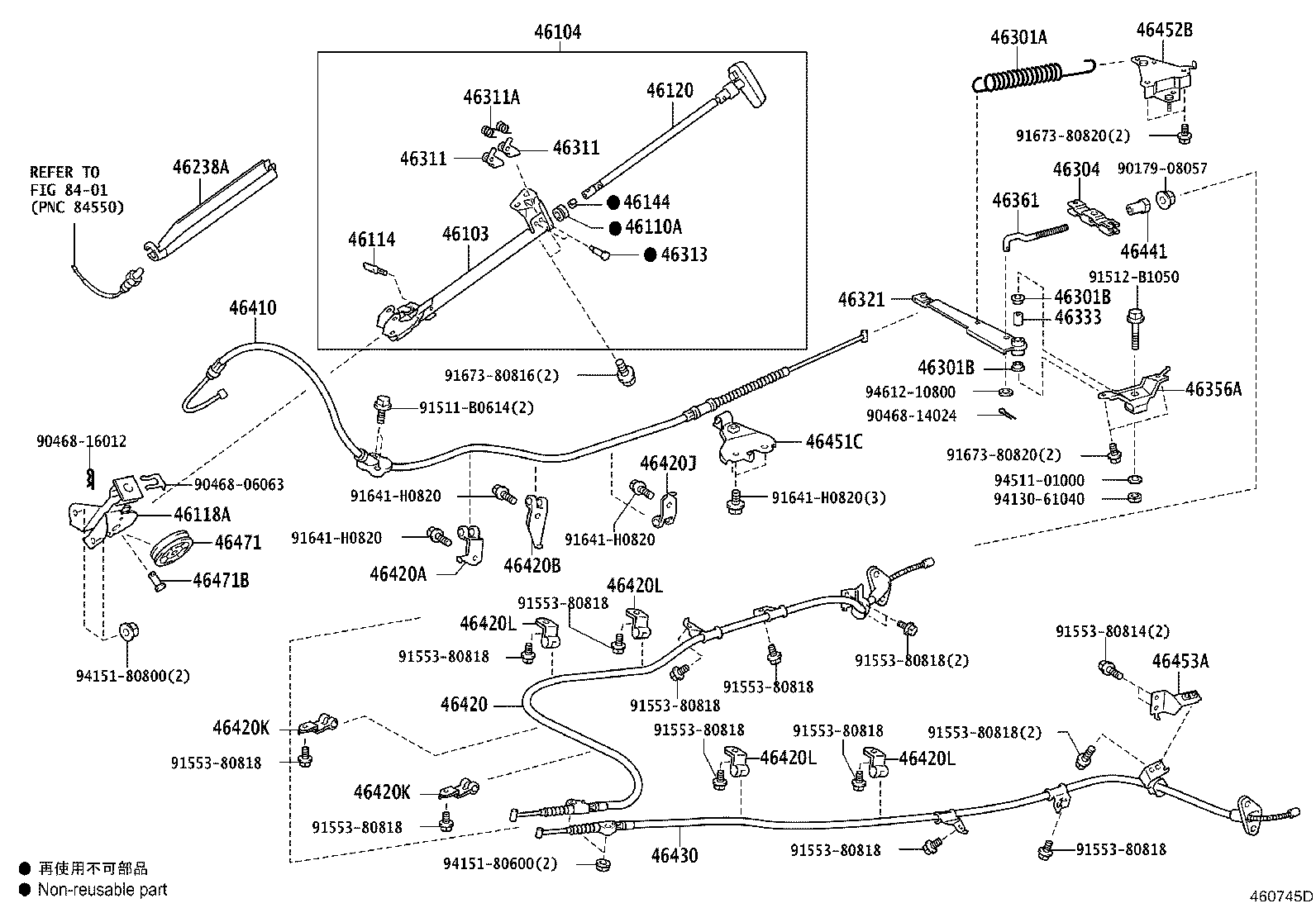

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER | ||||
| 46103-26220 |
KDH211,22#,TRH21#,22# |
1 | ||
| 46104 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL | ||||
| 46104-26230 |
KDH211,22#,TRH21#,22# |
1 | ||
| 46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER) | ||||
| 90386-11195 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-20010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 46118A - BRACKET, PLUNGER GUIDE SUPPORT | ||||
| 46118-26110 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 46120 - PLUNGER ASSY, PARKING BRAKE | ||||
| 46120-26170 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER | ||||
| 46144-30020 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 46238A - PROTECTOR, PARKING BRAKE PLUNGER | ||||
| 46238-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 46301A - SPRING, TENSION(FOR INTERMEDIATE LEVER) | ||||
| 46295-26011 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-16009 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-16009 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46304-28010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-26010 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-26010 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90508-08106 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 46313 - PIN, PARKING BRAKE PAWL | ||||
| 46313-40010 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 46321 - LEVER, PARKING BRAKE INTERMEDIATE | ||||
| 46321-26200 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 46333 - PIPE, INTERMEDIATE LEVER | ||||
| 46333-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 46356A - BRACKET, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46356-26170 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 46361 - ROD, PARKING BRAKE PULL | ||||
| 46361-26070 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-26490 |
KDH211,22#,TRH21#,22# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-26650 |
KDH22# |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-26010 |
KDH20#,22#,TRH200,21#,22# |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 46411-26020 |
KDH20#,22#,TRH200,21#,22# |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 46411-26030 |
KDH20#,22#,TRH200,21#,22# |
1 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 46421-26010 |
KDH20#,22#,TRH200,21#,22# |
2 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 46421-26010 |
KDH20#,22#,TRH200,21#,22# |
2 | ||
| 46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE) | ||||
| 46421-26020 |
KDH22#,TRH22# |
4 | ||
| 46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE) | ||||
| 46421-26020 |
KDH22#,TRH22# |
4 | ||
| 46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE) | ||||
| 46421-26020 |
KDH22#,TRH22# |
4 | ||
| 46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE) | ||||
| 46421-26020 |
KDH22#,TRH22# |
4 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-35010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 | ||||
| 46451-26230 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 46452B - BRACKET, CABLE SUPPORT, NO.2 | ||||
| 46452-26210 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-26080 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 46471 - PULLEY, WIRE | ||||
| 46471-30010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 46471B - PIN, W/HOLE(FOR WIRE PULLEY SET) | ||||
| 90240-08156 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| Common parts | ||||
| 90179-08057 | ||||
| 90468-06063 | ||||
| 90468-14024 | ||||
| 90468-16012 | ||||
| 91511-B0614 | ||||
| 91512-B1050 | ||||
| 91553-80814 | ||||
| 91553-80818 | ||||
| 91641-H0820 | ||||
| 91673-80816 | ||||
| 91673-80820 | ||||
| 94130-61040 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 94511-01000 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(1312- )GDH22#,KDH22#,TRH22#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0314 | ||||
| 90179-08057 | ||||
| 90468-06063 | ||||
| 90468-14021 | ||||
| 90468-16012 | ||||
| 91512-B1050 | ||||
| 91553-80616 | ||||
| 91553-80814 | ||||
| 91553-80818 | ||||
| 91641-H0820 | ||||
| 91673-80816 | ||||
| 91673-80820 | ||||
| 94130-61040 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 94185-60600 | ||||
| 94511-01000 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
