KDH222B-LEPDY (2005)

Toyota Hiace/Regiusace

Production Jan 2005 - Sep 2007
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )

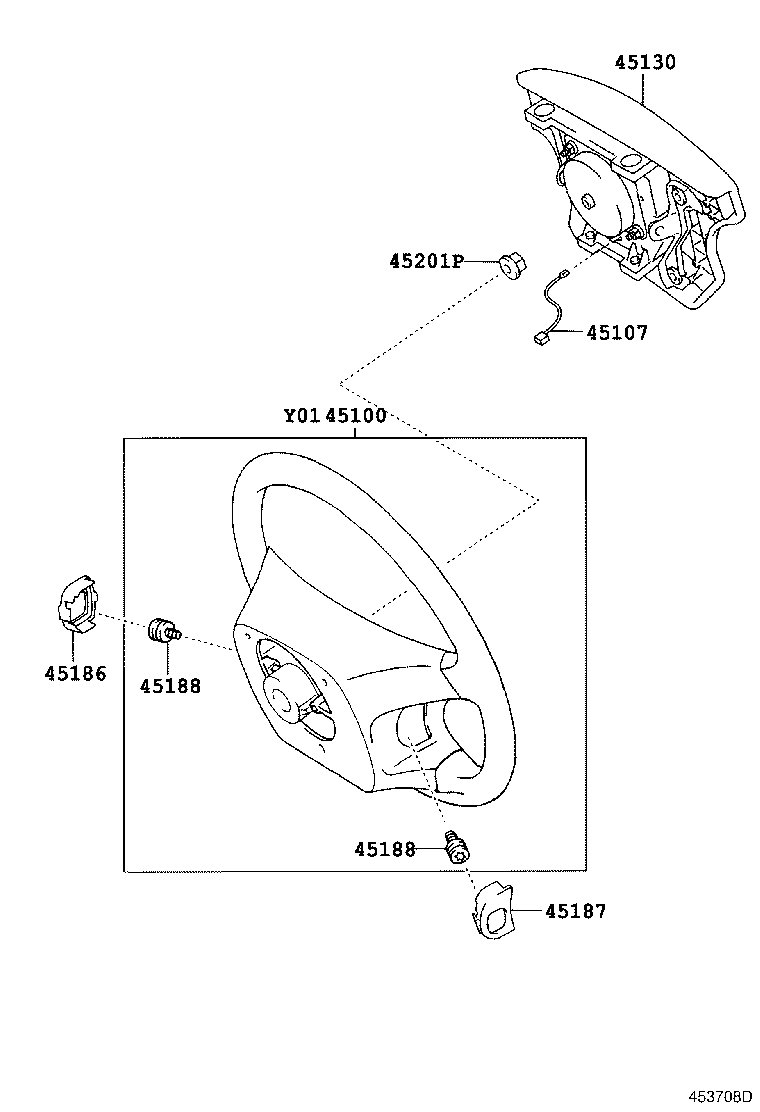

Click highlighted areas on diagram

4-SPOKE

diagram 45100 45107 45130 45186 45187 45188 45188 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-58010B0

KDH20#,211,22#,TRH200,21#,22#

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.GRAY,TRIM1#

 1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-26010

KDH20#,211,22#,TRH200,21#,22#

 1
45130 - BUTTON ASSY, HORN
45130-26360B0

KDH20#,22#,TRH200,21#,221,223,226,228..DX

DK.GRAY,TRIM1#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-58010B0

KDH20#,211,22#,TRH200,21#,22#

DK.GRAY,TRIM1#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-58010B0

KDH20#,211,22#,TRH200,21#,22#

DK.GRAY,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

KDH20#,211,22#,TRH200,21#,22#

長さ=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

KDH20#,211,22#,TRH200,21#,22#

長さ=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

KDH20#,211,22#,TRH200,21#,22#

 1

(1312- )

Click highlighted areas on diagram

4ﾎﾝｽﾎﾟｰｸ

diagram 45100 45107 45130 45186 45187 45201P 84258 84259 9015950199 9015950199
Part # Description Qty Price
Common parts
90159-50199

(1312- )

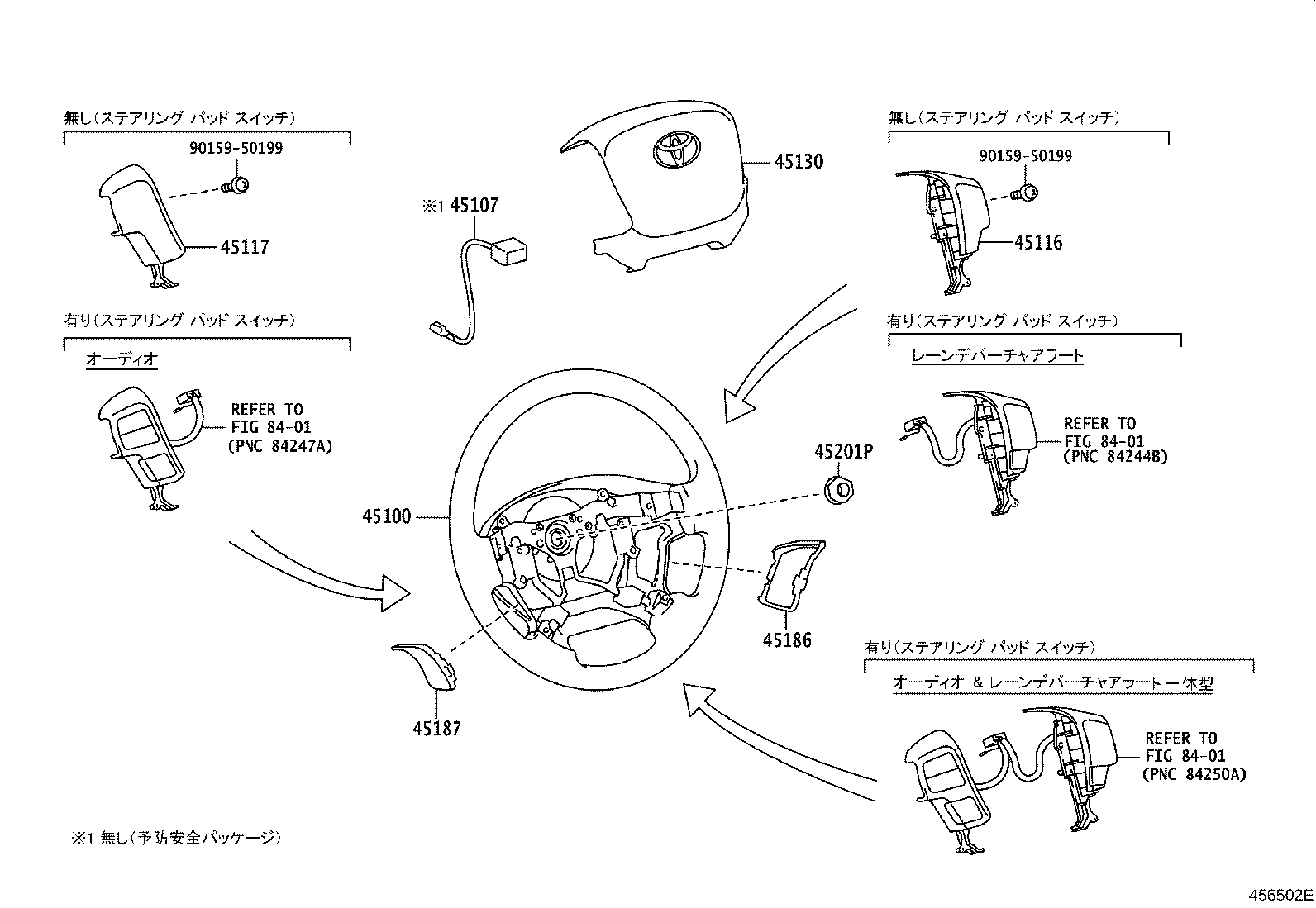

Click highlighted areas on diagram

4ﾎﾝｽﾎﾟｰｸ,ｱﾘ(ｽﾃｱﾘﾝｸﾞ ｽｲｯﾁ OR ｵｰﾅﾒﾝﾄ)

diagram 45100 45107 45116 45117 45130 45186 45187 45201P 8401 8401 8401 9015950199 9015950199
Part # Description Qty Price
Common parts
90159-50199
Linked diagrams
8401
